Removal Procedure
  1. Remove the front seat from the vehicle.
    2. 1.1. For the front bucket seat, refer to Front Seat Replacement - Bucket .
    1.2. For the split bench seat, refer to Split Bench Seat Replacement .
  2. Remove the front seat back. Refer to Front Seat Back Replacement .
  3. Remove the front seat cushion cover from the front seat cushion. Refer to Front Seat Cushion Cover Replacement .

    4. Object Number: 524682 Size: SH
  4. Remove the hog rings from the front seat cushion.

    5. Object Number: 524683 Size: SH
  5. Remove the front seat cushion from the front seat frame.

Installation Procedure

    Object Number: 524683 Size: SH
  1. Install the front seat cushion to the front seat frame.

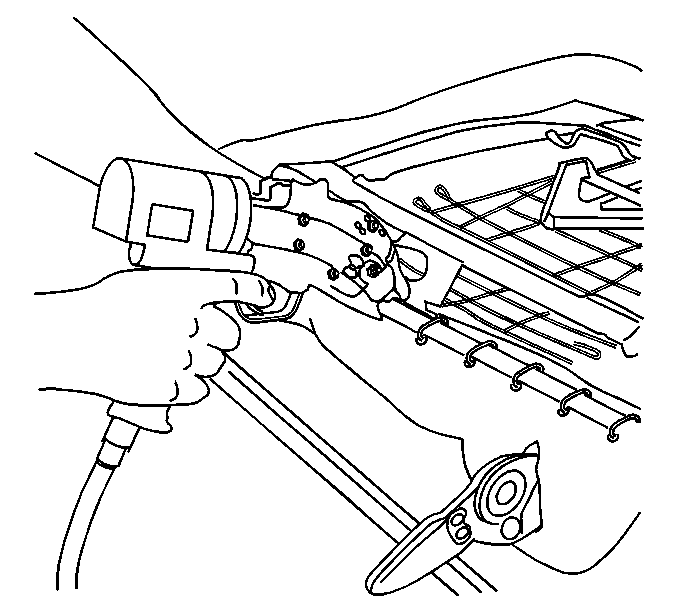

    2. Object Number: 524679 Size: SH
  2. Install the hog rings to the front seat cushion.
  3. Install the front seat cushion cover to the front seat cushion. Refer to Front Seat Cushion Cover Replacement .
  4. Install the front seat back. Refer to Front Seat Back Replacement .
  5. Install the front seat to the vehicle.
    6. 5.1. For the front bucket seat, refer to Front Seat Replacement - Bucket .
    5.2. For the split bench seat, refer to Split Bench Seat Replacement .
