| Table 1: | Electronic Brake Control Module (EBCM) |
| Table 2: | Traction Control Switch |
| Table 3: | Wheel Speed Sensor (WSS)-LF |
| Table 4: | Wheel Speed Sensor (WSS)-LR |
| Table 5: | Wheel Speed Sensor (WSS)-RF |
| Table 6: | Wheel Speed Sensor (WSS)-RR |
| |||||||
|---|---|---|---|---|---|---|---|

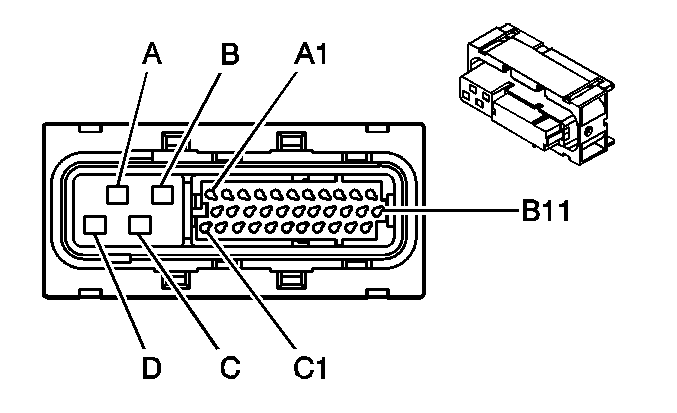

Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A1-A2 | -- | -- | Not Used | ||||
A3 | BLK | 884 | Left Rear Wheel Speed Sensor Signal | ||||
A4 | RED | 885 | Left Rear Wheel Speed Sensor Low Reference | ||||
A5 | WHT | 883 | Right Rear Wheel Speed Sensor Low Reference | ||||
A6 | BRN | 882 | Right Rear Wheel Speed Sensor Signal | ||||
A7 | TAN | 833 | Right Front Wheel Speed Sensor Low Reference | ||||
A8 | DK GRN | 872 | Right Front Wheel Speed Sensor Signal | ||||
A9 | YEL | 873 | Left Front Wheel Speed Sensor Low Reference | ||||
A10 | LT BLU | 830 | Left Front Wheel Speed Sensor Signal | ||||
A11 | PNK | 1339 | Ignition 1 Voltage | ||||
B1-B6 | -- | -- | Not Used | ||||
B7 | LT BLU | 1122 | ABS/TCS Class 2 Serial Data | ||||
B8-B9 | -- | -- | Not Used | ||||
B10 | WHT | 345 | Variable Effort Steering Actuator Low Effort Control | ||||
B11 | GRY | 1787 | Variable Effort Steering Actuator High Effort Control | ||||
C1 | TAN/BLK | 464 | Delivered Torque Signal (L67) | ||||
C2-C6 | -- | -- | Not Used | ||||
C7 | WHT | 17 | Stop Lamp Switch Signal | ||||
C8 | -- | -- | Not Used | ||||
C9 | ORN/BLK | 463 | Requested Torque Signal (L67) | ||||
C10 | -- | -- | Not Used | ||||
C11 | -- | -- | Vent Hose | ||||
A | RED | 1442 | Battery Positive Voltage | ||||
B | RED | 1442 | Battery Positive Voltage | ||||
C | BLK | 251 | Ground | ||||
D | BLK | 251 | Ground | ||||
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A | BLK | 1550 | Ground | ||||
B | -- | -- | Not Used | ||||
C | GRY | 8 |
Instrument Panel Lamps Dimmer Switch Signal | ||||
D | BRN/WHT | 1571 | Traction Control Switch Signal | ||||
E - F | -- | -- | Not Used | ||||
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A | LT BLU | 830 | Left Front Wheel Speed Sensor Signal | ||||
B | YEL | 873 | Left Front Wheel Speed Sensor Low Reference | ||||
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A | BLK | 884 | Left Rear Wheel Speed Sensor Signal | ||||
B | RED | 885 | Left Rear Wheel Speed Sensor Low Reference | ||||
|
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A | DK GRN | 872 | Right Front Wheel Speed Sensor Signal | ||||
B | TAN | 833 | Right Front Wheel Speed Sensor Low Reference | ||||
|
| |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information |
| ||||||
Pin | Wire Color | Circuit No. | Function | ||||
A | BRN | 882 | Right Rear Wheel Speed Sensor Signal | ||||
B | WHT | 883 | Right Rear Wheel Speed Sensor Low Reference | ||||
