Makes 🢒 Buick 🢒 2000 🢒 GL7 (Export) 🢒 Engine 🢒 Engine Controls - 3.0L (LW9) 🢒 Ground Distribution Schematics
Figure 1:

G101 and G102
Object Number: 645867 Size: FS
Figure 2:

G100, G111 and G113
Object Number: 645892 Size: FS
Figure 3:

G114 and G117
Object Number: 645897 Size: FS
Figure 4:

G200
Object Number: 645929 Size: FS
Figure 5:

G200
Object Number: 645930 Size: FS
Figure 6:

G200
Object Number: 645931 Size: FS
Figure 7:

G200, G201 and G301
Object Number: 645932 Size: FS
Figure 8:

G302
Object Number: 645933 Size: FS
Figure 9:

G302
Object Number: 645934 Size: FS
Figure 10:

G401
Object Number: 645935 Size: FS

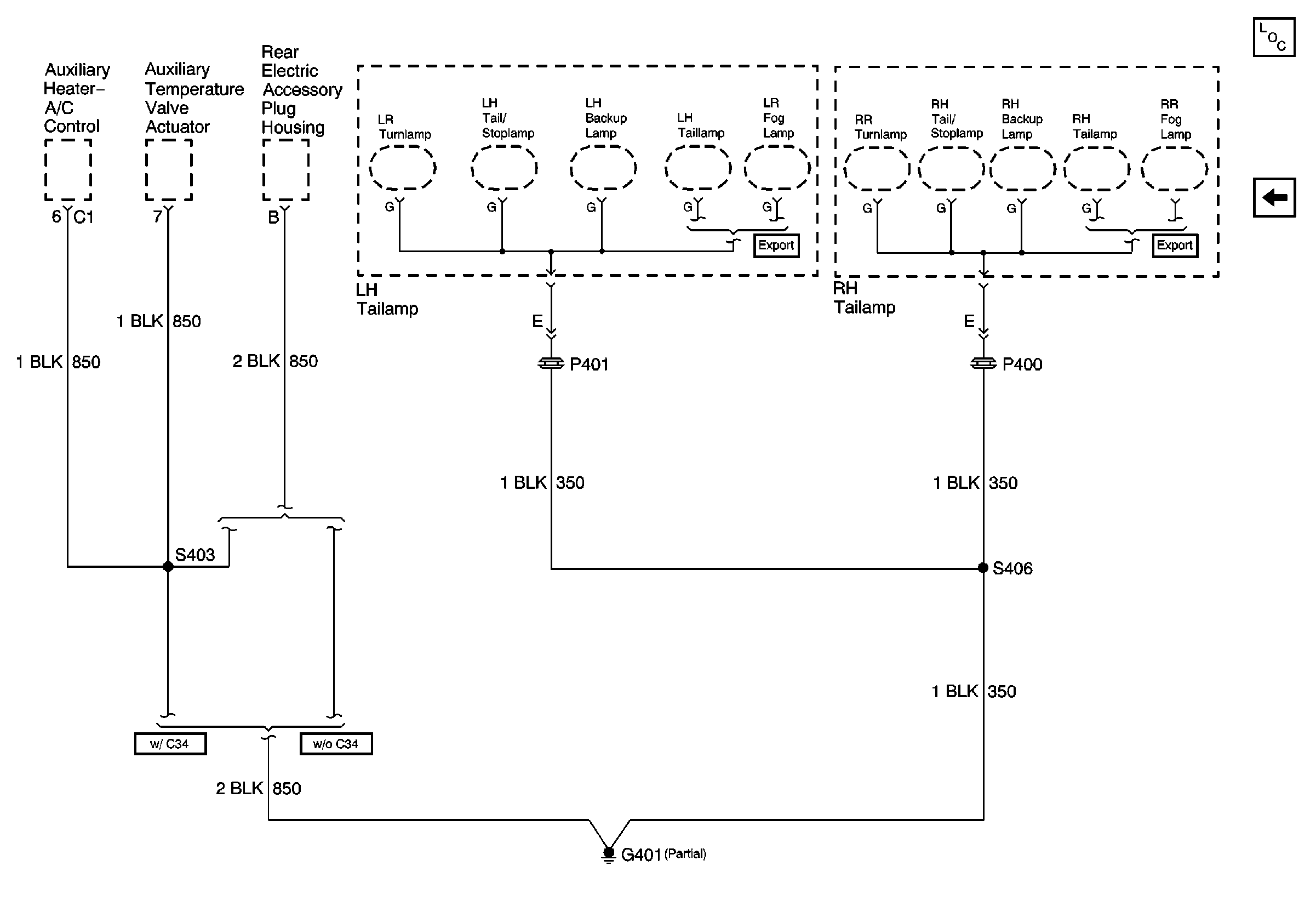

Figure 11:

G401 and G402
Object Number: 645937 Size: FS
