Makes 🢒 Buick 🢒 2000 🢒 LeSabre 🢒 Body and Accessories 🢒 Lighting Systems 🢒 Entertainment Connector End Views
Table 1: Radio
Table 2: LH Front Door Speaker
Table 3: LH Front Door Speaker (Tweeter)
Table 4: LH Rear Speaker
Table 5: RH Front Door Speaker
Table 6: RH Front Door Speaker (Tweeter)
Table 7: RH Rear Speaker
Table 8: Radio Antenna Module
Table 9: Compact Disc (CD) Changer (U1S)

Radio

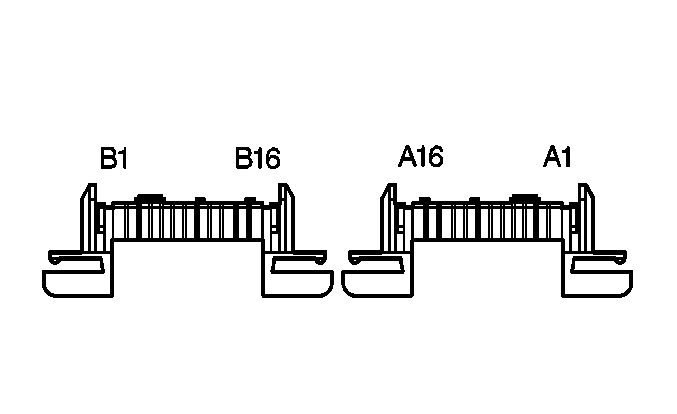

Object Number: 493173 Size: CH

Connector Part Information
    • 15317985
    • 32 Way M Flex (DK GRY)

Pin*

Wire Color

Circuit No.

Function

A1

Flex

1807

Data Link Connector

A2

Flex

1807

Data Link Connector

A3

--

--

Not Used

A4

Flex

1486

FM Composite

A5-A8

--

--

Not Used

A9

Flex

372

Auxiliary Input, Common (-)

A10

Flex

367

Auxiliary Input, Left (+)

A11

Flex

368

Auxiliary Input, Right (+)

A12

Flex

199

Left Rear Speaker Output (+)

A13

Flex

116

Left Rear Speaker Output (-)

A14

Flex

117

Right Front Speaker Output (-)

A15

Flex

200

Right Front Speaker Output (+)

A16

Flex

551

Ground

B1

Flex

2240

Battery Positive Voltage

B2

Flex

2240

Battery Positive Voltage

B3

Flex

1487

Antenna Power Output

B4

Flex

1491

Lighting Power Input

B5

Flex

350

Lighting Ground

B6-B11

--

--

Not Used

B12

Flex

201

Left Front Speaker Output (+)

B13

Flex

118

Left Front Speaker Output (-)

B14

Flex

115

Right Rear Speaker Output (-)

B15

Flex

46

Right Rear Speaker Output (+)

B16

Flex

551

Ground

* A Pins = Bottom

B Pins = Top

LH Front Door Speaker


Object Number: 280768 Size: CH

Connector Part Information
    • 12052832
    • 2 Way F Metri-pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

GRY

118

Speaker Return - Left Front

B

TAN

201

Speaker Feed - Left Front

LH Front Door Speaker (Tweeter)


Object Number: 82383 Size: CH

Connector Part Information
    • 12047662
    • 2 Way F Metri-pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

GRY

118

Speaker Return - Left Front

B

TAN

201

Speaker Feed - Left Front

LH Rear Speaker


Object Number: 280768 Size: CH

Connector Part Information
    • 12052832
    • 2 Way F Metri-pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

YEL

116

Speaker Return - Left Rear

B

BRN

199

Speaker Feed - Left Rear

RH Front Door Speaker


Object Number: 280768 Size: CH

Connector Part Information
    • 12052832
    • 2-Way F Metri - Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

DK GRN

117

Speaker Return - Right Front

B

LT GRN

200

Speaker Feed - Right Front

RH Front Door Speaker (Tweeter)


Object Number: 82383 Size: CH

Connector Part Information
    • 12047662
    • 2-Way F Metri - Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

DK GRN

117

Speaker Return - Right Front

B

LT GRN

200

Speaker Feed - Right Front

RH Rear Speaker


Object Number: 280768 Size: CH

Connector Part Information
    • 12052832
    • 2 Way F Metri-pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

LT BLU

115

Speaker Return - Right Rear

B

DK BLU

46

Speaker Feed - Right Rear

Radio Antenna Module


Object Number: 258666 Size: CH

Connector Part Information
    • AMP # 172166-1
    • 3 Way M Metri-pack 150 Series (WHT)

Pin

Wire Color

Circuit No.

Function

1

--

--

Not Used

2

WHT

1487

Switched Antenna Enable Output

3

RED/WHT

1486

FM Composite Band Select Signal

Compact Disc (CD) Changer (U1S)


Object Number: 62435 Size: CH

Connector Part Information
    • 12047531
    • 10 Way F Micro-pack 100 Series (BLK)

Pin

Wire Color

Circuit No.

Function

1

BRN/WHT

367

Remote Radio Left Audio Signal

2

DK GRN/WHT

368

Remote Radio Right Audio Signal

3

BLK/WHT

372

Remote Radio Audio Output (-)

4

BARE

1782

Shield Ground

5

ORN

2640

Battery Positive Voltage

6

--

--

Not Used

7

BLK/WHT

551

Ground

8

--

--

Not Used

9

PPL

1807

Serial Data

10

PPL

1807

Serial Data
