Antilock Brake System Schematics. Buick LeSabre 2001

For 1990-2009 cars only

Makes 🢒 Buick 🢒 2001 🢒 LeSabre 🢒 Brakes 🢒 Antilock Brake System 🢒 Antilock Brake System Schematics

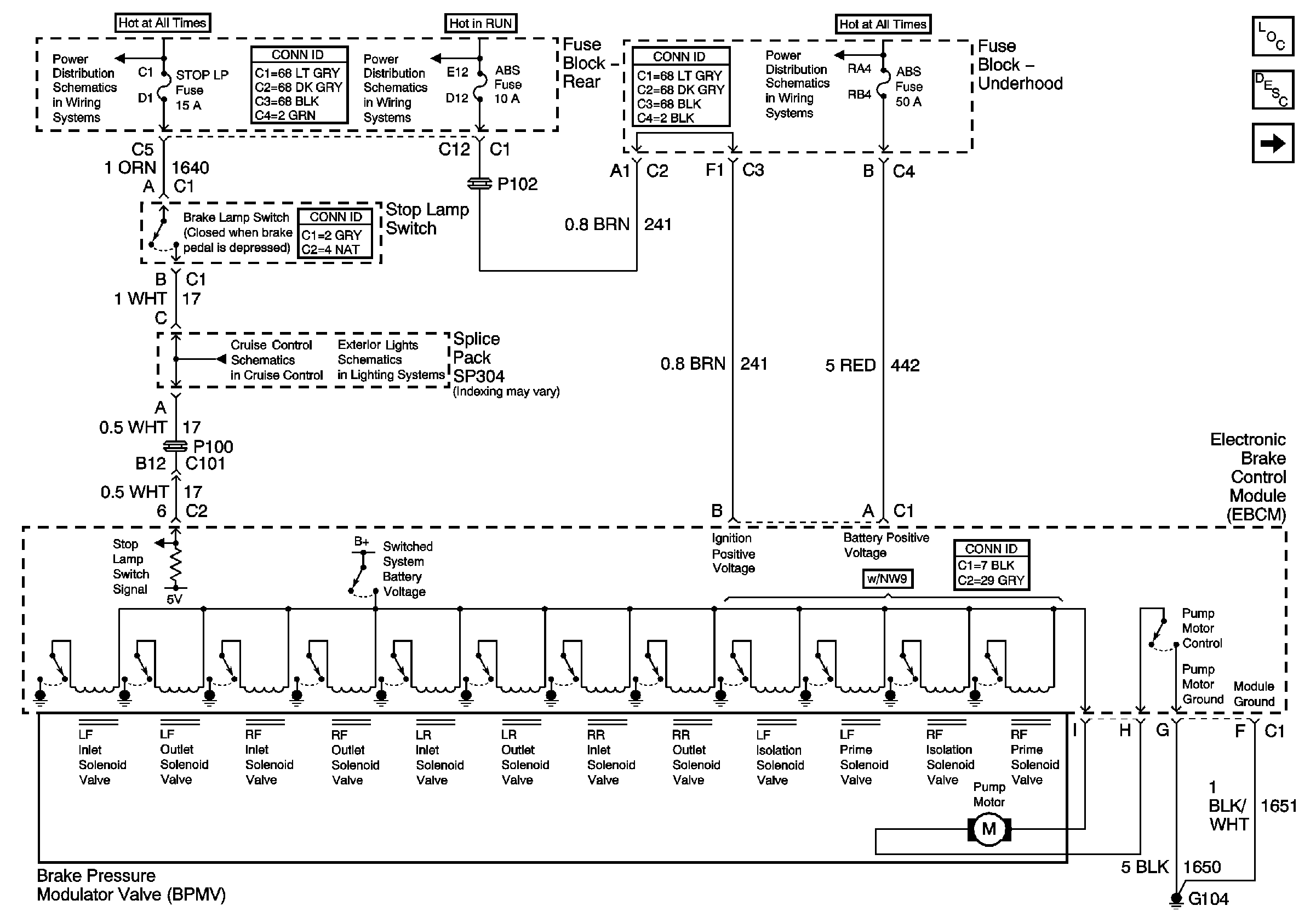

Figure 1:	PWR, GND, Stoplamp Switch, Solenoid Valves, and Pump Motor Master Electrical Component List ABS Description and Operation Wheel Speed Sensors Turn Signal Switch and Hazard Flasher Module Inputs CCM, PCM Controls and Vehicle Speed Input TSIG/HAZ, STOP LP, AUDIO and CD Fuses (Rear Fuse Block) IGN 3 and ABS Fuses (Rear Fuse Block) High Beam and Low Beam Relays, ABS, PCM Batt, High Beam and Low Beam Fuses (Underhood Fuse Block)

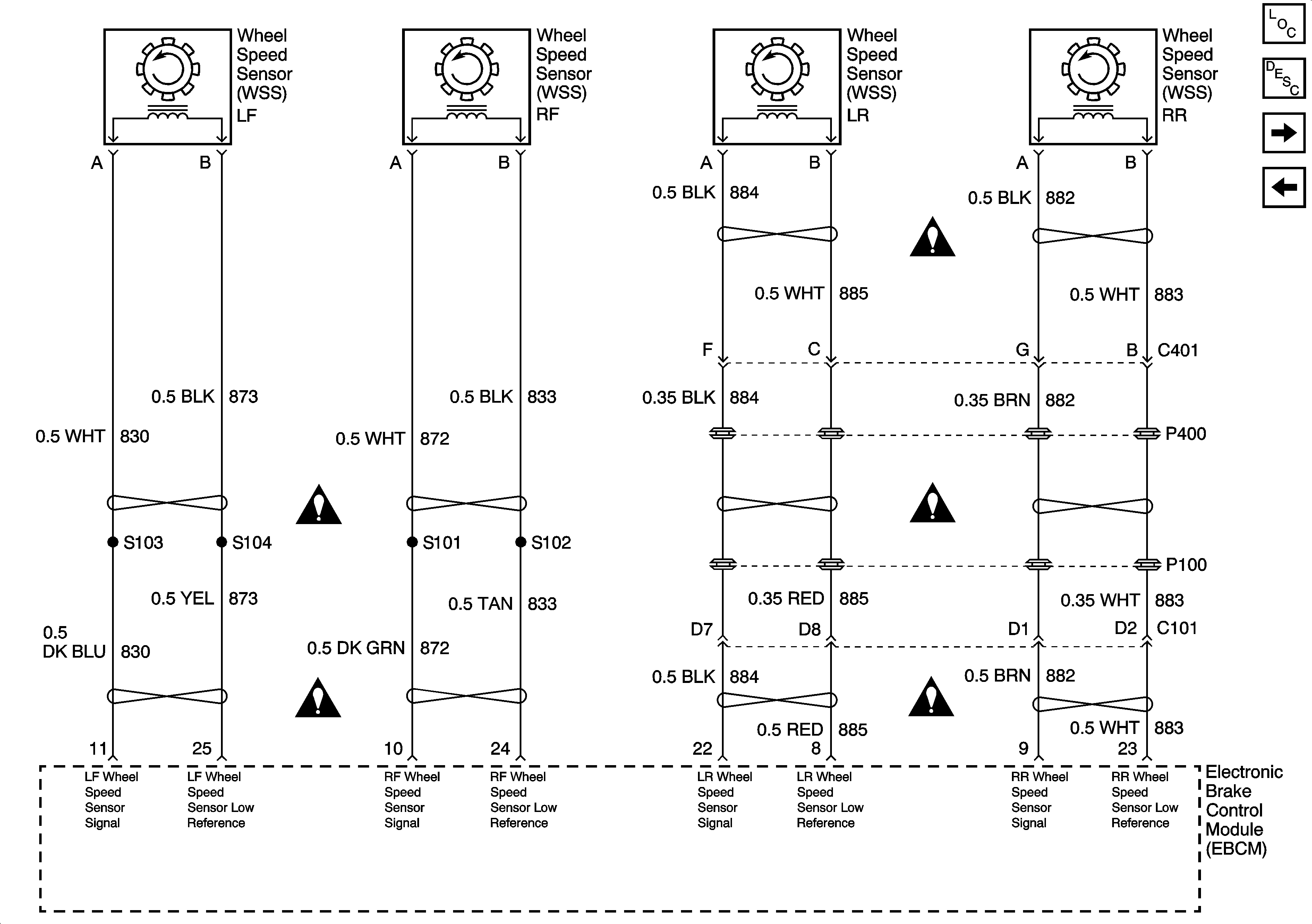

Figure 2:	Wheel Speed Sensors Master Electrical Component List ABS Description and Operation Vehicle Stability Enhancement System (w/JL4) PWR, GND, Stoplamp Switch, Solenoid Valves, and Pump Motor

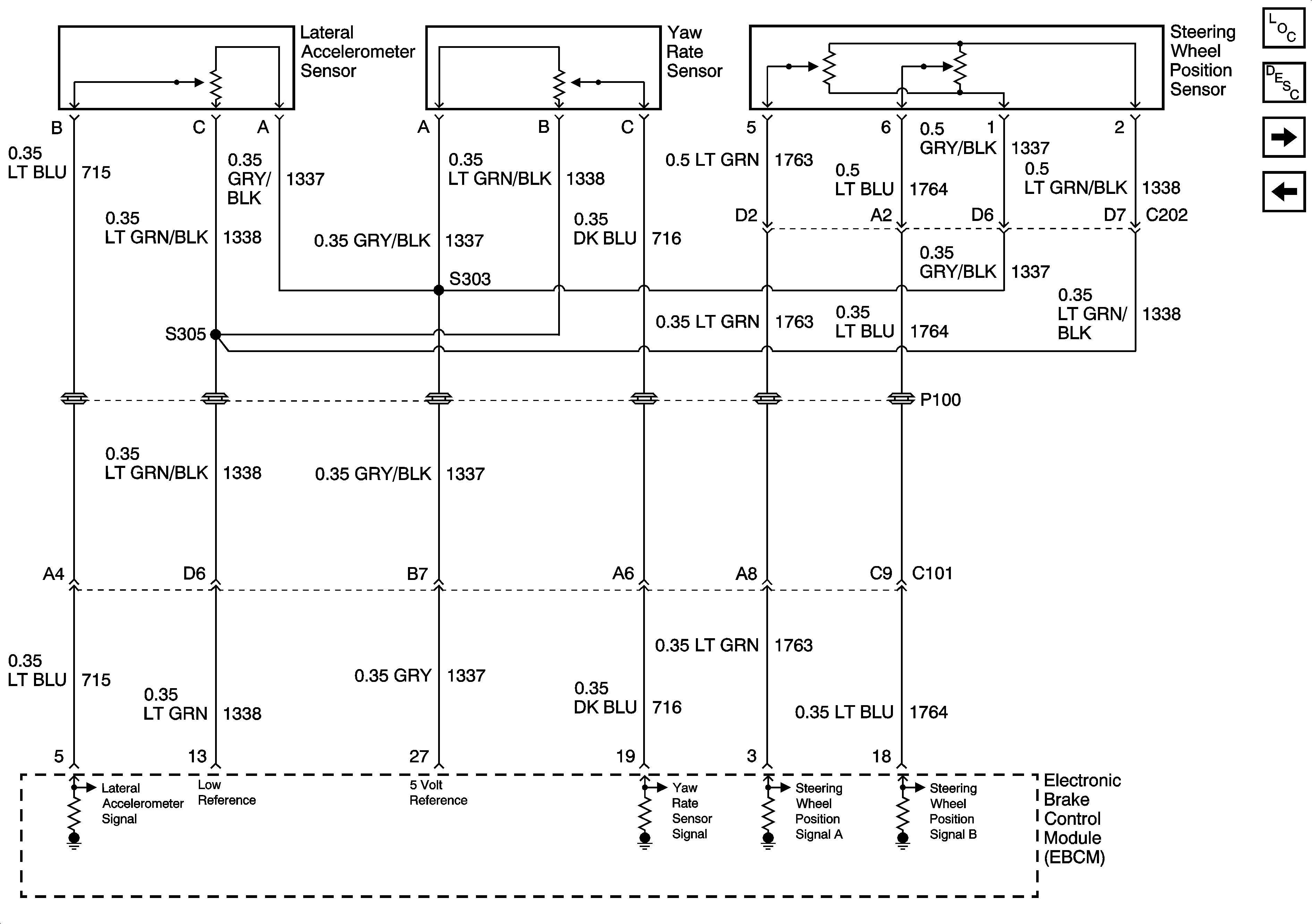

Figure 3:	Vehicle Stability Enhancement System (w/JL4) Master Electrical Component List ABS Description and Operation Indicators and Traction Control Switch Wheel Speed Sensors
Figure 4:	Traction Control (w/NW9)
Figure 5:	Indicators and Traction Control Switch Master Electrical Component List ABS Description and Operation Vehicle Stability Enhancement System (w/JL4) Serial Data Class 2 G200 (1 of 2) G200 (1 of 2) Serial Data Class 2
