Preliminary Procedure

1. Disable the SIR system. Refer to SIR Disabling and Enabling .
2. Remove the front driver seat. Refer to Driver and Passenger Seat Replacement .
3. Remove the front seat cushion cover and pad. Refer to Seat Cushion Trim Cover and Pad Replacement .

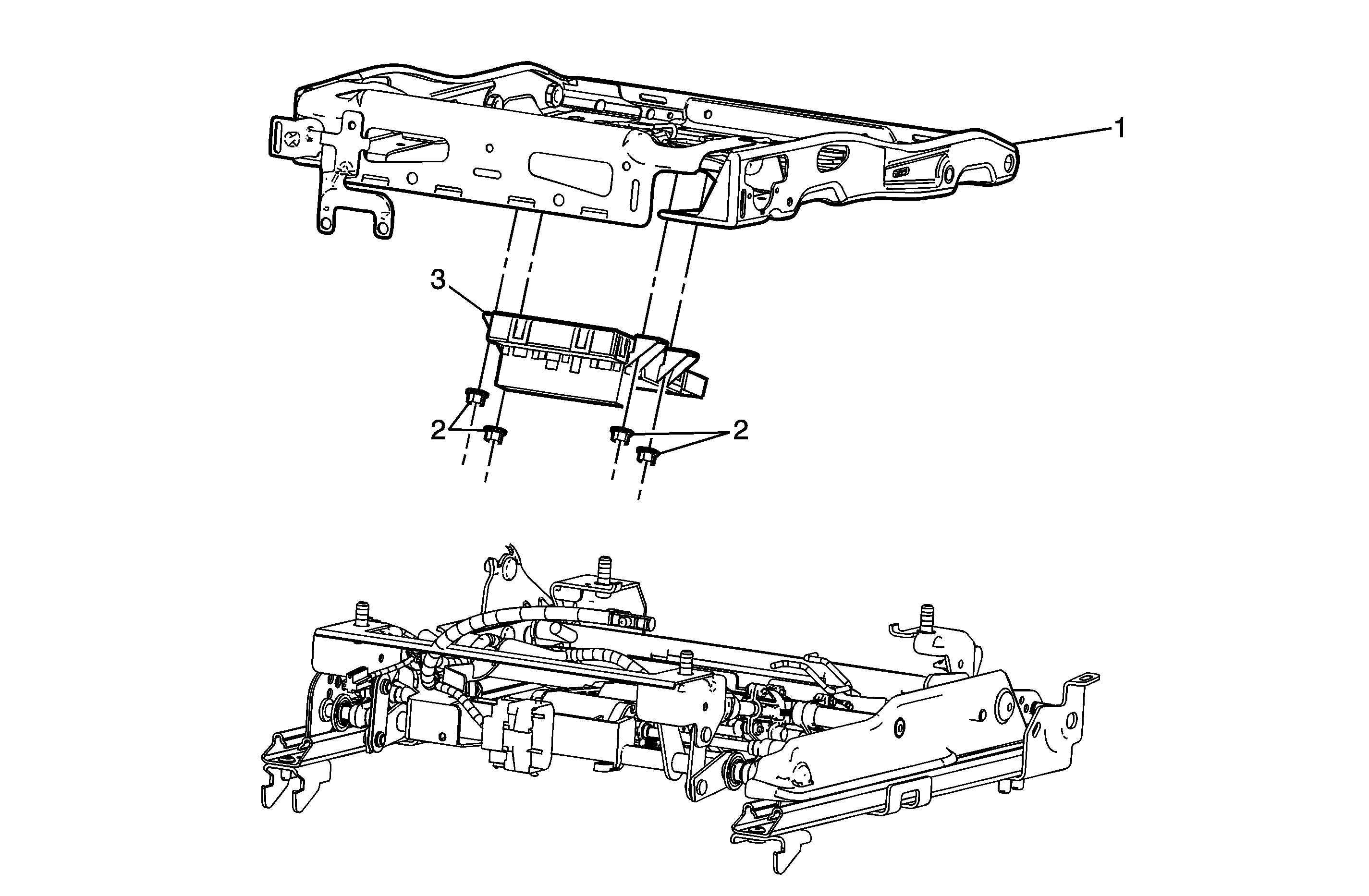

1

Frame, Seat Cushion

Refer to Front Seat Cushion Frame Replacement .

2

Nut, Front Seat Adjustable Memory Module (Qty: 4)

Notice: Refer to Fastener Notice in the Preface section.

Tighten
3 N·m (25 lb in)

3

Module, Front Seat Adjustable Memory

Tip
Disconnect the electrical connector.

Refer to Control Module References for programming and setup information.
