Power Seats Schematics for Buick Park Avenue 1998
Figure
1:

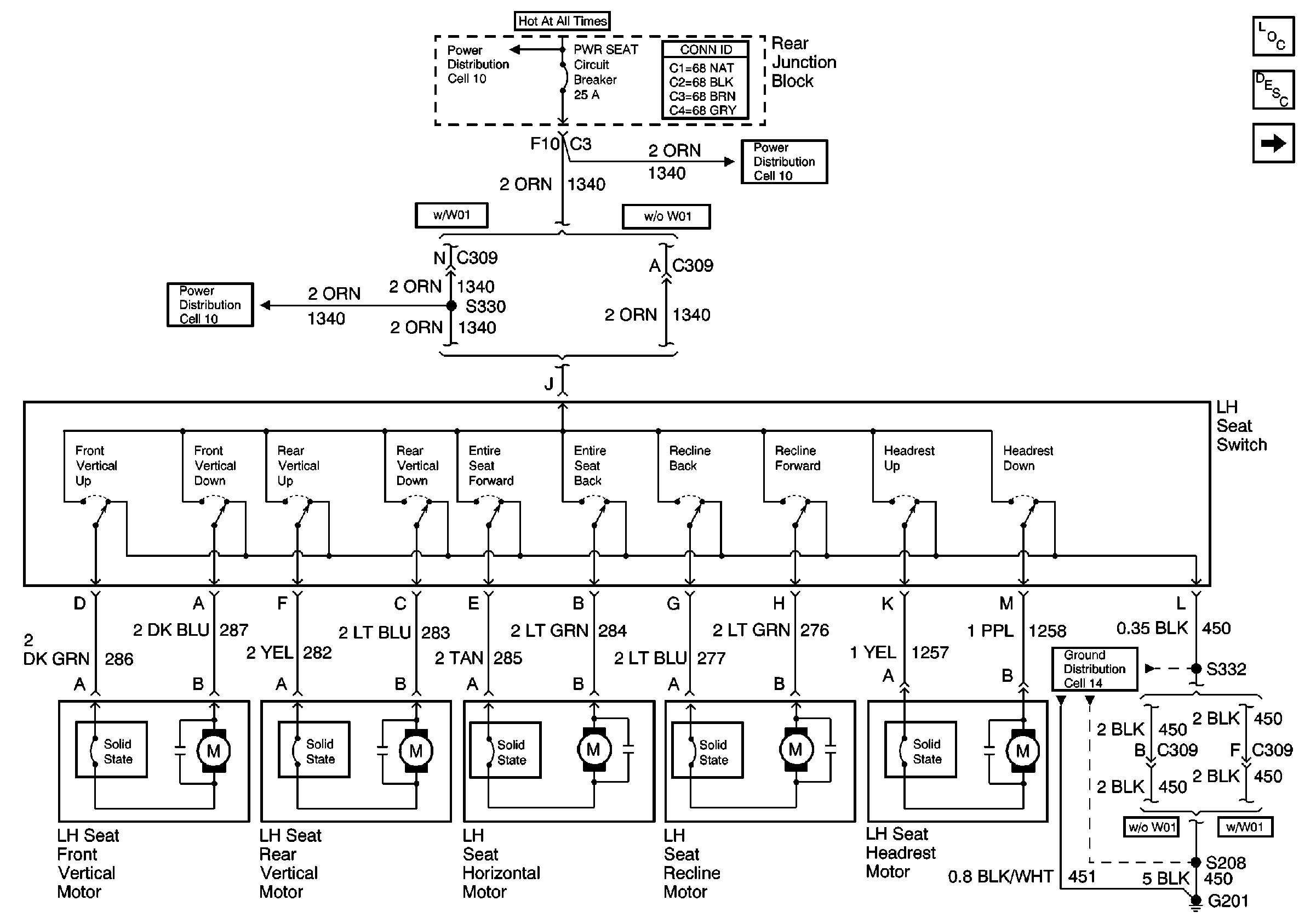

Cell 140: Left Power Seat (w/o A43)
Power and Grounding Connector End Views
Power Distribution Schematics
Power Distribution Schematics
Ground Distribution Schematics
Power Distribution Schematics
Power Seat Systems Components
Power Seats Circuit Description
Cell 140: Right Power Seat
Figure
2:

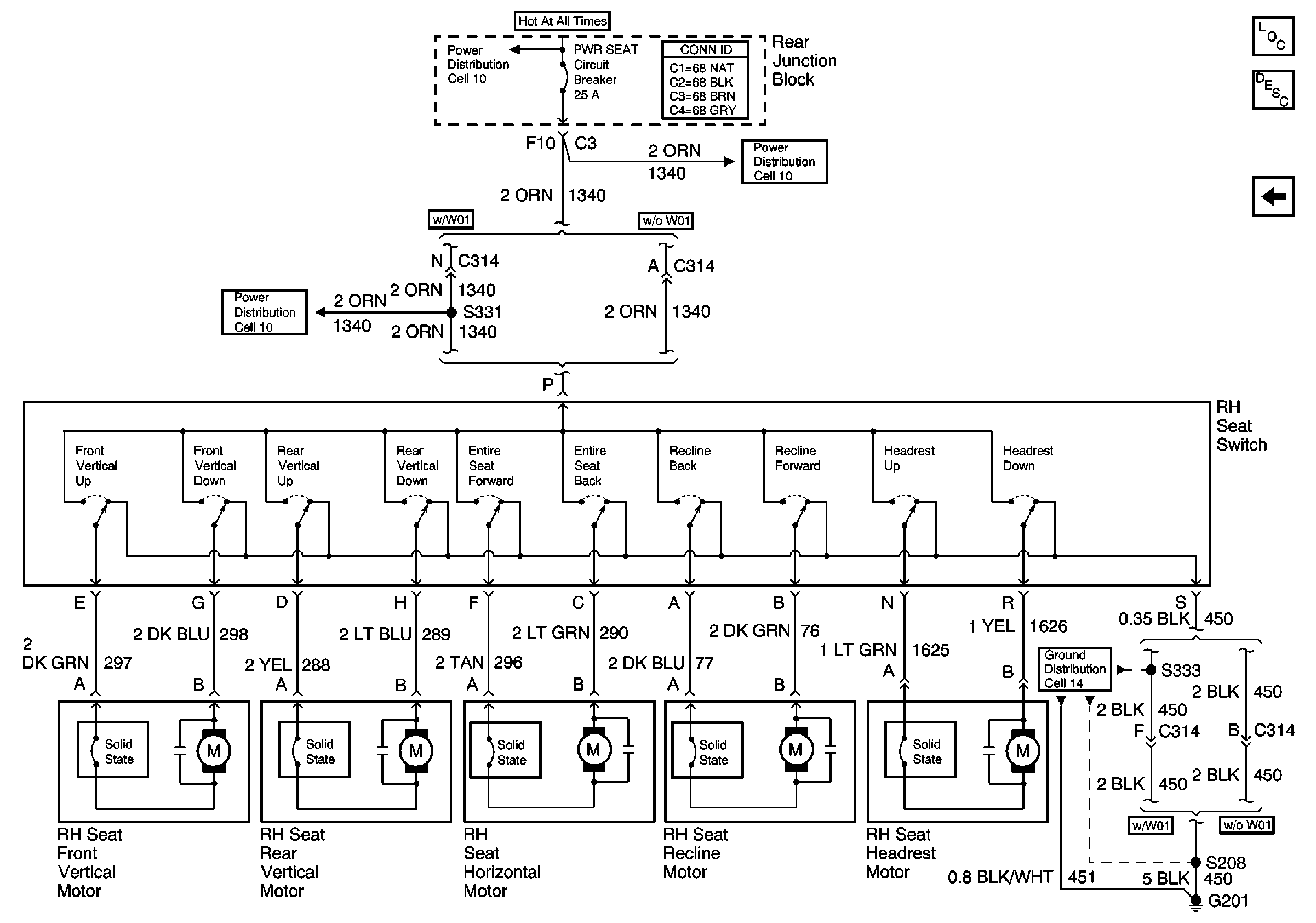

Cell 140: Right Power Seat
Power Distribution Schematics
Power Distribution Schematics
Power and Grounding Connector End Views
Ground Distribution Schematics
Power Distribution Schematics
Cell 140: Left Power Seat (w/o A43)
Power Seats Circuit Description
Power Seat Systems Components
