Table 1: Brake Fluid Level Switch
Table 2: Park Brake Switch
Table 3: Brake Fluid Level Indicator Switch

Brake Fluid Level Switch


Object Number: 518983 Size: CH

Connector Part Information
    • 12162195
    • 2-Way F Metric-Pack 150.2 (Pull to Seat ) Sealed Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

BLK

1550

Ground

B

PPL

209

Low Brake Fluid Indicator Control

Park Brake Switch

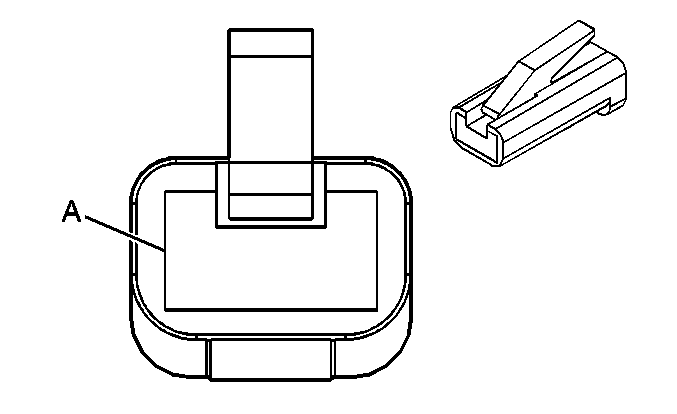

Object Number: 35348 Size: CH

Connector Part Information
    • 12004267
    • 1-Way F 56 Series Lock Type (BLK)

Pin

Wire Color

Circuit No.

Function

A

LT BLU

1830

DRL Park Brake On Signal

Brake Fluid Level Indicator Switch


Object Number: 232831 Size: CH

Connector Part Information
    • 12162195
    • 2-Way F Metric-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

BLK

1550

Ground

B

PPL

209

Low Brake Fluid Indicator Control
