Radio/Audio System Schematics. Buick Regal 2001

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Buick 🢒 2001 🢒 Regal 🢒 HVAC 🢒 HVAC Systems - Automatic 🢒 Radio/Audio System Schematics

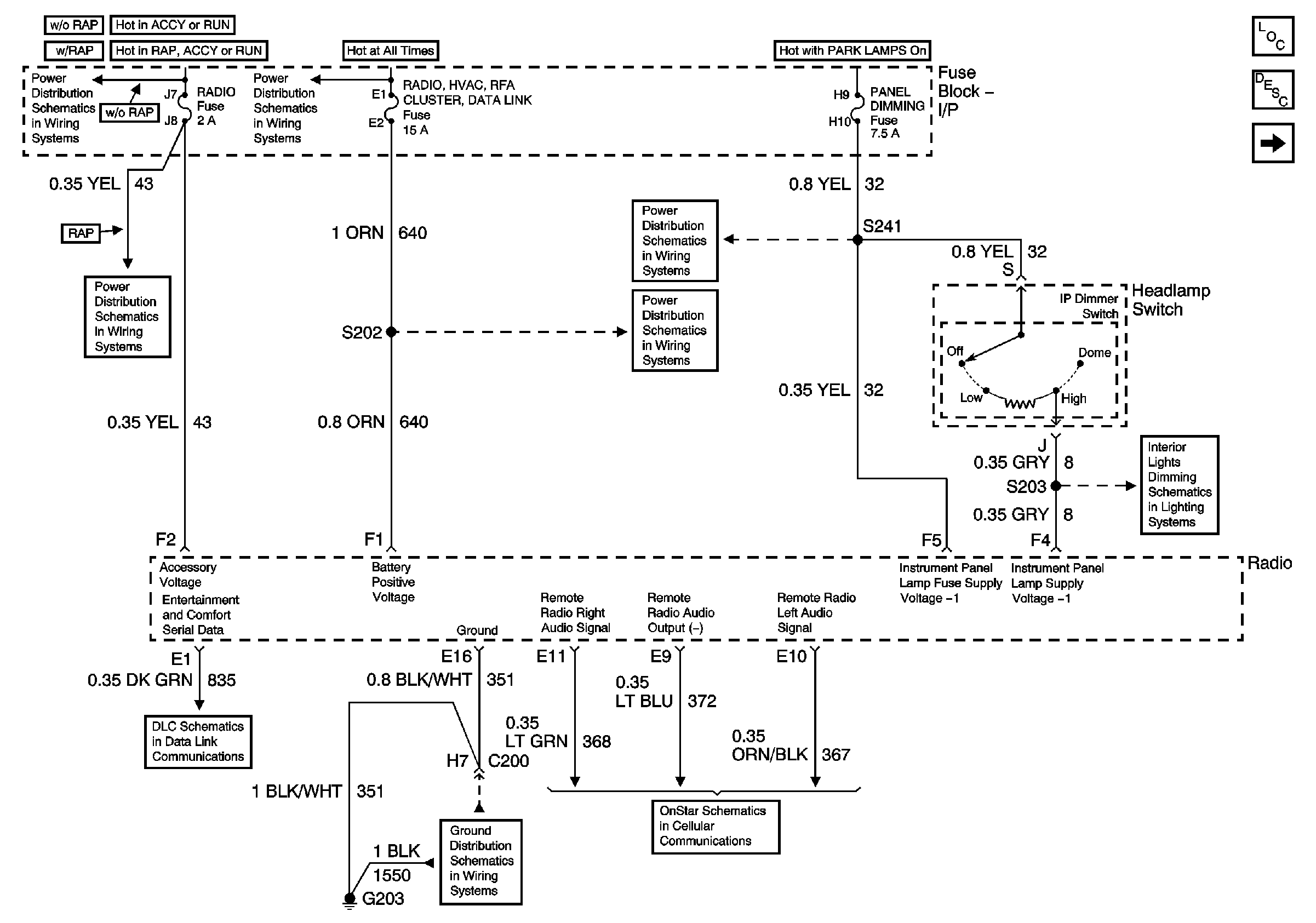

Figure 1:	Power, Ground, and DLC Master Electrical Component List Radio/Audio System Description and Operation UQ3 Speakers IGN 2 BCM, Power Drop, SW. Switchs Batt 1 Fuse Lighting Batt 1 Fuse IP Dimmer Switch, HVAC, and IPC DLC G203, Page 1 of 2 Inputs and Outputs

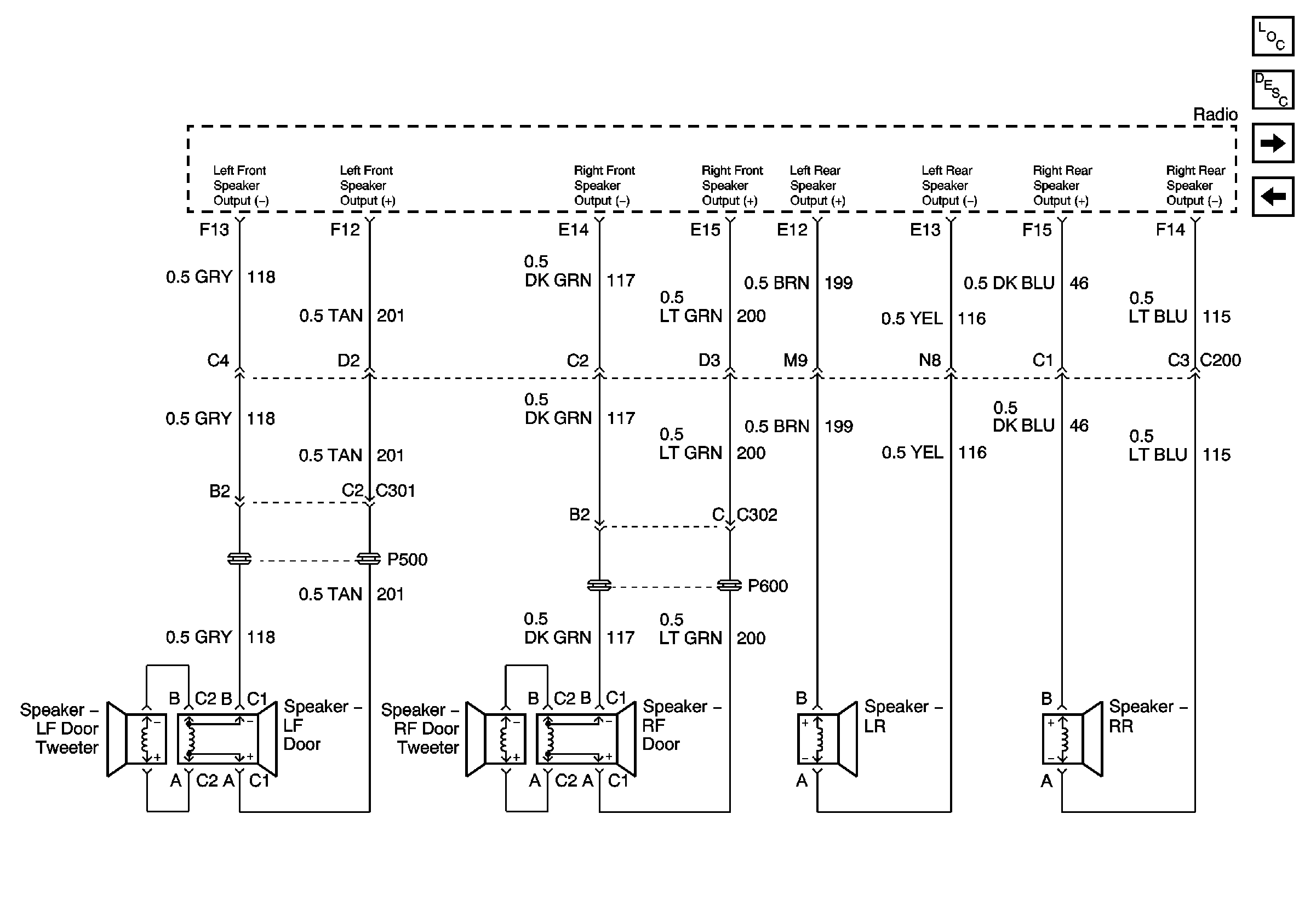

Figure 2:	UQ3 Speakers Master Electrical Component List Radio/Audio System Description and Operation Bose® Low Level Audio Signals Power, Ground, and DLC

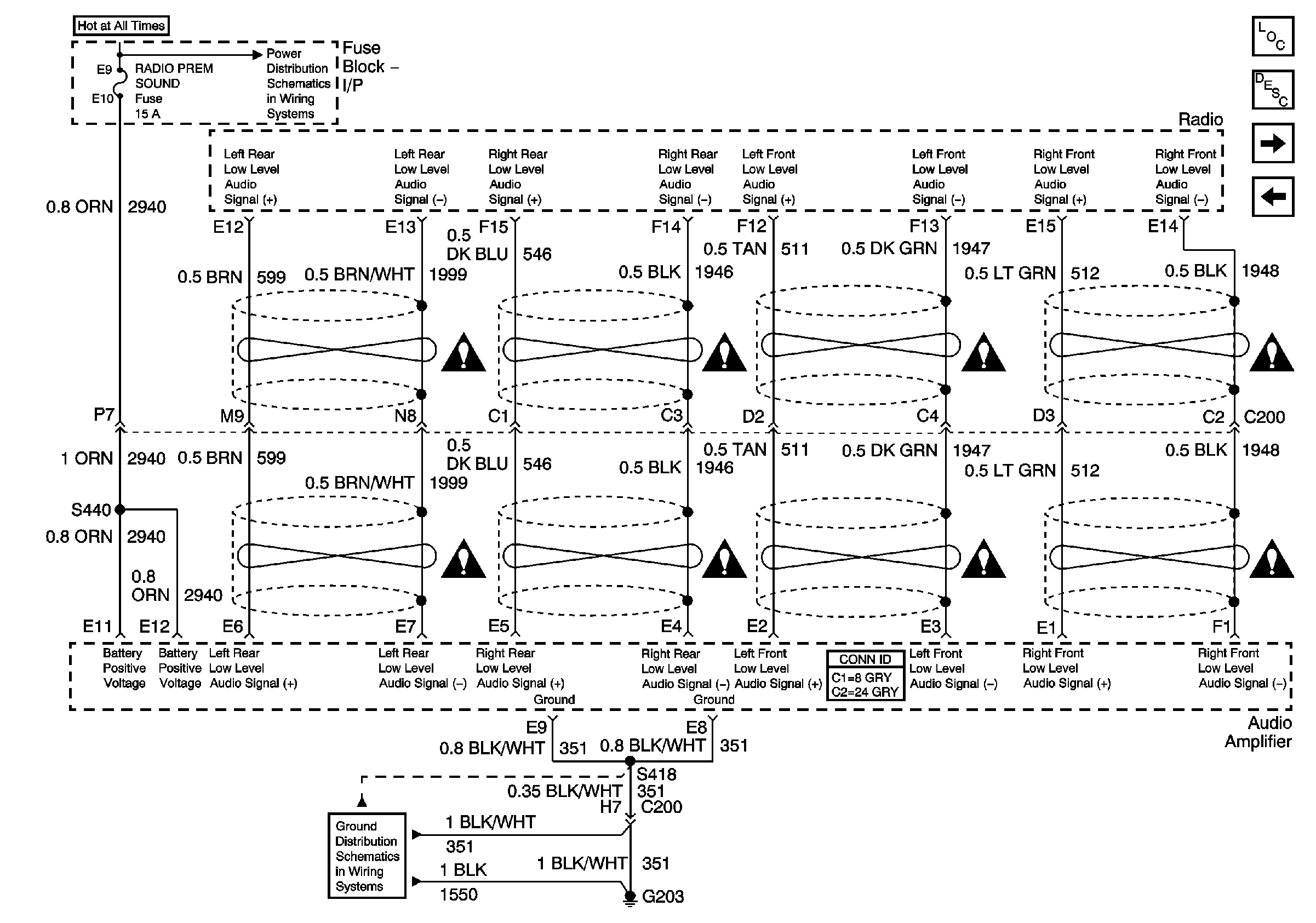

Figure 3:	Bose® Low Level Audio Signals Master Electrical Component List Radio/Audio System Description and Operation Rear Speakers Bose® UQ3 Speakers Batt 1 Fuse Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons Entertainment Schematic Icons G203, Page 2 of 2
Figure 4:	Rear Speakers Bose® Master Electrical Component List Radio/Audio System Description and Operation Front Speakers Bose® Bose® Low Level Audio Signals

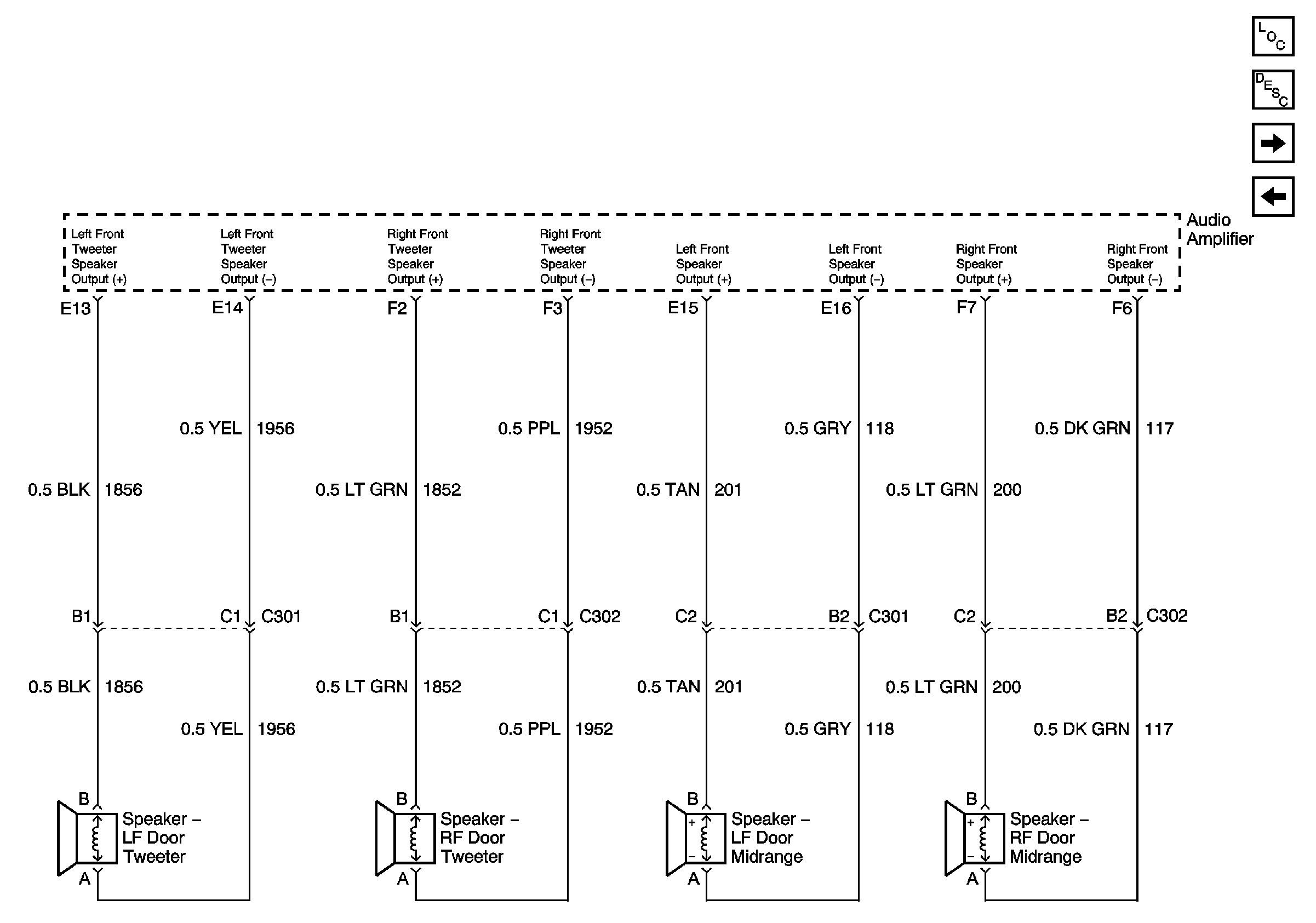

Figure 5:	Front Speakers Bose® Master Electrical Component List Radio/Audio System Description and Operation Antenna Module Rear Speakers Bose®

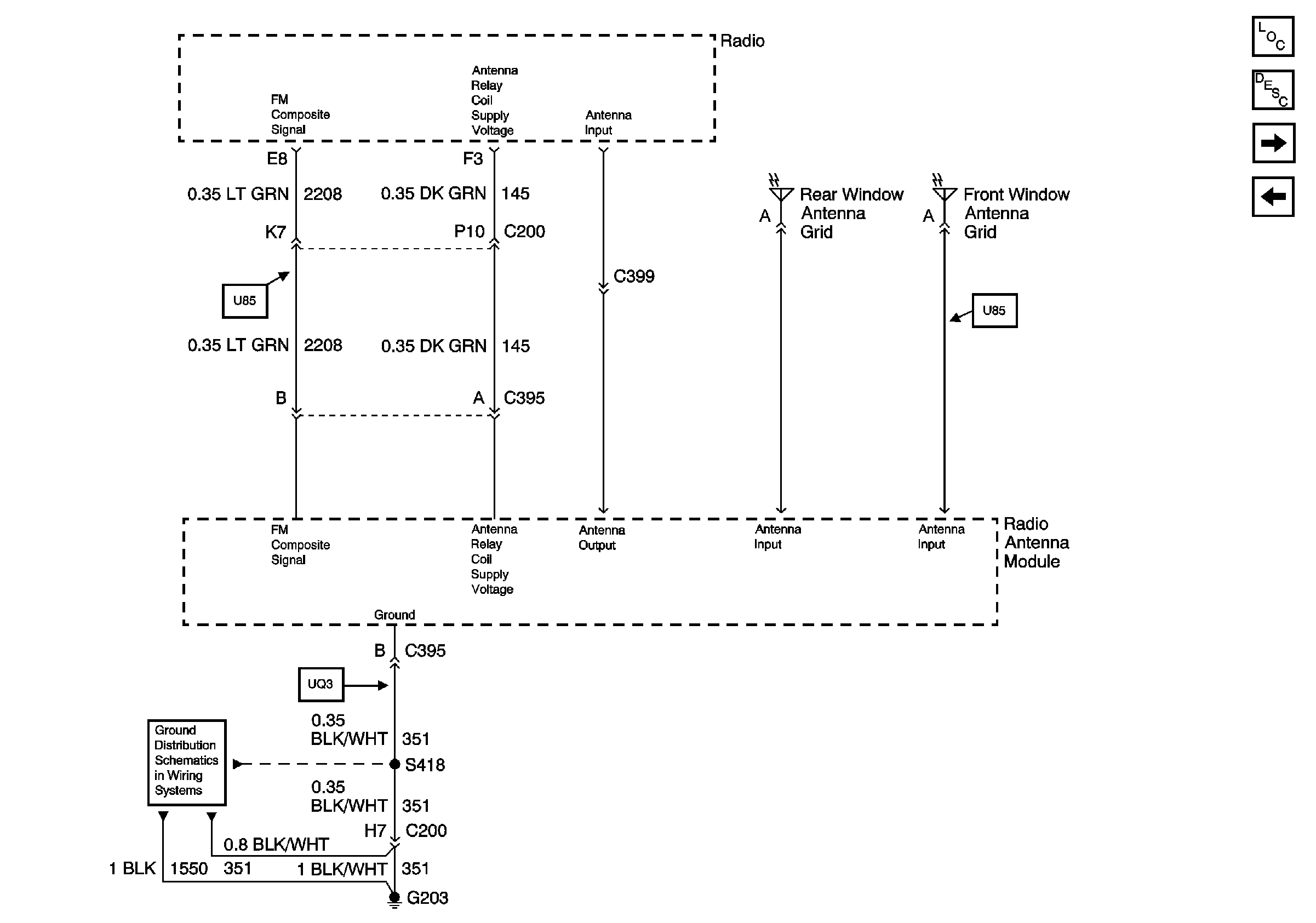

Figure 6:	Antenna Module Master Electrical Component List Radio/Audio System Description and Operation Steering Wheel Controls Front Speakers Bose® G203, Page 1 of 2

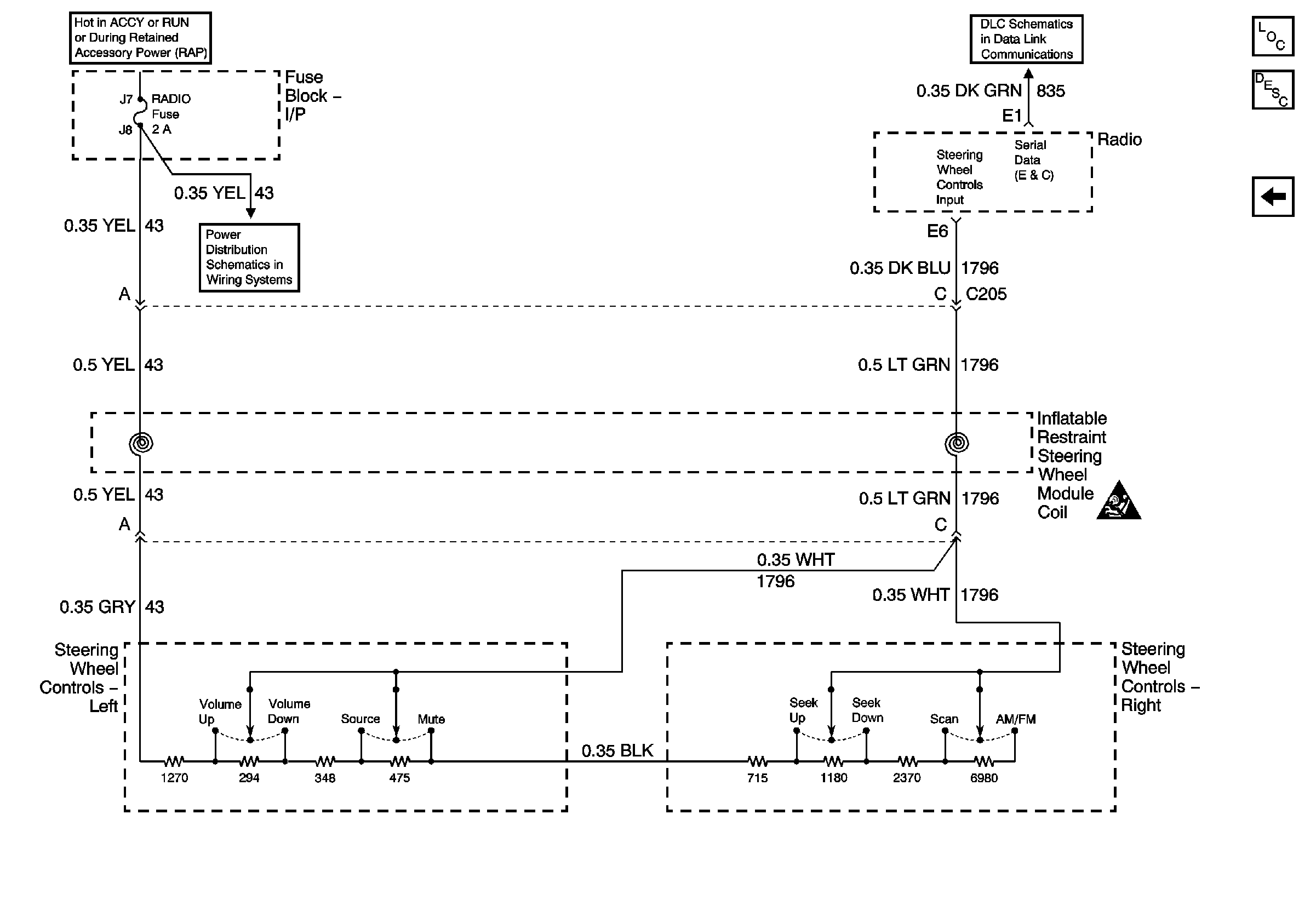

Figure 7:	Steering Wheel Controls Master Electrical Component List Radio/Audio System Description and Operation Antenna Module BCM, Power Drop, SW. Switchs DLC SIR Caution
