Cruise Control Cable Adjustment 3.1L

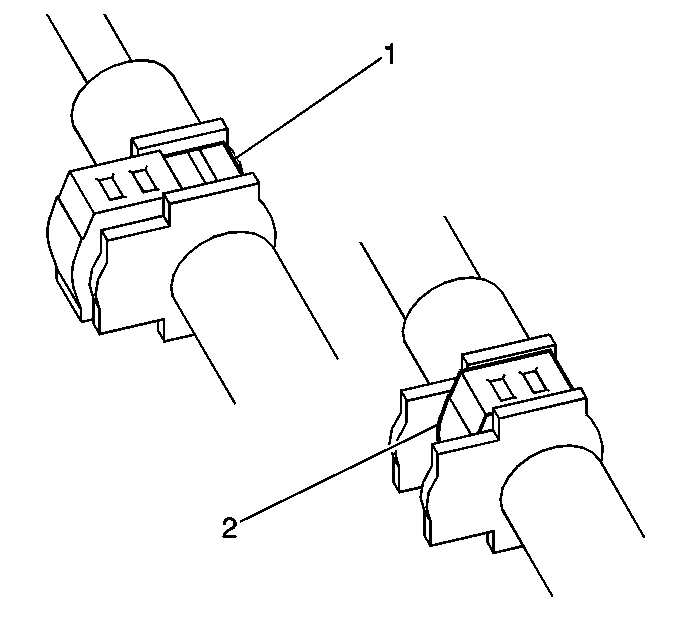

1. Spread the adjuster lock tabs and pull out the adjuster lock in order to disengage the cruise control cable adjuster lock (1).
2. Slide the cruise control cable adjuster forward, away from the module.

Without moving the throttle lever, remove as much cruise control cable slack as possible.

3. Push inward on the adjuster lock in order to engage the cruise control cable adjuster lock (2).

Cruise Control Cable Adjustment 3.8L

1. Clamp the side of the cruise control cable adjuster lock with a pair of pliers and pull the adjuster lock out in order to disengage the cruise control cable adjuster lock (1).
2. The cruise control cable adjuster spring will remove the slack in the cruise control cable.

Remove as much cable slack as possible without moving the throttle lever.

3. Push the adjuster lock inward toward the throttle lever in order to engage the cable adjuster lock (2).
