Body Side Roof Drip Molding Replacement Buick

Removal Procedure

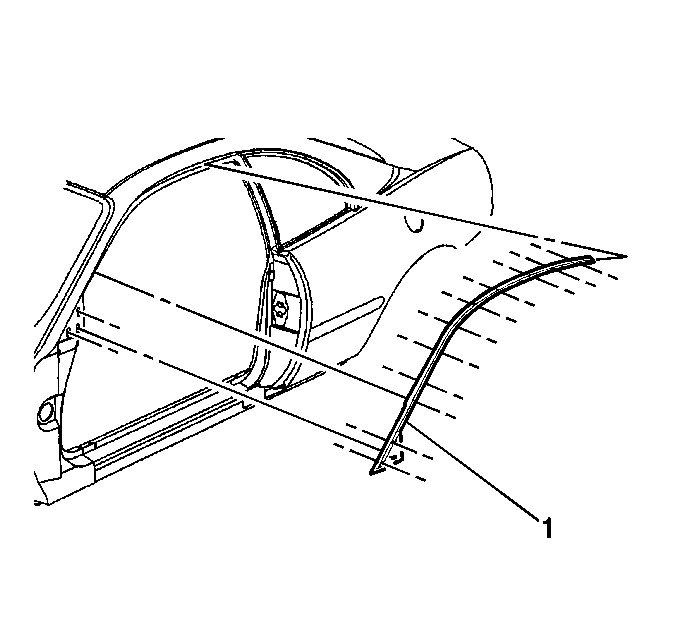

    Object Number: 326118 Size: SH
  1. Remove the weatherstrip using one of the following procedures:
    2. • For the front door, refer to Front Door Opening Weatherstrip Replacement .
    • For the rear door, refer to Rear Door Opening Weatherstrip Replacement .
  2. Remove the weatherstrip retainer. Refer to Front Side Door Weatherstrip Retainer Replacement in Doors.
  3. Remove the roof drip molding (1).

Installation Procedure
  1. Install the roof drip molding (1) aligning the holes with the holes for the weatherstrip retainer.
  2. Install the weatherstrip retainer. Refer to Front Side Door Weatherstrip Retainer Replacement in Doors.
  3. Install the weatherstrip using one of the following procedures:
    4. • For the front door, refer to Front Door Opening Weatherstrip Replacement .
    • For the rear door, refer to Rear Door Opening Weatherstrip Replacement .

Body Side Roof Drip Molding Replacement Oldsmobile

Removal Procedure

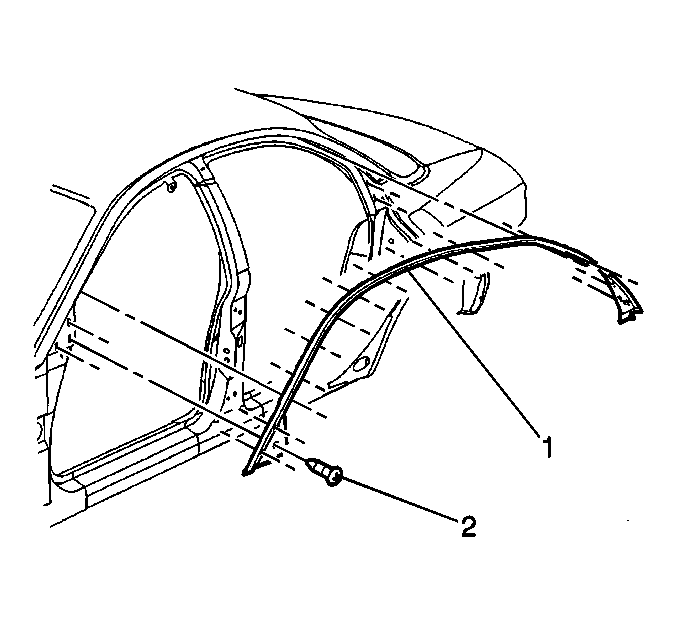

    Object Number: 281992 Size: SH
  1. Remove the weatherstrip using one of the following procedures:
    2. • For the front door, refer to Front Door Opening Weatherstrip Replacement .
    • For the rear door, refer to Rear Door Opening Weatherstrip Replacement
  2. Remove the weatherstrip retainer. Refer to Front Side Door Weatherstrip Retainer Replacement in Doors.
  3. Remove the roof drip molding (1).

Installation Procedure

    Object Number: 281992 Size: SH
  1. Install the roof drip molding. Align the holes with the holes for the weatherstrip retainer.
  2. Install the weatherstrip retainer. Refer to Front Side Door Weatherstrip Retainer Replacement in Doors.
  3. Install the weatherstrip using one of the following procedures:
    4. • For the front door, refer to Front Door Opening Weatherstrip Replacement .
    • For the rear door, refer to Rear Door Opening Weatherstrip Replacement
