Camshaft Cover Removal for Cadillac Catera 1999

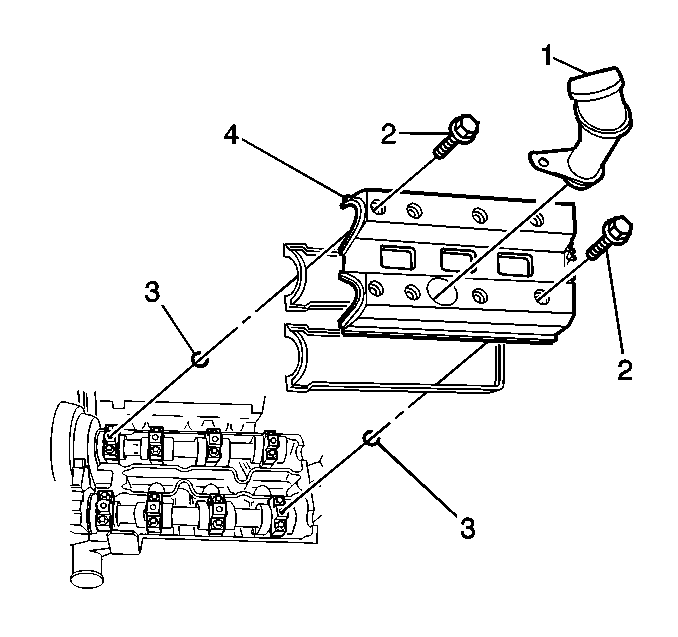

    Object Number: 345866 Size: SH
  1. Remove the oil filler tube (1) from the LH side camshaft cover.
  2. Remove the camshaft cover bolts (2).
  3. Remove the camshaft cover (4).

    4. Important: Ensure that all eight sealing O-rings (3) are accounted for.

    O-rings may stick to the camshaft bearing caps or they may fall into the oil return journals of the cylinder head.

  4. Remove the camshaft cover seals.
