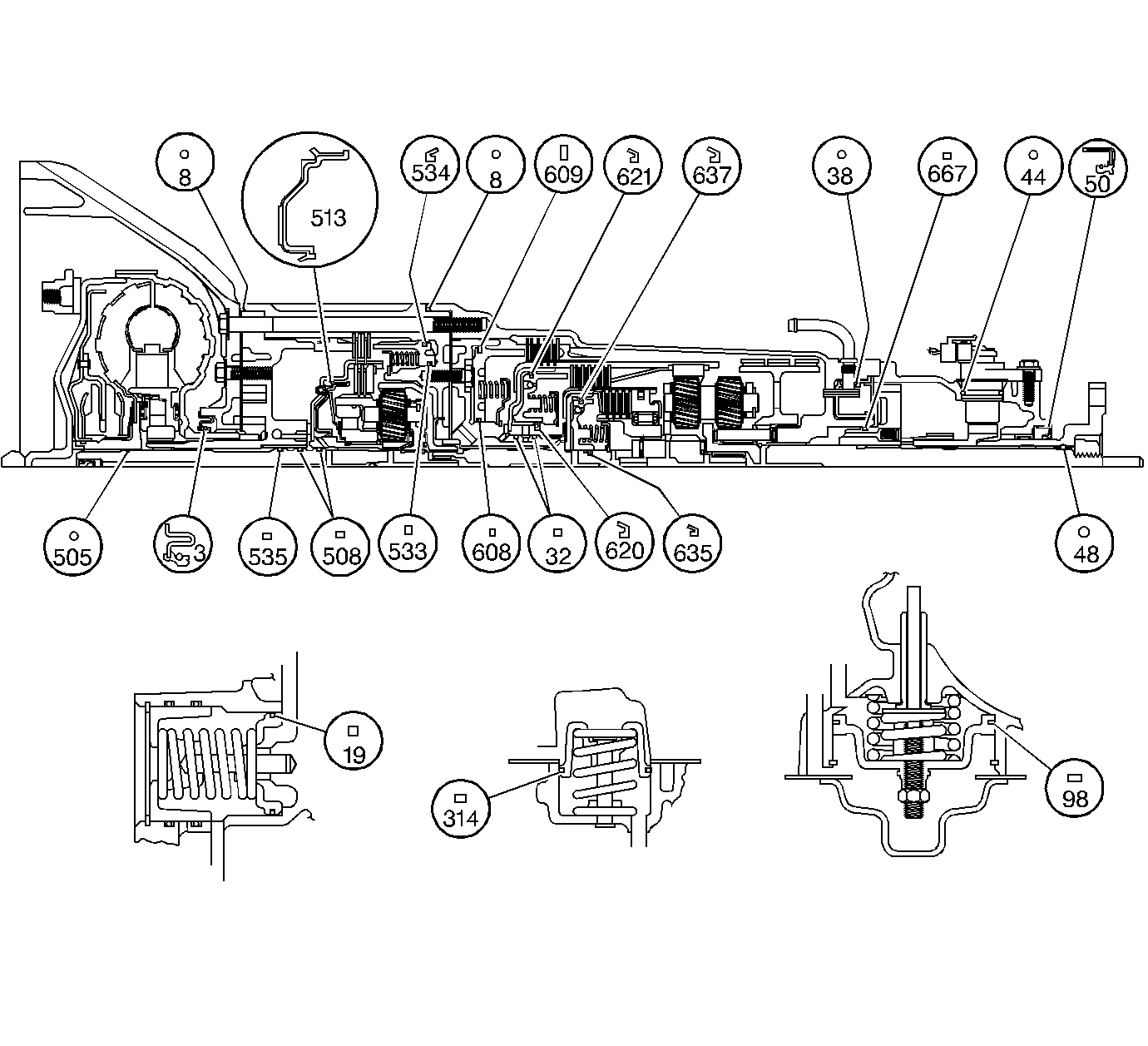

| (3) | Converter Housing Seal Assembly |
| (8) | O-ring Seal |
| (8) | O-ring Seal |
| (19) | 3-4 Accumulator Piston Ring |
| (32) | Oil
Seal Ring |
| (38) | Breather Seal Assembly |
| (44) | Speed Sensor Seal |
| (48) | Drive Flange
Seal |
| (50) | Extension Assembly Seal |
| (98) | Servo Piston Seal Ring |
| (314) | 1-2 Accumulator Piston Ring |
| (505) | Turbine Shaft Seal |
| (508) | Turbine Shaft Oil Seal Ring (Scarf
Cut) |
| (513) | Overrun Clutch Piston |
| (533) | 4th Clutch Piston (Inner) Seal |
| (534) | 4th Clutch Piston (Outer) Seal |
| (535) | Turbine Shaft Oil Seal Ring (Solid) |
| (608) | Reverse Clutch Piston (Inner) Seal |
| (609) | Reverse Clutch Piston (Outer) Seal |
| (620) | 2nd Clutch Piston (Inner) Seal |
| (621) | 2nd Clutch Piston (Outer) Seal |
| (635) | 3rd Clutch Piston (Inner) Seal |
| (637) | 3rd Clutch Piston (Outer) Seal |
| (667) | Governor
Hub Seal Ring |
