Makes 🢒 Cadillac 🢒 2001 🢒 Catera 🢒 Transmission/Transaxle 🢒 Automatic Transmission - 4L30-E 🢒 Extension Housing Removal

Tools Required
    • J 23129 Universal Seal Remover
    • J 6125-1B Slide Hammer

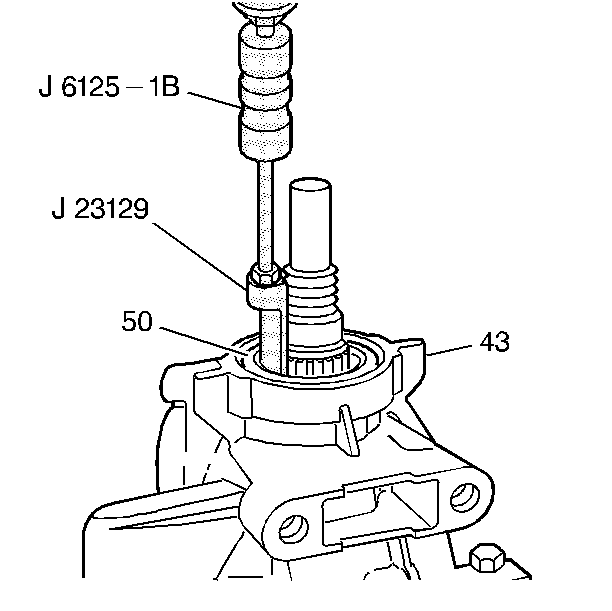

    Object Number: 174779 Size: SH
  1. Remove the extension housing seal (50) using J 23129 and J 6125-1B .

    2. Object Number: 174780 Size: SH
  2. Remove the extension housing bolts (52).
  3. Remove the bracket (112).
  4. Remove the extension housing (43).
  5. Inspect the extension housing for cracks and porosity.
  6. Remove the extension housing gasket (42).
