Engine Electrical Component Views. Cadillac DeVille 1999

For 1990-2009 cars only

Makes 🢒 Cadillac 🢒 1999 🢒 DeVille 🢒 Engine 🢒 Engine Electrical 🢒 Engine Electrical Component Views

Figure 1:


(1)	Generator
(2)	Generator Connector

Figure 2:


(1)	Starter Solenoid
(2)	Starter Motor

Figure 3:

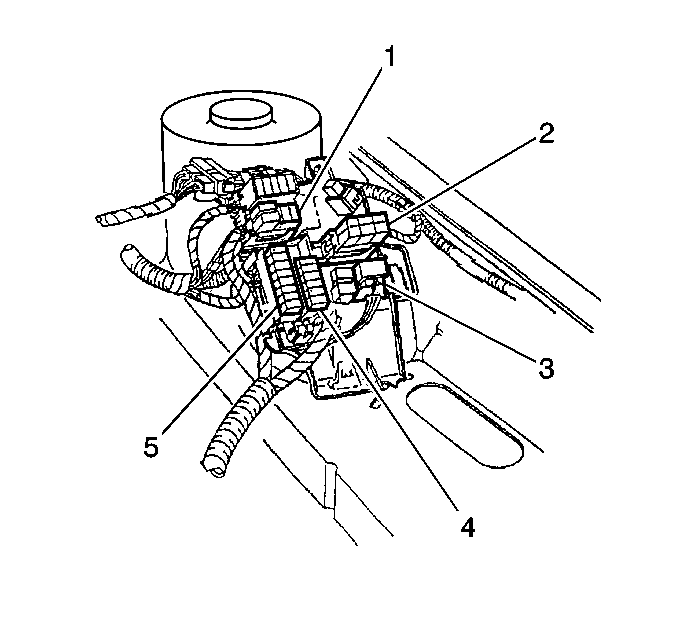

Figure 4:


(1)	Engine Compartment Fuse/Relay Center
(2)	Engine Compartment Relay Center
(3)	Theft Deterrent Relay
(4)	RH MaxiFuse® Block
(5)	LH MaxiFuse® Block

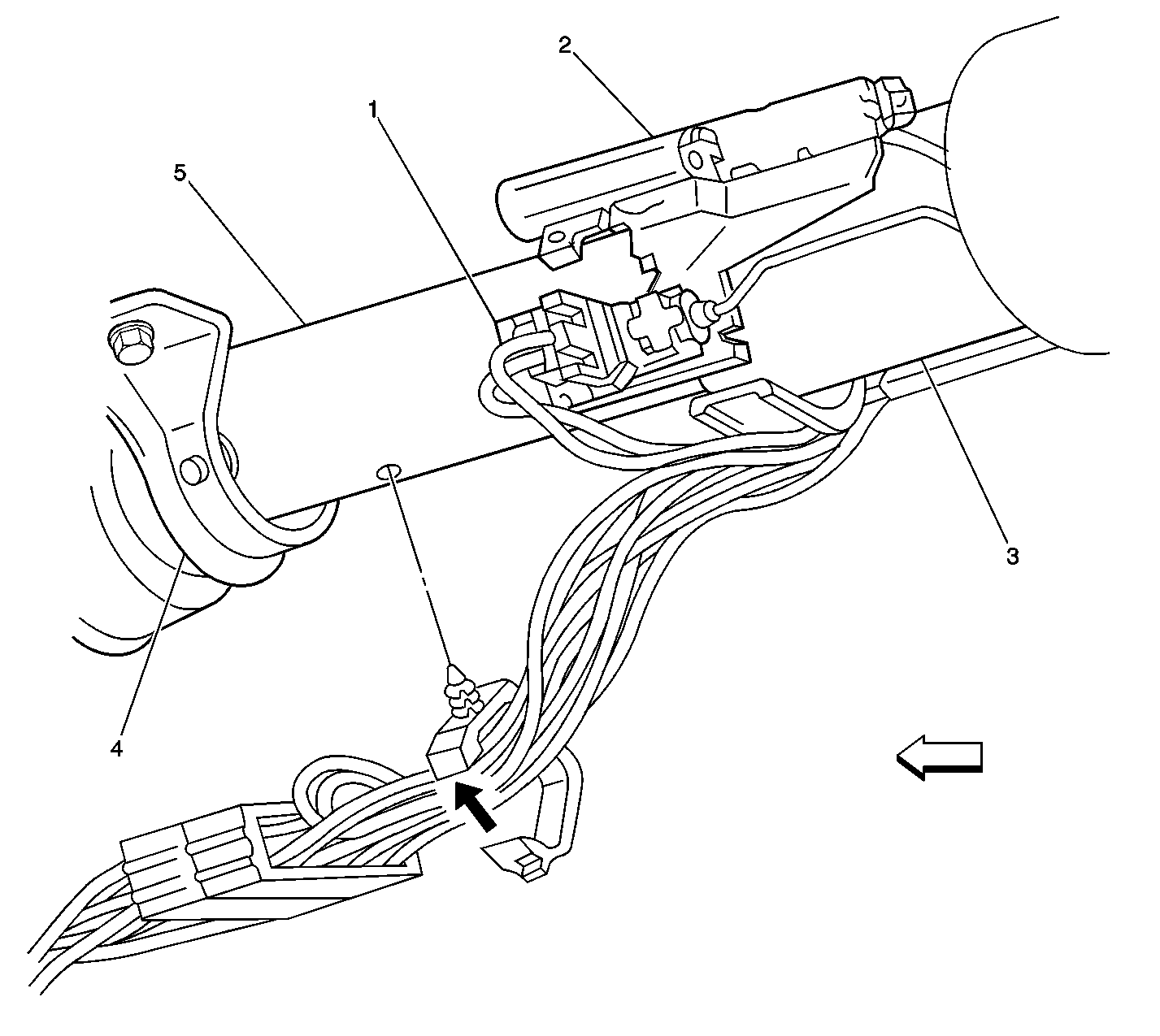

Figure 5:


(1)	Headlamp Dimmer Switch
(2)	Ignition Switch
(3)	Shift Interlock Actuator (w/ Column Shift) (Hidden)
(4)	Lower Steering Column Bracket
(5)	Steering Column
