Makes 🢒 Cadillac 🢒 2005 🢒 DeVille 🢒 Vehicle Control Systems 🢒 Computer/Integrating Systems 🢒 Power Door Systems Connector End Views
Table 1: Door Lock Actuator - Driver C1
Table 2: Door Lock Actuator - Driver C2
Table 3: Door Lock Actuator - Front Passenger C1
Table 4: Door Lock Actuator - Front Passenger C2
Table 5: Door Lock Actuator - LR C1
Table 6: Door Lock Actuator - LR C2
Table 7: Door Lock Actuator - Right Middle (V4U) C1
Table 8: Door Lock Actuator - Right Middle (V4U) C2
Table 9: Door Lock Actuator - RR C1
Table 10: Door Lock Actuator - RR C2
Table 11: Door Lock Cylinder Switch - Driver
Table 12: Door Lock Relay (w/B9Q)
Table 13: Door Lock Switch - Driver
Table 14: Door Lock Switch - Front Passenger
Table 15: Door Lock Switch - Left Middle (V4U)/LR
Table 16: Door Lock Switch - Right Middle (V4U)/RR
Table 17: Driver Door Module (DDM) C1
Table 18: Driver Door Module (DDM) C2
Table 19: Driver Door Module (DDM) C3
Table 20: Driver Door Module (DDM) C4/Driver Outside Rearview Mirror
Table 21: Driver Door Module (DDM) C5/Driver Outside Rearview Mirror
Table 22: Driver Door Switch Assembly (DDSA) - C1
Table 23: Front Passenger Door Module (FPDM) C1
Table 24: Front Passenger Door Module (FPDM) C2
Table 25: Front Passenger Door Module (FPDM) C3
Table 26: Front Passenger Door Module (FPDM) C4
Table 27: Front Passenger Door Module (FPDM) C5
Table 28: Left Middle Door Module (LMDM) C1 (V4U)
Table 29: Left Middle Door Module (LMDM) C2 (V4U)
Table 30: Left Middle Door Module (LMDM) C3 (V4U)
Table 31: Left Rear Door Module (LRDM) C1
Table 32: Left Rear Door Module (LRDM) C2
Table 33: Left Rear Door Module (LRDM) C3
Table 34: Park Position Door Relay (w/V4U)
Table 35: Right Middle Door Module (RMDM) C1 (V4U)
Table 36: Right Middle Door Module (RMDM) C2 (V4U)
Table 37: Right Middle Door Module (RMDM) C3 (V4U)
Table 38: Right Rear Door Module (RRDM) C1
Table 39: Right Rear Door Module (RRDM) C2
Table 40: Right Rear Door Module (RRDM) C3
Table 41: Window Motor - Driver (w/WC2/WC8)
Table 42: Window Motor - Driver (w/o Express)
Table 43: Window Motor - Driver (w/Express)
Table 44: Window Motor - Front Passenger (w/WC2/WC8)
Table 45: Window Motor - Front Passenger (w/o Express)
Table 46: Window Motor - Front Passenger (w/Express)
Table 47: Window Motor - LR (w/WC2/WC8)
Table 48: Window Motor - Left Middle (V4U)/LR
Table 49: Window Motor - RR (w/WC2/WC8)
Table 50: Window Motor - Right Middle (V4U)/RR
Table 51: Window Switch - Front Passenger
Table 52: Window Switch - Left Middle (V4U)
Table 53: Window Switch - LR
Table 54: Window Switch - Right Middle (V4U)
Table 55: Window Switch - RR

Door Lock Actuator - Driver C1


Object Number: 38608 Size: CH

Connector Part Information
    • 12162190
    • 4-Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

TAN

126

Left Front Door Open Switch Signal

B

GRY/BLK

745

Left Front Door Ajar Switch Signal

C

--

--

Not Used

D

BLK/WHT

351

Ground

Door Lock Actuator - Driver C2


Object Number: 68721 Size: CH

Connector Part Information
    • 1500027
    • 2-Way F Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

TAN

694

Driver Door Latch Unlock Control

B

GRY

295

Door Latch Lock Control

Door Lock Actuator - Front Passenger C1


Object Number: 38608 Size: CH

Connector Part Information
    • 12162190
    • 4-Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

BLK/WHT

451

Ground

B

--

--

Not Used

C

BLK/WHT

746

Right Front Door Ajar Switch Signal

D

DK BLU

49

Door Open Switch Signal

Door Lock Actuator - Front Passenger C2


Object Number: 68721 Size: CH

Connector Part Information
    • 15300027
    • 2-Way F Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

TAN

294

Door Latch Unlock Control

B

GRY

295

Door Latch Lock Control

Door Lock Actuator - LR C1


Object Number: 38608 Size: CH

Connector Part Information
    • 12162190
    • 4-Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

DK BLU

49

Door Open Switch Signal

B

LT BLU/BLK

747

Left Rear Door Ajar Switch Signal

C

--

--

Not Used

D

TAN/WHT

551

Ground

Door Lock Actuator - LR C2


Object Number: 68721 Size: CH

Connector Part Information
    • 15300027
    • 2-Way F Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

TAN

294

Door Latch Unlock Control

B

GRY

295

Door Latch Lock Control

Door Lock Actuator - Right Middle (V4U) C1


Object Number: 38608 Size: CH

Connector Part Information
    • 12162190
    • 4-Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

DK BLU

49

Door Open Switch Signal

B

LT GRN/BLK

748

Door Ajar Switch Signal

C

--

--

Not Used

D

BLK/WHT

451

Ground

Door Lock Actuator - Right Middle (V4U) C2


Object Number: 68721 Size: CH

Connector Part Information
    • 15300027
    • 2-Way F Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

TAN

294

Door Latch Unlock Control

B

GRY

295

Door Latch Lock Control

Door Lock Actuator - RR C1


Object Number: 38608 Size: CH

Connector Part Information
    • 12162190
    • 4-Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

BLK/WHT

451

Ground

B

--

--

Not Used

C

LT GRN/BLK

748

Right Rear Door Ajar Switch Signal

D

DK BLU

49

Door Open Switch Signal

Door Lock Actuator - RR C2


Object Number: 68721 Size: CH

Connector Part Information
    • 15300027
    • 2-Way F Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

TAN

294

Door Latch Unlock Control

B

GRY

295

Door Latch Lock Control

Door Lock Cylinder Switch - Driver


Object Number: 605500 Size: CH

Connector Part Information
    • 12052642
    • 2-Way M Metri-Pack 150 Series (GRY)

Pin

Wire Color

Circuit No.

Function

A

LT GRN

262

Driver Door Key Switch Signal

B

BLK/WHT

351

Ground

Door Lock Relay (w/B9Q)


Object Number: 62452 Size: CH

Connector Part Information
    • 12059561
    • 6-Way F Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

GRY

295

Door Latch Lock Control

B

GRY

295

Door Latch Lock Control

C

BLK

450

Ground

D

ORN

1040

Battery Positive Voltage

E

TAN

294

Door Latch Unlock Control

F

TAN

294

Door Latch Unlock Control

Door Lock Switch - Driver


Object Number: 130714 Size: CH

Connector Part Information
    • 12124997
    • 5-Way F 150 Series Metri- Pack (BLK)

Pin

Wire Color

Circuit No.

Function

A

YEL

1491

Backlight Lamps Control

B

--

--

Not Used

C

BLK/WHT

351

Ground

D

RED/BLK

780

Driver Door Lock Switch Lock Signal

E

ORN/BLK

781

Driver Door Lock Switch Unlock Signal

Door Lock Switch - Front Passenger


Object Number: 130714 Size: CH

Connector Part Information
    • 12124997
    • 5-Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

YEL

1491

Backlight Lamps Control

B

--

--

Not Used

C

BLK/WHT

451

Ground

D

LT BLU

244

Passenger Door Lock Switch Lock Signal

E

DK BLU

245

Passenger Door Lock Switch Unlock Signal

Door Lock Switch - Left Middle (V4U)/LR


Object Number: 130714 Size: CH

Connector Part Information
    •
        12124997
    • 5-Way F (BLK)

Pin

Wire Color

Circuit No.

Function

A

YEL

1491

Backlight Lamps Control

B

--

--

Not Used

C

TAN/WHT

551

Ground

D

LT BLU

244

Passenger Door Lock Switch Lock Signal

E

--

--

Not Used (w/o V4U)

E

DK BLU

245

Passenger Door Lock Switch Unlock Signal (w/V4U)

Door Lock Switch - Right Middle (V4U)/RR


Object Number: 130714 Size: CH

Connector Part Information
    • 12124997
    • 5-Way F (BLK)

Pin

Wire Color

Circuit No.

Function

A

YEL

1491

Backlight Lamps Control

B

--

--

Not Used

C

TAN/WHT

451

Ground

D

LT BLU

244

Passenger Door Lock Switch Lock Signal

E

--

--

Not Used (w/o V4U)

E

DK BLU

245

Passenger Door Lock Switch Unlock Signal (w/V4U)

Driver Door Module (DDM) C1


Object Number: 62450 Size: CH

Connector Part Information
    • 12052856
    • 4-Way F Metri-Pack 280 (BLK)

Pin

Wire Color

Circuit No.

Function

A

ORN

1040

Battery Positive Voltage

B

BRN

165

Power Window Motor Left Front Down Control

C

DK BLU

164

Power Window Motor Left Front Up Control

D

BLK

350

Ground

Driver Door Module (DDM) C2


Object Number: 73151 Size: CH

Connector Part Information
    • 12064799
    • 12-Way F Micro-Pack 100 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A-C

--

--

Not Used

D

RED

2395

Driver Heated Seat Back Only Mode Switch Signal

E

WHT

6220

Driver Seat Climate Control Heat/Cool Mode Switch Signal

F

PPL

1807

Class 2 Serial Data

G

PPL

1807

Class 2 Serial Data

H

GRY/BLK

745

Left Front Door Ajar Switch Signal

J

TAN

126

Left Front Door Open Switch Signal

K

PNK

2398

Driver Heated Seat Temperature Switch Signal

L-M

--

--

Not Used

Driver Door Module (DDM) C3


Object Number: 73156 Size: CH

Connector Part Information
    • 12110088
    • 24-Way F Micro-Pack 100 (GRY)

Pin

Wire Color

Circuit No.

Function

A1

PNK

2070

Battery Positive

A2

PPL

5044

Left Front Door Window Intrusion Signal

A3

YEL

1491

Backlight Lamps Control

A4

DK GRN

1661

Driver Heated Seat High Temperature Indicator Control

A5

RED

2397

Driver Heated Seat Medium Temperature Indicator Control

A6

TAN

694

Driver Door Latch Unlock Control

A7

LT BLU

1662

Driver Heated Seat Low Temperature Indicator Control

A8

DK GRN

2396

Driver Heated Seat Back Only Mode Indicator Control

A9

GRY

295

Door Latch Lock Control

A10

BRN

2478

Driver Heated Seat Temperature Signal

A11

YEL

6221

Left Front Seat Climate Control Cooling Mode LED Signal

A12

ORN

640

Battery Positive Voltage

B1

WHT

2068

Low Reference

B2

LT GRN

2072

High Speed Communications

B3

BLK/WHT

351

Ground

B4

PNK

1691

Automatic Day/Night Mirror Low Reference

B5

GRY

1690

Automatic Day/Night Mirror Signal

B6

BLK/WHT

351

Ground

B7

LT GRN

262

Driver Door Key Switch Signal

B8

PNK

6129

Rear Closure Unlatch Motor Latch Control

B9

LT BLU

1462

Driver Heated Seat Switch Supply Voltage

B10

BLK/WHT

351

Ground

B11

ORN

640

Battery Positive Voltage

B12

BLK/WHT

351

Ground

Driver Door Module (DDM) C4/Driver Outside Rearview Mirror


Object Number: 307731 Size: CH

Connector Part Information
    • AMP - 175964-2
    • 8-Way F (BLK)

Pin

Wire Color

Circuit No.

Function

1

LT GRN

88

Driver Mirror Motor Up Control

2

BRN/BLK

1690

Automatic Day/Night Mirror Signal

3

BRN

1691

Automatic Day/Night Mirror Low Reference

4

BLK

627

Driver Mirror Heating Element Low Reference

5

YEL

89

Driver Mirror Motor Down Control

6

DK BLU

81

Driver Mirror Motor Right Control

7

WHT

82

Driver Mirror Motor Left Control

8

BLK

267

Heated Mirror/Rear Defog Relay Coil Supply Voltage

Driver Door Module (DDM) C5/Driver Outside Rearview Mirror


Object Number: 307727 Size: CH

Connector Part Information
    • IL-A65-65-53C1
    • 6-Way F (GRN)

Pin

Wire Color

Circuit No.

Function

1

BLU

191

Driver Folding Mirror Motor Retract Control (Japan) (DR4)

2

YEL

190

Driver Folding Mirror Motor Extend Control (Japan) (DR4)

3

RED/BLK

788

5-Volt Reference

4

LT GRN/BLK

784

Driver Mirror Vertical Position Sensor Signal

5

LT BLU/BLK

786

Left Mirror Horizontal Position Sensor Signal

6

PPL/BLK

782

Memory Seat/Mirror Sensor Low Reference

Driver Door Switch Assembly (DDSA) - C1


Object Number: 62435 Size: CH

Connector Part Information
    • 12047531
    • 10-Way F Micro-Pack 100 Series (BLK)

Pin

Wire Color

Circuit No.

Function

1

--

--

Not Used

2

PPL

616

Memory 2 Switch Signal

3

WHT

615

Memory 1 Switch Signal

4

ORN

614

Memory Set Switch Signal

5

YEL

1491

Backlight Lamps Control

6

ORN/BLK

781

Driver Door Lock Switch Unlock Signal

7

RED/BLK

780

Driver Door Lock Switch Lock Signal

8

BLK/WHT

351

Ground

9

ORN

640

Battery Positive Voltage

10

PPL

1807

Class 2 Serial Data

Front Passenger Door Module (FPDM) C1


Object Number: 62450 Size: CH

Connector Part Information
    • 12052856
    • 4-Way F Metri-Pack 280 (BLK)

Pin

Wire Color

Circuit No.

Function

A

ORN

1040

Battery Positive Voltage

B

BRN

667

Power Window Motor Right Front Down Control

C

DK BLU

666

Power Window Motor Right Front Up Control

D

BLK

450

Ground

Front Passenger Door Module (FPDM) C2


Object Number: 73151 Size: CH

Connector Part Information
    • 12064799
    • 12-Way F Micro-Pack 100 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

DK BLU

245

Passenger Door Lock Switch Unlock Signal

B

PPL

2765

Power Window Switch Right Front Express Signal

C

WHT

1185

Power Window Switch Up Signal

D

RED

2389

Passenger Heated Seat Back Only Mode Switch Signal

E-F

--

--

Not Used

G

PPL

1807

Class 2 Serial Data

H

BLK

746

Right Front Door Ajar Switch Signal

J

DK BLU

49

Driver Door Ajar Switch Signal

K

DK GRN

2392

Passenger Heated Seat Temperature Switch Signal

L

ORN

1189

Power Window Switch Down Signal

M

LT BLU

244

Passenger Door Lock Switch Lock Signal

Front Passenger Door Module (FPDM) C3


Object Number: 73156 Size: CH

Connector Part Information
    • 12110088
    • 24-Way F (GRY)

Pin

Wire Color

Circuit No.

Function

A1

PNK

2069

Normal Speed Communication

A2

PPL

5006

Right Front Door Window Intrusion Signal

A3

YEL

1491

Backlight Lamps Control

A4

YEL

1685

Passenger Heated Seat High Temperature Indicator Control

A5

DK BLU

2394

Passenger Heated Seat Medium Temperature Indicator Control

A6

TAN

294

Door Latch Unlock Control

A7

TAN

1686

Passenger Heated Seat Low Temperature Indicator Control

A8

PPL

2393

Passenger Heated Seat Back Only Mode Indicator Control

A9

GRY

295

Door Latch Lock Control

A10

RED/WHT

2431

Passenger Heated Seat Temperature Signal

A11

BRN

2430

Passenger Heated Seat Back Only Mode Signal

A12

ORN

740

Battery Positive Voltage

B1

WHT

2067

Low Reference

B2

LT GRN

2071

High Speed Communications

B3

BLK/WHT

451

Ground

B4-B8

--

--

Not Used

B9

LT BLU/BLK

1505

Passenger Heated Seat Switch Supply Voltage

B10

BLK/WHT

451

Ground

B11

--

--

Not Used

B12

BLK/WHT

451

Ground

Front Passenger Door Module (FPDM) C4


Object Number: 307731 Size: CH

Connector Part Information
    • AMP - 175964-2
    • 8-Way F (BLK)

Pin

Wire Color

Circuit No.

Function

1

YEL

1498

Passenger Mirror Motor Up Control

2-3

--

--

Not Used

4

BLK

627

Driver Mirror Heating Element Low Reference

5

LT GRN

889

Passenger Mirror Motor Down Control

6

WHT

881

Passenger Mirror Motor Right Control

7

DK BLU

90

Passenger Mirror Motor Left Control

8

BLK

267

Heated Mirror/Rear Defog Relay Coil Supply Voltage

Front Passenger Door Module (FPDM) C5


Object Number: 307727 Size: CH

Connector Part Information
    • IL-A65-65-53C1
    • 6-Way F (GRN)

Pin

Wire Color

Circuit No.

Function

1

BLU

191

Driver Folding Mirror Motor Retract Control (w/DR4)

2

YEL

190

Driver Folding Mirror Motor Extend Control (w/DR4)

3

RED/BLK

788

5-Volt Reference

4

LT GRN/BLK

787

Passenger Mirror Vertical Position Sensor Signal

5

LT BLU/BLK

785

Passenger Mirror Horizontal Position Sensor Signal

6

PPL/BLK

782

Memory Seat/Mirror Sensor Low Reference

Left Middle Door Module (LMDM) C1 (V4U)


Object Number: 62450 Size: CH

Connector Part Information
    • 12052856
    • 4-Way F Metri-Pack 280 (BLK)

Pin

Wire Color

Circuit No.

Function

A

ORN

1040

Battery Positive Voltage

B

BRN

669

Power Window Motor Left Middle Down Control

C

DK BLU

668

Power Window Motor Left Middle Up Control

D

BLK

550

Ground

Left Middle Door Module (LMDM) C2 (V4U)


Object Number: 73151 Size: CH

Connector Part Information
    • 12064799
    • 12-Way F Micro-Pack 100 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

DK BLU

245

Door Lock Switch Unlock Control

B

PPL

2765

Power Window Switch Left Middle Express Signal

C

DK GRN

1184

Power Window Switch Left Middle Up Signal

D-F

--

--

Not Used

G

PPL

1807

Class 2 Serial Data

H

LT BLU/BLK

747

Left Rear Door Ajar Switch Signal

J

DK BLU

49

Door Ajar Switch Signal

K

--

--

Not Used

L

YEL

1187

Power Window Switch Left Middle Down Signal

M

LT BLU

244

Door Lock Switch Lock Control

Left Middle Door Module (LMDM) C3 (V4U)


Object Number: 73156 Size: CH

Connector Part Information
    • 12110088
    • 24-Way F Micro-Pack 100 (GRY)

Pin

Wire Color

Circuit No.

Function

A1-A5

--

--

Not Used

A6

TAN

294

Door Latch Unlock Control

A7-A8

--

--

Not Used

A9

GRY

295

Door Latch Lock Control

A10-A11

--

--

Not Used

A12

ORN

3140

Battery Positive Voltage

B1-B2

--

--

Not Used

B3

TAN/WHT

551

Ground

B4-B5

--

--

Not Used

B6

TAN/WHT

551

Ground

B7-B9

--

--

Not Used

B10

TAN/WHT

551

Ground

B11

--

--

Not Used

B12

TAN/WHT

551

Ground

Left Rear Door Module (LRDM) C1


Object Number: 62450 Size: CH

Connector Part Information
    • 12052856
    • 4-Way F Metri-Pack 280 (BLK)

Pin

Wire Color

Circuit No.

Function

A

ORN

1040

Battery Positive Voltage

B

BRN

669

Power Window Motor Left Rear Down Control

C

DK BLU

668

Power Window Motor Left Rear Up Control

D

BLK

550

Ground

Left Rear Door Module (LRDM) C2


Object Number: 73151 Size: CH

Connector Part Information
    • 12064799
    • 12-Way F Micro-Pack 100 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

--

--

Not Used (w/o V4U)

A

DK BLU

245

Passenger Door Lock Switch Unlock Signal (w/V4U)

B

PPL

2765

Power Window Switch Right Front Express Signal

C

DK GRN

1184

Power Window Switch Up Signal

D

PNK

2410

Left Rear Passenger Heated Seat Back Only Mode Switch Signal

E-F

--

--

Not Used

G

PPL

1807

Class 2 Serial Data

H

LT BLU/BLK

747

Left Rear Door Ajar Switch Signal

J

DK BLU

49

Door Open Switch Signal

K

BLK/WHT

2411

Left Rear Passenger Heated Seat Temperature Switch Signal

L

YEL

1187

Power Window Switch Left Rear Down Signal

M

--

--

Not Used

Left Rear Door Module (LRDM) C3


Object Number: 73156 Size: CH

Connector Part Information
    • 12110088
    • 24-Way F (GRY)

Pin

Wire Color

Circuit No.

Function

A1-A2

--

--

Not Used

A3

YEL

1491

Backlight Lamps Control

A4

BLK/WHT

1638

Left Rear Heated Seat High Temperature Indicator Control

A5

GRY

2413

Left Rear Passenger Heated Seat Medium Temperature Indicator Control

A6

TAN

294

Door Latch Unlock Control

A7

PNK

1631

Left Rear Heated Seat Low Temperature Indicator Control

A8

YEL

2412

Left Rear Passenger Heated Seat Back Only Mode Indicator Control

A9

GRY

295

Door Latch Lock Control

A10

LT GRN

2437

Left Rear Passenger Heated Seat Temperature Signal

A11

BRN

2474

Left Rear Passenger Heated Seat Back Only Mode Signal

A12

ORN

840

Battery Positive Voltage

B1-B2

--

--

Not Used

B3

TAN/WHT

551

Ground

B4-B5

--

--

Not Used

B6

TAN/WHT

551

Ground

B7-B8

--

--

Not Used

B9

ORN

2414

Left Rear Passenger Heated Seat Switch Supply Voltage

B10

TAN/WHT

551

Ground

B11

--

--

Not Used

B12

TAN/WHT

551

Ground

Park Position Door Relay (w/V4U)


Object Number: 281201 Size: CH

Connector Part Information
    • 12110541
    • 6-Way F Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A1

ORN

3140

Battery Positive Voltage

A2-B1

--

--

Not Used

B2

ORN

3140

Battery Positive Voltage

C1

WHT

1430

Exterior Courtesy Lamps Supply Voltage

C2

WHT

1429

Standing Lamp Relay Control

Right Middle Door Module (RMDM) C1 (V4U)


Object Number: 62450 Size: CH

Connector Part Information
    • 12052856
    • 4-Way F Metri-Pack 280 (BLK)

Pin

Wire Color

Circuit No.

Function

A

ORN

1040

Battery Positive Voltage

B

BRN

671

Power Window Motor Right Middle Down Control

C

DK BLU

670

Power Window Motor Right Middle Up Control

D

BLK

650

Ground

Right Middle Door Module (RMDM) C2 (V4U)


Object Number: 73151 Size: CH

Connector Part Information
    • 12064799
    • 12-Way F Micro-Pack 100 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

DK BLU

245

Door Lock Switch Unlock Control

B

PPL

2765

Power Window Switch Right Middle Express Signal

C

WHT

1185

Power Window Switch Right Middle Up Signal

D-F

--

--

Not Used

G

PPL

1807

Class 2 Serial Data

H

LT GRN/BLK

748

Right Rear Door Ajar Switch Signal

J

DK BLU

49

Door Ajar Switch Signal

K

--

--

Not Used

L

ORN

1189

Power Window Switch Right Middle Down Signal

M

LT BLU

244

Door Lock Switch Lock Control

Right Middle Door Module (RMDM) C3 (V4U)


Object Number: 73156 Size: CH

Connector Part Information
    • 12110088
    • 24-Way F Micro-Pack 100 (GRY)

Pin

Wire Color

Circuit No.

Function

A1-A5

--

--

Not Used

A6

TAN

294

Door Latch Unlock Control

A7-A8

--

--

Not Used

A9

GRY

295

Door Latch Lock Control

A10-A11

--

--

Not Used

A12

ORN

3140

Battery Positive Voltage

B1-B2

--

--

Not Used

B3

BLK/WHT

451

Ground

B4

--

--

Not Used

B5

BLK/WHT

451

Ground

B6-B9

--

--

Not Used

B10

BLK/WHT

451

Ground

B11

--

--

Not Used

B12

BLK/WHT

451

Ground

Right Rear Door Module (RRDM) C1


Object Number: 62450 Size: CH

Connector Part Information
    • 12052856
    • 4-Way F Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

ORN

1040

Battery Positive Voltage

B

BRN

671

Power Window Motor Right Rear Down Control

C

DK BLU

670

Power Window Motor Right Rear Up Control

D

BLK

650

Ground

Right Rear Door Module (RRDM) C2


Object Number: 73151 Size: CH

Connector Part Information
    • 12064799
    • 12-Way F Micro-Pack 100 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

--

--

Not Used (w/o V4U)

A

DK BLU

245

Passenger Door Lock Switch Unlock Signal (w/V4U)

B

PPL

2765

Power Window Switch Right Front Express Signal

C

WHT

1185

Power Window Switch Up Signal

D

PNK

2419

Right Rear Passenger Heated Seat Back Only Mode Switch Signal

E-F

--

--

Not Used

G

PPL

1807

Class 2 Serial Data

H

LT GRN/BLK

748

Right Rear Door Ajar Switch Signal

J

DK BLU

49

Driver Door Open Switch Signal

K

BLK/WHT

2420

Right Rear Passenger Heated Seat Temperature Switch Signal

L

ORN

1189

Power Window Switch Down Signal

M

--

--

Not Used

Right Rear Door Module (RRDM) C3


Object Number: 73156 Size: CH

Connector Part Information
    • 12110088
    • 24-Way F (GRY)

Pin

Wire Color

Circuit No.

Function

A1-A2

--

--

Not Used

A3

YEL

1491

Backlight Lamps Control

A4

BLK/WHT

1635

Right Rear Heated Seat High Temperature Indicator Control

A5

BRN

2422

Right Rear Passenger Heated Seat Medium Temperature Indicator Control

A6

TAN

294

Door Latch Unlock Control

A7

PNK

1636

Right Rear Heated Seat Low Temperature Indicator Control

A8

YEL

2421

Right Rear Passenger Heated Seat Back Only Mode Indicator Control

A9

GRY

295

Door Latch Lock Control

A10

LT GRN

2444

Right Rear Passenger Heated Seat Temperature Signal

A11

BRN

2438

Right Rear Passenger Heated Seat Back Only Mode Signal

A12

ORN

840

Battery Positive Voltage

B1-B2

--

--

Not Used

B3

BLK/WHT

451

Ground

B4-B8

--

--

Not Used

B9

LT BLU

2423

Right Rear Passenger Heated Seat Switch Supply Voltage

B10

BLK/WHT

451

Ground

B11

--

--

Not Used

B12

BLK/WHT

451

Ground

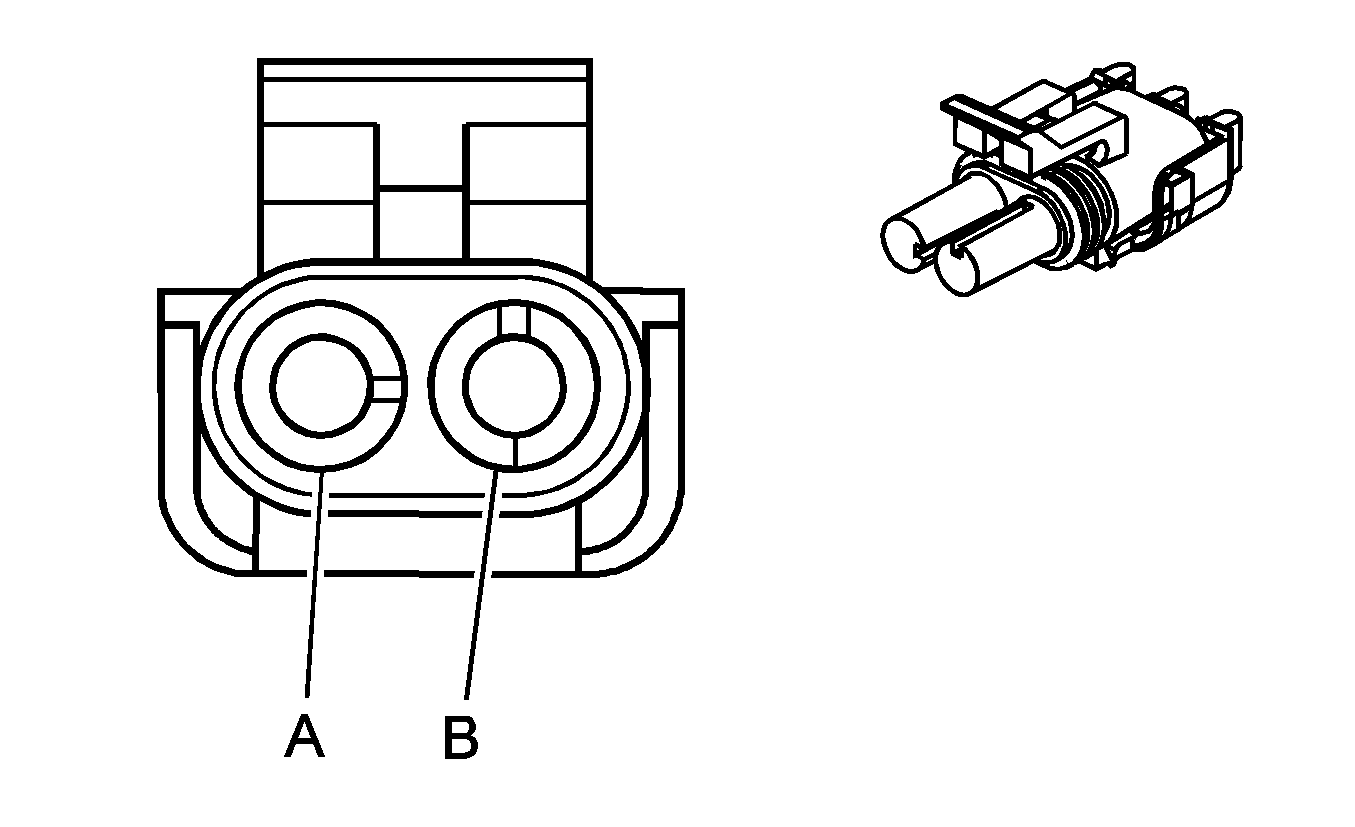

Window Motor - Driver (w/WC2/WC8)


Object Number: 781760 Size: CH

Connector Part Information
    • 12015792
    • 2-Way F Weather Pack Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

BRN

165

Power Window Motor Left Front Down Control

B

DK BLU

164

Power Window Motor Left Front Up Control

Window Motor - Driver (w/o Express)


Object Number: 258176 Size: CH

Connector Part Information
    • 12129487
    • 2-Way F Metri-Pack 280 Series (GRY)

Pin

Wire Color

Circuit No.

Function

A

BRN

165

Power Window Motor Left Front Down Control

B

DK BLU

164

Power Window Motor Left Front Up Control

Window Motor - Driver (w/Express)


Object Number: 812593 Size: CH

Connector Part Information
    • 12186346
    • 6-Way F Metri-Pack Mixed Series (GRY)

Pin

Wire Color

Circuit No.

Function

A

DK BLU

164

Power Window Motor Left Front Up Control

B

WHT

2068

Low Reference

C

BRN

165

Power Window Motor Left Front Down Control

D

LT GRN

2072

High Speed Communications

E

PPL

5044

Left Front Door Window Intrusion Signal

F

PNK

2070

Normal Speed Communications

Window Motor - Front Passenger (w/WC2/WC8)


Object Number: 781760 Size: CH

Connector Part Information
    • 12015792
    • 2-Way F Weather Pack Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

BRN

667

Power Window Motor Right Front Down Control

B

DK BLU

666

Power Window Motor Right Front Up Control

Window Motor - Front Passenger (w/o Express)


Object Number: 258176 Size: CH

Connector Part Information
    • 12129487
    • 2-Way F Metri-Pack 280 Series (GRY)

Pin

Wire Color

Circuit No.

Function

A

BRN

667

Power Window Motor Right Front Down Control

B

DK BLU

666

Power Window Motor Right Front Up Control

Window Motor - Front Passenger (w/Express)


Object Number: 812593 Size: CH

Connector Part Information
    • 12186346
    • 6-Way F Metri-Pack Mixed Series (GRY)

Pin

Wire Color

Circuit No.

Function

A

DK BLU

666

Power Window Motor Right Front Up Control

B

WHT

2067

Low Reference

C

BRN

667

Power Window Motor Right Front Down Control

D

LT GRN

2071

High Speed Communications

E

PPL

5006

Right Front Door Window Intrusion Signal

F

PNK

2069

Normal Speed Communications

Window Motor - LR (w/WC2/WC8)


Object Number: 781760 Size: CH

Connector Part Information
    • 12015792
    • 2-Way F Weather Pack Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

DK BLU

668

Power Window Motor Left Rear Up Control

B

BRN

669

Power Window Motor Left Rear Down Control

Window Motor - Left Middle (V4U)/LR


Object Number: 258176 Size: CH

Connector Part Information
    • 12129487
    • 2-Way F Metri-Pack 280 Series (GRY)

Pin

Wire Color

Circuit No.

Function

A

DK BLU

668

Power Window Motor Left Rear Up Control

B

BRN

669

Power Window Motor Left Rear Down Control

Window Motor - RR (w/WC2/WC8)


Object Number: 781760 Size: CH

Connector Part Information
    • 12015792
    • 2-Way F Weather Pack Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

DK BLU

670

Power Window Motor Right Rear Up Control

B

BRN

671

Power Window Motor Right Rear Down Control

Window Motor - Right Middle (V4U)/RR


Object Number: 258176 Size: CH

Connector Part Information
    • 12129487
    • 2-Way F Metri-Pack 280 Series (GRY)

Pin

Wire Color

Circuit No.

Function

A

DK BLU

670

Power Window Motor Right Rear Up Control

B

BRN

671

Power Window Motor Right Rear Down Control

Window Switch - Front Passenger


Object Number: 258172 Size: CH

Connector Part Information
    • 12064982
    • 5-Way F Micro-Pack 100 Series (BLK)

Pin

Wire Color

Circuit No.

Function

1

WHT

1185

Power Window Switch Up Signal

2

ORN

1189

Power Window Switch Down Signal

3

PPL

2765

Power Window Switch Right Front Express Signal

4

BLK/WHT

451

Ground

5

YEL

1491

Backlight Lamps Control

Window Switch - Left Middle (V4U)


Object Number: 258172 Size: CH

Connector Part Information
    • 12064982
    • 5-Way F Micro-Pack 100 Series (BLK)

Pin

Wire Color

Circuit No.

Function

1

DK GRN

1184

Power Window Switch Up Signal

2

YEL

1187

Power Window Switch Down Signal

3

PPL

2765

Power Window Switch Express Signal

4

TAN/WHT

551

Ground

5

YEL

1491

Backlight Lamps Control

Window Switch - LR


Object Number: 258172 Size: CH

Connector Part Information
    • 12064982
    • 5-Way F Micro-Pack 100 Series (BLK)

Pin

Wire Color

Circuit No.

Function

1

DK GRN

1184

Power Window Switch Up Signal

2

YEL

1187

Power Window Switch Left Rear Down Signal

3

PPL

2765

Power Window Switch Right Front Express Signal

4

TAN/WHT

551

Ground

5

YEL

1491

Backlight Lamps Control

Window Switch - Right Middle (V4U)


Object Number: 258172 Size: CH

Connector Part Information
    • 12064982
    • 5-Way F Micro-Pack 100 Series (BLK)

Pin

Wire Color

Circuit No.

Function

1

WHT

1185

Power Window Switch Up Signal

2

ORN

1189

Power Window Switch Down Signal

3

PPL

2765

Power Window Switch Express Signal

4

BLK/WHT

451

Ground

5

YEL

1491

Backlight Lamps Control

Window Switch - RR


Object Number: 258172 Size: CH

Connector Part Information
    • 12064982
    • 5-Way F Micro-Pack 100 Series (BLK)

Pin

Wire Color

Circuit No.

Function

1

DK GRN

1185

Power Window Switch Up Signal

2

YEL

1189

Power Window Switch Down Signal

3

PPL

2765

Power Window Switch Right Front Express Signal

4

TAN/WHT

451

Ground

5

YEL

1491

Backlight Lamps Control
