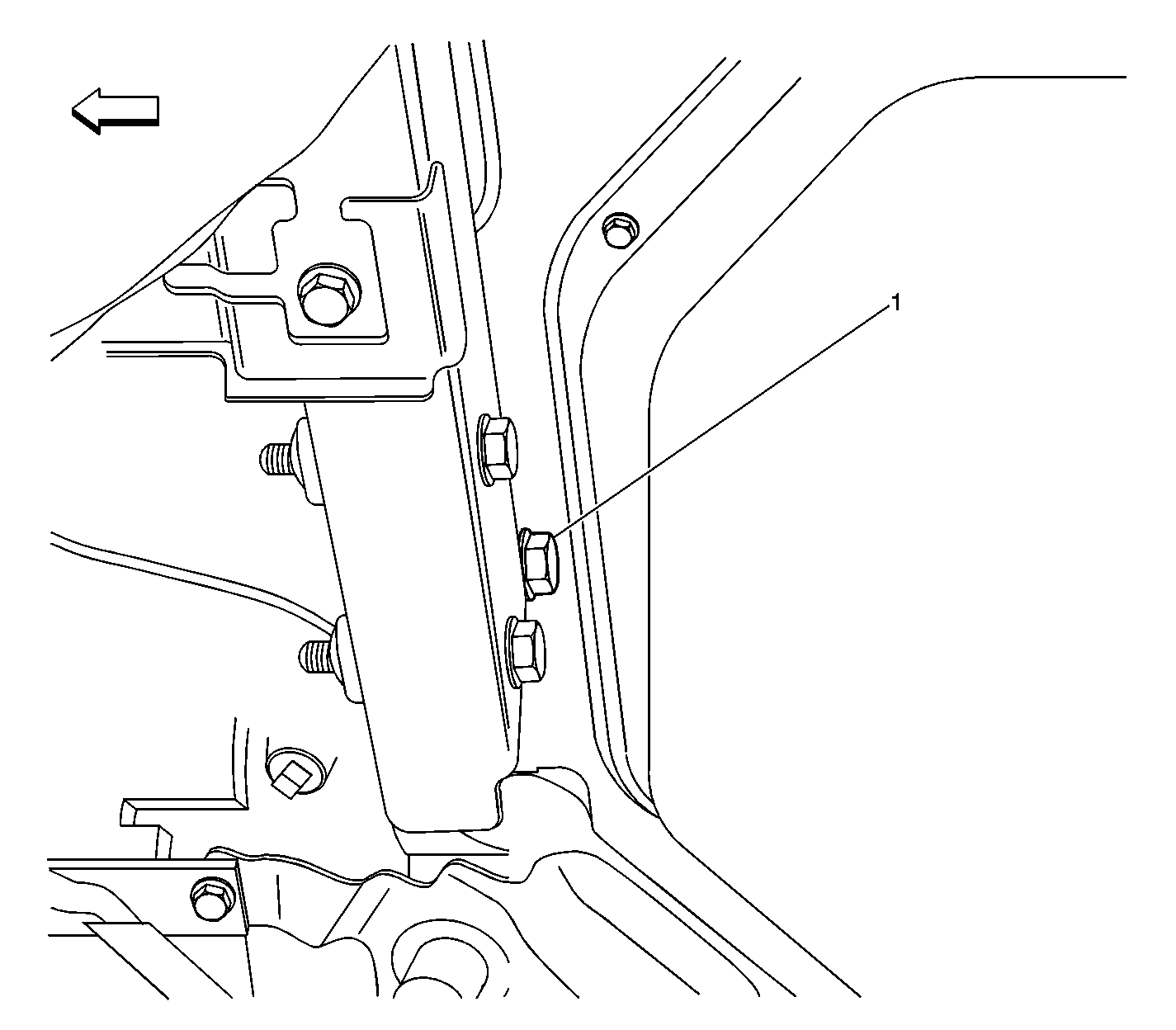

| Figure 1: |
Left Front of the Engine Compartment, on the Left
Side of the Radiator Support
|
| Figure 2: |
Right Front of the Engine Compartment, Above the
Generator
|

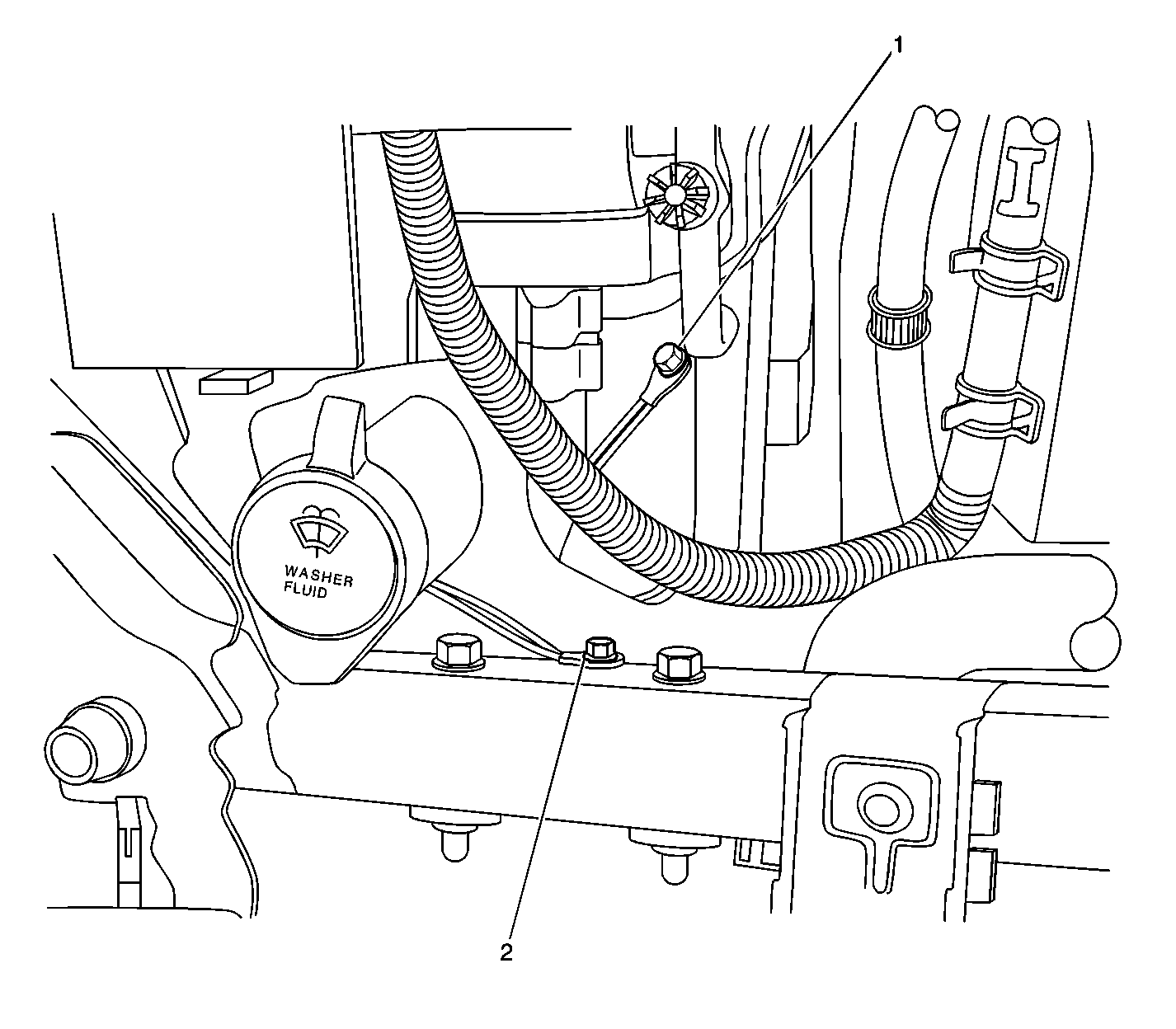

| Figure 3: |
Right Front of the Engine Compartment, Near the
Windshield Washer Fluid Reservoir Filler Neck
|
| Figure 4: |
RR Corner of Engine Compartment
|
| Figure 5: |
Passenger Compartment, Below the Instrument Panel,
Left Side
|
| Figure 6: |
Passenger Compartment, Below the Instrument Panel,
Left Side
|
| Figure 7: |
Left Side of the I/P, near the Steering Column
|
| Figure 8: |
Left Front of the Passenger Compartment, in the
Steering Column
|
| Figure 9: |
Passenger Compartment, Behind RF Kick
Panel
|
| Figure 10: |
Passenger Compartment, Behind LF Kick
Panel
|
| Figure 11: |
Passenger Compartment, Under the Right Front Seat
|
| Figure 12: |
Left Rear of the Passenger Compartment, Above
the Rear Shelf Panel
|
| Figure 13: |
Right Rear Corner of the Passenger Compartment,
Above the Rear Shelf
|
| Figure 14: |
Right Side of the Rear Compartment
|
| Figure 15: |
LF Corner of Rear Compartment
|
