Table 1: C100 - Engine Harness to Transaxle Harness
Table 2: C101 - Body Harness to Engine Harness
Table 3: C102 - Forward Lamp Harness to Headlamp Harness
Table 4: C103 - Forward Lamp Harness to Headlamp Harness
Table 5: C107 - Engine Harness to Starter Harness
Table 6: C110 - Body Harness to Wiper Harness
Table 7: C115 - Transaxle Harness to Transaxle Valve Harness
Table 8: C139 - Engine Harness to Ignition Coil Jumper
Table 9: C140 - Engine Harness to Ignition Coil Jumper
Table 10: C200 - Body Harness to Instrument Panel Harness
Table 11: C201 - Body Harness to Instrument Panel Harness
Table 12: C202 - Body Harness to Steering Column Harness
Table 13: C203 - In-Line Connector
Table 14: C204 - Instrument Panel Top Pad Harness to Instrument Panel Harness
Table 15: C205 - Body Harness to Instrument Panel Harness
Table 16: C206 - Ashtray Harness to Instrument Panel Harness (w/o Floor Shift)
Table 17: C207 - Body Harness to Upfitter Harness (w/V4U, B9Q)
Table 18: C208 - Body Harness to Upfitter Supplied (w/B9Q)
Table 19: C209 - Body Harness to Upfitter Harness (w/V4U)
Table 20: C210 - Body Harness to Upfitter Harness (w/V4U)
Table 21: C212 - Windshield Defogger Harness to Windshield Defogger Harness (w/WC2/WC8)
Table 22: C213 - Windshield Defogger Harness to Windshield Defogger Harness (w/WC2/WC8)
Table 23: C275 - I/P Harness to the Inflatable Restraint Steering Wheel Module Coil
Table 24: C277 - Inflatable Restraint Steering Wheel Module Coil to the Steering Wheel Harness
Table 25: C300 - Body Harness to Left Front Seat Harness
Table 26: C303 - Sunshade Harness to Body Harness (V4U or Domestic w/o T90)
Table 27: C304 - Console Harness to Instrument Panel Harness (w/ Floor Shift)
Table 28: C305 - Headliner Harness to Body Harness
Table 29: C306 - Body Harness to Rear Seat Harness (KA1)
Table 30: C307 - Body Harness Side to RF Seat Harness Side
Table 31: C309 - Headliner Harness Side to Sunroof Harness Side (CF5)
Table 32: C310 - Sunroof Harness Side to Body Harness Side (w/o V4U, B9Q or CF5)
Table 33: C310 - Body Harness to Upfitter Harness (w/V4U, B9Q)
Table 34: C312 - Body Harness Side to Rear HVAC Harness Side
Table 35: C313 - Flex Console Harness Side to Body Harness Side (w/o UE7, UE9)
Table 36: C313 - Flex Console Harness Side to Body Harness Side (w/T90)
Table 37: C314 - LH Front Lumbar Motor Harness Side to LH Front Seat Harness Side (w/ AL2, w/o A45)
Table 38: C316 - Body Harness (w/V4U) to Upfitter Harness - Left Middle Door (w/V4U)
Table 39: C317 - Body Harness to Upfitter Harness Left Middle Door (w/V4U)
Table 40: C318 - Body Harness to Upfitter Harness Right Middle Door (w/V4U)
Table 41: C319 - Body Harness to Upfitter Harness Right Middle Door (w/V4U)
Table 42: C320 - Rear Heated Seat Harness to Rear Seat Harness
Table 43: C322 - Body Harness to Rear Shelf Harness
Table 44: C323 - Left Front Seat Harness to Left Front Seat Back Harness (w/AM3)
Table 45: C324 - Left Front Seat Harness to Left Front Seat Massage Module Harness (w/o A45)
Table 46: C325 - Right Front Seat Harness to Right Front Lumbar Motor Harness (w/o AL2)
Table 47: C326 - Right Front Seat Harness to Right Front Seat Back Harness (w/ KA1, w/o AL2)
Table 48: C327 Body Harness to Upfitter Harness (w/V4U, B9Q)
Table 49: C328 Body Harness to Upfitter Harness (w/V4U, B9Q)
Table 50: C329 Body Harness to Upfitter Harness (w/V4U, B9Q)
Table 51: C330 Body Harness to Upfitter Harness (w/B9Q)
Table 52: C331 Body Harness to Upfitter Harness (w/B9Q)
Table 53: C332 Body Harness to Upfitter Harness (w/V4U)
Table 54: C333 Body Harness to Right Middle Door Harness (w/V4U)
Table 55: C334 Body Harness to Upfitter Harness (w/B9Q)
Table 56: C335 Body Harness to Upfitter Harness (w/B9Q)
Table 57: C345 - Body Harness to OnStar® Jumper Harness (UE1)
Table 58: C346 - OnStar® Jumper Harness to Cellular Telephone Harness (w/ UE1, UV8)
Table 59: C400 - Back-Up Lamp Harness to Body Harness (Domestic)
Table 60: C400 - Back-Up Lamp Harness to Body Harness (Export)
Table 61: C404 - Trailer Harness Connector (w/V92)
Table 62: C407 - Body Harness to Trailer Harness (V92)
Table 63: C408 - Body Harness to Rear Park Assist Harness
Table 64: C409 - Body Harness to Upfitter Harness (w/B9Q)
Table 65: C410 - Body Harness to Upfitter Harness (w/B9Q)
Table 66: C411 - Body Harness to Upfitter Harness (w/B9Q)
Table 67: C412 - Body Harness to Upfitter Harness (w/B9Q)
Table 68: C413 - Body Harness (w/B9Q)
Table 69: C420 - Body Harness to Fuel Tank Harness
Table 70: C421 - Rear Wheel Speed Sensor Harness to Body Harness (w/V4U, B9Q)
Table 71: C422 - Rear Wheel Speed Sensor Harness to Body Harness (w/V4U, B9Q)
Table 72: C500 - Left Front Door Harness to Body 2 Harness
Table 73: C501 - Left Front Door Trim Harness to Left Front Door Harness
Table 74: C502 - Outside Rearview Mirror to Driver Door Harness
Table 75: C600 - Right Front Door Harness to Body 3 Harness
Table 76: C601 - Right Front Door Trim Harness to Right Front Door Trim Harness
Table 77: C700 - Body Harness to Left Rear Door Harness
Table 78: C701 - Body 1 Harness to Left Rear Door Harness
Table 79: C702 - Left Rear Door Trim Harness to Left Rear Door Harness
Table 80: C800 - Body 3 Harness to Right Rear Door Harness
Table 81: C801 - Body Harness to Right Rear Door Harness
Table 82: C802 - Right Rear Door Trim Harness to Right Rear Door Harness

C100 - Engine Harness to Transaxle Harness


Object Number: 130736 Size: CF

Connector Part Information
    • 15305238
    • 20-Way F Micro-Pack 100W Series (GRY)

Connector Part Information
    • 15317834
    • 20-Way M Micro-Pack 100W Series, Lock Assist/Sealed (GRY)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

LT GRN

1222

1-2 Shift Solenoid Valve Control

A

LT GRN

1222

1-2 Shift Solenoid Valve Control

B

YEL/BLK

1223

2-3 Shift Solenoid Valve Control

B

YEL

1223

2-3 Shift Solenoid Valve Control

C

RED/BLK

1228

PC Solenoid Valve High Control

C

PPL

1228

PC Solenoid Valve High Control

D

LT BLU/WHT

1229

PC Solenoid Valve Low Control

D

LT BLU

1229

PC Solenoid Valve Low Control

E

PNK

739

Ignition 1 Voltage

E

RED

739

Ignition 1 Voltage

F

BLK/WHT

771

Transmission Range Switch Signal A

F

RED/BLK

771

Transmission Range Switch Signal A

G

YEL

772

Transmission Range Switch Signal B

G

DK GRN/WHT

772

Transmission Range Switch Signal B

H

GRY

773

Transmission Range Switch Signal C

H

YEL/BLK

773

Transmission Range Switch Signal C

J

WHT

776

Transmission Range Switch Signal P

J

GRY/WHT

776

Transmission Range Switch Signal P

K

BLK/WHT

451

Ground

K

BLK/WHT

1050

Ground

L

YEL/BLK

1227

TFT Sensor Signal

L

BRN

1227

TFT Sensor Signal

M

BLK

2762

Low Reference

M

GRY

2762

Low Reference

N

PNK

1224

Transmission Fluid Pressure Switch Signal A

N

--

--

Not Used

P

RED

1226

Transmission Fluid Pressure Switch Signal C

P

--

--

Not Used

R

--

--

Not Used

R

--

--

Not Used

S

RED/BLK

1230

AT ISS High Signal

S

BLK

1230

AT ISS High Signal

T

TAN/BLK

422

TCC Solenoid Valve Control

T

TAN

422

TCC Solenoid Valve Control

U

PNK

739

Ignition 1 Voltage

U

WHT

739

Ignition 1 Voltage

V

DK BLU/WHT

1231

AT ISS Low Signal

V

DK GRN

1231

AT ISS Low Signal

W

--

--

Not Used

W

--

--

Not Used

C101 - Body Harness to Engine Harness


Object Number: 646433 Size: CH

Object Number: 655777 Size: CH

Connector Part Information
    • 15336418
    • 38-Way F GT 150, 280 Series Sealed (BLK)

Connector Part Information
    • 15317380
    • 38-Way M GT 150, 280 Series Sealed 4.0 5.2 (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A1

LT BLU/BLK

396

Cruise Control Engaged Signal

A1

LT BLU/BLK

396

Cruise Control Engaged Signal

A2

DK GRN

83

Cruise Control Inhibit Signal

A2

DK GRN

83

Cruise Control Inhibit Signal

A3

PPL

1589

Fuel Level Sensor Signal

A3

PPL

1589

Fuel Level Sensor Signal

A4

LT BLU

715

Lateral Accelerometer Signal (w/JL4)

A4

LT BLU

715

Lateral Accelerometer Signal (w/JL9)

A4

BRN

903

Ignition Coil Supply Voltage (w/o JL4)

A5

DK GRN

906

Battery Positive Voltage

A5

--

--

Not Used

A6

DK BLU

716

Yaw Rate Sensor Signal (w/JL4)

A6

DK BLU

716

Yaw Rate Sensor Signal (w/JL9)

DK GRN

905

Not Used (w/o JL4)

A7

DK GRN/WHT

465

Fuel Pump Relay Control

A7

DK GRN/WHT

465

Fuel Pump Relay Control

A8

LT GRN

1763

Steering Wheel Position Signal A (w/JL4)

A8

LT GRN

1763

Steering Wheel Position Signal A (w/JL9)

DK GRN

907

Steering Wheel Position Signal A (w/o JL4)

B1

PPL

1807

Class 2 Serial Data

B1

PPL

1807

Class 2 Serial Data

B2

RED/WHT

901

IC 2 Control

B2

--

--

Not Used

B3

WHT

1390

Off/Run/Crank Voltage

B3

WHT

1390

Off/Run/Crank Voltage

B4

BRN

241

Ignition 3 Voltage

B4

BRN

241

Ignition 3 Voltage

B5

BLK

2759

Low Reference

B5

BLK

2759

Low Reference

B6

YEL

5

Crank Voltage

B6

YEL

5

Crank Voltage

B7

GRY/BLK

1337

5-Volt Reference (w/JL4)

B7

GRY/BLK

1337

5-Volt Reference (w/JL9)

GRY

910

Not Used (w/o JL4)

B8

WHT

121

Engine Speed Signal

B8

WHT

121

Engine Speed Signal

B9

GRY

847

Extended Travel Brake Switch Signal

B9

GRY

847

Extended Travel Brake Switch Signal

B10

ORN

3340

Battery Positive Voltage

B10

ORN

3340

Battery Positive Voltage

B11

PPL

1490

Chassis Pitch Signal

B11

PNK/WHT

1101

Damping Lift/Drive Signal

PPL

902

IC 1 Control (DHS)

B12

WHT

17

Stop Lamp Switch Signal

B12

WHT

17

Stop Lamp Switch Signal

C1

PPL

420

TCC Brake Switch/Cruise Control Release Signal

C1

PPL

420

TCC Brake Switch/Cruise Control Release Signal

C2

BRN/WHT

419

MIL Control

C2

BRN/WHT

419

MIL Control

C3

GRY

2709

5-Volt Reference

C3

GRY

2709

5-Volt Reference

C4

DK GRN

890

Fuel Tank Pressure Sensor Signal

C4

DK GRN

890

Fuel Tank Pressure Sensor Signal

C5

WHT

901

IC 2 Control

C5

--

--

Not Used

C6

DK BLU

1537

ABS Indicator Signal

C6

DK BLU

1537

ABS Indicator Signal

C7

GRY

791

PWM Serial Data

C7

GRY

791

PWM Serial Data

PPL

902

IC 1 Control (DeVille/DHS)

C8

WHT

790

PWM Serial Data

C8

WHT

790

PWM Serial Data

PNK

911

Rear Defog Relay Coil Supply Voltage (DeVille/DHS)

C9

LT BLU

1764

Steering Wheel Position Signal B (w/JL4)

C9

LT BLU

1764

Steering Wheel Position Signal B (w/JL9)

BRN

908

Not Used (w/o JL4)

C10

PPL

1807

Class 2 Serial Data

C10

PPL

1807

Class 2 Serial Data

C11

WHT

1310

EVAP Canister Vent Solenoid Control

C11

WHT

1310

EVAP Canister Vent Solenoid Control

C12

DK GRN/WHT

817

Vehicle Speed Signal

C12

DK GRN/WHT

817

Vehicle Speed Signal

D1

BRN

882

Right Rear Wheel Speed Sensor Signal

D1

BRN

882

Right Rear Wheel Speed Sensor Signal

D2

WHT

883

Right Rear Wheel Speed Sensor Low Reference

D2

WHT

883

Right Rear Wheel Speed Sensor Low Reference

D3

YEL/BLK

2085

PWM Serial Data

D3

YEL/BLK

2085

PWM Serial Data

WHT

904

Ignition Coil Supply Voltage (Deville)

D4-D5

--

--

Not Used

D4-D5

--

--

Not Used

D6

LT GRN/BLK

1338

Yaw Rate Sensor Signal (w/JL4)

D6

LT GRN/BLK

1338

Yaw Rate Sensor Signal (w/JL9)

GRY

909

Not Used (w/o JL4)

D7

BLK

884

Left Rear Wheel Speed Sensor Signal

D7

BLK

884

Left Rear Wheel Speed Sensor Signal

D8

RED

885

Left Rear Wheel Speed Sensor Low Reference

D8

RED

885

Left Rear Wheel Speed Sensor Low Reference

C102 - Forward Lamp Harness to Headlamp Harness


Object Number: 374045 Size: CH

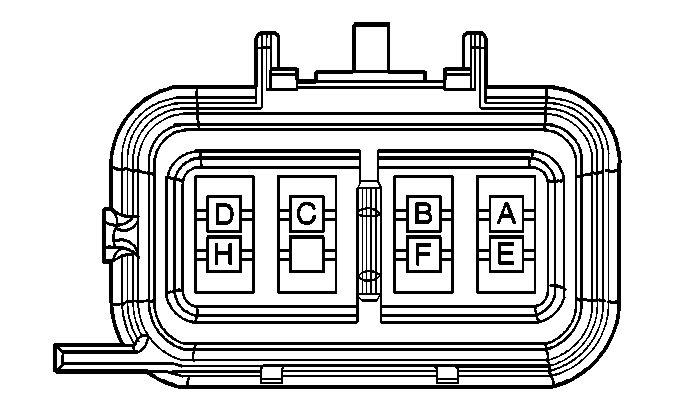

Object Number: 605513 Size: CH

Connector Part Information
    • 15317305
    • 8-Way F GT 280 Series (GRY)

Connector Part Information
    • 15336415
    • 8-Way M GT 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

LT BLU

14

Left Turn Signal Lamps Supply Voltage

A

LT BLU

14

Left Turn Signal Lamps Supply Voltage

B

PPL

709

Left Park Lamp Supply Voltage

B

PPL

709

Left Park Lamp Supply Voltage

WHT

1204

Left Park Lamp Supply Voltage (Export)

WHT

1204

Left Park Lamp Supply Voltage (Export)

C

YEL

712

Left Headlamp Low Beam Supply Voltage

C

YEL

712

Left Headlamp Low Beam Supply Voltage

D

DK BLU

998

5-Volt Reference

D

--

--

Not Used

E

DK GRN/WHT

711

Left Headlamp High Beam Supply Voltage

E

DK GRN

711

Left Headlamp High Beam Supply Voltage

F

BLK

2050

Ground

F

BLK

2050

Ground

G

--

--

Not Used

G

--

--

Not Used

H

BLK

250

Ground

H

BLK

250

Ground

C103 - Forward Lamp Harness to Headlamp Harness


Object Number: 374045 Size: CH

Object Number: 605513 Size: CH

Connector Part Information
    • 15317305
    • 8-Way F GT 280 Series (GRY)

Connector Part Information
    • 15336415
    • 8-Way M GT 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

DK BLU

15

Right Turn Signal Lamps Supply Voltage

A

LT BLU

15

Right Turn Signal Lamps Supply Voltage

B

BRN/WHT

309

Right Park Lamp Supply Voltage

B

PPL

309

Right Park Lamp Supply Voltage

PNK

1203

Right Park Lamp Supply Voltage (Export)

WHT

1203

Right Park Lamp Supply Voltage (Export)

C

TAN/WHT

312

Right Headlamp Low Beam Supply Voltage

C

YEL

312

Right Headlamp Low Beam Supply Voltage

D

DK BLU

998

5-Volt Reference

D

--

--

Not Used

E

LT GRN/BLK

311

Right Headlamp High Beam Supply Voltage

E

DK GRN

311

Left Headlamp High Beam Supply Voltage

F

BLK

2050

Ground

F

BLK

2050

Ground

G

--

--

Not Used

G

--

--

Not Used

H

BLK

250

Ground

H

BLK

250

Ground

C107 - Engine Harness to Starter Harness


Object Number: 816167 Size: CH

Object Number: 1372292 Size: CH

Connector Part Information
    • 12059472
    • 7-Way F Metri-Pack 150/480 Series (BLK)

Connector Part Information
    • 12052200
    • 7-Way M Metri-Pack 150/480 Series (BLK)


Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

GRY

2303

Low Reference

A

GRY

2303

Low Reference

B

LT BLU

1876

Knock Sensor 2 Signal

B

LT BLU

1876

Knock Sensor 2 Signal

C

DK BLU

496

Knock Sensor 1 Signal

C

DK BLU

496

Knock Sensor 1 Signal

D

GRY

1716

Low Reference

D

GRY

1716

Low Reference

E-F

--

--

Not Used

E-F

--

--

Not Used

G

PPL

6

Starter Solenoid Crank Voltage

G

PPL

6

Starter Solenoid Crank Voltage

C110 - Body Harness to Wiper Harness


Object Number: 697039 Size: CH

Object Number: 333040 Size: CH

Connector Part Information
    • 12052848
    • 6-Way F Metri-Pack 150 Series (BLK)

Connector Part Information
    • 12124107
    • 6-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

RED

228

Windshield Washer Pump Control

A

RED

228

Windshield Washer Pump Control

B

DK BLU

477

Windshield Wiper Switch Signal 1

B

DK BLU

477

Windshield Wiper Switch Signal 1

C

PPL

92

Windshield Wiper Motor High Speed

C

PPL

92

Windshield Wiper Motor High Speed

D

BLK

481

Outside Moisture Sensor Signal 1

D

BLK

481

Outside Moisture Sensor Signal 1

E

GRY

478

Windshield Wiper Switch Signal 2

E

GRY

478

Windshield Wiper Switch Signal 2

F

LT GRN

482

Outside Moisture Sensor Signal 2

F

LT GRN

482

Outside Moisture Sensor Signal 2

C115 - Transaxle Harness to Transaxle Valve Harness


Object Number: 258248 Size: CH

Object Number: 62434 Size: CH

Connector Part Information
    • 12065398
    • 8-Way F Metri-Pack 150 Series (NAT)

Connector Part Information
    • 12045688
    • 8-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

RED

839

Ignition 1 Voltage

A

RED

839

Ignition 1 Voltage

B

LT GRN

1222

1-2 Shift Solenoid Valve Control

B

LT GRN

1222

1-2 Shift Solenoid Valve Control

C

YEL

1223

2-3 Shift Solenoid Valve Control

C

YEL

1223

2-3 Shift Solenoid Valve Control

D

DK GRN/WHT

772

Transmission Range Switch Signal B

D

DK GRN/WHT

772

Transmission Range Switch Signal B

E

BLK/WHT

1050

Ground

E

BLK/WHT

1050

Ground

F

YEL/BLK

773

Transmission Range Switch Signal C

F

YEL/BLK

773

Transmission Range Switch Signal C

G

GRY/WHT

776

Transmission Range Switch Signal P

G

GRY/WHT

776

Transmission Range Switch Signal P

H

RED/BLK

771

Transmission Range Switch Signal A

H

RED/BLK

771

Transmission Range Switch Signal A

C139 - Engine Harness to Ignition Coil Jumper

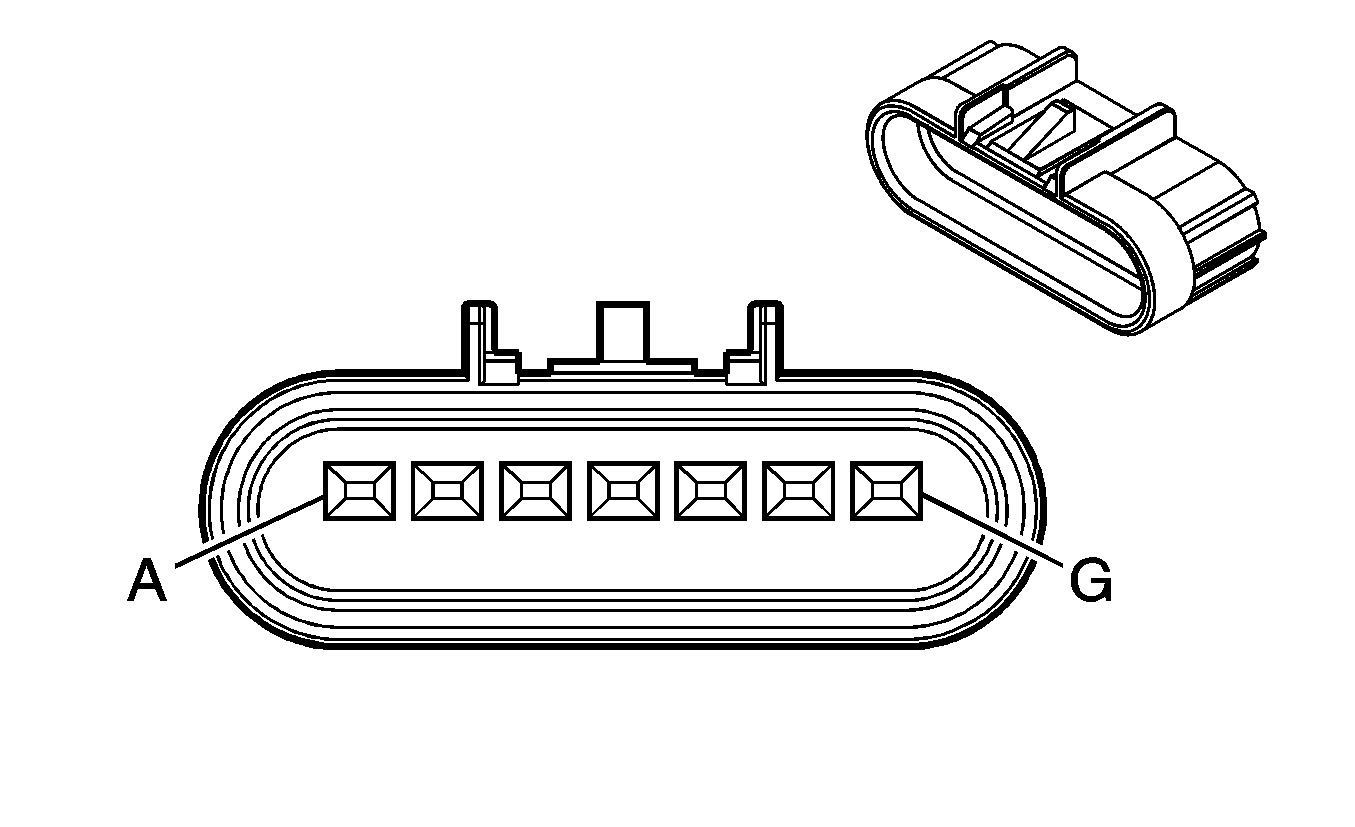

Object Number: 1283903 Size: CH

Object Number: 1283901 Size: CH

Connector Part Information
    • 15317367
    • 7-Way F GT 150 Series (BLK)

Connector Part Information
    • 15401773
    • 7-Way M GT 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

PNK

839

Ignition 1 Voltage

A

PNK

839

Ignition 1 Voltage

B

BLK/WHT

1551

Ground

B

BLK

1551

Ground

C

BRN/WHT

2130

Low Reference

C

BRN

2130

Low Reference

D

DK GRN/WHT

2124

IC 4 Control

D

LT BLU

2124

IC 4 Control

E

LT BLU/WHT

2126

IC 6 Control

E

DK GRN

2126

IC 6 Control

F

PPL/WHT

2128

IC 8 Control

F

RED

2128

IC 8 Control

G

RED/WHT

2122

IC 2 Control

G

PPL

2122

IC 2 Control

C140 - Engine Harness to Ignition Coil Jumper


Object Number: 1283903 Size: CH

Object Number: 1283901 Size: CH

Connector Part Information
    • 15317367
    • 7-Way F GT 150 Series (BLK)

Connector Part Information
    • 15401773
    • 7-Way M GT 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

PNK

839

Ignition 1 Voltage

A

PNK

839

Ignition 1 Voltage

B

BLK/WHT

1551

Ground

B

BLK

1551

Ground

C

BRN

2129

Low Reference

C

BRN

2129

Low Reference

D

DK GRN

2125

IC 5 Control

D

LT BLU

2125

IC 5 Control

E

LT BLU

2123

IC 3 Control

E

DK GRN

2123

IC 3 Control

F

PPL

2121

IC 1 Control

F

RED

2121

IC 1 Control

G

RED

2127

IC 7 Control

G

PPL

2127

IC 7 Control

C200 - Body Harness to Instrument Panel Harness


Object Number: 467409 Size: CF

Connector Part Information
    • 15604837
    • 40-Way F GT 150, 280 Series (BLK)

Connector Part Information
    • 15336417
    • 40-Way M GT 150, 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A1

WHT

121

Engine Speed Signal

A1

WHT

121

Engine Speed Signal

A2

WHT

1487

Antenna Enable Signal

A2

WHT

1487

Antenna Enable Signal

A3

PPL

1807

Class 2 Serial Data

A3

PPL

1807

Class 2 Serial Data

PPL

1807

Class 2 Serial Data

A4

DK BLU

1537

ABS Indicator Signal

A4

DK BLU

1537

ABS Indicator Signal

A5

PPL

333

Brake Fluid Level Sensor Signal

A5

PPL

333

Brake Fluid Level Sensor Signal

A6

BRN/WHT

419

MIL Control

A6

BRN/WHT

419

MIL Control

A7

RED

1486

FM Composite Signal

A7

RED

1486

FM Composite Signal

A8

BARE

814

Drain Wire (Domestic)

A8

BARE

814

Drain Wire (Domestic)

--

--

Not Used

--

--

Not Used

DK GRN

906

Battery Positive Voltage (Export)

B1

LT GRN

1427

Right Turn Signal Switch Signal

B1

LT GRN

1427

Right Turn Signal Switch Signal

B2

--

--

Not Used

B2

--

--

Not Used

B3

LT GRN

1431

Left Park Lamp Relay Control (Export)

B3

LT GRN

1431

Left Park Lamp Relay Control (Export)

--

--

Not Used

ORN/BLK

2360

Modem Audio Low Reference (Domestic w/o UY4)

B4

DK BLU

1432

Right Park Lamp Relay Control (Export)

B4

DK BLU

1432

Right Park Lamp Relay Control (Export)

--

--

Not Used

TAN/BLK

2388

Modem Audio Return Signal (Domestic w/o UY4)

B5

ORN

1740

Battery Positive Voltage

B5

ORN

1740

Battery Positive Voltage

B6

LT GRN

80

Key In Ignition Switch Signal

B6

LT GRN

80

Key In Ignition Switch Signal

B7

LT GRN/BLK

735

Ambient Air Temperature Sensor Signal

B7

LT GRN/BLK

735

Ambient Air Temperature Sensor Signal

B8

--

--

Not Used (Export w/o UY4, Hearse)

B8

--

--

Not Used (Export w/o UY4)

B8

BARE

814

Drain Wire (Except Export w/o UY4 or Hearse)

B8

BARE

814

Drain Wire (Except Export w/o UY4)

B9

--

--

Not Used (Export w/o UY4, Hearse)

B9

--

--

Not Used (Export w/o UY4)

TAN

2610

Cellular Microphone Signal (Except Export w/o UY4 or Hearse)

TAN

2610

Cellular Microphone Signal (Except Export w/o UY4)

B10

BLK/WHT

351

Ground

B10

BLK/WHT

351

Ground

B11

DK GRN

1428

Left Turn Signal Switch Signal

B11

DK GRN

1428

Left Turn Signal Switch Signal

B12

PNK

1039

Ignition 1 Voltage

B12

PNK

1039

Ignition 1 Voltage

C1

--

--

Not Used

C1

--

--

Not Used

C2

YEL/BLK

1334

Left Tail Lamp Outage Detection Signal

C2

YEL/BLK

1334

Left Tail Lamp Outage Detection Signal

C3

BRN

41

Ignition 3 Voltage

C3

BRN

41

Ignition 3 Voltage

C4

TAN

2057

Auxiliary Video Low Signal (Export w/UY4)

C4

TAN

2057

Auxiliary Video Low Signal (Export w/UY4)

C5

WHT

917

Not Used (Export)

C5

BRN/WHT

2387

Modem Audio Transmit Signal (Domestic)

C5

BRN/WHT

2387

Modem Audio Transmit Signal (Domestic)

C6

LT BLU

1134

Park Brake Switch Signal

C6

LT BLU

1134

Park Brake Switch Signal

C7

DK GRN/WHT

817

Vehicle Speed Signal

C7

DK GRN/WHT

817

Vehicle Speed Signal

C8

DK GRN/

WHT

1335

Right Tail Lamp Outage Detection Signal

C8

DK GRN/WHT

1335

Right Tail Lamp Outage Detection Signal

C9

DK GRN

906

Battery Positive Voltage

C9

--

--

Not Used

C9

PNK

2060

Auxiliary Detection Signal (Export)

C9

PNK

2060

Auxiliary Detection Signal (Export)

C10

WHT

17

Stop Lamp Switch Signal

C10

WHT

17

Stop Lamp Switch Signal

C11

YEL

18

Left Rear Stop/Turn Lamp Supply Voltage

C11

YEL

18

Left Rear Stop/Turn Lamp Supply Voltage

C12

BRN

404

Auxiliary Air Temperature Sensor Signal

C12

BRN

404

Auxiliary Air Temperature Sensor Signal

D1

RED/WHT

2056

Auxiliary Video High Signal

D1

RED/WHT

2056

Auxiliary Video High Signal

D2

WHT

814

Drain Wire

D2

WHT

814

Drain Wire

D3

LT BLU

1788

Traction Control Switch Signal

D3

LT BLU

1788

Traction Control Switch Signal

D4

BLK/WHT

651

Ground

D4

BLK/WHT

651

Ground

BLK/WHT

651

Ground

D5

YEL

61

Low Reference

D5

YEL

61

Low Reference

YEL

61

Low Reference

D6

WHT

2058

Auxiliary Audio Right Signal (Export)

D6

WHT

2058

Auxiliary Audio Right Signal (Export)

D7

YEL

2059

Auxiliary Audio Left Signal (Export)

D7

YEL

2059

Auxiliary Audio Left Signal (Export)

D8

BARE

814

Drain Wire (Export)

D8

BARE

814

Drain Wire (Export)

C201 - Body Harness to Instrument Panel Harness


Object Number: 655760 Size: CH

Object Number: 655855 Size: CH

Connector Part Information
    • 15304837
    • 40-Way F GT 150, 280 Series (BLK)

Connector Part Information
    • 15336417
    • 40-Way M GT 150, 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A1

--

--

Not Used

A1

--

--

Not Used

A2

BRN/WHT

367

Remote Radio Left Audio Signal

A2

BRN/WHT

367

Remote Radio Left Audio Signal

A3

LT GRN

1478

Coolant Level Switch Signal

A3

LT GRN

1478

Coolant Level Switch Signal

A4

ORN

440

Battery Positive Voltage

A4

ORN

440

Battery Positive Voltage

A5

ORN

2240

Battery Positive Voltage

A5

ORN

2240

Battery Positive Voltage

ORN

2240

Battery Positive Voltage (if equipped)

A6

BRN

141

Ignition 3 Voltage

A6

BRN

141

Ignition 3 Voltage

A6

BRN

141

Ignition 3 Voltage

A7

DK GRN/WHT

368

Remote Radio Right Audio Signal

A7

DK GRN/WHT

368

Remote Radio Right Audio Signal

A8

ORN

3540

Battery Positive Voltage

A8

ORN

3540

Battery Positive Voltage

B1

BLK

450

Ground

B1

BLK

450

Ground

B2

PPL

1807

Class 2 Serial Data

B2

PPL

1807

Class 2 Serial Data

B3

PPL/WHT

652

Chime Module Bit2 Signal

B3

PPL/WHT

652

Chime Module Bit2 Signal

B4

DK BLU/WHT

653

Chime Module Bit1 Signal

B4

DK BLU/WHT

653

Chime Module Bit1 Signal

B5

BARE

1792

Drain Wire

B5

BARE

1792

Drain Wire

B6

BLK/WHT

451

Ground

B6

BLK/WHT

451

Ground

B7

DK GRN

1947

Left Front Low Level Audio Signal (-)

B7

DK GRN

1947

Left Front Low Level Audio Signal (-)

B8

BLK/WHT

372

Remote Radio Audio Output (-)

B8

BLK/WHT

372

Remote Radio Audio Output (-)

B9

ORN

1140

Battery Positive Voltage

B9

ORN

1140

Battery Positive Voltage

B10

DK GRN

19

Right Rear Stop/Turn Lamp Supply Voltage

B10

DK GRN

19

Right Rear Stop/Turn Lamp Supply Voltage

B11

BARE

1782

Drain Wire

B11

BARE

1782

Drain Wire

B12

--

--

Not Used

B12

--

--

Not Used

C1

ORN

3640

Battery Positive Voltage

C1

ORN

3640

Battery Positive Voltage

C2

LT GRN/BLK

512

Right Front Low Level Audio Signal (+)

C2

LT GRN/BLK

512

Right Front Low Level Audio Signal (+)

C3

WHT

103

Headlamp Switch Headlamps On Signal

C3

WHT

103

Headlamp Switch Headlamps On Signal

C4

LT GRN

1948

Right Front Low Level Audio Signal (-)

C4

LT GRN

1948

Right Front Low Level Audio Signal (-)

C5

BRN/WHT

301

Park Lamp Switch On Signal

C5

BRN/WHT

301

Park Lamp Switch On Signal

C6

BARE

2012

Drain Wire

C6

BARE

2012

Drain Wire

C7

DK BLU/

WHT

149

Courtesy Lamp Supply Voltage

C7

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

C8

BRN

253

Trunk Release Relay Control

C8

BRN

253

Trunk Release Relay Control

C9

--

--

Not Used

C9

--

--

Not Used

C10

BLK

9999

Inside Air Temperature Sensor Assembly Control

C10

BLK

9999

Inside Air Temperature Sensor Assembly Control

C11

GRY/BLK

754

Blower Motor Speed Control

C11

GRY/BLK

754

Blower Motor Speed Control

C12

TAN

511

Left Front Low Level Audio Signal (+)

C12

TAN

511

Left Front Low Level Audio Signal (+)

D1

YEL

1860

Front Center Speaker Output (+)

D1

YEL

1860

Front Center Speaker Output (+)

D2

LT BLU

1960

Front Center Speaker Output (-)

D2

LT BLU

1960

Front Center Speaker Output (-)

D3

YEL

1491

Backlight Lamps Control

D3

YEL

1491

Backlight Lamps Control

D3

YEL

1491

Backlight Lamps Control

D4

WHT

111

Hazard Switch Signal

D4

WHT

111

Hazard Switch Signal

D4

WHT

111

Hazard Switch Signal

D5

LT BLU

14

Left Turn Signal Lamps Supply Voltage

D5

LT BLU

14

Left Turn Signal Lamps Supply Voltage

D6

DK BLU

15

Right Turn Signal Lamps Supply Voltage

D6

DK BLU

15

Right Turn Signal Lamps Supply Voltage

D6

--

--

Not Used

D6

DK BLU

15

Right Turn Signal Lamps Supply Voltage

D7

BARE

2011

Drain Wire

D7

BARE

2011

Drain Wire

D8

BLK/WHT

99

Windshield Washer Fluid Level Signal

D8

BLK/WHT

99

Windshield Washer Fluid Level Signal

C202 - Body Harness to Steering Column Harness


Object Number: 655760 Size: CH

Object Number: 655855 Size: CH

Connector Part Information
    • 15304837
    • 40-Way F GT 150, 280 Series (BLK)

Connector Part Information
    • 15336417
    • 40-Way M 150, 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A1

ORN

540

Battery Positive Voltage

A1

ORN

540

Battery Positive Voltage

A2

LT BLU

1764

Steering Wheel Position Signal B

A2

LT BLU

1764

Steering Wheel Position Signal B

A3

YEL

43

Accessory Voltage

A3

YEL

43

Accessory Voltage

A4

LT GRN

1427

Right Turn Signal Switch Signal

A4

LT GRN

1427

Right Turn Signal Switch Signal

A5

BRN

341

Ignition 3 Voltage

A5

BRN

341

Ignition 3 Voltage

A6

WHT

1538

Windshield Wiper Switch On Signal

A6

WHT

1538

Windshield Wiper Switch On Signal

A7

ORN

240

Battery Positive Voltage

A7

ORN

240

Battery Positive Voltage

A8

YEL

32

Instrument Panel Lamp Fuse Supply Voltage - 1

A8

YEL

32

Instrument Panel Lamp Fuse Supply Voltage - 1

B1

WHT

1390

Off/Run/Crank Voltage

B1

WHT

1390

Off/Run/Crank Voltage

B2

PNK

3

Ignition Switch Output - Ignition 1

B2

PNK

3

Ignition Switch Output - Ignition 1

B3

YEL

5

Crank Voltage

B3

YEL

5

Crank Voltage

B4

PNK

1039

Ignition 1 Voltage

B4

PNK

1039

Ignition 1 Voltage

B5

ORN

57

Left Cornering Lamp Supply Voltage

B5

ORN

57

Left Cornering Lamp Supply Voltage

B6

BLK

58

Right Cornering Lamp Supply Voltage

B6

BLK

58

Right Cornering Lamp Supply Voltage

B7

DK BLU

477

Windshield Wiper Switch Signal 1

B7

DK BLU

477

Windshield Wiper Switch Signal 1

B8

LT BLU

1485

Headlamp Control

B8

LT BLU

1485

Headlamp Control

B9

PNK/WHT

1970

Headlamp Low Beam Relay Control

B9

PNK/WHT

1970

Headlamp Low Beam Relay Control

B10

BLK/WHT

1969

Headlamp High Beam Relay Control

B10

BLK/WHT

1969

Headlamp High Beam Relay Control

B11

PNK/BLK

1484

Flash to Pass Switch Signal

B11

PNK/BLK

922

Flash to Pass Switch Signal

B12

BLK

28

Horn Relay Control

B12

BLK

28

Horn Relay Control

C1

ORN

300

Ignition 3 Voltage

C1

ORN

300

Ignition 3 Voltage

C2

BRN

4

Accessory Voltage

C2

BRN

4

Accessory Voltage

C3

LT GRN

80

Key In Ignition Switch Signal

C3

LT GRN

80

Key In Ignition Switch Signal

C4

LT BLU

1788

Traction Control Switch Signal

C4

BRN

1788

Traction Control Switch Signal

C5

WHT

2356

Park Key Lock Actuator Supply Voltage (w/Console Shift)

C5

DK GRN/WHT

2356

Park Key Lock Actuator Supply Voltage (w/Console Shift)

DK GRN/WHT

1135

A/T Shift Lock Control Solenoid Supply Voltage (w/Column Shift)

DK GRN/WHT

1135

A/T Shift Lock Control Solenoid Supply Voltage (w/Column Shift)

C6

GRY

397

Cruise Control On Switch Signal

C6

GRY

397

Cruise Control On Switch Signal

C7

GRY/BLK

87

Cruise Control Resume/Accel Switch Signal

C7

GRY/BLK

87

Cruise Control Resume/Accel Switch Signal

C8

DK BLU

84

Cruise Control Set/Coast Switch Signal

C8

DK BLU

84

Cruise Control Set/Coast Switch Signal

C9

PPL

1807

Class 2 Serial Data

C9

PPL

1807

Class 2 Serial Data

C10

GRY

478

Windshield Wiper Switch Signal 2

C10

GRY

478

Windshield Wiper Switch Signal 2

C11

PPL

1375

Remote Radio Control Supply Voltage

C11

PPL

1375

Remote Radio Control Supply Voltage

C12

YEL

1491

Backlight Lamps Control

C12

YEL

1491

Backlight Lamps Control

D1

BLK

451

Ground

D1

BLK

451

Ground

D2

LT GRN

1763

Steering Wheel Position Signal A (w/JL4)

D2

LT GRN

1763

Steering Wheel Position Signal A (w/JL4)

BRN

908

Class 2 Serial Data (w/o JL4)

--

--

Not Used

D3

BLK

350

Ground

D3

BLK

350

Ground

D4

PPL

92

Windshield Wiper Motor High Speed

D4

PPL

92

Windshield Wiper Motor High Speed

D5

DK GRN

1428

Left Turn Signal Switch Signal

D5

DK GRN

1428

Left Turn Signal Switch Signal

D6

GRY/BLK

1337

5-Volt Reference (if equipped)

D6

GRY/BLK

1337

5-Volt Reference

D7

LT GRN/BLK

1338

Yaw Rate Sensor Signal (if equipped)

D7

LT GRN/BLK

1338

Yaw Rate Sensor Signal

D8

DK BLU

1796

Steering Wheel Controls Signal

D8

DK BLU

1796

Steering Wheel Controls Signal

C203 - In-Line Connector


Object Number: 280750 Size: CF

Connector Part Information
    • 15336224
    • 16-Way F Metri-Pack 280 Series (BLK)

Connector Part Information
    • 12129427
    • 16-Way M Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

YEL

61

Low Reference

A

WHT

61

Low Reference

A

WHT

61

Low Reference

B

ORN

2775

Auxiliary Air Temperature Door Control B

B

WHT

2775

Auxiliary Air Temperature Door Control B

C

TAN

2776

Auxiliary Air Temperature Door Control A

C

WHT

2776

Auxiliary Air Temperature Door Control A

D

YEL/BLK

1814

Mode Door Control A

D

WHT

1814

Mode Door Control A

E

PPL

1838

Recirculation Door Control A

E

WHT

1838

Recirculation Door Control A

F

BLK

518

Lower Left Air Temperature Sensor Signal

F

WHT

518

Lower Left Air Temperature Sensor Signal

G

BLK

520

Lower Right Air Temperature Sensor Signal

G

WHT

520

Lower Right Air Temperature Sensor Signal

H

GRY/BLK

2778

Right Air Temperature Door Control A

H

WHT

2778

Right Air Temperature Door Control A

J

--

--

Not Used

J

--

--

Not Used

K

WHT/BLK

1236

Right Air Temperature Door Control B

K

WHT

1236

Right Air Temperature Door Control B

L

DK BLU

1199

Left Air Temperature Door Control B

L

WHT

1199

Left Air Temperature Door Control B

M-N

--

--

Not Used

M-N

--

--

Not Used

P

YEL

1791

Left Air Temperature Door Control A

P

WHT

1791

Left Air Temperature Door Control A

R

YEL

1318

Mode Door Control B

R

WHT

1318

Mode Door Control B

S

DK GRN

1614

Recirculation Door Control B

S

WHT

1614

Recirculation Door Control B

C204 - Instrument Panel Top Pad Harness to Instrument Panel Harness


Object Number: 40422 Size: CH

Object Number: 40425 Size: CH

Connector Part Information
    • 12064762
    • 6-Way F Metri-Pack 150 Series (GRY)

Connector Part Information
    • 12064763
    • 6-Way M Metri-Pack 150 Series (GRY)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

LT BLU/BLK

590

Driver Sunload Sensor Signal

A

LT BLU/BLK

590

Driver Sunload Sensor Signal

B

YEL

61

Low Reference

B

YEL

61

Low Reference

C

WHT

278

Ambient Light Sensor Signal

C

WHT

278

Ambient Light Sensor Signal

D

GRY

1548

Passenger Sunload Sensor Signal

D

GRY

1548

Passenger Sunload Sensor Signal

E

LT BLU

1960

Front Center Speaker Output (-)

E

LT BLU

1960

Front Center Speaker Output (-)

F

YEL

1860

Front Center Speaker Output (+)

F

YEL

1860

Front Center Speaker Output (+)

C205 - Body Harness to Instrument Panel Harness


Object Number: 655760 Size: CH

Object Number: 655855 Size: CH

Connector Part Information
    • 15304837
    • 40-Way F TY 150, 280 Mixed Series (BLK)

Connector Part Information
    • 15336417
    • 40-Way M TY 150, 280 Mixed Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A1

ORN

2840

Driver Seat Horizontal Motor Aft

A1

ORN

2840

Battery Positive Voltage

A2

GRY

2502

Auxiliary Mode Door Control

A2

PNK

2502

Auxiliary Mode Door Control

A3

LT BLU

72

Medium 1 Blower Motor Control

A3

LT BLU

72

Medium 1 Blower Motor Control

A4

PNK

1593

Auxiliary Mode Actuator Supply Voltage

A4

PNK

1593

Auxiliary Mode Actuator Supply Voltage

A5

RED

2503

Low Reference

A5

RED

2503

Low Reference

A6

ORN

1052

High Blower Motor Control

A6

ORN

1052

High Blower Motor Control

A7

TAN

63

Low Blower Motor Control

A7

TAN

63

Low Blower Motor Control

A8

PPL

73

Medium 2 Blower Motor Control

A8

PPL

73

Medium 2 Blower Motor Control

B1

--

--

Not Used

B1

--

--

Not Used

B2

PNK

608

14-Volt Reference

B2

PNK

608

14-Volt Reference

B3

YEL

2385

Night Vision Video Low Signal (UV2)

B3

YEL

2385

Night Vision Video Low Signal (UV2)

B4

DK GRN

2386

Night Vision Video High Signal (UV2)

B4

DK GRN

2386

Night Vision Video High Signal

B5

BARE

814

Drain Wire (UV2)

B5

BARE

814

Drain Wire (UV2)

B6

--

--

Not Used

B6

--

--

Not Used

B7

BLK/WHT

1051

Ground

B7

BLK/WHT

1051

Ground

B8-B12

--

--

Not Used

B8

--

--

Not Used

C1-C12

--

--

Not Used

C1-C12

--

--

Not Used

D1

--

--

Not Used

D1

--

--

Not Used

D2

DK GRN/WHT

1135

A/T Shift Lock Solenoid Supply Voltage (w/UV2 and T96)

D2

DK GRN/WHT

1135

A/T Shift Lock Solenoid Supply Voltage (w/UV2 and T96)

D3

--

--

Not Used

D3

--

--

Not Used

D4

BRN

741

Ignition 3 Voltage

D4

BRN

741

Ignition 3 Voltage

BRN

741

Ignition 3 Voltage

D5-D6

--

--

Not Used

D5-D6

--

--

Not Used

D7

LT GRN

1652

Reverse Lockout Solenoid Control

D7

LT GRN

1652

Reverse Lockout Solenoid Control

D8

ORN

3240

Battery Positive Voltage

D8

ORN

3240

Battery Positive Voltage

C206 - Ashtray Harness to Instrument Panel Harness (w/o Floor Shift)


Object Number: 40399 Size: CH

Object Number: 130637 Size: CH

Connector Part Information
    • 12064761
    • 4-Way F Metri-Pack 150 Series (BLK)

Connector Part Information
    • 12064760
    • 4-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

ORN

3540

Battery Positive Voltage

A

ORN

3540

Battery Positive Voltage

B

YEL

1491

Backlight Lamps Control

B

YEL

1491

Backlight Lamps Control

C

BLK

450

Ground

C

BLK

450

Ground

D

BLK

450

Ground

D

BLK

450

Ground

C207 - Body Harness to Upfitter Harness (w/V4U, B9Q)


Object Number: 280768 Size: CH

Object Number: 95782 Size: CH

Connector Part Information
    • 12052832
    • 2-Way F Metri-Pack 150 Series (BLK)

Connector Part Information
    • 12052833
    • 2-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

YEL

1491

Backlight Lamps Control

A

YEL

1491

Backlight Lamps Control

B

TAN/WHT

551

Ground

B

TAN/WHT

551

Ground

C208 - Body Harness to Upfitter Supplied (w/B9Q)


Object Number: 333042 Size: CH

--

Connector Part Information
    • 12020013
    • 3-Way F Metri-Pack 150 Series (BLK)

Connector Part Information

Upfitter Supplied

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

ORN

1340

Battery Positive Voltage

A

--

--

Upfitter Supplied

B

WHT

1487

Antenna Enable Signal

B

--

--

Upfitter Supplied

C

BLK/WHT

451

Ground

C

--

--

Upfitter Supplied

C209 - Body Harness to Upfitter Harness (w/V4U)

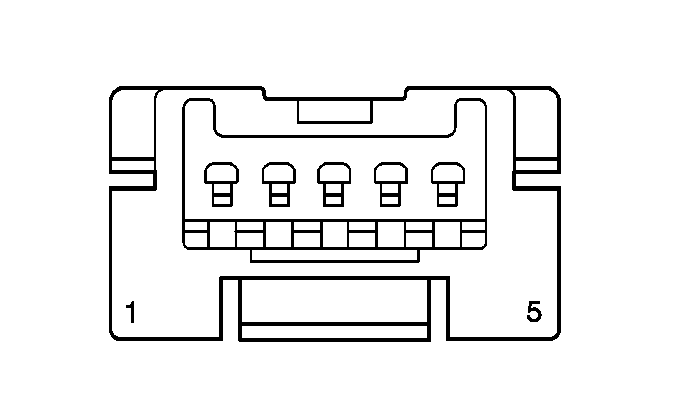

Object Number: 258172 Size: CH

Object Number: 605550 Size: CH

Connector Part Information
    • 12064982
    • 5-Way F Micro-Pack 100 Series (BLK)

Connector Part Information
    • 12047829
    • 5-Way M Metri-Pack 100 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

1

DK GRN

1184

Power Window Switch Up Signal

1

DK GRN

1184

Power Window Switch Up Signal

2

YEL

1187

Power Window Switch Left Rear Down Signal

2

YEL

1187

Power Window Switch Left Rear Down Signal

3

PPL

2765

Power Window Switch Right Front Express Signal

3

PPL

2765

Power Window Switch Right Front Express Signal

4

TAN/WHT

551

Ground

4

TAN/WHT

551

Ground

5

YEL

1491

Backlight Lamps Control

5

YEL

1491

Backlight Lamps Control

C210 - Body Harness to Upfitter Harness (w/V4U)


Object Number: 258172 Size: CH

Object Number: 605550 Size: CH

Connector Part Information
    • 12064982
    • 5-Way F Micro-Pack 100 Series (BLK)

Connector Part Information
    • 12047829
    • 5-Way M Micro-Pack 100 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

1

WHT

1185

Power Window Switch Up Signal

1

WHT

1185

Power Window Switch Up Signal

2

ORN

1189

Power Window Switch Right Front Low Reference

2

ORN

1189

Power Window Switch Right Front Low Reference

3

PPL

2765

Power Window Switch Right Front Express Signal

3

PPL

2765

Power Window Switch Right Front Express Signal

4

BLK/WHT

451

Ground

4

BLK/WHT

451

Ground

5

YEL

1491

Backlight Lamps Control

5

YEL

1491

Backlight Lamps Control

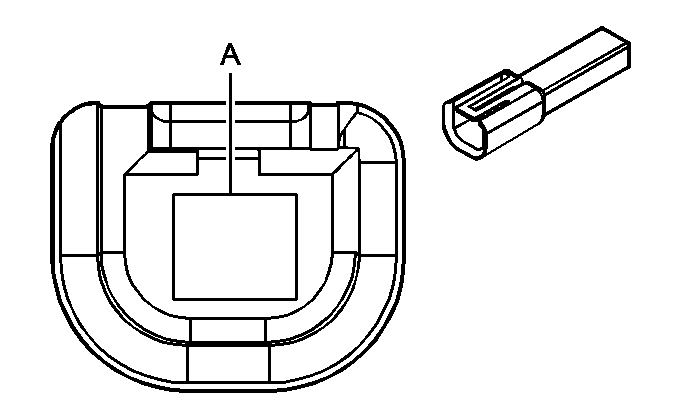

C212 - Windshield Defogger Harness to Windshield Defogger Harness (w/WC2/WC8)


Object Number: 439818 Size: CH

Object Number: 611495 Size: CH

Connector Part Information
    • 12047682
    • 1-Way F Micro-Pack 150 Series (BLK)

Connector Part Information
    • 12047683
    • 1-Way M Micro-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

PPL

4

Accessory Voltage

A

PPL

4

Accessory Voltage

C213 - Windshield Defogger Harness to Windshield Defogger Harness (w/WC2/WC8)


Object Number: 439818 Size: CH

Object Number: 611495 Size: CH

Connector Part Information
    • 12047682
    • 1-Way F Micro-Pack 150 Series (BLK)

Connector Part Information
    • 12047683
    • 1-Way M Micro-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

WHT

193

Rear Defog Relay Control

A

WHT

193

Rear Defog Relay Control

C275 - I/P Harness to the Inflatable Restraint Steering Wheel Module Coil


Object Number: 594473 Size: CH

Object Number: 684931 Size: CH

Connector Part Information
    • 15336479
    • 4-Way F Metri-Pack 280 Series (YEL)

Connector Part Information
    • 15336476
    • 4-Way M Metri-Pack 280 Series (YEL)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A1

TAN

3021

Steering Wheel Module - Stage 1 - High Control

A1

--

3021

Steering Wheel Module - Stage 1 - High Control

A2

BRN

3020

Steering Wheel Module - Stage 1 - Low Control

A2

--

3020

Steering Wheel Module - Stage 1 - Low Control

B1

WHT

3023

Steering Wheel Module - Stage 2 - High Control

B1

--

3023

Steering Wheel Module - Stage 2 - High Control

B2

PNK

3022

Steering Wheel Module - Stage 2 - Low Control

B2

--

3022

Steering Wheel Module - Stage 2 - Low Control

C277 - Inflatable Restraint Steering Wheel Module Coil to the Steering Wheel Harness


Object Number: 62464 Size: CH

Object Number: 808703 Size: CH

Connector Part Information
    • 12064769
    • 10-Way F Metri-Pack 150 Series (NAT)

Connector Part Information
    • 12064770
    • 10-Way M Metri-Pack 150 Series (NAT)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

--

397

Cruise Control On Switch Signal

A

GRY

397

Cruise Control On Switch Signal

GRY

397

Cruise Control On Switch Signal

B

--

1039

Ignition 1 Voltage

B

PNK

1039

Ignition 1 Voltage

C

--

84

Cruise Control Set/Coast Switch Signal

C

DK BLU

84

Cruise Control Set/Coast Switch Signal

D

--

87

Cruise Control Resume/Accel Switch Signal

D

GRY/BLK

87

Cruise Control Resume/Accel Switch Signal

E

--

1375

Remote Radio Control Supply Voltage

E

PPL

1375

Remote Radio Control Supply Voltage

F

--

1491

Backlight Lamps Control

F

YEL

1491

Backlight Lamps Control

G

--

1796

Steering Wheel Controls Signal

G

DK BLU

1796

Steering Wheel Controls Signal

DK BLU

1796

Steering Wheel Controls Signal

H

--

350

Ground

H

BLK

350

Ground

J

--

28

Horn Relay Control

J

BLK

28

Horn Relay Control

K

--

--

Not Used

K

--

--

Not Used

C300 - Body Harness to Left Front Seat Harness


Object Number: 531419 Size: CH

Object Number: 524194 Size: CH

Connector Part Information
    • 15304692
    • 18-Way F GT 150, 280 Series (BLK)

Connector Part Information
    • 15317538
    • 18-Way M Metri-Pack 150, 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A1

BLK/WHT

238

Seat Belt Switch - Left

A1

BLK/WHT

238

Seat Belt Switch - Left

A2

PNK

1363

Seat Belt Switch - Left - Low Reference

A2

DK BLU

1363

Seat Belt Switch - Left - Low Reference

A3

--

--

Not Used

A3

--

--

Not Used

A4

ORN

3740

Battery Positive Voltage

A4

ORN

3740

Battery Positive Voltage

A5

BLK

550

Ground

A5

BLK

550

Ground

A6

--

--

Not Used

A6

--

--

Not Used

A7

BRN

41

Ignition 3 Voltage

A7

BRN

41

Ignition 3 Voltage

A8

ORN

2840

Battery Positive Voltage

A8

ORN

2840

Battery Positive Voltage

A9

--

--

Not Used

A9

--

--

Not Used

B1

--

--

Not Used

B1

PPL

2477

Driver Heated Seat Back Only Mode Signal

B2

BRN

2478

Driver Heated Seat Temperature Signal

B2

BRN

2478

Driver Heated Seat Temperature Signal

B3

ORN

2440

Battery Positive Voltage

B3

ORN

2440

Battery Positive Voltage

B4

PPL

1807

Class 2 Serial Data

B4

PPL

1807

Class 2 Serial Data

B5-B9

--

--

Not Used

B5-B9

--

--

Not Used

C303 - Sunshade Harness to Body Harness (V4U or Domestic w/o T90)


Object Number: 130637 Size: CH

Object Number: 40399 Size: CH

Connector Part Information
    • 12064760
    • 4-Way F Metri-Pack 150 Series (BLK)

Connector Part Information
    • 12064761
    • 4-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

ORN

2247

Retained Accessory Power Voltage

A

ORN

2247

Retained Accessory Power Voltage

B

PPL

2332

Rear Window Sunshade Switch Signal (V4U or Domestic w/o T90)

B

PPL

2332

Rear Window Sunshade Switch Signal (V4U or Domestic w/o T90)

C

TAN

2333

Rear Window Sunshade Switch Ground (V4U or Domestic w/o T90)

C

TAN

2333

Rear Window Sunshade Switch Ground (V4U or Domestic w/o T90)

D

BLK

750

Ground

D

BLK

750

Ground

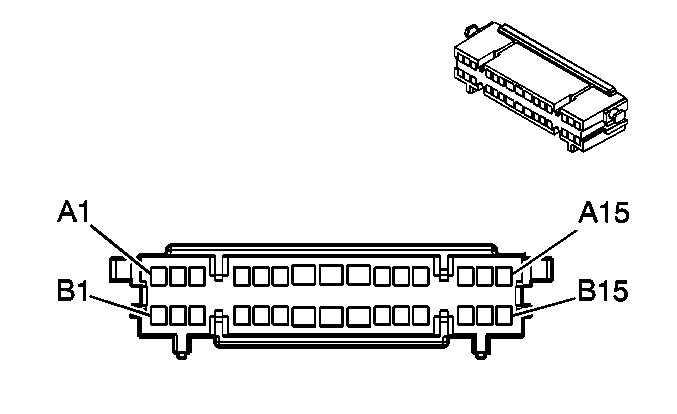

C304 - Console Harness to Instrument Panel Harness (w/ Floor Shift)


Object Number: 655763 Size: CH

Object Number: 655824 Size: CH

Connector Part Information
    • 15304908
    • 30-Way F GT 150, 280 Series (BLK)

Connector Part Information
    • 15326762
    • 30-Way M GT 150, 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A1

PNK

2502

Auxiliary Mode Door Control

A1

GRY

2502

Auxiliary Mode Door Control

A2

LT BLU

72

Medium 1 Blower Motor Control

A2

LT BLU

72

Medium 1 Blower Motor Control

A3

TAN

63

Low Blower Motor Control

A3

TAN

63

Low Blower Motor Control

A4

ORN

1052

High Blower Motor Control

A4

ORN

1052

High Blower Motor Control

A5

PPL

73

Medium 2 Blower Motor Control

A5

PPL

73

Medium 2 Blower Motor Control

A6

LT BLU

1788

Traction Control Switch Signal

A6

LT BLU

1788

Traction Control Switch Signal

A7

--

--

Not Used

A7

--

--

Not Used

A8

BLK

450

Ground

A8

BLK

450

Ground

A9

--

--

Not Used

A9

--

--

Not Used

A10

BLK/WHT

451

Ground

A10

BLK/WHT

451

Ground

A11

YEL

1491

Backlight Lamps Control

A11

YEL

1491

Backlight Lamps Control

A12

DK GRN/WHT

1135

A/T Shift Lock Solenoid Supply Voltage

A12

DK GRN/WHT

1135

A/T Shift Lock Solenoid Supply Voltage

A13

BRN

41

Ignition 3 Voltage

A13

BRN

41

Ignition 3 Voltage

A14-A15

--

--

Not Used

A14-A15

--

--

Not Used

B1

BRN

1593

Auxiliary Mode Actuator Supply Voltage

B1

PNK

1593

Auxiliary Mode Actuator Supply Voltage

B2

BLK

2503

Low Reference

B2

RED

2503

Low Reference

B3-B4

--

--

Not Used

B3-B4

--

--

Not Used

B5

LT GRN

1652

Reverse Lockout Solenoid Control

B5

LT GRN

1652

Reverse Lockout Solenoid Control

B6-B9

--

--

Not Used

B6-B9

--

--

Not Used

B10

PPL

1807

Class 2 Serial Data

B10

PPL

1807

Class 2 Serial Data

B11-B14

--

--

Not Used

B11-B14

--

--

Not Used

B15

ORN

2840

Battery Positive Voltage

B15

ORN

2840

Battery Positive Voltage

C305 - Headliner Harness to Body Harness


Object Number: 655763 Size: CH

Object Number: 655824 Size: CH

Connector Part Information
    • 15304908
    • 30-Way F GT 150, 280 Series (BLK)

Connector Part Information
    • 15326762
    • 30-Way M GT 150, 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A1

GRY

1690

Automatic Day/Night Mirror Signal (DD8)

A1

GRY

1690

Automatic Day/Night Mirror Signal (DD8)

A2

BRN

253

Trunk Release Relay Control

A2

BRN

253

Trunk Release Relay Control

A3

WHT

2370

Telltale Assembly Voltage Supply (if equipped)

A3

WHT

2370

Telltale Assembly Voltage Supply (if equipped)

A4

LT GRN/BLK

2515

Keypad Supply Voltage (UE1)

A4

LT GRN/BLK

2515

Keypad Supply Voltage (UE1)

A5

BRN

41

Ignition 3 Voltage (w/V4U)

A5

BRN

41

Ignition 3 Voltage (w/V4U)

BRN

1039

Ignition 1 Voltage (w/o V4U)

PNK

1039

Ignition 1 Voltage (w/o V4U)

A6

GRY

655

Cellular Microphone Signal (UE1)

A6

GRY

655

Cellular Microphone Signal (UE1)

A7

YEL/BLK

2516

Keypad Green LED Signal (UE1)

A7

YEL/BLK

2516

Keypad Green LED Signal (UE1)

A8

BRN/WHT

2517

Keypad Red LED Signal (UE1)

A8

BRN/WHT

2517

Keypad Red LED Signal (UE1)

A9

DK BLU

1393

Rear Interior Lamp Control

A9

DK BLU

1393

Rear Interior Lamp Control

A10

GRY/BLK

690

Courtesy Lamp Relay Coil Control

A10

GRY/BLK

690

Courtesy Lamp Relay Coil Control

A11

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

A11

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

A12

YEL

43

Accessory Voltage (if equipped)

A12

YEL

43

Accessory Voltage (if equipped)

A13

ORN

2371

Left Amber Indicator Control (if equipped)

A13

ORN

2371

Left Amber Indicator Control (if equipped)

A14

PPL

2332

Rear Window Sunshade Switch Signal (V4U or Domestic w/o T90)

A14

PPL

2332

Rear Window Sunshade Switch Signal (V4U or Domestic w/o T90)

A15

TAN

2333

Rear Window Sunshade Switch Ground (V4U or Domestic w/o T90)

A15

TAN

2333

Rear Window Sunshade Switch Ground (V4U or Domestic w/o T90)

B1

PNK

1691

Automatic Day/Night Mirror Low Reference (DD8)

B1

PNK

1691

Automatic Day/Night Mirror Low Reference (DD8)

B2

BLK/WHT

851

Ground

B2

BLK/WHT

851

Ground

B3

DK BLU

2372

Center Amber Indicator Control (if equipped)

B3

DK BLU

2372

Center Amber Indicator Control (if equipped)

B4

GRY

2373

Red Indicator Control (if equipped)

B4

GRY

2373

Red Indicator Control (if equipped)

B5

BLK

850

Ground

B5

BLK

850

Ground

B6

BARE

814

Drain Wire (UE1)

B6

BARE

814

Drain Wire (UE1)

B7

DK GRN/WHT

2514

Keypad Signal (UE1)

B7

DK GRN/WHT

2514

Keypad Signal (UE1)

B8

YEL

2307

Passenger Air Bag On Indicator Control

B8

--

--

Not Used

B9

ORN/BLK

2308

Passenger Air Bag Off Indicator Control

B9

--

--

Not Used

B10

BLK

481

Outside Moisture Sensor Signal 1 (if equipped)

B10

BLK

481

Outside Moisture Sensor Signal 1 (if equipped)

B11

LT GRN

482

Outside Moisture Sensor Signal 2 (if equipped)

B11

LT GRN

482

Outside Moisture Sensor Signal 2 (if equipped)

B12

LT GRN

24

Backup Lamp Supply Voltage

B12

LT GRN

24

Backup Lamp Supply Voltage

B13

DK GRN

1488

Noise Reduction Microphone Supply Voltage (if equipped)

B13

DK GRN

1488

Noise Reduction Microphone Supply Voltage (if equipped)

B14

BARE

1489

Drain Wire (if equipped)

B14

BARE

1489

Drain Wire (if equipped)

B15

--

--

Not Used

B15

--

--

Not Used

C306 - Body Harness to Rear Seat Harness (KA1)


Object Number: 655763 Size: CH

Object Number: 655824 Size: CH

Connector Part Information
    • 15304908
    • 30-Way F GT 150, 280 Series (BLK)

Connector Part Information
    • 15326762
    • 30-Way M GT 150, 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A1

LT GRN

2437

Left Rear Passenger Heated Seat Temperature Signal

A1

LT GRN

2437

Left Rear Passenger Heated Seat Temperature Signal

A2

BRN

2438

Right Rear Passenger Heated Seat Back Only Mode Signal

A2

BRN

2438

Right Rear Passenger Heated Seat Back Only Mode Signal

A3

TAN

2418

Right Rear Lumbar Motor Rearward Control (DHS)

A3

TAN

2418

Right Rear Lumbar Motor Rearward Control (DHS)

A4-A7

--

--

Not Used

A4-A7

--

--

Not Used

A8

ORN

2740

Battery Positive Voltage

A8

ORN

2740

Battery Positive Voltage

A9-A12

--

--

Not Used

A9-A12

--

--

Not Used

A13

PPL

2405

Left Rear Lumbar Motor Down Control (if equipped)

A13

PPL

2405

Left Rear Lumbar Motor Down Control (if equipped)

A14

DK BLU

2406

Left Rear Lumbar Motor Up Control (if equipped)

A14

DK BLU

2406

Left Rear Lumbar Motor Up Control (if equipped)

A15

YEL

2407

Left Rear Lumbar Motor Forward Control (if equipped)

A15

YEL

2407

Left Rear Lumbar Motor Forward Control (if equipped)

B1

--

--

Not Used

B1

--

--

Not Used

B2

LT GRN

2444

Right Rear Passenger Heated Seat Temperature Signal

B2

LT GRN

2444

Right Rear Passenger Heated Seat Temperature Signal

B3-B4

--

--

Not Used

B3-B4

--

--

Not Used

B5

BRN

41

Ignition 3 Voltage

B5

BRN

41

Ignition 3 Voltage

B6

--

--

Not Used

B6

--

--

Not Used

B7

ORN

2640

Battery Positive Voltage

B7

ORN

2640

Battery Positive Voltage

B8-B9

--

--

Not Used

B8-B9

--

--

Not Used

B10

BLK

750

Ground

B10

BLK

750

Ground

B11

BRN

2474

Left Rear Passenger Heated Seat Back Only Mode Signal

B11

BRN

2474

Left Rear Passenger Heated Seat Back Only Mode Signal

B12

TAN

2408

Left Rear Lumbar Motor Rearward Control (if equipped)

B12

TAN

2408

Left Rear Lumbar Motor Rearward Control (if equipped)

B13

PPL

2415

Right Rear Lumbar Motor Down Control (if equipped)

B13

PPL

2415

Right Rear Lumbar Motor Down Control (if equipped)

B14

DK BLU

2416

Right Rear Lumbar Motor Up Control (if equipped)

B14

DK BLU

2416

Right Rear Lumbar Motor Up Control (if equipped)

B15

YEL

2417

Right Rear Lumbar Motor Forward Control (if equipped)

B15

YEL

2417

Right Rear Lumbar Motor Forward Control (if equipped)

C307 - Body Harness Side to RF Seat Harness Side


Object Number: 531419 Size: CH

Object Number: 524194 Size: CH

Connector Part Information
    • 15304692
    • 18-Way F GT 150/280 Series (BLK)

Connector Part Information
    • 15317538
    • 18-Way M GT 150/280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A1-A2

--

--

Not Used

A1-A2

--

--

Not Used

A3

ORN

2040

Battery Positive Voltage

A3

ORN

2040

Battery Positive Voltage

A4

ORN

3740

Battery Positive Voltage

A4

ORN

3740

Battery Positive Voltage

A5

BLK

650

Ground

A5

BLK

650

Ground

A6

--

--

Not Used

A6

GRY

--

Not Used

A7

BRN

41

Ignition 3 Voltage

A7

BRN

41

Ignition 3 Voltage

A8

ORN

2840

Battery Positive Voltage

A8

--

--

Not Used

A9

--

--

Not Used

A9

--

--

Not Used

B1

--

--

Not Used

B1

--

--

Not Used

B2

RED/WHT

2431

Passenger Heated Seat Temperature Signal

B2

RED/WHT

2431

Passenger Heated Seat Temperature Signal

B3

ORN

2540

Battery Positive Voltage

B3

LT GRN

2540

Battery Positive Voltage

B4-B9

--

--

Not Used

B4-B9

--

--

Not Used

C309 - Headliner Harness Side to Sunroof Harness Side (CF5)


Object Number: 40422 Size: CH

Object Number: 40425 Size: CH

Connector Part Information
    • 12064762
    • 6-Way F Metri-Pack 150 Series (GRY)

Connector Part Information
    • 12064763
    • 6-Way M Metri-Pack 150 Series (GRY)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

BRN

100

Sunroof Switch Open Signal

A

BRN

100

Sunroof Switch Open Signal

B

ORN

110

Sunroof Switch Close Signal

B

ORN

110

Sunroof Switch Close Signal

C

DK GRN

2074

Sunroof Switch Express Signal

C

DK GRN

2074

Sunroof Switch Express Signal

D

DK BLU

128

Sunroof Switch Low Reference

D

DK BLU

128

Sunroof Switch Low Reference

E

PNK

2075

Sunroof Switch Close Vent Signal

E

PNK

2075

Sunroof Switch Close Vent Signal

F

ORN/BLK

144

Sunroof Switch Open Vent Signal

F

ORN/BLK

144

Sunroof Switch Open Vent Signal

C310 - Sunroof Harness Side to Body Harness Side (w/o V4U, B9Q or CF5)


Object Number: 68737 Size: CH

Object Number: 130696 Size: CH

Connector Part Information
    • 12129489
    • 3-Way F Metri-Pack 280 Series, Flex Lock (BLK)

Connector Part Information
    • 12129490
    • 3-Way M Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

DK BLU

75

RAP Relay Switch Supply Voltage

A

DK BLU

75

RAP Relay Switch Supply Voltage

B

--

--

Not Used

B

--

--

Not Used

C

BLK

1050

Ground

C

BLK

1050

Ground

C310 - Body Harness to Upfitter Harness (w/V4U, B9Q)


Object Number: 153645 Size: CH

Object Number: 258179 Size: CH

Connector Part Information
    • 12129081
    • 2-Way F Metri-Pack 280 Series Flex-Lock (BLK)

Connector Part Information
    • 12129155
    • 2-Way M Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

DK BLU

75

RAP Relay Switch Supply Voltage

A

DK BLU

75

RAP Relay Switch Supply Voltage

B

BLK

1050

Ground

B

BLK

1050

Ground

C312 - Body Harness Side to Rear HVAC Harness Side


Object Number: 62464 Size: CH

Object Number: 153651 Size: CH

Connector Part Information
    • 12064769
    • 10-Way F Metri-Pack 150 Series (NAT)

Connector Part Information
    • 12064770
    • 10-Way M Metri-Pack 150 Series (NAT)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

RED

2503

Low Reference

A

GRY

2503

Low Reference

B

GRY

2502

Auxiliary Mode Door Control

B

PNK

2502

Auxiliary Mode Door Control

C

PNK

1593

Auxiliary Mode Actuator Supply Voltage

C

LT GRN

1593

Auxiliary Mode Actuator Supply Voltage

D

BRN

404

Auxiliary Air Temperature Sensor Signal

D

RED

404

Auxiliary Air Temperature Sensor Signal

E

YEL

61

Low Reference

E

YEL

61

Low Reference

F

LT BLU

72

Medium 1 Blower Motor Control

F

LT BLU

72

Medium 1 Blower Motor Control

G

PPL

73

Medium 2 Blower Motor Control

G

PPL

73

Medium 2 Blower Motor Control

H

TAN

63

Low Blower Motor Control

H

TAN

63

Low Blower Motor Control

J

ORN

1440

Battery Positive Voltage

J

ORN

1440

Battery Positive Voltage

K

ORN

1052

High Blower Motor Control

K

BLK

1052

High Blower Motor Control

C313 - Flex Console Harness Side to Body Harness Side (w/o UE7, UE9)


Object Number: 531419 Size: CH

Object Number: 524194 Size: CH

Connector Part Information
    • 15304692
    • 18-Way F (BLK)

Connector Part Information
    • 15317538
    • 18-Way M GT 150/280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A1

PPL

1807

Class 2 Serial Data

A1

PPL

1807

Class 2 Serial Data

A2

PNK

2502

Auxiliary Mode Door Control

A2

GRY

2502

Auxiliary Mode Door Control

A3

YEL

1491

Backlight Lamps Control

A3

YEL

1491

Backlight Lamps Control

A4

TAN

63

Low Blower Motor Control

A4

TAN

63

Low Blower Motor Control

A5

BRN

41

Ignition 3 Voltage

A5

BRN

41

Ignition 3 Voltage

A6

ORN

2840

Battery Positive Voltage

A6

ORN

2840

Battery Positive Voltage

A7

ORN

1052

High Blower Motor Control

A7

ORN

1052

High Blower Motor Control

A8-A9

--

--

Not Used

A8-A9

--

--

Not Used

B1

BLK

350

Ground

B1

BLK

350

Ground

B2

BLK

350

Ground

B2

BLK

350

Ground

B3

LT BLU

72

Medium 1 Blower Motor Control

B3

LT BLU

72

Medium 1 Blower Motor Control

B4

BLK

2503

Low Reference

B4

RED

2503

Low Reference

B5

BRN

1593

Auxiliary Mode Actuator Supply Voltage

B5

PNK

1593

Auxiliary Mode Actuator Supply Voltage

B6

PPL

73

Medium 2 Blower Motor Control

B6

PPL

73

Medium 2 Blower Motor Control

B7-B9

--

--

Not Used

B7-B9

--

--

Not Used

C313 - Flex Console Harness Side to Body Harness Side (w/T90)


Object Number: 655763 Size: CH

Object Number: 655824 Size: CH

Connector Part Information
    • 15304908
    • 30-Way F GT 150/280 Series (BLK)

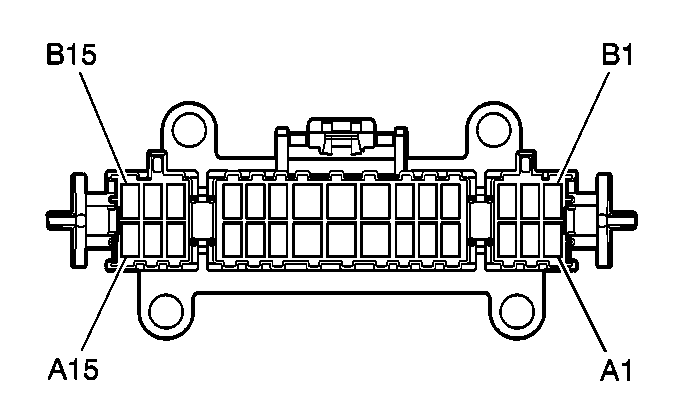

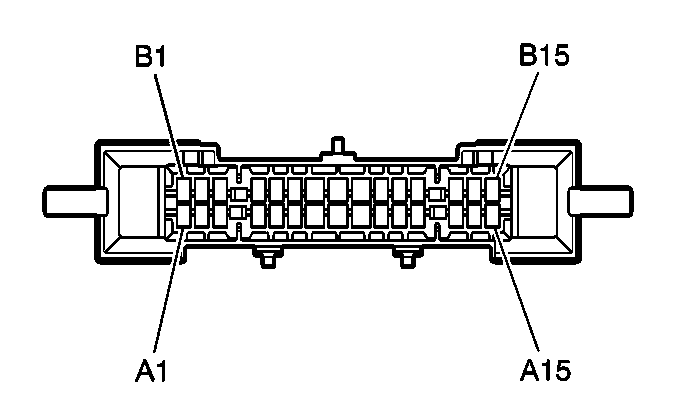

Connector Part Information
    • 15326762
    • 30-Way M GT 150/280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A1

PPL

1807

Class 2 Serial Data

A1

PPL

1807

Class 2 Serial Data

A2

GRY

2502

Auxiliary Mode Door Control

A2

GRY

2502

Auxiliary Mode Door Control

A3

YEL

1491

Backlight Lamps Control

A3

YEL

1491

Backlight Lamps Control

A4

TAN

63

Low Blower Motor Control

A4

TAN

63

Low Blower Motor Control

A5

BRN

41

Ignition 3 Voltage

A5

BRN

41

Ignition 3 Voltage

A6

ORN

2840

Battery Positive Voltage

A6

ORN

2840

Battery Positive Voltage

A7

ORN

1052

High Blower Motor Control

A7

ORN

1052

High Blower Motor Control

A8

BLK/WHT

451

Ground

A8

BLK/WHT

451

Ground

A9

ORN

3540

Battery Positive Voltage

A9

ORN

3540

Battery Positive Voltage

A10

--

--

Not Used

A10

--

--

Not Used

A11

YEL

2059

Auxiliary Audio Left Signal

A11

YEL

2059

Auxiliary Audio Left Signal

A12

PNK

2060

Auxiliary Detection Signal

A12

PNK

2060

Auxiliary Detection Signal

A13

BARE

814

Drain Wire

A13

BARE

814

Drain Wire

A14-A15

--

--

Not Used

A14- A15

--

--

Not Used

B1

BLK

350

Ground

B1

BLK

350

Ground

B2

BLK

350

Ground

B2

BLK

350

Ground

B3

LT BLU

72

Medium 1 Blower Motor Control

B3

LT BLU

72

Medium 1 Blower Motor Control

B4

RED

2503

Low Reference

B4

RED

2503

Low Reference

B5

PNK

1593

Auxiliary Mode Actuator Supply Voltage

B5

PNK

1593

Auxiliary Mode Actuator Supply Voltage

B6

PPL

73

Medium 2 Blower Motor Control

B6

PPL

73

Medium 2 Blower Motor Control

B7

--

--

Not Used

B7

--

--

Not Used

B8

BLK/WHT

451

Ground

B8

BLK/WHT

451

Ground

B9

ORN

3540

Battery Positive Voltage

B9

ORN

3540

Battery Positive Voltage

B10

PPL

2056

Auxiliary Video High Signal

B10

PPL

2056

Auxiliary Video High Signal

B11

TAN

2057

Auxiliary Video Low Signal

B11

TAN

2057

Auxiliary Video Low Signal

B12

WHT

2058

Auxiliary Audio Right Signal

B12

WHT

2058

Auxiliary Audio Right Signal

B13

BARE

814

Drain Wire

B13

BARE

814

Drain Wire

B14-B15

--

--

Not Used

B14- B15

--

--

Not Used

C314 - LH Front Lumbar Motor Harness Side to LH Front Seat Harness Side (w/ AL2, w/o A45)


Object Number: 62469 Size: CH

Object Number: 655684 Size: CH

Connector Part Information
    • 12064998
    • 8-Way F Metri-Pack 280 Series (BLK)

Connector Part Information
    • 12066195
    • 8-Way M Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

TAN

768

Driver Seat Lumbar Motor Up Control

A

TAN

768

Driver Seat Lumbar Motor Up Control

B

PPL

767

Driver Seat Lumbar Motor Down Control

B

PPL

767

Driver Seat Lumbar Motor Down Control

C

DK BLU

611

Driver Seat Lumbar Motor Forward Control

C

DK BLU

611

Driver Seat Lumbar Motor Forward Control

D

PNK

610

Driver Seat Lumbar Motor Rearward Control

D

PNK

610

Driver Seat Lumbar Motor Rearward Control

E

BLK

782

Memory Seat/Mirror Sensor Low Reference

E

BLK

782

Memory Seat/Mirror Sensor Low Reference

F

BLK

1062

Driver Seat Lumbar Vertical Position Sensor Signal

F

BLK

1062

Driver Seat Lumbar Vertical Position Sensor Signal

G

GRY

788

5-Volt Reference

G

GRY

788

5-Volt Reference

H

YEL

1063

Driver Seat Lumbar Horizontal Position Sensor Signal

H

YEL

1063

Driver Seat Lumbar Horizontal Position Sensor Signal

C316 - Body Harness (w/V4U) to Upfitter Harness - Left Middle Door (w/V4U)


Object Number: 703019 Size: CH

Object Number: 655695 Size: CH

Connector Part Information
    • 12177260
    • 7-Way F Metri-Pack 280 GT 150 Series (BLK)

Connector Part Information
    • 12177258
    • 17-Way M Metri-Pack 280 Series (NAT)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

WHT

9256

Door Release Switch Signal

A

WHT

9256

Door Release Switch Signal

B

ORN

3540

Battery Positive Voltage

B

ORN

3540

Battery Positive Voltage

C

--

--

Not Used

C

--

--

Not Used

D

YEL

1187

Power Window Switch Left Rear Down Signal

D

YEL

1187

Power Window Switch Left Rear Down Signal

E

ORN

1040

Battery Positive Voltage

E

ORN

1040

Battery Positive Voltage

F

PPL

1807

Class 2 Serial Data

F

PPL

1807

Class 2 Serial Data

G

BLK

550

Ground

G

BLK

550

Ground

C317 - Body Harness to Upfitter Harness Left Middle Door (w/V4U)


Object Number: 647929 Size: CH

Object Number: 655695 Size: CH

Connector Part Information
    • 12177259
    • 10-Way F GT 150 Series (BLK)

Connector Part Information
    • 12177258
    • 17-Way M Metri-Pack 280 Series (NAT)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

H

PPL

2765

Power Window Switch Right Front Express Signal

H

PPL

2765

Power Window Switch Right Front Express Signal

J

TAN/WHT

551

Ground

J

TAN/WHT

551

Ground

K

ORN

3140

Battery Positive Voltage

K

ORN

3140

Battery Positive Voltage

L

DK GRN

1184

Power Window Switch Up Signal

L

DK GRN

1184

Power Window Switch Up Signal

M

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

M

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

N

DK BLU

1393

Rear Interior Lamp Control

N

DK BLU

1393

Rear Interior Lamp Control

P

PPL

709

Left Park Lamp Supply Voltage

P

PPL

709

Left Park Lamp Supply Voltage

R-T

--

--

Not Used

R-T

--

--

Not Used

C318 - Body Harness to Upfitter Harness Right Middle Door (w/V4U)


Object Number: 703019 Size: CH

Object Number: 655695 Size: CH

Connector Part Information
    • 12177260
    • 7-Way F Metri-Pack 280, GT 150 Series (BLK)

Connector Part Information
    • 12177258
    • 17-Way M Metri-Pack 280 Series (NAT)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

WHT

9257

Door Release Switch Signal

A

WHT

9257

Door Release Switch Signal

B

ORN

3540

Battery Positive Voltage

B

ORN

3540

Battery Positive Voltage

C

--

--

Not Used

C

--

--

Not Used

D

ORN

1189

Power Window Switch Right Front Low Reference

D

ORN

1189

Power Window Switch Right Front Low Reference

E

ORN

1040

Battery Positive Voltage

E

ORN

1040

Battery Positive Voltage

F

PPL

1807

Class 2 Serial Data

F

PPL

1807

Class 2 Serial Data

G

BLK

650

Ground

G

BLK

650

Ground

C319 - Body Harness to Upfitter Harness Right Middle Door (w/V4U)


Object Number: 647929 Size: CH

Object Number: 655695 Size: CH

Connector Part Information
    • 12177259
    • 10-Way F Metri-Pack 280, GT 150 Series (BLK)

Connector Part Information
    • 12177258
    • 17-Way M Metri-Pack 280 Series (NAT)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

H

PPL

2765

Power Window Switch Right Front Express Signal

H

PPL

2765

Power Window Switch Right Front Express Signal

J

BLK/WHT

451

Ground

J

BLK/WHT

451

Ground

K

ORN

3140

Battery Positive Voltage

K

ORN

3140

Battery Positive Voltage

L

WHT

1185

Power Window Switch Up Signal

L

WHT

1185

Power Window Switch Up Signal

M

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

M

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

N

DK BLU

1393

Rear Interior Lamp Control

N

DK BLU

1393

Rear Interior Lamp Control

P

BRN/WHT

309

Right Park Lamp Supply Voltage

P

BRN/WHT

309

Right Park Lamp Supply Voltage

R-T

--

--

Not Used

R-T

--

--

Not Used

C320 - Rear Heated Seat Harness to Rear Seat Harness


Object Number: 62463 Size: CH

Object Number: 73217 Size: CH

Connector Part Information
    • 12064766
    • 8-Way F Metri-Pack 150 Series (BLU)

Connector Part Information
    • 12064767
    • 8-Way M Metri-Pack 150 Series (BLU)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

RED

2445

Left Rear Passenger Heated Seat Cushion Element Supply Voltage

A

RED

2445

Left Rear Passenger Heated Seat Cushion Element Supply Voltage

B

WHT

2446

Left Rear Passenger Heated Seat Cushion Element Control

B

WHT

2446

Left Rear Passenger Heated Seat Cushion Element Control

C

PNK

2449

Left Rear Passenger Heated Seat Cushion Temperature Sensor Signal

C

PNK

2449

Left Rear Passenger Heated Seat Cushion Temperature Sensor Signal

D

LT BLU

2452

Left Rear Passenger Heated Seat Cushion Temperature Sensor Low Reference

D

LT BLU

2452

Left Rear Passenger Heated Seat Cushion Temperature Sensor Low Reference

E

DK BLU

2455

Right Rear Passenger Heated Seat Cushion Element Supply Voltage

E

DK BLU

2455

Right Rear Passenger Heated Seat Cushion Element Supply Voltage

F

GRY

2457

Right Rear Passenger Heated Seat Cushion Element Control

F

GRY

2457

Right Rear Passenger Heated Seat Cushion Element Control

G

PNK

2460

Right Rear Passenger Heated Seat Cushion Temperature Sensor Signal

G

PNK

2460

Right Rear Passenger Heated Seat Cushion Temperature Sensor Signal

H

PPL

2461

Right Rear Passenger Heated Seat Cushion Temperature Sensor Low Reference

H

PPL

2461

Right Rear Passenger Heated Seat Cushion Temperature Sensor Low Reference

C322 - Body Harness to Rear Shelf Harness


Object Number: 531419 Size: CH

Object Number: 524194 Size: CH

Connector Part Information
    • 15304692
    • 18-Way F GT 150, 180 Series (BLK)

Connector Part Information
    • 15317538
    • 18-Way M GT 150, 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A1

LT GRN/BLK

1794

Rear Subwoofer Speaker Output (-) (UX8)

A1

LT GRN/BLK

1794

Rear Subwoofer Speaker Output (-) (UX8)

A2

DK BLU/WHT

346

Rear Subwoofer Speaker Output (+) (UX8)

A2

DK BLU/WHT

346

Rear Subwoofer Speaker Output (+) (UX8)

A3

BLK/WHT

751

Ground

A3

BLK/WHT

751

Ground

A4-A6

--

--

Not Used

A4-A6

--

--

Not Used

A7

LT BLU/BLK

315

Right Subwoofer Speaker Output (-) (UX8)

A7

BLK

315

Right Subwoofer Speaker Output (-) (w/o V4U/B9Q)

A8

DK GRN

1795

Right Subwoofer Speaker Output (+) (UX8)

A8

DK GRN

1795

Right Subwoofer Speaker Output (+) (UX8)

A9

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

A9

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

B1

PPL

1807

Class 2 Serial Data

B1

PPL

1807

Class 2 Serial Data

B2

--

--

Not Used

B2

--

--

Not Used

B3

ORN/BLK

737

Rear Compartment Lamp Control

B3

ORN/BLK

737

Rear Compartment Lamp Control

B4

--

--

Not Used

B4

--

--

Not Used

B5

DK BLU

346

Left Subwoofer Speaker Output (+)

B5

DK BLU

346

Left Subwoofer Speaker Output (+)

B6

LT GRN

1794

Rear Subwoofer Speaker Output (-)

B6

LT GRN

1794

Rear Subwoofer Speaker Output (-)

B7-B8

--

--

Not Used

B7-B8

--

--

Not Used

B9

ORN

540

Battery Positive Voltage

B9

ORN

540

Battery Positive Voltage

C323 - Left Front Seat Harness to Left Front Seat Back Harness (w/AM3)


Object Number: 39667 Size: CH

Object Number: 130711 Size: CH

Connector Part Information
    • 12129135
    • 4-Way F Metri-Pack 280 Series (BLK)

Connector Part Information
    • 12129136
    • 4-Way M Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

TAN

768

Driver Seat Lumbar Motor Up Control

A

TAN

768

Driver Seat Lumbar Motor Up Control

B

PPL

767

Driver Seat Lumbar Motor Down Control

B

PPL

767

Driver Seat Lumbar Motor Down Control

C

DK BLU

611

Driver Seat Lumbar Motor Forward Control

C

DK BLU

611

Driver Seat Lumbar Motor Forward Control

D

WHT

610

Driver Seat Lumbar Motor Rearward Control

D

PNK

610

Driver Seat Lumbar Motor Rearward Control

C324 - Left Front Seat Harness to Left Front Seat Massage Module Harness (w/o A45)


Object Number: 280750 Size: CF

Connector Part Information
    • 12129431
    • 16-Way F Metri-Pack 280 Series (BLK)

Connector Part Information
    • 12129427
    • 16-Way M Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

ORN

3740

Battery Positive Voltage

A

RED

3740

Battery Positive Voltage

B-C

--

--

Not Used

B-C

--

--

Not Used

D

--

--

Not Used

D

PNK

610

Driver Seat Lumbar Motor Rearward Control (w/AM3/AL2)

E-F

--

--

Not Used

E-F

--

--

Not Used

G

LT BLU

1066

Driver Seat Lumbar Up Switch Signal

G

RED

768

Driver Seat Lumbar Motor Up Control (w/AM3/AL2)

LT BLU

1066

Driver Seat Lumbar Up Switch Signal

H

PPL

767

Driver Seat Lumbar Down Switch Signal (w/AM3/AL2)

H

PPL

767

Driver Seat Lumbar Down Switch Signal (w/AM3/AL2)

BRN

1067

Driver Seat Lumbar Down Switch Signal

YEL

1067

Driver Seat Lumbar Down Switch Signal

J

BLK

550

Ground

J

BLK

550

Ground

K

--

--

Not Used

K

--

--

Not Used

L

BLK

782

Memory Seat/Mirror Sensor Low Reference

L

BLK

782

Memory Seat/Mirror Sensor Low Reference

M

BLK

1062

Driver Seat Lumbar Vertical Position Sensor Signal

M

DK BLU

1062

Driver Seat Lumbar Vertical Position Sensor Signal

N

GRY

788

5-Volt Reference

N

GRY

788

5-Volt Reference

P

DK BLU

611

Driver Seat Lumbar Motor Forward Control (w/AM3/AL2)

P

DK BLU

611

Driver Seat Lumbar Motor Forward Control (w/AM3/AL2)

YEL

1063

Driver Seat Lumbar Horizontal Position Sensor Signal

RED

1063

Driver Seat Lumbar Horizontal Position Sensor Signal

R

LT BLU

2476

Driver Seat Lumbar Down Signal (w/A45/AM3)

R

YEL

2476

Driver Seat Lumbar Down Signal (w/A45/AM3)

S

DK BLU

2475

Driver Seat Lumbar Up Signal (w/A45/AM3)

S

RED

2475

Driver Seat Lumbar Up Signal (w/A45/AM3)

C325 - Right Front Seat Harness to Right Front Lumbar Motor Harness (w/o AL2)


Object Number: 62468 Size: CF

Connector Part Information
    • 12066195
    • 8-Way M Metri-Pack 280 Series Sealed (BLK)

Connector Part Information
    • 12064998
    • 8-Way F Metri-Pack 280 Series Sealed (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

PPL

793

Passenger Seat Lumbar Motor Up Control

A

PNK

793

Passenger Seat Lumbar Motor Up Control

B

TAN

792

Passenger Seat Lumbar Motor Down Control

B

ORN

792

Passenger Seat Lumbar Motor Down Control

C

DK BLU

211

Passenger Seat Lumbar Forward Switch Signal

C

DK BLU

211

Passenger Seat Lumbar Forward Switch Signal

D

WHT

210

Passenger Seat Lumbar Rearward Switch Signal

D

WHT

210

Passenger Seat Lumbar Rearward Switch Signal

E-H

--

--

Not Used

E-H

--

--

Not Used

C326 - Right Front Seat Harness to Right Front Seat Back Harness (w/ KA1, w/o AL2)


Object Number: 280750 Size: CF

Connector Part Information
    • 12129431
    • 16-Way F Metri-Pack 280 Series (BLK)

Connector Part Information
    • 12129427
    • 16-Way M Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

ORN

3740

Battery Positive Voltage

A

RED

3740

Battery Positive Voltage

B-C

--

--

Not Used

B-C

--

--

Not Used

D

WHT

210

Passenger Seat Lumbar Rearward Switch Signal

D

DK BLU

210

Passenger Seat Lumbar Rearward Switch Signal

E-F

--

--

Not Used

E-F

--

--

Not Used

G

PNK

793

Passenger Seat Lumbar Motor Up Control

G

RED

793

Passenger Seat Lumbar Motor Up Control

H

ORN

792

Passenger Seat Lumbar Motor Down Control

H

YEL

792

Passenger Seat Lumbar Motor Down Control

J

BLK

650

Ground

J

BLK

650

Ground

K-N

--

--

Not Used

K-N

--

--

Not Used

P

DK BLU

211

Passenger Seat Lumbar Forward Switch Signal

P

WHT

211

Passenger Seat Lumbar Forward Switch Signal

R-S

--

--

Not Used

R-S

--

--

Not Used

C327 Body Harness to Upfitter Harness (w/V4U, B9Q)


Object Number: 82383 Size: CH

Object Number: 35441 Size: CH

Connector Part Information
    • 12047662
    • 2-Way F Metri-Pack 150 Series (BLK)

Connector Part Information
    • 12047663
    • 2-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

PPL

709

Left Park Lamp Supply Voltage

A

PPL

709

Left Park Lamp Supply Voltage

B

BLK

850

Ground

B

BLK

850

Ground

C328 Body Harness to Upfitter Harness (w/V4U, B9Q)


Object Number: 82383 Size: CH

Object Number: 35441 Size: CH

Connector Part Information
    • 12047662
    • 2-Way F Metri-Pack 150 Series (BLK)

Connector Part Information
    • 12047663
    • 2-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

BRN/WHT

309

Right Park Lamp Supply Voltage

A

BRN/WHT

309

Right Park Lamp Supply Voltage

B

BLK

1050

Ground

B

BLK

1050

Ground

C329 Body Harness to Upfitter Harness (w/V4U, B9Q)


Object Number: 280768 Size: CH

Object Number: 95782 Size: CH

Connector Part Information
    • 12052832
    • 2-Way F Metri-Pack 150 Series (BLK)

Connector Part Information
    • 12052833
    • 2-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

A

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

B

DK BLU

1393

Rear Interior Lamp Control

B

DK BLU

1393

Rear Interior Lamp Control

C330 Body Harness to Upfitter Harness (w/B9Q)


Object Number: 647929 Size: CH

Object Number: 655695 Size: CH

Connector Part Information
    • 12177259
    • 10-Way F Metri-Pack 280 Series (BLK)

Connector Part Information
    • 12177258
    • 17-Way M Metri-Pack 280 Series (NAT)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

H

DK BLU

49

Driver Door Ajar Switch Signal

H

DK BLU

49

Driver Door Ajar Switch Signal

J

TAN/WHT

551

Ground

J

TAN/WHT

551

Ground

K-T

--

--

Not Used

K-T

--

--

Not Used

C331 Body Harness to Upfitter Harness (w/B9Q)


Object Number: 647929 Size: CH

Object Number: 655695 Size: CH

Connector Part Information
    • 12177259
    • 10-Way F Metri-Pack 280 Series (BLK)

Connector Part Information
    • 12177258
    • 17-Way M Metri-Pack 280 Series (NAT)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

H

DK BLU

49

Driver Door Ajar Switch Signal

H

DK BLU

49

Driver Door Ajar Switch Signal

J

BLK/WHT

451

Ground

J

BLK/WHT

451

Ground

K-T

--

--

Not Used

K-T

--

--

Not Used

C332 Body Harness to Upfitter Harness (w/V4U)


Object Number: 280768 Size: CH

Object Number: 95782 Size: CH

Connector Part Information
    • 12052832
    • 2-Way F Metri-Pack 150 Series (BLK)

Connector Part Information
    • 12052833
    • 2-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

WHT

9256

Left Middle Door Release Relay - Input

A

WHT

9256

Left Middle Door Release Relay - Input

B

WHT

1430

Exterior Courtesy Lamps Supply Voltage

B

WHT

1430

Exterior Courtesy Lamps Supply Voltage

C333 Body Harness to Right Middle Door Harness (w/V4U)


Object Number: 280768 Size: CH

Object Number: 95782 Size: CH

Connector Part Information
    • 12052832
    • 2-Way F Metri-Pack 150 Series (BLK)

Connector Part Information
    • 12052833
    • 2-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

WHT

9257

Right Middle Door Release Relay - Input

A

WHT

9257

Right Middle Door Release Relay - Input

B

WHT

1430

Exterior Courtesy Lamps Supply Voltage

B

WHT

1430

Exterior Courtesy Lamps Supply Voltage

C334 Body Harness to Upfitter Harness (w/B9Q)


Object Number: 703019 Size: CH

Object Number: 655695 Size: CH

Connector Part Information
    • 12177260
    • 7-Way F Metri-Pack 280 GT 150 Series (BLK)

Connector Part Information
    • 12177258
    • 17-Way M Metri-Pack 150/280 Series (NAT)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A-D

--

--

Not Used

A-D

--

--

Not Used

E

TAN

294

Door Lock Actuator Unlock Control

E

TAN

294

Door Lock Actuator Unlock Control

F

GRY

295

Door Lock Actuator Lock Control

F

GRY

295

Door Lock Actuator Lock Control

G

--

--

Not Used

G

--

--

Not Used

C335 Body Harness to Upfitter Harness (w/B9Q)


Object Number: 703019 Size: CH

Object Number: 655695 Size: CH

Connector Part Information
    • 12177260
    • 7-Way F Metri-Pack 280 GT 150 Series (BLK)

Connector Part Information
    • 12177258
    • 17-Way M Metri-Pack 280 Series (NAT)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A-D

--

--

Not Used

A-D

--

--

Not Used

E

TAN

294

Door Lock Actuator Unlock Control

E

TAN

294

Door Lock Actuator Unlock Control

F

GRY

295

Door Lock Actuator Lock Control

F

GRY

295

Door Lock Actuator Lock Control

G

--

--

Not Used

G

--

--

Not Used

C345 - Body Harness to OnStar® Jumper Harness (UE1)


Object Number: 655763 Size: CH

Object Number: 655824 Size: CH

Connector Part Information
    • 15326762
    • 30-Way F Lever-Lock Mixed Series, Unsealed (BLK)

Connector Part Information
    • 15304908
    • 30-Way M Lever-Lock Mixed Series, Unsealed (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A1

PPL

1807

Class 2 Serial Data

A1

PPL

1807

Class 2 Serial Data

A2-A6

--

--

Not Used

A2-A6

--

--

Not Used

A7

BLK

1051

Ground

A7

BLK

1051

Ground

A8

--

--

Not Used

A8

--

--

Not Used

A9

TAN

2610

Cellular Microphone Signal

A9

TAN

2610

Cellular Microphone Signal

A10

DK GRN/WHT

2514

Keypad Signal

A10

DK GRN/WHT

2514

Keypad Signal

A11

BRN/WHT

2517

Keypad Red LED Signal

A11

BRN/WHT

2517

Keypad Red LED Signal

A12

YEL/BLK

2516

Keypad Green LED Signal

A12

YEL/BLK

2516

Keypad Green LED Signal

A13

BARE

814

Drain Wire

A13

BARE

814

Drain Wire

A14

LT BLU/BLK

659

Cellular Telephone Voice Low Reference

A14

LT BLU/BLK

659

Cellular Telephone Voice Low Reference

A15

DK BLU

658

Cellular Telephone Voice Signal

A15

DK BLU

658

Cellular Telephone Voice Signal

B1-B5

--

--

Not Used

B1-B5

--

--

Not Used

B6

LT GRN/BLK

2515

Keypad Supply Voltage

B6

LT GRN/BLK

2515

Keypad Supply Voltage

B7

ORN

2240

Battery Positive Voltage

B7

ORN

2240

Battery Positive Voltage

B8

BARE

814

Drain Wire

B8

BARE

814

Drain Wire

B9-B10

--

--

Not Used

B9-B10

--

--

Not Used

B11

BARE

814

Drain Wire

B11

BARE

814

Drain Wire

B12

GRY

655

Cellular Microphone Signal

B12

GRY

655

Cellular Microphone Signal

B13-B15

--

--

Not Used

B13-B15

--

--

Not Used

C346 - OnStar® Jumper Harness to Cellular Telephone Harness (w/ UE1, UV8)


Object Number: 655855 Size: CH

Object Number: 655760 Size: CH

Connector Part Information
    • 15336417
    • 40-Way M GT 150, 280 Series (BLK)

Connector Part Information
    • 15304837
    • 40-Way M GT 150, 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A1-A2

--

--

Not Used

A1-A2

--

--

Not Used

A3

ORN

2240

Positive Battery Voltage

A3

ORN

2240

Positive Battery Voltage

A4

GRY

344

Cellular Telephone RF Boost Control Signal

A4

GRY/BLK

344

Cellular Telephone RF Boost Control Signal

A5

--

--

Not Used

A5

--

--

Not Used

A6

LT BLU/BLK

659

Cellular Telephone Voice Low Reference

A6

LT BLU/BLK

659

Cellular Telephone Voice Low Reference

LT BLU/BLK

659

Cellular Telephone Voice Low Reference

A7-A8

--

--

Not Used

A7-A8

--

--

Not Used

B1

BARE

814

Drain Wire

B1

BARE

814

Drain Wire

B2

LT BLU

1235

Handset Earpiece Audio Signal

B2

LT BLU

1235

Handset Earpiece Audio Signal

B3

PNK

1155

Handset Audio Low Reference

B3

PNK

1155

Handset Audio Low Reference

B4

LT BLU

1153

Handset Mouthpiece Audio Signal

B4

LT BLU/BLK

1153

Handset Mouthpiece Audio Signal

B5

BRN

1941

Ignition 3 Voltage

B5

BRN

1941

Ignition 3 Voltage

B6

PPL

1156

Handset Keypad Data Signal

B6

PPL

1156

Handset Keypad Data Signal

B7

BARE

814

Drain Wire

B7

BARE

814

Drain Wire

B8

BARE

814

Drain Wire

B8

BARE

814

Drain Wire

B9

DK BLU

658

Cellular Telephone Voice Signal

B9

DK BLU

658

Cellular Telephone Voice Signal

B10

--

--

Not Used

B10

--

--

Not Used

B11

BARE

814

Drain Wire

B11

BARE

814

Drain Wire

B12

PPL

1807

Class 2 Serial Data

B12

PPL

1807

Class 2 Serial Data

C1

BRN/WHT

2387

Modem Audio Transmit Signal

C1

BRN/WHT

2387

Modem Audio Transmit Signal

C2

TAN/BLK

2388

Modem Audio Return Signal

C2

TAN/BLK

2388

Modem Audio Return Signal

C3

ORN/BLK

2360

Modem Audio Low Reference

C3

ORN/BLK

2360

Modem Audio Low Reference

C4

GRY/BLK

1798

Ground

C4

GRY/BLK

1798

Ground

C5

PPL

679

Handset Display Data Signal

C5

PPL

679

Handset Display Data Signal

C6

RED

2526

Handset Ground

C6

RED

2526

Handset Ground

C7

GRY

655

Cellular Microphone Signal

C7

GRY

655

Cellular Microphone Signal

C8

GRY

655

Cellular Microphone Signal

C8

GRY

655

Cellular Microphone Signal

C9

BRN/WHT

367

Remote Radio Left Audio Signal

C9

BRN/WHT

367

Remote Radio Left Audio Signal

C10

BLK/WHT

659

Cellular Telephone Voice Low Reference

C10

LT BLU/BLK

659

Cellular Telephone Voice Low Reference

C11

BARE

814

Drain Wire

C11

BARE

814

Drain Wire

C12

PPL

1807

Class 2 Serial Data

C12

PPL

1807

Class 2 Serial Data

D1

BARE

814

Drain Wire

D1

BARE

814

Drain Wire

D2

--

--

Not Used

D2

--

--

Not Used

D3

BLK

1051

Ground

D3

BLK

1051

Ground

D4-D8

--

--

Not Used

D4-D8

--

--

Not Used

C400 - Back-Up Lamp Harness to Body Harness (Domestic)


Object Number: 333035 Size: CH

Object Number: 287973 Size: CH

Connector Part Information
    • 12047781
    • 3-Way F Metri-Pack 150 Series (BLK)

Connector Part Information
    • 12047782
    • 3-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

LT GRN

24

Backup Lamp Supply Voltage

A

LT GRN

24

Backup Lamp Supply Voltage

B

BLK

850

Ground

B

BLK

850

Ground

C

--

--

Not Used

C

--

--

Not Used

C400 - Back-Up Lamp Harness to Body Harness (Export)


Object Number: 333035 Size: CH

Object Number: 287973 Size: CH

Connector Part Information
    • 12047781
    • 3-Way F Metri-Pack 150 Series (BLK)

Connector Part Information
    • 12047782
    • 3-Way M Metri-Pack 150 Series (NAT)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

LT GRN

24

Backup Lamp Supply Voltage

A

LT GRN

24

Backup Lamp Supply Voltage

B

BLK

850

Ground

B

BLK

850

Ground

C

RED

122

Rear Fog Lamp Supply Voltage

C

RED

122

Rear Fog Lamp Supply Voltage

C404 - Trailer Harness Connector (w/V92)


Object Number: 332750 Size: CH

Connector Part Information
    • 02984742
    • 5-Way Mixed SLY/PIN Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

BLK

850

Ground

B

PPL

709

Left Park Lamp Supply Voltage

C

YEL

18

Left Rear Stop/Turn Lamp Supply Voltage

D

DK GRN

19

Right Rear Stop/Turn Lamp Supply Voltage

E

GRY

1148

Transmission Shift Inhibit Signal

C407 - Body Harness to Trailer Harness (V92)


Object Number: 40422 Size: CH

Object Number: 40425 Size: CH

Connector Part Information
    • 12064762
    • 6-Way F Metri-Pack 150 Series (GRY)

Connector Part Information
    • 12064763
    • 6-Way M Metri-Pack 150 Series (GRY)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

DK GRN

19

Right Rear Stop/Turn Lamp Supply Voltage

A

DK GRN

19

Right Rear Stop/Turn Lamp Supply Voltage

B

YEL

18

Left Rear Stop/Turn Lamp Supply Voltage

B

WHT

18

Left Rear Stop/Turn Lamp Supply Voltage

WHT

17

Stop Lamp Switch Signal

WHT

17

Stop Lamp Switch Signal

C

BLK

850

Ground

C

BLK

850

Ground

D

YEL/BLK

1334

Left Tail Lamp Outage Detection Signal

D

YEL/BLK

1334

Left Tail Lamp Outage Detection Signal

E

GRY

1148

Transmission Shift Inhibit Signal

E

YEL

1148

Transmission Shift Inhibit Signal

YEL

18

Left Rear Stop/Turn Lamp Supply Voltage

YEL

18

Left Rear Stop/Turn Lamp Supply Voltage

F

PPL

709

Left Park Lamp Supply Voltage

F

WHT

709

Left Park Lamp Supply Voltage

WHT

1204

Left Park Lamp Supply Voltage (Export)

WHT

1204

Left Park Lamp Supply Voltage (Export)

C408 - Body Harness to Rear Park Assist Harness


Object Number: 697039 Size: CH

Object Number: 333040 Size: CH

Connector Part Information
    • 12052848
    • 6-Way F Metri-Pack 150 Series, Sealed (BLK)

Connector Part Information
    • 12124107
    • 6-Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

DK BLU

2374

Object Sensor Supply Voltage

A

DK BLU

2374

Object Sensor Supply Voltage

B

YEL

2375

LR Corner Object Sensor Signal

B

YEL

2375

LR Corner Object Sensor Signal

C

GRY

2379

Object Sensor Low Reference

C

GRY

2379

Object Sensor Low Reference

D

ORN

2376

LR Middle Object Sensor Signal

D

ORN

2376

LR Middle Object Sensor Signal

E

DK GRN

2377

RR Middle Object Sensor Signal

E

DK GRN

2377

RR Middle Object Sensor Signal

F

RED

2378

RR Corner Object Sensor Signal

F

RED

2378

RR Corner Object Sensor Signal

C409 - Body Harness to Upfitter Harness (w/B9Q)


Object Number: 362751 Size: CH

Object Number: 130635 Size: CH

Connector Part Information
    • 12052054
    • 4-Way M Metri-Pack 150 Series (BLK)

Connector Part Information
    • 12045813
    • 4-Way F Metri-Pack 150 Series (NAT)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

WHT

17

Stop Lamp Switch Signal

A

WHT

17

Stop Lamp Switch Signal

B

BLK

850

Ground

B

BLK

850

Ground

C

DK BLU

49

Driver Door Open Switch Signal

C

DK BLU

49

Driver Door Open Switch Signal

D

--

--

Not Used

D

--

--

Not Used

C410 - Body Harness to Upfitter Harness (w/B9Q)


Object Number: 287973 Size: CH

Object Number: 333035 Size: CH

Connector Part Information
    • 12047782
    • 3-Way M Metri-Pack 150 Series (BLK)

Connector Part Information
    • 12047781
    • 3-Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

LT GRN

24

Backup Lamp Supply Voltage

A

LT GRN

24

Backup Lamp Supply Voltage

B

BLK

850

Ground

B

BLK

850

Ground

C

--

--

Not Used

C

--

--

Not Used

C411 - Body Harness to Upfitter Harness (w/B9Q)


Object Number: 68721 Size: CH

Object Number: 232824 Size: CH

Connector Part Information
    • 15300027
    • 2-Way F Metri-Pack 280 Series (BLK)

Connector Part Information
    • 15300002
    • 2-Way M Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

TAN

294

Door Lock Actuator Unlock Control

A

TAN

294

Door Lock Actuator Unlock Control

B

GRY

295

Door Lock Actuator Lock Control

B

GRY

295

Door Lock Actuator Lock Control

C412 - Body Harness to Upfitter Harness (w/B9Q)


Object Number: 82383 Size: CH

Object Number: 35441 Size: CH

Connector Part Information
    • 12059247
    • 2-Way F Metri-Pack 150 Series (MD GRY)

Connector Part Information
    • 12059248
    • 2-Way M Metri-Pack 150 Series (MD GRY)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

YEL

32

Instrument Panel Lamp Fuse Supply Voltage - 1

A

YEL

32

Instrument Panel Lamp Fuse Supply Voltage - 1

B

BLK

850

Ground

B

BLK

850

Ground

C413 - Body Harness (w/B9Q)


Object Number: 82383 Size: CH

Object Number: 35441 Size: CH

Connector Part Information
    • 12059247
    • 2-Way F Metri-Pack 150 Series (GRY)

Connector Part Information
    • 12059248
    • 2-Way M Metri-Pack 150 Series (GRY)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

YEL

32

Instrument Panel Lamp Fuse Supply Voltage - 1

A

YEL

32

Instrument Panel Lamp Fuse Supply Voltage - 1

B

BLK

850

Ground

B

BLK

850

Ground

C420 - Body Harness to Fuel Tank Harness


Object Number: 73194 Size: CF

Connector Part Information
    • 12059471
    • 7-Way F Metri-Pack Mixed Series, Sealed (BLK)

Connector Part Information
    • 12052200
    • 7-Way M Metri-Pack Mixed Series, Sealed (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

PPL

1589

Fuel Level Sensor Signal

A

PPL

1589

Fuel Level Sensor Signal

B

GRY

2709

5-Volt Reference

B

GRY

2709

5-Volt Reference

C

BLK

2759

Low Reference

C

BLK

2759

Low Reference

D

BLK

2759

Low Reference

D

BLK/WHT

2759

Low Reference

E

GRY

120

Fuel Pump Supply Voltage

E

GRY

120

Fuel Pump Supply Voltage

F

DK GRN

890

Fuel Tank Pressure Sensor Signal

F

DK GRN

890

Fuel Tank Pressure Sensor Signal

G

BLK

850

Ground

G

BLK

850

Ground

C421 - Rear Wheel Speed Sensor Harness to Body Harness (w/V4U, B9Q)


Object Number: 537107 Size: CH

Object Number: 605500 Size: CH

Connector Part Information
    • 15324647
    • 2-Way F Metri-Pack 150 Series (GRY)

Connector Part Information
    • 12162343
    • 2-Way M Metri-Pack 150 Series (GRY)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

BLK

884

Left Rear Wheel Speed Sensor Signal

A

WHT

882

Right Rear Wheel Speed Sensor Signal

B

RED

885

Left Rear Wheel Speed Sensor Low Reference

B

BLK

883

Right Rear Wheel Speed Sensor Low Reference

C422 - Rear Wheel Speed Sensor Harness to Body Harness (w/V4U, B9Q)


Object Number: 537107 Size: CH

Object Number: 605500 Size: CH

Connector Part Information
    • 15324647
    • 2-Way F Metri-Pack 150 Series (GRY)

Connector Part Information
    • 12162343
    • 2-Way M Metri-Pack 150 Series (GRY)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

BRN

882

Right Rear Wheel Speed Sensor Signal

A

WHT

882

Right Rear Wheel Speed Sensor Signal

B

WHT

883

Right Rear Wheel Speed Sensor Low Reference

B

BLK

883

Right Rear Wheel Speed Sensor Low Reference

C500 - Left Front Door Harness to Body 2 Harness


Object Number: 531419 Size: CH

Object Number: 524194 Size: CH

Connector Part Information
    • 15304692
    • 18-Way F GT 150, 280 Series (BLK)

Connector Part Information
    • 15317538
    • 18-Way M GT 150, 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A1

--

--

Not Used

A1

--

--

Not Used

A2

BRN

2478

Driver Heated Seat Temperature Signal (KA1)

A2

BRN

2478

Driver Heated Seat Temperature Signal (KA1)

A3

PPL

1807

Class 2 Serial Data

A3

PPL

1807

Class 2 Serial Data

A4

ORN

1040

Battery Positive Voltage

A4

ORN

1040

Battery Positive Voltage

A5

BLK/WHT

351

Ground

A5

BLK/WHT

351

Ground

A6

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

A6

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

A7

BLK

1856

Left Front Tweeter Speaker Output (+) (w/U57)

A7

BLK

1856

Left Front Tweeter Speaker Output (+) (w/U57)

A8

DK BLU

1857

Left Front Midrange Speaker Output (+) (w/UX8)

A8

DK BLU

1857

Left Front Midrange Speaker Output (+) (UX8)

A9

LT BLU

14

Left Turn Signal Lamps Supply Voltage

A9

LT BLU

14

Left Turn Signal Lamps Supply Voltage

B1

BLK

350

Ground

B1

BLK

350

Ground

B2

GRY

1690

Automatic Day/Night Mirror Signal (DD8)

B2

GRY

1690

Automatic Day/Night Mirror Signal (DD8)

B3

PNK

1691

Automatic Day/Night Mirror Low Reference (DD8)

B3

PNK

1691

Automatic Day/Night Mirror Low Reference (DD8)

B4

GRY/BLK

690

Courtesy Lamp Relay Coil Control

B4

GRY/BLK

690

Courtesy Lamp Relay Coil Control

B5

ORN

640

Battery Positive Voltage

B5

ORN

640

Battery Positive Voltage

B6

BLK

350

Ground

B6

BLK

350

Ground

B7

YEL

1956

Left Front Tweeter Speaker Output (-) (w/U57)

B7

YEL

1956

Left Front Tweeter Speaker Output (-) (w/U57)

B8

LT BLU

1957

Left Front Midrange Speaker Output (-) (w/UX8)

B8

LT BLU

1957

Left Front Midrange Speaker Output (-) (w/ UX8)

B9

--

--

Not Used

B9

--

--

Not Used

C501 - Left Front Door Trim Harness to Left Front Door Harness


Object Number: 603049 Size: CH

Object Number: 603047 Size: CH

Connector Part Information
    • 15339004
    • 30-Way F GT 150, 280 Series (BLK)

Connector Part Information
    • 15339005
    • 30-Way M GT 150, 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A1-A3

--

--

Not Used

A1-A3

--

--

Not Used

A4

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

A4

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

A5

GRY/BLK

690

Courtesy Lamp Relay Coil Control

A5

GRY/BLK

690

Courtesy Lamp Relay Coil Control

A6

PPL

1807

Class 2 Serial Data

A6

PPL

1807

Class 2 Serial Data

A7

ORN

640

Battery Positive Voltage

A7

ORN

640

Battery Positive Voltage

A8

DK GRN

1661

Driver Heated Seat High Temperature Indicator Control (KA1)

A8

DK GRN

1661

Driver Heated Seat High Temperature Indicator Control (KA1)

A9

LT BLU

1662

Driver Heated Seat Low Temperature Indicator Control (KA1)

A9

LT BLU

1662

Driver Heated Seat Low Temperature Indicator Control (KA1)

A10

YEL

1491

Backlight Lamps Control

A10

YEL

1491

Backlight Lamps Control

A11

BLK/WHT

351

Ground

A11

BLK/WHT

351

Ground

A12

TAN

6129

Rear Closure Unlatch Motor Latch Control (if equipped)

A12

PNK

6129

Rear Closure Unlatch Motor Latch Control (if equipped)

A13

BLK

6220

Left Front Seat Climate Control Heat/Cool Mode Switch Signal (if equipped)

A13

WHT

6220

Left Front Seat Climate Control Heat/Cool Mode Switch Signal (if equipped)

A14-A15

--

--

Not Used

A14-A15

--

--

Not Used

B1-B3

--

--

Not Used

B1-B3

--

--

Not Used

B4

RED

2395

Driver Heated Seat Back Only Mode Switch Signal (KA1)

B4

RED

2395

Driver Heated Seat Back Only Mode Switch Signal (KA1)

B5

PNK

2398

Driver Heated Seat Temperature Switch Signal (KA1)

B5

PNK

2398

Driver Heated Seat Temperature Switch Signal (KA1)

B6

DK GRN

2396

Driver Heated Seat Back Only Mode Indicator Control (KA1)

B6

DK GRN

2396

Driver Heated Seat Back Only Mode Indicator Control (KA1)

B7

RED

2397

Driver Heated Seat Medium Temperature Indicator Control (KA1)

B7

RED

2397

Driver Heated Seat Medium Temperature Indicator Control (KA1)

B8

LT BLU

1462

Driver Heated Seat Switch Supply Voltage (KA1)

B8

LT BLU

1462

Driver Heated Seat Switch Supply Voltage (KA1)

B9

--

--

Not Used

B9

--

--

Not Used

B10

YEL

6221

Left Front Seat Climate Control Cooling Mode LED Signal (if equipped)

B10

YEL

6221

Left Front Seat Climate Control Cooling Mode LED Signal (if equipped)

B11-B15

--

--

Not Used

B11-B15

--

--

Not Used

C502 - Outside Rearview Mirror to Driver Door Harness


Object Number: 82383 Size: CH

Object Number: 35441 Size: CH

Connector Part Information
    • 12059247
    • 2-Way F Metri-Pack 150 Series (MD GRY)

Connector Part Information
    • 12059248
    • 2-Way M Metri-Pack 150 Series (MD GRY)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

LT BLU

14

Left Turn Signal Lamps Supply Voltage

A

LT BLU

14

Left Turn Signal Lamps Supply Voltage

B

BLK

350

Ground

B

BLK

350

Ground

C600 - Right Front Door Harness to Body 3 Harness


Object Number: 531419 Size: CH

Object Number: 524194 Size: CH

Connector Part Information
    • 15304692
    • 18-Way F GT 150, 280 Series (BLK)

Connector Part Information
    • 15317538
    • 18-Way M GT 150, 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A1

--

--

Not Used

A1

--

--

Not Used

A2

RED/WHT

2431

Passenger Heated Seat Temperature Signal (KA1)

A2

RED/WHT

2431

Passenger Heated Seat Temperature Signal (KA1)

A3

PPL

1807

Class 2 Serial Data

A3

PPL

1807

Class 2 Serial Data

A4

ORN

1040

Battery Positive Voltage

A4

ORN

1040

Battery Positive Voltage

A5

BLK/WHT

451

Ground

A5

BLK/WHT

451

Ground

A6

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

A6

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

A7

LT GRN

1852

Right Front Tweeter Speaker Output (+) (if equipped)

A7

LT GRN

1852

Right Front Tweeter Speaker Output (+) (if equipped)

A8

ORN

1853

Right Front Midrange Speaker Output (+) (UX8)

A8

ORN

1853

Right Front Midrange Speaker Output (+) (UX8)

A9

--

--

Not Used

A9

--

--

Not Used

B1

--

--

Not Used

B1

--

--

Not Used

B2

DK BLU

15

Right Turn Signal Lamps Supply Voltage

B2

DK BLU

15

Right Turn Signal Lamps Supply Voltage

B3

BLK

450

Ground

B3

BLK

450

Ground

B4

GRY/BLK

690

Courtesy Lamp Relay Coil Control

B4

GRY/BLK

690

Courtesy Lamp Relay Coil Control

B5

ORN

740

Battery Positive Voltage

B5

ORN

740

Battery Positive Voltage

B6

BLK

450

Ground

B6

BLK

450

Ground

B7

PPL

1952

Right Front Tweeter Speaker Output (-) (if equipped)

B7

PPL

1952

Right Front Tweeter Speaker Output (-) (if equipped)

B8

DK GRN

1953

Right Front Midrange Speaker Output (-) (UX8)

B8

DK GRN

1953

Right Front Midrange Speaker Output (-) (UX8)

B9

--

--

Not Used

B9

--

--

Not Used

C601 - Right Front Door Trim Harness to Right Front Door Trim Harness


Object Number: 603049 Size: CH

Object Number: 603047 Size: CH

Connector Part Information
    • 15339004
    • 30-Way F GT 150, 280 Series (BLK)

Connector Part Information
    • 15339005
    • 30-Way M GT 150, 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A1-A3

--

--

Not Used

A1-A3

--

--

Not Used

A4

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

A4

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

A5

GRY/BLK

690

Courtesy Lamp Relay Control

A5

GRY/BLK

690

Courtesy Lamp Relay Control

A6

ORN

1189

Power Window Switch Right Front Low Reference

A6

ORN

1189

Power Window Switch Right Front Low Reference

A7

PPL

2765

Power Window Switch Right Front Express Signal

A7

PPL

2765

Power Window Switch Right Front Express Signal

A8

WHT

1185

Power Window Switch Up Signal

A8

WHT

1185

Power Window Switch Up Signal

A9

LT BLU

244

Passenger Door Lock Switch Lock Signal

A9

LT BLU

244

Passenger Door Lock Switch Lock Signal

A10

DK BLU

245

Passenger Door Lock Switch Unlock Signal

A10

DK BLU

245

Passenger Door Lock Switch Unlock Signal

A11

YEL

1491

Backlight Lamps Control

A11

YEL

1491

Backlight Lamps Control

A12

BLK/WHT

451

Ground

A12

BLK/WHT

451

Ground

A13

BRN

6220

Right Front Seat Climate Control Heat/Cool Mode Switch Signal (if equipped)

A13

WHT

6220

Right Front Seat Climate Control Heat/Cool Mode Switch Signal (if equipped)

A14-A15

--

--

Not Used

A14-A15

--

--

Not Used

B1-B3

--

--

Not Used

B1-B3

--

--

Not Used

B4

RED

2389

Passenger Heated Seat Back Only Mode Switch Signal (KA1)

B4

RED

2389

Passenger Heated Seat Back Only Mode Switch Signal (KA1)

B5

DK GRN

2392

Passenger Heated Seat Temperature Switch Signal (KA1)

B5

DK GRN

2392

Passenger Heated Seat Temperature Switch Signal (KA1)

B6

PPL

2393

Passenger Heated Seat Back Only Mode Indicator Control (KA1)

B6

PPL

2393

Passenger Heated Seat Back Only Mode Indicator Control (KA1)

B7

DK BLU

2394

Passenger Heated Seat Medium Temperature Indicator Control (KA1)

B7

DK BLU

2394

Passenger Heated Seat Medium Temperature Indicator Control (KA1)

B8

LT BLU/BLK

1505

Passenger Heated Seat Switch Supply Voltage (KA1)

B8

LT BLU/BLK

1505

Passenger Heated Seat Switch Supply Voltage (KA1)

B9

YEL

1685

Passenger Heated Seat High Temperature Indicator Control (KA1)

B9

YEL

1685

Passenger Heated Seat High Temperature Indicator Control (KA1)

B10

TAN

1686

Passenger Heated Seat Low Temperature Indicator Control (KA1)

B10

TAN

1686

Passenger Heated Seat Low Temperature Indicator Control (KA1)

B11-B15

--

--

Not Used

B11-B15

--

--

Not Used

C700 - Body Harness to Left Rear Door Harness


Object Number: 703019 Size: CH

Object Number: 655695 Size: CH

Connector Part Information
    • 12177260
    • 7-Way F Metri-Pack 280, 150 Series (BLK)

Connector Part Information
    • 12177258
    • 17-Way M Metri-Pack 150, 280 Series (NAT)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

ORN

1340

Battery Positive Voltage

A

ORN

1340

Battery Positive Voltage

B

ORN

2040

Battery Positive Voltage

B

ORN

2040

Battery Positive Voltage

C

BRN

2474

Left Rear Passenger Heated Seat Back Only Mode Signal (KA1)

C

BRN

2474

Left Rear Passenger Heated Seat Back Only Mode Signal (KA1)

D

LT GRN

2437

Left Rear Passenger Heated Seat Temperature Signal (KA1)

D

LT GRN

2437

Left Rear Passenger Heated Seat Temperature Signal (KA1)

E

ORN

1040

Battery Positive Voltage

E

ORN

1040

Battery Positive Voltage

F

PPL

1807

Class 2 Serial Data

F

PPL

1807

Class 2 Serial Data

G

BLK

550

Ground

G

BLK

550

Ground

C701 - Body 1 Harness to Left Rear Door Harness


Object Number: 647929 Size: CH

Object Number: 655695 Size: CH

Connector Part Information
    • 12177259
    • 10-Way F GT 150 Series (BLK)

Connector Part Information
    • 12177258
    • 17-Way M Metri-Pack 150, 280 Series (WHT)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

H

PPL

2405

Left Rear Lumbar Motor Down Control (DHS)

H

PPL

2405

Left Rear Lumbar Motor Down Control (DHS)

J

TAN/WHT

551

Ground

J

TAN/WHT

551

Ground

K

ORN

840

Battery Positive Voltage

K

ORN

840

Battery Positive Voltage

L

DK BLU

2406

Left Rear Lumbar Motor Up Control (DHS)

L

DK BLU

2406

Left Rear Lumbar Motor Up Control (DHS)

M

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

M

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

N

DK BLU

1393

Rear Interior Lamp Control

N

DK BLU

1393

Rear Interior Lamp Control

P

YEL

2407

Left Rear Lumbar Motor Forward Control (DHS)

P

YEL

2407

Left Rear Lumbar Motor Forward Control (DHS)

R

TAN

1859

Left Rear Midrange Speaker Output (+)

R

TAN

1859

Left Rear Midrange Speaker Output (+)

S

WHT

1959

Left Rear Midrange Speaker Output (-)

S

WHT

1959

Left Rear Midrange Speaker Output (-)

T

TAN

2408

Left Rear Lumbar Motor Rearward Control (DHS)

T

TAN

2408

Left Rear Lumbar Motor Rearward Control (DHS)

C702 - Left Rear Door Trim Harness to Left Rear Door Harness


Object Number: 603049 Size: CH

Object Number: 603047 Size: CH

Connector Part Information
    • 15339004
    • 30-Way F GT 150, 280 Series (GRY)

Connector Part Information
    • 15339005
    • 30-Way M GT 150, 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A1

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

A1

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

A2

DK BLU

1393

Rear Interior Lamp Control

A2

DK BLU

1393

Rear Interior Lamp Control

A3

YEL

2412

Left Rear Passenger Heated Seat Back Only Mode Indicator Control (KA1)

A3

YEL

2412

Left Rear Passenger Heated Seat Back Only Mode Indicator Control (KA1)

A4

TAN/WHT

551

Ground

A4

TAN/WHT

551

Ground

A5

YEL

1491

Backlight Lamps Control

A5

YEL

1491

Backlight Lamps Control

A6-A7

--

--

Not Used

A6-A7

--

--

Not Used

A8

BRN

9027

Left Rear Heated Seat Switch Signal (if equipped)

A8

WHT

9027

Left Rear Heated Seat Switch Signal (if equipped)

A9

--

--

Not Used



--

--

Not Used

A10

PNK

1631

Left Rear Heated Seat Low Temperature Indicator Control (KA1)

A10

PNK

1631

Left Rear Heated Seat Low Temperature Indicator Control (KA1)

A11

BLK/WHT

2411

Left Rear Passenger Heated Seat Temperature Switch Signal (KA1)

A11

BLK/WHT

2411

Left Rear Passenger Heated Seat Temperature Switch Signal (KA1)

A12

PNK

2410

Left Rear Passenger Heated Seat Back Only Mode Switch Signal (KA1)

A12

PNK

2410

Left Rear Passenger Heated Seat Back Only Mode Switch Signal (KA1)

A13

BLK/WHT

1638

Left Rear Heated Seat High Temperature Indicator Control (KA1)

A13

BLK/WHT

1638

Left Rear Heated Seat High Temperature Indicator Control (KA1)

A14

ORN

1340

Battery Positive Voltage (if equipped)

A14

ORN

1340

Battery Positive Voltage (if equipped)

A15

PPL

2765

Power Window Switch Right Front Express Signal

A15

PPL

2765

Power Window Switch Right Front Express Signal

B1

YEL

1187

Power Window Switch Left Rear Down Signal

B1

YEL

1187

Power Window Switch Left Rear Down Signal

B2

DK GRN

1184

Power Window Switch Up Signal

B2

DK GRN

1184

Power Window Switch Up Signal

B3-B4

--

--

Not Used

B3-B4

--

--

Not Used

B5

GRY

2413

Left Rear Passenger Heated Seat Medium Temperature Indicator Control

B5

GRY

2413

Left Rear Passenger Heated Seat Medium Temperature Indicator Control

B6

ORN

2414

Left Rear Passenger Heated Seat Switch Supply Voltage

B6

ORN

2414

Left Rear Passenger Heated Seat Switch Supply Voltage

B7

BLK

550

Ground

B7

BLK

550

Ground

B8

ORN

2040

Battery Positive Voltage

B8

ORN

2040

Battery Positive Voltage

B9

--

--

Not Used

B9

--

--

Not Used

B10

PPL

2405

Left Rear Lumbar Motor Down Control (DHS w/ AL2)

B10

PPL

2405

Left Rear Lumbar Motor Down Control (DHS w/ AL2)

B11

DK BLU

2406

Left Rear Lumbar Motor Up Control (DHS w/ AL2)

B11

DK BLU

2406

Left Rear Lumbar Motor Up Control (DHS w/ AL2)

B12

YEL

2407

Left Rear Lumbar Motor Forward Control (DHS w/ AL2)

B12

YEL

2407

Left Rear Lumbar Motor Forward Control (DHS w/ AL2)

B13

TAN

2408

Left Rear Lumbar Motor Rearward Control (DHS w/ AL2)

B13

TAN

2408

Left Rear Lumbar Motor Rearward Control (DHS w/ AL2)

B14

TAN

1859

Left Rear Midrange Speaker Output (+)

B14

TAN

1859

Left Rear Midrange Speaker Output (+)

B15

WHT

1959

Left Rear Midrange Speaker Output (-)

B15

WHT

1959

Left Rear Midrange Speaker Output (-)

C800 - Body 3 Harness to Right Rear Door Harness


Object Number: 703019 Size: CH

Object Number: 655695 Size: CH

Connector Part Information
    • 12177260
    • 7-Way F Metri-Pack 150, 280 Series (BLK)

Connector Part Information
    • 12177258
    • 17-Way M Metri-Pack 150, 280 Series (WHT)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A

ORN

1340

Battery Positive Voltage

A

ORN

1340

Battery Positive Voltage

B

ORN

2040

Battery Positive Voltage

B

ORN

2040

Battery Positive Voltage

C

BRN

2438

Right Rear Passenger Heated Seat Back Only Mode Signal (KA1)

C

BRN

2438

Right Rear Passenger Heated Seat Back Only Mode Signal (KA1)

D

LT GRN

2444

Right Rear Passenger Heated Seat Temperature Signal (KA1)

D

LT GRN

2444

Right Rear Passenger Heated Seat Temperature Signal (KA1)

E

ORN

1040

Battery Positive Voltage

E

ORN

1040

Battery Positive Voltage

F

PPL

1807

Class 2 Serial Data

F

PPL

1807

Class 2 Serial Data

G

BLK

650

Ground

G

BLK

650

Ground

C801 - Body Harness to Right Rear Door Harness


Object Number: 647929 Size: CH

Object Number: 655695 Size: CH

Connector Part Information
    • 12177259
    • 10-Way F Metri-Pack 150, 280 Series (BLK)

Connector Part Information
    • 12177258
    • 17-Way M Metri-Pack 150, 280 Series (WHT)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

H

PPL

2415

Right Rear Lumbar Motor Down Control (DHS w/ AL2)

H

PPL

2415

Right Rear Lumbar Motor Down Control (DHS w/ AL2)

J

BLK/WHT

451

Ground

J

BLK/WHT

451

Ground

K

ORN

840

Battery Positive Voltage

K

ORN

840

Battery Positive Voltage

L

DK BLU

2416

Right Rear Lumbar Motor Up Control (DHS w/ AL2)

L

DK BLU

2416

Right Rear Lumbar Motor Up Control (DHS w/ AL2)

M

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

M

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

N

DK BLU

1393

Rear Interior Lamp Control

N

DK BLU

1393

Rear Interior Lamp Control

P

YEL

2417

Right Rear Lumbar Motor Forward Control (DHS w/ AL2)

P

YEL

2417

Right Rear Lumbar Motor Forward Control (DHS w/ AL2)

R

TAN

1855

Right Rear Midrange Speaker Output (+)

R

TAN

1855

Right Rear Midrange Speaker Output (+)

S

RED

1955

Right Rear Midrange Speaker Output (-)

S

RED

1955

Right Rear Midrange Speaker Output (-)

T

TAN

2418

Right Rear Lumbar Motor Rearward Control (DHS w/ AL2)

T

TAN

2418

Right Rear Lumbar Motor Rearward Control (DHS w/ AL2)

C802 - Right Rear Door Trim Harness to Right Rear Door Harness


Object Number: 603049 Size: CH

Object Number: 603047 Size: CH

Connector Part Information
    • 15339004
    • 30-Way F GT 150, 280 Series (BLK)

Connector Part Information
    • 15339005
    • 30-Way M GT 150, 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

Pin

Wire Color

Circuit No.

Function

A1

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

A1

DK BLU/WHT

149

Courtesy Lamp Supply Voltage

A2

DK BLU

1393

Rear Interior Lamp Control

A2

DK BLU

1393

Rear Interior Lamp Control

A3

YEL

2412

Right Rear Passenger Heated Seat Back Only Mode Indicator Control (KA1)

A3

YEL

2421

Right Rear Passenger Heated Seat Back Only Mode Indicator Control (KA1)

A4

TAN/WHT

451

Ground

A4

BLK/WHT

451

Ground

A5

YEL

1491

Backlight Lamps Control

A5

YEL

1491

Backlight Lamps Control

A6-A7

--

--

Not Used

A6-A7

--

--

Not Used

A8

BRN

9028

Right Rear Heated Seat Switch Signal (if equipped)

A8

WHT

9028

Right Rear Heated Seat Switch Signal (if equipped)

A9

--

--

Not Used

A9

--

--

Not Used

A10

PNK

1631

Right Rear Heated Seat Low Temperature Indicator Control (KA1)

A10

PNK

1636

Right Rear Heated Seat Low Temperature Indicator Control (KA1)

A11

BLK/WHT

2411

Right Rear Passenger Heated Seat Temperature Switch Signal (KA1)

A11

BLK/WHT

2420

Right Rear Passenger Heated Seat Temperature Switch Signal (KA1)

A12

PNK

2410

Right Rear Passenger Heated Seat Back Only Mode Switch Signal (KA1)

A12

PNK

2419

Right Rear Passenger Heated Seat Back Only Mode Switch Signal (KA1)

A13

BLK/WHT

1638

Right Rear Heated Seat High Temperature Indicator Control (KA1)

A13

BLK/WHT

1635

Right Rear Heated Seat High Temperature Indicator Control (KA1)

A14

ORN

1340

Battery Positive Voltage (if equipped)

A14

ORN

1340

Battery Positive Voltage (if equipped)

A15

PPL

2765

Power Window Switch Right Front Express Signal

A15

PPL

2765

Power Window Switch Right Front Express Signal

B1

YEL

1189

Power Window Switch Right Front Low Reference

B1

ORN

1189

Power Window Switch Right Front Low Reference

B2

DK GRN

1185

Power Window Switch Up Signal

B2

WHT

1185

Power Window Switch Up Signal

B3-B4

--

--

Not Used

B3-B4

--

--

Not Used

B5

GRY

2413

Right Rear Passenger Heated Seat Medium Temperature Indicator Control (KA1)

B5

BRN

2422

Right Rear Passenger Heated Seat Medium Temperature Indicator Control (KA1)

B6

ORN

2414

Right Rear Passenger Heated Seat Switch Supply Voltage (KA1)

B6

LT BLU

2423

Right Rear Passenger Heated Seat Switch Supply Voltage (KA1)

B7

BLK

650

Ground

B7

BLK

650

Ground

B8

ORN

2040

Battery Positive Voltage

B8

ORN

2040

Battery Positive Voltage

B9

--

--

Not Used

B9

--

--

Not Used

B10

PPL

2415

Right Rear Lumbar Motor Down Control (DHS w/ AL2)

B10

PPL

2415

Right Rear Lumbar Motor Down Control (DHS w/ AL2)

B11

DK BLU

2416

Right Rear Lumbar Motor Up Control (DHS w/ AL2)

B11

DK BLU

2416

Right Rear Lumbar Motor Up Control (DHS w/ AL2)

B12

YEL

2417

Right Rear Lumbar Motor Forward Control (DHS w/ AL2)

B12

YEL

2417

Right Rear Lumbar Motor Forward Control (DHS w/ AL2)

B13

TAN

2418

Right Rear Lumbar Motor Rearward Control (DHS w/ AL2)

B13

TAN

2418

Right Rear Lumbar Motor Rearward Control (DHS w/ AL2)

B14

TAN

1855

Right Rear Midrange Speaker Output (+)

B14

TAN

1855

Right Rear Midrange Speaker Output (+)

B15

WHT

1955

Right Rear Midrange Speaker Output (-)

B15

RED

1955

Right Rear Midrange Speaker Output (-)
