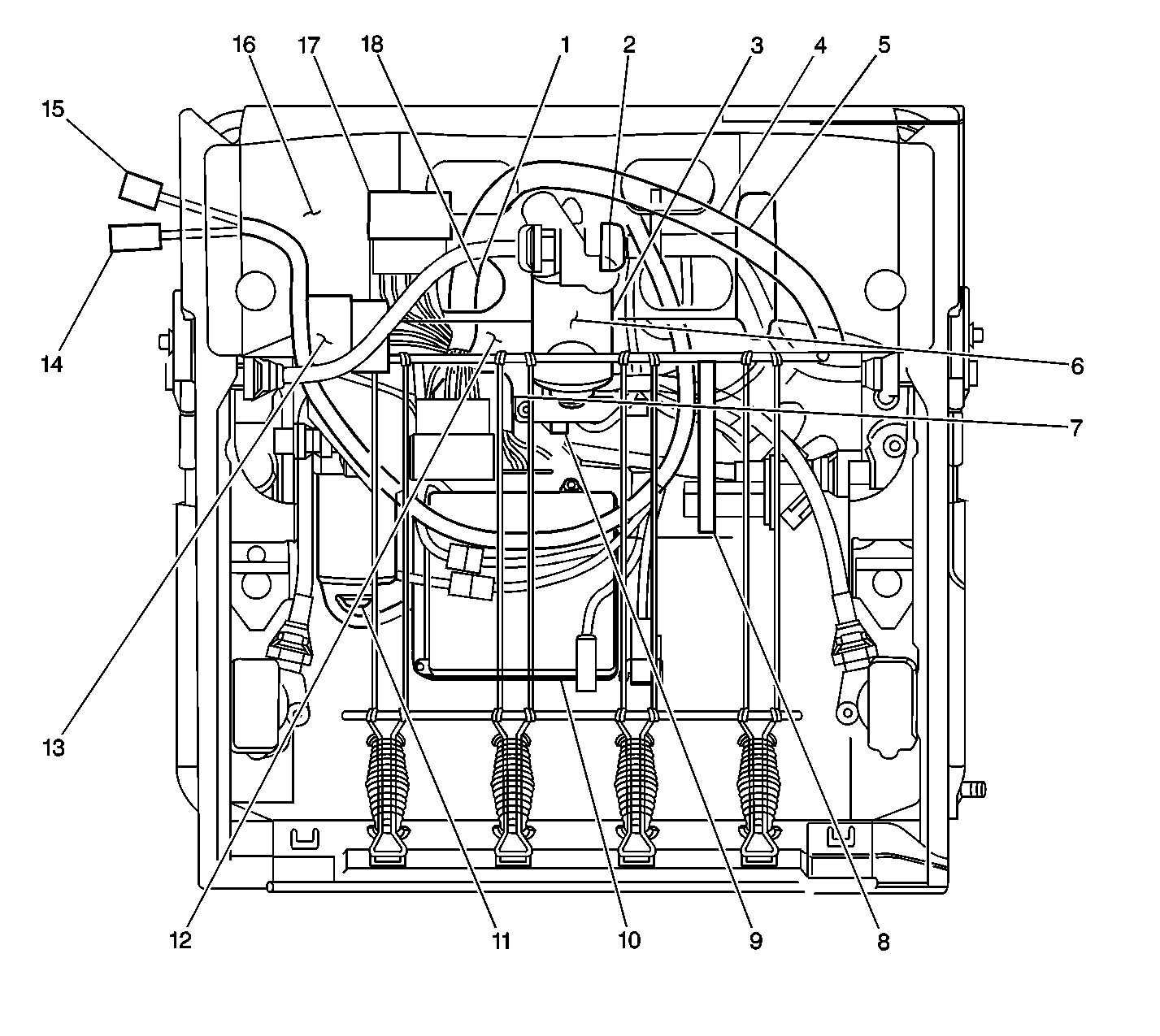

| (1) | Seat
Rear Vertical Motor (Hidden) |
| (2) | Seat Recline Postion Sensor |
| (3) | Seat Recline
Motor |
| (4) | S351 (Left), S356 (Right) |
| (5) | S352 (Left), S357 (Right) |
| (6) | C323 (Left) (Hidden) |
| (7) | C305 (Eldorado), C306 (DeVille) |
| (8) | Seat Horizontal Postion Sensor |
| (9) | Seat Rear Vertical Postion Sensor |
| (10) | Memory Seat Module (MSM) |
| (11) | Seat Horizontal Motor |
| (12) | C320 (Left), C321 (Right) (Hidden) |
| (13) | Seat Lumbar
Vertical Relay |
| (14) | Lumbar Switch |
| (15) | Seat Switch |
| (16) | Seat Front Vertical Motor |
| (17) | Lumbar
Horizontal Relay |
| (18) | S349 (Left), S348 (Right) |
