Removal Procedure

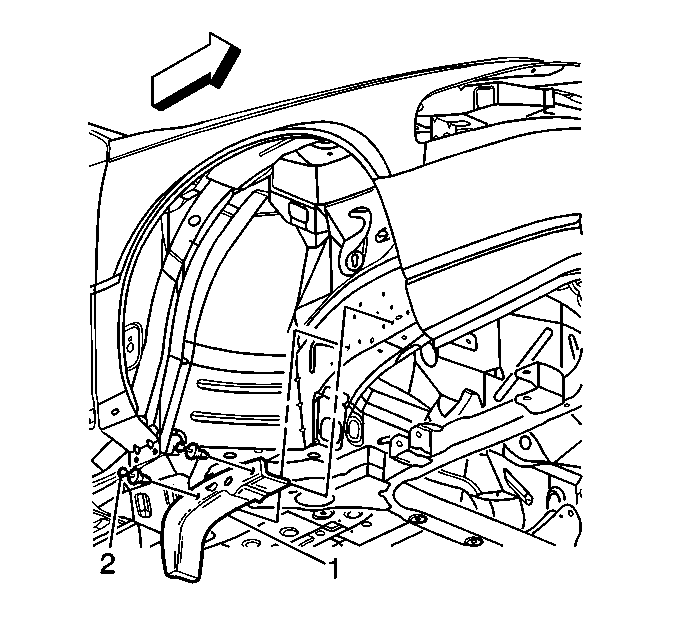

    Object Number: 130500 Size: SH
  1. Remove the push in retainers (2) retaining the engine splash shield (1) to the body.
  2. Remove the engine splash shield (1) from the body.

Installation Procedure

    Object Number: 130500 Size: SH
  1. Install the engine splash shield (1) from the body.
  2. Install the push in retainers (2) to retain the engine splash shield (1) to the body.
