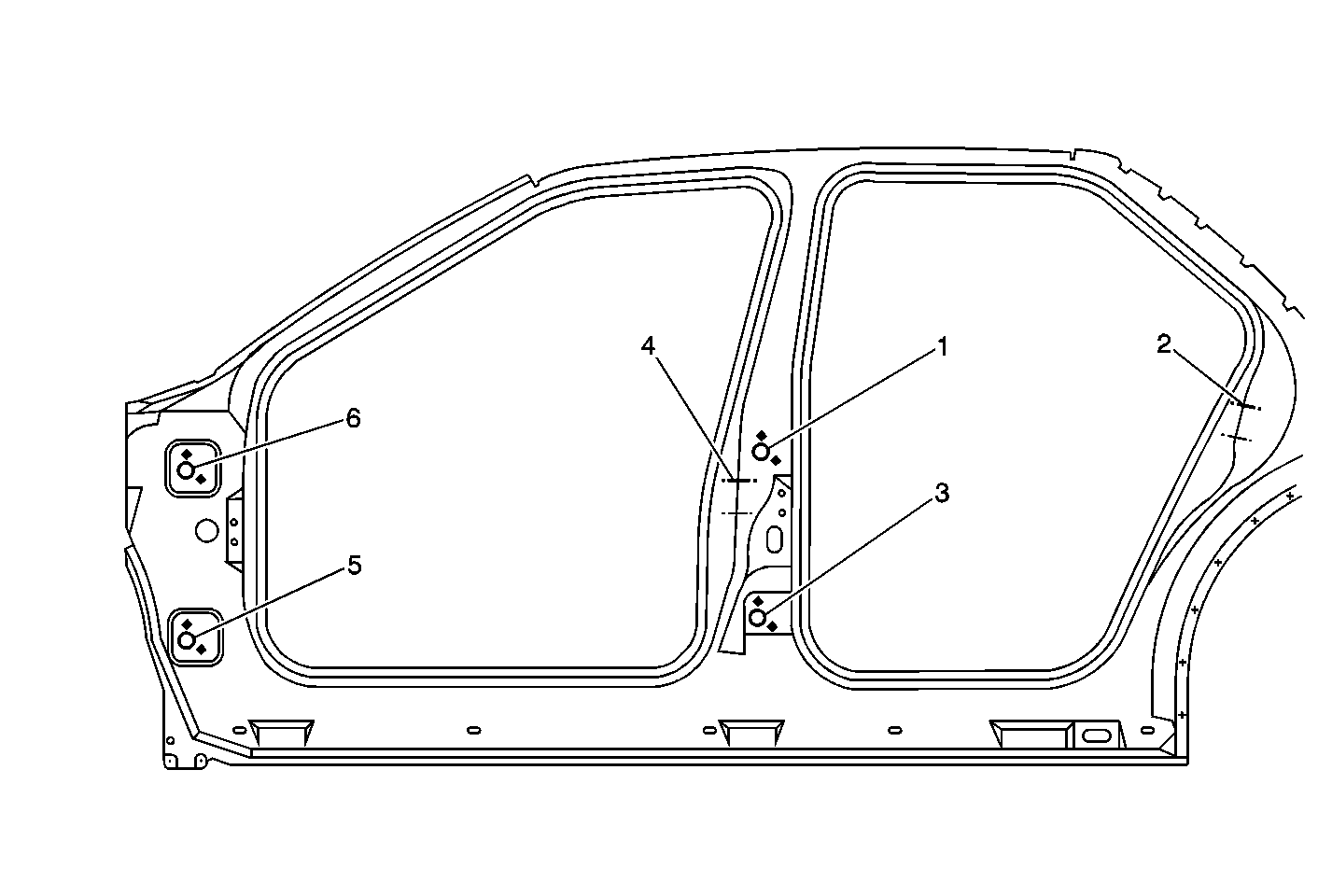

Dimensions - Body Hinge and Striker Locations


Object Number: 240752 Size: MF

Reference Number

Length  (mm)

Width (mm)

Height (mm)

1

1221

827

958

2

2168

805

1007

3

1221

839

641

4

1177

814

830

5

88

824

595

6

88

814

927

All dimensions are measured from a zero line, center line, and a common datum. All dimensions are symmetrical unless otherwise specified.

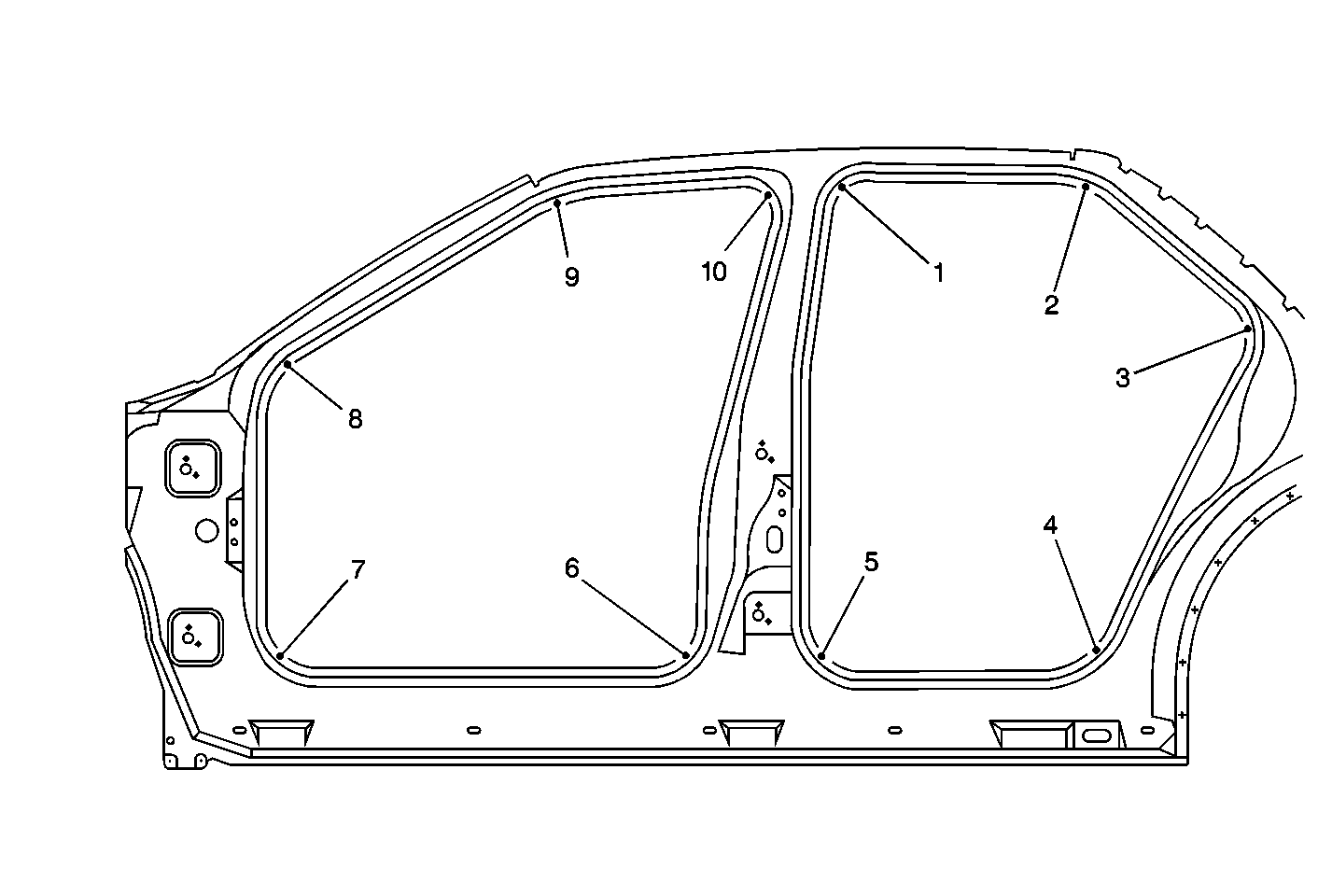

Dimensions - Body Door Side Frame - Diemarks
