For 1990-2009 cars only
Dimensions - Frame Engine Compartment
Reference Number | Length (mm) | Width (mm) | Height (mm) | Hole Size |
|---|---|---|---|---|
1 | 264 | 558 | 1032 | 12 mm |
2 | 835 | 764 | 808 | 8.5 mm hole |
3 | 789 | 858 | 678 | 5.3 mm |
4 | 835 | 764 | 726 | 8.5 mm slot |
5 | 835 | 764 | 708 | 8.5 mm |
6 | 371 | 558 | 1044 | 12 mm hole |
7 | 315 | 693 | 1044 | 12 mm hole |
All dimensions are measured from a zero line, center line, and a common datum. All dimension are symmetrical unless otherwise specified. | ||||

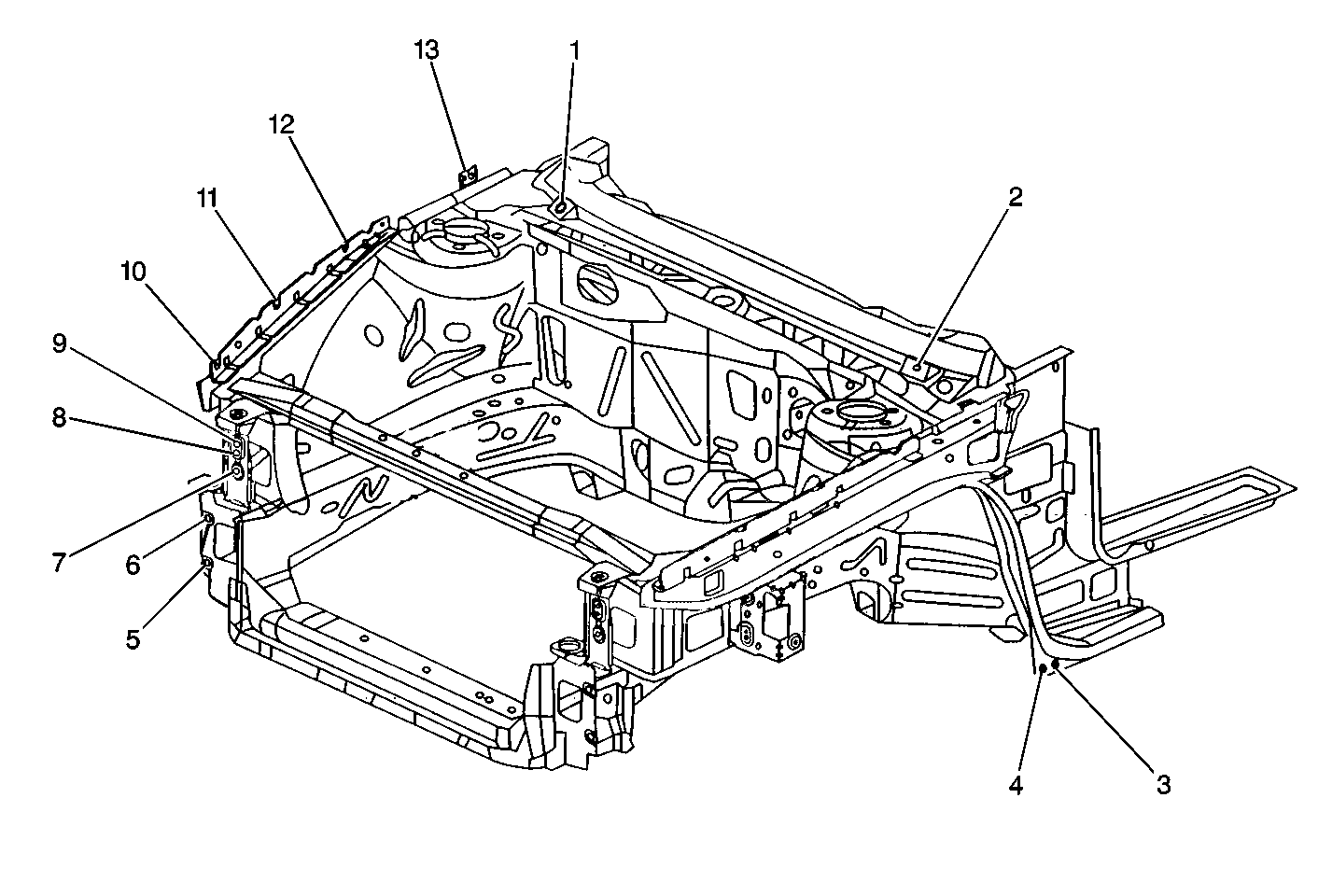

Dimensions - Frame Engine Compartment
Reference Number | Length (mm) | Width (mm) | Height (mm) | Hole Size |
|---|---|---|---|---|
1 | -- | -- | -- | -- |
2 | -- | -- | -- | -- |
3 | 119 | 778 | 365 | 5.3 mm |
4 | 59 | 778 | 365 | 5.3 mm |
5 | 1157 | 603 | 520 | 10.5x12.5 mm |
6 | 1157 | 605 | 640 | 10.5 mm |
7 | 1111 | 547 | 751 | 8.5 mm |
8 | 1111 | 547 | 797 | 8.5x11 mm slot |
9 | 1111 | 547 | 816 | 8.5 mm |
10 | 1044 | 720 | 917 | 5.3 mm |
11 | 804 | 732 | 971 | 5.3 mm |
12 | 564 | 742 | 1012 | 5.3 mm |
13 | 105 | 754 | 1070 | 5.3 mm |
All dimensions are measured from a zero line, center line, and a common datum. All dimensions are symmetrical unless otherwise specified. | ||||
