Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | ORN  | 1799  | CMP Sensor Signal  | ||||
B  | PNK/BLK  | 632  | CMP Sensor Ground  | ||||
C  | RED  | 631  | CMP Sensor Ignition Feed  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | LT GRN  | 1867  | CKP Sensor A Ignition Feed  | ||||
B  | YEL/BLK  | 1868  | CKP Sensor A Ground  | ||||
C  | LT BLU/WHT  | 1800  | CKP Sensor A Signal  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | LT GRN  | 2867  | CKP Sensor B Ignition Feed  | ||||
B  | LT BLU/WHT  | 1800  | CKP Sensor B Ground  | ||||
C  | YEL  | 573  | CKP Sensor B Signal  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | BLK  | 2761  | ECT Sensor Ground  | ||||
B  | YEL  | 410  | ECT Sensor Signal  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | PNK  | 139  | Fused Output - IGN1  | ||||
B  | DK GRN/WHT  | 428  | EVAP Purge Valve Output  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | PNK  | 1239  | Fused Output - Ignition  | ||||
B  | WHT  | 1310  | Canister Vent Valve Solenoid Output  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|

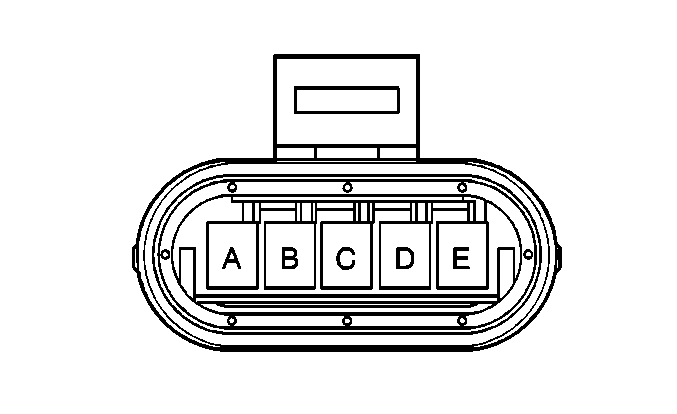

Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | GRY  | 435  | EGR Valve Control  | ||||
B  | BLK  | 2753  | EGR Pintle Position Sensor Ground  | ||||
C  | BRN  | 1456  | EGR Position  | ||||
D  | GRY  | 2702  | EGR Position5 Volt Reference  | ||||
E  | PNK  | 1676  | EGR Solenoid Feed  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | PNK  | 239  | Fuse Output - IGN1 (Injectors 1, 4, 6 and 7)  | ||||
A  | PNK  | 339  | Fuse Output - IGN1 (Injectors 2, 3, 5 and 8)  | ||||
B  | BLK  | 1744  | Fuel Injector 1 Output  | ||||
B  | LT GRN/BLK  | 1745  | Fuel Injector 2 Output  | ||||
B  | PNK/BLK  | 1746  | Fuel Injector 3 Output  | ||||
B  | LT BLU/BLK  | 844  | Fuel Injector 4 Output  | ||||
B  | BLK/WHT  | 845  | Fuel Injector 5 Output  | ||||
B  | YEL BLK  | 846  | Fuel Injector 6 Output  | ||||
B  | RED/BLK  | 877  | Fuel Injector 7 Output  | ||||
B  | DK BLU/WHT  | 878  | Fuel Injector 8 Output  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | PPL  | 1589  | Fuel Level Input Sensor  | ||||
B  | GRY  | 120  | Fuel Pump Motor Feed  | ||||
C  | BLK  | 850  | Ground  | ||||
D  | BLK/WHT  | 2759  | Fuel Level Signal Return  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | BLK  | 2759  | Fuel Tank Pressure Sensor Ground  | ||||
B  | DK GRN  | 890  | Fuel Tank Pressure Sensor Signal  | ||||
C  | GRY  | 2709  | 5 Volt Reference  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | TAN  | 1664  | Heated Oxygen Sensor (HO2S) Low  | ||||
B  | PPL/WHT  | 1665  | Heated Oxygen Sensor (HO2S) High  | ||||
C  | BLK  | 3112  | Heater Low  | ||||
D  | LT GRN  | 9102  | Heater High  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | TAN  | 1677  | Heated Oxygen Sensor (HO2S) Low  | ||||
B  | PPL  | 1678  | Heated Oxygen Sensor (HO2S) High  | ||||
C  | BLK  | 9100  | Heater Low  | ||||
D  | PNK  | 539  | Ignition Positive Voltage  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | TAN/WHT  | 1669  | Heated Oxygen Sensor (HO2S) Low  | ||||
B  | PPL/WHT  | 1668  | Heated Oxygen Sensor (HO2S) High  | ||||
C  | BLK  | 3122  | Heater Low  | ||||
D  | PNK  | 539  | Ignition Positive Voltage  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|

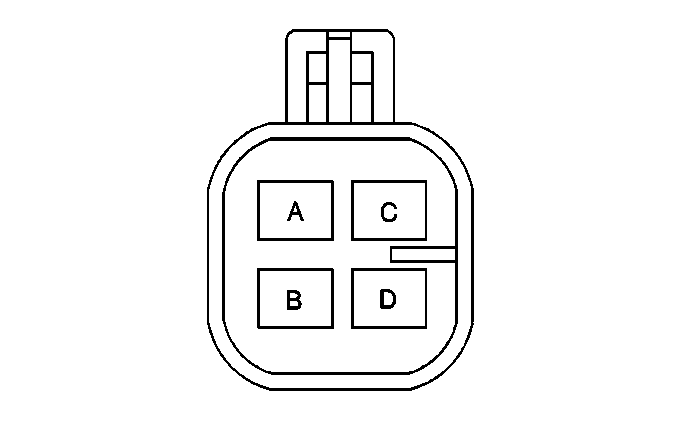

Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | LT GRN/BLK  | 444  | IAC Coil B Low  | ||||
B  | LT GRN/WHT  | 1749  | IAC Coil B High  | ||||
C  | LT BLU/BLK  | 1748  | IAC Coil A Low  | ||||
D  | LT BLU/WHT  | 1747  | IAC Coil A High  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|

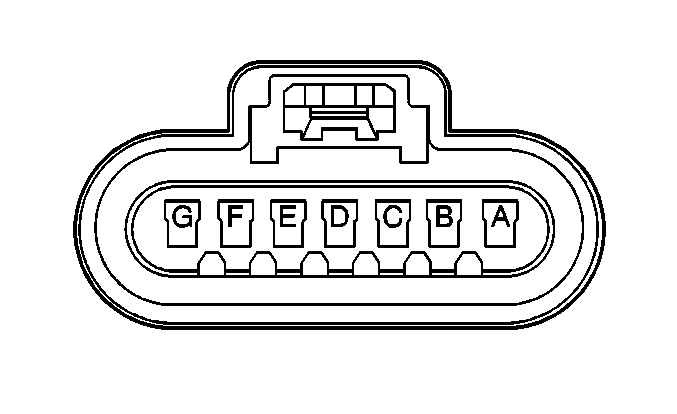

Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | PNK  | 839  | Ignition Positive Voltage  | ||||
B  | BLK/WHT  | 1551  | Ground  | ||||
C  | YEL  | 2174  | Ref Low  | ||||
D  | DK GRN/WHT  | 2124  | IC4  | ||||
E  | LT BLU/WHT  | 2126  | IC6  | ||||
F  | PPL/WHT  | 2128  | IC8  | ||||
G  | RED/WHT  | 2122  | IC2  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | PNK  | 839  | Ignition Positive Voltage  | ||||
B  | BLK/WHT  | 1551  | Ground  | ||||
C  | GRY  | 2175  | Ref Low  | ||||
D  | DK GRN  | 2125  | IC5  | ||||
E  | LT BLU  | 2123  | IC3  | ||||
F  | PPL  | 2121  | IC1  | ||||
G  | RED  | 2127  | IC7  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | DK BLU  | 496  | Knock Sensor Signal  | ||||
B  | GRY  | 1716  | Knock Sensor Return  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | ORN/BLK  | 469  | MAP Sensor Ground  | ||||
B  | LT GRN  | 432  | MAP Sensor Signal  | ||||
C  | GRY  | 2704  | 5 Volt Reference  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | BLK  | 2760  | IAT Ground  | ||||
B  | TAN  | 472  | IAT Sensor Signal  | ||||
C  | BLK  | 1550  | Ground  | ||||
D  | PNK  | 139  | Ignition Positive Voltage  | ||||
E  | YEL  | 492  | MAF Sensor Signal  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | BLK  | 1650  | Secondary Air Injection (AIR) Pump Motor 1  | ||||
B  | RED  | 78  | Secondary Air Injection (AIR) Pump Motor 1 Feed  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | BLK  | 1650  | Secondary Air Injection (AIR) Pump Motor 2 Ground  | ||||
B  | RED  | 2202  | Secondary Air Injection (AIR) Pump Motor 2 Feed  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
30  | RED  | 742  | Battery Positive  | ||||
85  | PNK  | 139  | Ignition Positive Voltage - Coil Feed  | ||||
86  | BRN  | 436  | Secondary Air Injection (AIR) Pump Relay 1 Control  | ||||
87  | RED  | 78  | Secondary Air Injection (AIR) Pump Motor 1 Feed  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
30  | RED  | 842  | Battery Positive Voltage  | ||||
85  | PNK  | 139  | Ignition Positive Voltage - Coil Feed  | ||||
86  | BRN  | 1408  | Secondary Air Injection (AIR) Pump Relay 2 Control  | ||||
87  | DK BLU  | 2202  | Secondary Air Injection (AIR) Pump Motor 2 Feed  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
1  | PNK  | 139  | Ignition Positive Voltage  | ||||
2  | PNK/BLK  | 429  | Secondary Air Injection (AIR) Solenoid Valve Control  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | GRY  | 2701  | 5 Volt Reference  | ||||
B  | BLK  | 2752  | Throttle Position Sensor Ground  | ||||
C  | DK BLU  | 417  | Throttle Position Sensor Signal  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | PPL  | 401  | Vehicle Speed Sensor Low  | ||||
B  | YEL  | 400  | Vehicle Speed Sensor High  | ||||
