Table 1: Driver Lumbar Horizontal Position Sensor
Table 2: Driver Seat Front Vertical Position Sensor
Table 3: Driver Seat Headrest Position Sensor
Table 4: Driver Seat Horizontal Position Sensor
Table 5: Driver Seat Rear Vertical Position Sensor
Table 6: Driver Seat Recline Position Sensor
Table 7: LH Adaptive Lumbar Module
Table 8: LH Front Heated Seat Module C1
Table 9: LH Front Heated Seat Module C2
Table 10: LH Front Heated Seat Module C3
Table 11: LH Front Heated Seat Switch
Table 12: LH Lumbar Horizontal Motor
Table 13: LH Lumbar Pump Motor
Table 14: LH Lumbar Switch (AL2)
Table 15: LH Lumbar Switch (AC9)
Table 16: LH Lumbar Switch (A45)
Table 17: LH Lumbar Vertical Motor
Table 18: LH Rear Heated Seat Cushion
Table 19: LH Rear Heated Seat Module C1
Table 20: LH Rear Heated Seat Module C2
Table 21: LH Rear Heated Seat Module C3
Table 22: LH Rear Heated Seat Switch
Table 23: LH Seat Front Vertical Motor
Table 24: LH Seat Headrest Motor
Table 25: LH Seat Horizontal Motor
Table 26: LH Seat Rear Vertical Motor
Table 27: LH Seat Recline Motor (Without A45)
Table 28: LH Seat Recline Motor (A45)
Table 29: LH Seat Switch (without A45)
Table 30: LH Seat Switch (A45)
Table 31: Memory Function Switch
Table 32: Memory Seat Module (MSM) C1
Table 33: Memory Seat Module (MSM) C2 (AL2)
Table 34: Memory Seat Module (MSM) C2 (AC9)
Table 35: RH Adaptive Lumbar Module
Table 36: RH Front Heated Seat Module C1
Table 37: RH Front Heated Seat Module C2
Table 38: RH Front Heated Seat Module C3
Table 39: RH Front Heated Seat Switch
Table 40: RH Lumbar Horizonatal Motor
Table 41: RH Lumbar Horizontal Position Sensor
Table 42: RH Lumbar Pump Motor
Table 43: RH Lumbar Switch (AL2)
Table 44: RH Lumbar Switch (AC9)
Table 45: RH Lumbar Vertical Motor
Table 46: RH Rear Heated Seat Cushion
Table 47: RH Rear Heated Seat Module C1
Table 48: RH Rear Heated Seat Module C2
Table 49: RH Rear Heated Seat Module C3
Table 50: LH Rear Heated Seat Switch
Table 51: RH Seat Front Vertical Motor
Table 52: RH Seat Headrest Motor
Table 53: RH Seat Horizontal Motor
Table 54: RH Seat Rear Vertical Motor
Table 55: RH Seat Recline Motor
Table 56: RH Seat Switch

Driver Lumbar Horizontal Position Sensor


Object Number: 605544 Size: CH

Connector Part Information
    • 15976041
    • 4 Way M Molex

Pin

Wire Color

Circuit No.

Function

A

BRN

1063

Memory Seat Position Sensor Signal-Driver In/Out Motor

B

RED

788

Memory Seat Position Sensor Feed-5 Volt Reference

C

LT BLU

782

Sensor Ground-Memory Seat

Driver Seat Front Vertical Position Sensor

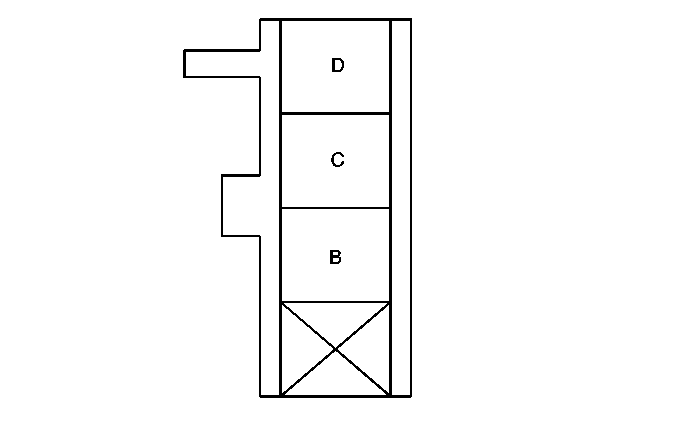

Object Number: 130702 Size: CH

Connector Part Information
    • 12059584
    • 3 Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

B

BLK

782

Sensor Ground-Memory Seat

C

BRN/WHT

557

Memory Seat Position Sensor Signal-Front Vertical Motor

D

GRY

788

Memory Seat Position Sensor Feed-5 Volt Reference

Driver Seat Headrest Position Sensor


Object Number: 130631 Size: CH

Connector Part Information
    • 12064758
    • 3 Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

GRY

788

Memory Seat Position Sensor Feed-5 Volt Reference

B

RED/BLK

1060

Memory Seat Position Sensor Signal-Headrest Motor

C

BLK

782

Sensor Ground-Memory Seat

Driver Seat Horizontal Position Sensor


Object Number: 130704 Size: CH

Connector Part Information
    • 12059583
    • 3 Way F Metri-Pack 150 Series (NAT)

Pin

Wire Color

Circuit No.

Function

A

BLK

782

Sensor Ground-Memory Seat

C

DK GRN

569

Memory Seat Position Sensor Signal-Horizontal Motor

D

GRY

788

Memory Seat Position Sensor Feed-5 Volt Reference

Driver Seat Rear Vertical Position Sensor


Object Number: 130701 Size: CH

Connector Part Information
    • 12059582
    • 3 Way F Metri-Pack 150 Series (BLU)

Pin

Wire Color

Circuit No.

Function

A

BLK

782

Sensor Ground-Memory Seat

B

TAN

568

Memory Seat Position Sensor Signal-Rear Vertical Motor

D

GRY

788

Memory Seat Position Sensor Feed-5 Volt Reference

Driver Seat Recline Position Sensor


Object Number: 38600 Size: CH

Connector Part Information
    • 12047781
    • 3 Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

GRY

788

Memory Seat Position Sensor Feed-5 Volt Reference

B

WHT/BLK

570

Memory Seat Position Sensor Signal-Driver Recline Motor

C

BLK

782

Sensor Ground-Memory Seat

LH Adaptive Lumbar Module


Object Number: 258232 Size: CH

Connector Part Information
    • 12129430
    • 16 Way F Metri-Pack 280 Series (WHT)

Pin

Wire Color

Circuit No.

Function

A

BLK

550

Ground

B-C

--

--

Not Used

D

LT BLU

2188

Diag Signal

E

PNK

2291

Adaptive Seat Auto/Off Signal-Driver

F

WHT

2290

Adaptive Seat Auto/On Signal-Driver

G

DK BLU

1064

Power Seat Switch Signal-Lumbar In

H

YEL

1065

Power Seat Switch Signal-Lumbar Out

J-K

--

--

Not Used

L

ORN

1740

Switch Power

M

BRN

41

Ignition Positive Voltage

N

GRY

2189

Diag Signal

P-R

--

--

Not Used

S

ORN

2840

Battery Positive Voltage (B+)

LH Front Heated Seat Module C1


Object Number: 62469 Size: CH

Connector Part Information
    • 12064998
    • 8 Way F Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

WHT/BLK

41

Ignition Positive Voltage

B

ORN

2440

Battery Positive Voltage (B+)

C

PPL

1501

Heated Seat Signal-Driver-High/Low

D

WHT/GRN

1662

Heated Seat Indicator-Driver-Low

E

BLK

550

Ground

F

WHT

1661

Heated Seat Indicator-Driver-High

G

WHT/LT BLU

181

Heated Seat Control Module Signal-Status

H

YEL

182

Heated Seat Control Module Inhibit Input

LH Front Heated Seat Module C2


Object Number: 39660 Size: CH

Connector Part Information
    • 12047785
    • 4 Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

BLK

--

Heated Seat Cushion Heating Element Feed

B

BLK

--

Heated Seat Cushion Heating Element Ground

C

BLK

--

Temperature Sensor Input

D

BLK

--

Sensor Return

LH Front Heated Seat Module C3


Object Number: 258301 Size: CH

Connector Part Information
    • 12059253
    • 2 Way F Metri-Pack 150 Series (GRN)

Pin

Wire Color

Circuit No.

Function

A

BLK

--

Heated Seat Back Heating Element Feed

B

BLK

--

Heated Seat Back Heating Element Ground

LH Front Heated Seat Switch


Object Number: 130714 Size: CH

Connector Part Information
    • 12124997
    • 5 Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

LT BLU

1662

Heated Seat Indicator Feed-Driver-Low

B

DK GRN

1661

Heated Seat Indicator Feed-Driver-High

C

PNK

1501

Heated Seat Signal-Driver-High/Low

D

BLK

350

Ground

E

YEL/BLK

1491

Dash Integration Module Output-Backlighting Lamps

LH Lumbar Horizontal Motor


Object Number: 130707 Size: CH

Connector Part Information
    • 12020556
    • 2 Way F Metri-Pack 480 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

DK BLU

611

Power Seat Motor Feed-Driver Lumbar-Out

B

WHT

610

Power Seat Motor Feed-Driver Lumbar-In

LH Lumbar Pump Motor


Object Number: 82383 Size: CH

Connector Part Information
    • 12047662
    • 2 Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

RED

9172

Adaptive Seat Motor Control

B

BLK

9173

Adaptive Seat Motor Ground

LH Lumbar Switch (AL2)


Object Number: 73146 Size: CH

Connector Part Information
    • 12052854
    • 7 Way F Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

PNK

610

Power Seat Motor Feed-Driver Lumbar-In

B

TAN

768

Power Seat Motor Feed-Driver Lumbar-Up

C

PPL

767

Power Seat Motor Feed-Driver Lumbar-Down

D

--

--

Not Used

E

BLK

550

Ground

F

DK BLU

611

Power Seat Motor Feed-Driver Lumbar-Out

G

ORN

3740

Battery Positive Voltage (B+) Input

LH Lumbar Switch (AC9)


Object Number: 73146 Size: CH

Connector Part Information
    • 12052854
    • 7 Way F Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

DK BLU

1064

Power Seat Switch Signal-Driver Lumbar-In

B

WHT

2290

Adaptive Seat Auto/On Signal-Driver

C

PNK

2291

Adaptive Seat Auto/Off Signal-Driver

D-E

--

--

Not Used

F

YEL

1065

Power Seat Switch Signal-Driver Lumbar-Out

G

ORN

1740

Switch Power

LH Lumbar Switch (A45)


Object Number: 73146 Size: CH

Connector Part Information
    • 12052854
    • 7 Way F Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

DK BLU

1064

Power Seat Switch Signal-Driver Lumbar-In

B

PNK

2290

Power Seat Switch Signal-Driver Lumbar-Up

C

WHT

2291

Power Seat Switch Signal-Driver Lumbar-Down

D-E

--

--

Not Used

F

YEL

1065

Power Seat Switch Signal-Driver Lumbar-Out

G

ORN

1740

Battery Positive Voltage (B+)

LH Lumbar Vertical Motor


Object Number: 130707 Size: CH

Connector Part Information
    • 12020556
    • 2 Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

PNK

768

Power Seat Motor Feed-Driver Lumbar-Up

B

ORN

767

Power Seat Motor Feed-Driver Lumbar-Down

LH Rear Heated Seat Cushion


Object Number: 39661 Size: CH

Connector Part Information
    • 12047786
    • 4 Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

GRY

2294

Heated Seat Cushion Heating Element Feed-Left Rear

B

BRN

2295

Heated Seat Cushion Heating Element Ground-Left Rear

C

LT BLU

2299

Temperature Sensor Input-Left Rear

D

DK BLU

2298

Sensor Return-Left Rear

LH Rear Heated Seat Module C1


Object Number: 62469 Size: CH

Connector Part Information
    • 12064998
    • 8 Way F Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

BRN

41

Ignition Positive Voltage

B

ORN

2640

Battery Positive Voltage (B+)

C

PNK

1617

Heated Seat Module Input-Left Rear-Switch

D

--

--

Not Used

E

BLK

750

Ground

F-G

--

--

Not Used

H

YEL

182

Heated Seat Control Module Signal-Inhibit Input

LH Rear Heated Seat Module C2


Object Number: 39660 Size: CH

Connector Part Information
    • 12047785
    • 4 Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

GRY

2294

Heated Seat Cushion Heating Element Feed-Left Rear

B

BRN

2295

Heated Seat Cushion Heating Element Ground-Left Rear

C

LT BLU

2299

Temperature Sensor Input-Left Rear

D

DK BLU

2298

Sensor Ground-Left Rear

LH Rear Heated Seat Module C3


Object Number: 258301 Size: CH

Connector Part Information
    • 12059253
    • 2 Way F Metri-Pack 150 Series (GRN)

Pin

Wire Color

Circuit No.

Function

A

BLK

--

Heated Seat Back Heating Element Feed

B

BLK

--

Heated Seat Back Heating Element Ground

LH Rear Heated Seat Switch


Object Number: 130714 Size: CH

Connector Part Information
    • 12124997
    • 5 Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

PNK

1631

Heated Seat Indicator Feed-Left Rear-Low

B

BLK/WHT

1638

Heated Seat Indicator Feed-Left Rear-High

C

BRN

1637

Heated Seat Switch Signal-Left Rear

D

TAN/WHT

551

Ground

E

YEL/BLK

1491

Dash Integration Module Output-Backlighting Lamps

LH Seat Front Vertical Motor


Object Number: 130707 Size: CH

Connector Part Information
    • 12020556
    • 2 Way F Metri-Pack 480 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

DK GRN

286

Power Seat Motor Feed-Driver-Front Vertical Up

B

DK BLU

287

Power Seat Motor Feed-Driver-Front Vertical Down

LH Seat Headrest Motor


Object Number: 258179 Size: CH

Connector Part Information
    • 12129156
    • 2 Way M Metri-Pack 280 Series (GRY)

Pin

Wire Color

Circuit No.

Function

A

YEL/BLK

1257

Power Headrest Motor Feed-Driver Up

B

PPL/BLK

1258

Power Headrest Motor Feed-Driver Down

LH Seat Horizontal Motor


Object Number: 130706 Size: CH

Connector Part Information
    • 12052110
    • 2 Way F Metri-Pack 480 Series (NAT)

Pin

Wire Color

Circuit No.

Function

A

TAN

285

Power Seat Motor Feed-Driver-Horizontal Back

B

LT GRN

284

Power Seat Motor Feed-Driver-Horizontal Forward

LH Seat Rear Vertical Motor


Object Number: 130709 Size: CH

Connector Part Information
    • 12052109
    • 2 Way F Metri-Pack 480 Series (BLU)

Pin

Wire Color

Circuit No.

Function

A

LT BLU

283

Power Seat Motor Feed-Driver-Rear Vertical Down

B

YEL

282

Power Seat Motor Feed-Driver-Rear Vertical Up

LH Seat Recline Motor (Without A45)


Object Number: 153645 Size: CH

Connector Part Information
    • 12129081
    • 2 Way F Metri-Pack 280 Series Flex Lock (BLK)

Pin

Wire Color

Circuit No.

Function

A

LT GRN

276

Power Seat Motor Feed-Driver-Recline Fore

B

LT BLU

277

Power Seat Motor Feed-Driver-Recline Aft

LH Seat Recline Motor (A45)


Object Number: 153645 Size: CH

Connector Part Information
    • 12129081
    • 2 Way F Metri-Pack 280 Series Flex Lock (BLK)

Pin

Wire Color

Circuit No.

Function

A

LT GRN/BLK

276

Power Seat Motor Feed-Driver-Recline Fore

B

LT BLU/BLK

277

Power Seat Motor Feed-Driver-Recline Aft

LH Seat Switch (without A45)


Object Number: 258247 Size: CH

Connector Part Information
    • 12129432
    • 16 Way F Metri-Pack 280 Series (GRY)

Pin

Wire Color

Circuit No.

Function

A

DK BLU

287

Power Seat Motor Feed-Driver-Front Vertical Down

B

LT GRN

284

Power Seat Motor Feed-Driver-Horizontal Back

C

LT BLU

283

Power Seat Motor Feed-Driver-Rear Vertical Down

D

DK GRN

286

Power Seat Motor Feed-Driver-Front Vertical Up

E

TAN

285

Power Seat Motor Feed-Driver-Horizontal Forward

F

YEL

282

Power Seat Motor Feed-Driver-Rear Vertical Up

G

LT BLU

277

Power Seat Motor Feed-Driver-Recline Back

H

LT GRN

276

Power Seat Motor Feed-Driver-Recline Forward

J

ORN

3740

Battery Positive Voltage (B+)

K

YEL

1257

Power Headrest Motor Feed-Driver Up

L

--

--

Not Used

M

PPL

1258

Power Headrest Motor Feed-Driver Down

N-S

--

--

Not Used

LH Seat Switch (A45)


Object Number: 258247 Size: CH

Connector Part Information
    • 12129432
    • 16 Way F Metri-Pack 280 Series (GRY)

Pin

Wire Color

Circuit No.

Function

A

DK BLU

1520

Power Seat Switch Signal-Front Vertical Down

B

LT GRN

1523

Power Seat Switch Signal-Horizontal Back

C

LT BLU

1521

Power Seat Switch Signal-Rear Vertical Down

D

DK GRN

1518

Power Seat Switch Signal-Front Vertical Up

E

TAN

1522

Power Seat Switch Signal-Horizontal Forward

F

YEL

1519

Power Seat Switch Signal-Rear Vertical Up

G

LT BLU

277

Power Seat Switch Signal-Driver-Recline Aft

H

LT GRN

276

Power Seat Switch Signal-Driver-Recline Forward

J

ORN

2840

Battery Positive Voltage (B+)

K

WHT/BLK

1068

Power Seat Switch Signal-Headrest Up

L

--

--

Not Used

M

DK BLU/WHT

1069

Power Seat Switch Signal-Headrest Down

N-S

--

--

Not Used

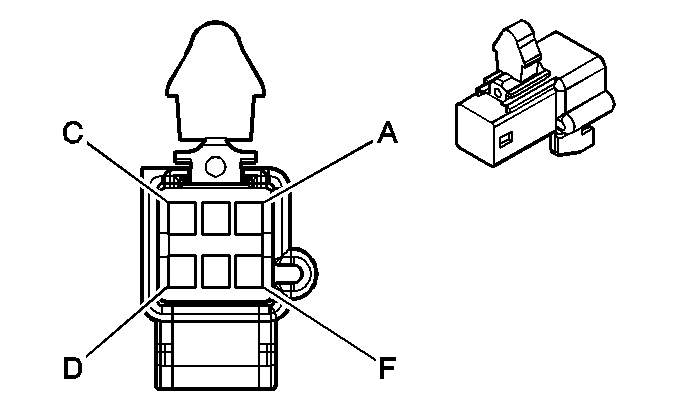

Memory Function Switch


Object Number: 258693 Size: CH

Connector Part Information
    • 12162467
    • 6 Way M Metri-Pack 150 Series (GRY)

Pin

Wire Color

Circuit No.

Function

A

WHT

615

Memory Seat Switch Signal-Memory 1

B

PPL

616

Memory Seat Switch Signal-Memory 2

C

ORN

614

Memory Seat Switch Signal-Set

D

YEL/BLK

1491

Dash Integration Module Output-Backlighting Lamps

E

BLK/WHT

351

Ground

F

--

--

Not Used

Memory Seat Module (MSM) C1


Object Number: 35456 Size: CH

Connector Part Information
    • 12064749
    • 2 Way F Metri-Pack 480 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

ORN

3740

Battery Positive Voltage (B+)

B

BLK

550

Ground

Memory Seat Module (MSM) C2 (AL2)


Object Number: 73157 Size: CH

Connector Part Information
    • 12110207
    • 32 Way F Micro-Pack 100 Series (BLU)

Pin

Wire Color

Circuit No.

Function

C1

DK GRN

1518

Power Seat Switch Signal-Front Vertical Up

C2

YEL

1519

Power Seat Switch Signal-Rear Vertical Up

C3

DK BLU

1520

Power Seat Switch Signal-Front Vertical Down

C4

LT BLU

1521

Power Seat Switch Signal-Rear Vertical Down

C5

TAN

1522

Power Seat Switch Signal-Horizontal Forward

C6

LT GRN

1523

Power Seat Switch Signal-Horizontal Back

C7

LT GRN

276

Power Seat Switch Signal-Recline Forward

C8

LT BLU

277

Power Seat Switch Signal-Recline Back

C9

DK BLU

1064

Power Seat Switch Signal-Lumbar In

C10

YEL

1065

Power Seat Switch Signal-Lumbar Out

C11

WHT

1066

Power Seat Switch Signal-Lumbar Up

C12

YEL/BLK

1067

Power Seat Switch Signal-Lumbar Down

C13

GRY

788

Memory Seat Position Sensor Feed-5 Volt Reference

C14

BRN/WHT

557

Memory Seat Position Sensor Signal-Front Vertical Motor

C15

BLK

782

Sensor Ground-Memory Seat

C16

DK GRN

569

Memory Seat Position Sensor Signal-Horizontal Motor

D1

TAN

568

Memory Seat Position Sensor Signal-Rear Vertical Motor

D2

WHT/BLK

570

Memory Seat Position Sensor Signal-Driver Recline Motor

D3

YEL

1063

Memory Seat Position Sensor Signal-Driver In/Out Lumbar Motor

D4

BLK

1062

Memory Seat Position Sensor Signal-Driver Up/Down Lumbar Motor

D5

--

--

Not Used

D6

RED/BLK

1060

Memory Seat Position Sensor Signal-Driver Headrest Motor

D7-D8

--

--

Not Used

D9

WHT/BLK

1068

Power Seat Switch Signal-Headrest Up

D10

DK BLU/WHT

1069

Power Seat Switch Signal-Headrest Down

D11

ORN

2840

Battery Positive Voltage (B+)

D12-D13

--

--

Not Used

D14

PPL

1807

Class 2 Serial Data Line

D15

PPL

1807

Class 2 Serial Data Line

D16

--

--

Not Used

Memory Seat Module (MSM) C2 (AC9)


Object Number: 258912 Size: CH

Connector Part Information
    • 12110113
    • 32 Way F Micro-Pack 100 Series (RED)

Pin

Wire Color

Circuit No.

Function

A1

DK GRN

1518

Power Seat Switch Signal-Front Vertical Up

A2

YEL

1519

Power Seat Switch Signal-Rear Vertical Up

A3

DK BLU

1520

Power Seat Switch Signal-Front Vertical Down

A4

LT BLU

1521

Power Seat Switch Signal-Rear Vertical Down

A5

TAN

1522

Power Seat Switch Signal-Horizontal Forward

A6

LT GRN

1523

Power Seat Switch Signal-Horizontal Back

A7

LT GRN

276

Power Seat Switch Signal-Recline Forward

A8

LT BLU

277

Power Seat Switch Signal-Recline Back

A9-A12

--

--

Not Used

A13

GRY

788

Memory Seat Position Sensor Feed-5 Volt Reference

A14

BRN/WHT

557

Memory Seat Position Sensor Signal-Front Vertical Motor

A15

BLK

782

Sensor Return-Memory Seat

A16

DK GRN

569

Memory Seat Position Sensor Signal-Horizontal Motor

B1

TAN

568

Memory Seat Position Sensor Signal-Rear Vertical Motor

B2

WHT/BLK

570

Memory Seat Position Sensor Signal-Driver Recline Motor

B3-B5

--

--

Not Used

B6

RED/BLK

1060

Memory Seat Position Sensor Signal-Driver Headrest Motor

B7-B8

--

--

Not Used

B9

WHT/BLK

1068

Power Seat Switch Signal-Headrest Up

B10

DK BLU/WHT

1069

Power Seat Switch Signal-Headrest Down

B11

ORN

2840

Battery Positive Voltage (B+)

B12-B13

--

--

Not Used

B14

PPL

1807

Class 2 Serial Data Line

B15

PPL

1807

Class 2 Serial Data Line

B16

--

--

Not Used

RH Adaptive Lumbar Module


Object Number: 258232 Size: CH

Connector Part Information
    • 12129430
    • 16 Way F Metri-Pack 280 Series (WHT)

Pin

Wire Color

Circuit No.

Function

A

BLK

650

Ground

B-C

--

--

Not Used

D

LT BLU

2188

Adaptive Seat Module Diag Signal Transmit

E

PPL

2293

Adaptive Seat Auto/Off Signal-Passenger

F

PNK

2292

Adaptive Seat Auto/On Signal-Passenger

G

WHT

210

Power Seat Switch Signal-Passenger Lumbar-In

H

DK BLU

211

Power Seat Switch Signal-Passenger Lumbar-Out

J-K

--

--

Not Used

L

ORN

1740

Switch Power

M

BRN

41

Ignition Positive Voltage

N

GRY

2189

Adaptive Seat Module Diag Signal Receive

P-R

--

--

Not Used

S

ORN

2840

Battery Positive Voltage (B+)

RH Front Heated Seat Module C1


Object Number: 62469 Size: CH

Connector Part Information
    • 12064998
    • 8 Way F Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

BRN

41

Ignition Positive Voltage

B

ORN

2540

Battery Positive Voltage (B+)

C

PNK/BLK

1503

Heated Seat Signal-Passenger- High/Low

D

TAN

1686

Heated Seat Indicator Feed-Passenger-Low

E

BLK

650

Ground

F

YEL

1685

Heated Seat Indicator Feed-Passenger-High

G

LT BLU/WHT

181

Heated Seat Control Module Signal-Status

H

YEL

182

Heated Seat Control Module Signal-Inhibit Input

RH Front Heated Seat Module C2


Object Number: 39660 Size: CH

Connector Part Information
    • 12047785
    • 4 Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

RED

--

Heated Seat Cushion Heating Element Feed

B

BLK

--

Heated Seat Cushion Heating Element Ground

C

GRY

9176

Temperature Sensor Input

D

GRY

9177

Sensor Ground

RH Front Heated Seat Module C3


Object Number: 258301 Size: CH

Connector Part Information
    • 12059253
    • 2 Way F Metri-Pack 150 Series (GRN)

Pin

Wire Color

Circuit No.

Function

A

BLK

--

Heated Seat Back Heating Element Feed

B

BLK

--

Heated Seat Back Heating Element Ground

RH Front Heated Seat Switch


Object Number: 130714 Size: CH

Connector Part Information
    • 12124997
    • 5 Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

TAN

1686

Heated Seat Indicator Feed-Passenger-Low

B

YEL

1685

Heated Seat Indicator Feed-Passenger-High

C

PNK/BLK

1503

Heated Seat Signal-Driver-High/Low

D

BLK

350

Ground

E

YEL/BLK

1491

Dash Integration Module Output-Backlighting Lamps

RH Lumbar Horizonatal Motor


Object Number: 130707 Size: CH

Connector Part Information
    • 12020556
    • 2 Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

DK BLU/WHT

211

Power Seat Motor Feed-Passenger Lumbar-Out

B

PNK/BLK

210

Power Seat Motor Feed-Passenger Lumbar-In

RH Lumbar Horizontal Position Sensor


Object Number: 605544 Size: CH

Connector Part Information
    • 15976041
    • 4 Way M Molex

Pin

Wire Color

Circuit No.

Function

A

BRN

1063

Memory Seat Position Sensor Signal-Driver In/Out Motor

B

RED

788

Memory Seat Position Sensor Feed-5 Volt Reference

C

LT BLU

782

Sensor Ground-Memory Seat

RH Lumbar Pump Motor


Object Number: 82383 Size: CH

Connector Part Information
    • 12047662
    • 2 Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

RED

9172

Adaptive Seat Motor Control

B

BLK

9173

Adaptive Seat Motor Ground

RH Lumbar Switch (AL2)


Object Number: 73146 Size: CH

Connector Part Information
    • 12052854
    • 7 Way F Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

WHT

210

Power Seat Motor Feed-Passenger Lumbar-In

B

ORN

792

Power Seat Motor Feed-Passenger Lumbar-Down

C

PNK

793

Power Seat Motor Feed-Passenger Lumbar-Up

D

--

--

Not Used

E

BLK

650

Ground

F

DK BLU

211

Power Seat Motor Feed-Passenger Lumbar-Out

G

ORN

3740

Battery Positive Voltage (B+)

RH Lumbar Switch (AC9)


Object Number: 73146 Size: CH

Connector Part Information
    • 12052854
    • 7 Way F Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

WHT

210

Power Seat Motor Feed-Passenger Lumbar-In

B

PPL

2293

Adaptive Seat Auto/Off Signal-Passenger

C

PNK

2292

Adaptive Seat Auto/On Signal-Passenger

D-E

--

--

Not Used

F

DK BLU

211

Power Seat Motor Feed-Passenger Lumbar-Out

G

ORN

1740

Switch Power

RH Lumbar Vertical Motor


Object Number: 130707 Size: CH

Connector Part Information
    • 12020556
    • 2 Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

TAN/WHT

793

Power Seat Motor Feed-Passenger Lumbar-Up

B

PPL/WHT

792

Power Seat Motor Feed-Passenger Lumbar-Down

RH Rear Heated Seat Cushion


Object Number: 39661 Size: CH

Connector Part Information
    • 12047786
    • 4 Way M Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

DK GRN

2296

Heated Seat Cushion Heating Element Feed-Right Rear

B

LT GRN

2297

Heated Seat Cushion Heating Element Ground-Right Rear

C

ORN

2300

Temperature Sensor Input-Right Rear

D

PNK

2301

Sensor Return-Right Rear

RH Rear Heated Seat Module C1


Object Number: 62469 Size: CH

Connector Part Information
    • 12064998
    • 8 Way F Metri-Pack 280 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

BRN

41

Ignition Positive Voltage

B

ORN

2740

Battery Positive Voltage (B+)

C

BRN

1629

Heated Seat Module Input-Right Rear-Switch

D

--

--

Not Used

E

BLK

750

Ground

F-G

--

--

Not Used

H

YEL

182

Heated Seat Control Module Signal-Enable

RH Rear Heated Seat Module C2


Object Number: 39660 Size: CH

Connector Part Information
    • 12047785
    • 4 Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

DK GRN

2296

Heated Seat Cushion Heating Element Feed-Right Rear

B

LT GRN

2297

Heating Seat Cushion Heating Element Ground-Right Rear

C

ORN

2300

Temperature Sensor Input-Right Rear

D

PNK

2301

Sensor Ground-Right Rear

RH Rear Heated Seat Module C3


Object Number: 258301 Size: CH

Connector Part Information
    • 12059253
    • 2 Way F Metri-Pack 150 Series (GRN)

Pin

Wire Color

Circuit No.

Function

A

BLK

--

Heated Seat Back Heating Element Feed

B

BLK

--

Heated Seat Back Heating Element Ground

LH Rear Heated Seat Switch


Object Number: 130714 Size: CH

Connector Part Information
    • 12124997
    • 5 Way F Metri-Pack 150 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

PNK

1631

Heated Seat Indicator Feed-Left Rear-Low

B

BLK/WHT

1638

Heated Seat Indicator Feed-Left Rear-High

C

BRN

1637

Heated Seat Switch Signal-Left Rear

D

TAN/WHT

551

Ground

E

YEL/BLK

1491

Dash Integration Module Output-Backlighting Lamps

RH Seat Front Vertical Motor


Object Number: 130707 Size: CH

Connector Part Information
    • 12020556
    • 2 Way F Metri-Pack 480 Series (BLK)

Pin

Wire Color

Circuit No.

Function

A

DK GRN

297

Power Seat Motor Feed - Front Vertical Up

B

DK BLU

298

Power Seat Motor Feed - Front Vertical Down

RH Seat Headrest Motor


Object Number: 258179 Size: CH

Connector Part Information
    • 12129156
    • 2 Way M Metri-Pack 280 Series (GRY)

Pin

Wire Color

Circuit No.

Function

A

LT GRN

1625

Power Headrest Motor Feed-Passenger Up

B

YEL

1626

Power Headrest Motor Feed-Passenger Down

RH Seat Horizontal Motor


Object Number: 130706 Size: CH

Connector Part Information
    • 12052110
    • 2 Way F Metri-Pack 480 Series (NAT)

Pin

Wire Color

Circuit No.

Function

A

TAN

296

Power Seat Motor Feed-Passenger-Horizontal Forward

B

LT GRN

290

Power Seat Motor Feed-Passenger-Horizontal Back

RH Seat Rear Vertical Motor


Object Number: 130709 Size: CH

Connector Part Information
    • 12052109
    • 2 Way F Metri-Pack 480 Series (BLU)

Pin

Wire Color

Circuit No.

Function

A

LT BLU

289

Power Seat Motor Feed-Passenger-Rear Vertical Down

B

YEL

288

Power Seat Motor Feed-Passenger-Rear Vertical Up

RH Seat Recline Motor


Object Number: 153645 Size: CH

Connector Part Information
    • 12129081
    • 2 Way F Metri-Pack 280 Series Flex Lock (BLK)

Pin

Wire Color

Circuit No.

Function

A

DK BLU

77

Power Seat Motor Feed-Passenger-Recline Back

B

DK GRN

76

Power Seat Motor Feed-Passenger-Recline Forward

RH Seat Switch


Object Number: 258247 Size: CH

Connector Part Information
    • 12129432
    • 16 Way F Metri-Pack 280 Series (GRY)

Pin

Wire Color

Circuit No.

Function

A

DK BLU

77

Power Seat Motor Feed-Passenger-Recline Back

B

DK GRN

76

Power Seat Motor Feed-Passenger-Recline Forward

C

LT GRN

290

Power Seat Motor Feed-Passenger-Horizontal Back

D

YEL

288

Power Seat Motor Feed-Passenger-Rear Vertical Up

E

DK GRN

297

Power Seat Motor Feed-Passenger-Front Vertical Up

F

TAN

296

Power Seat Motor Feed-Passenger-Horizontal Forward

G

DK BLU

298

Power Seat Motor Feed-Passenger-Front Vertical Down

H

LT BLU

289

Power Seat Motor Feed-Passenger-Rear Vertical Down

J-M

--

--

Not Used

N

LT GRN

1625

Power Headrest Motor Feed-Passenger Up

P

ORN

3740

Battery Positive Voltage (B+)

R

YEL

1626

Power Headrest Motor Feed-Passenger Down

S

BLK

650

Ground
