Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A1  | PPL  | 1952  | Right Front Tweeter Speaker Output (-)  | ||||
A2  | LT GRN  | 1852  | Right Front Tweeter Speaker Output (+)  | ||||
A3  | BLK  | 1856  | Left Front Tweeter Speaker Output (+)  | ||||
A4  | YEL  | 1956  | Left Front Tweeter Speaker Output (-)  | ||||
A5  | LT GRN/BLK  | 1794  | Left Subwoofer Speaker Output (-)  | ||||
A6  | DK BLU/WHT  | 346  | Left Subwoofer Speaker Output (+)  | ||||
A7  | LT BLU  | 1960  | Front Center Speaker Output (-)  | ||||
A8  | YEL  | 1860  | Front Center Speaker Output (+)  | ||||
A9  | LT BLU/BLK  | 315  | Right Subwoofer Speaker Output (-)  | ||||
A10  | DK GRN  | 1795  | Right Subwoofer Speaker Output (+)  | ||||
A11-A12  | --  | --  | Not Used  | ||||
B1  | DK GRN/WHT  | 368  | Remote Radio Right Audio Signal  | ||||
B2  | BLK/WHT  | 372  | Remote Radio Audio Output (-)  | ||||
B3  | BRN/WHT  | 367  | Remote Radio Left Audio Signal  | ||||
B4  | LT GRN  | 1948  | Right Front Low Level Audio Signal (-)  | ||||
B5  | LT GRN/BLK  | 512  | Right Front Low Level Audio Signal (+)  | ||||
B6  | DK GRN  | 1947  | Left Front Low Level Audio Signal (-)  | ||||
B7  | TAN  | 511  | Left Front Low Level Audio Signal (+)  | ||||
B8  | DK BLU/WHT  | 653  | Chime Module Bit1 Signal  | ||||
B9  | PPL/WHT  | 652  | Chime Module Bit2 Signal  | ||||
B10  | --  | --  | Not Used  | ||||
B11-B12  | PPL  | 1807  | Class 2 Serial Data  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A1  | LT BLU  | 1957  | Left Front Midrange Speaker Output (-)  | ||||
A2  | DK BLU  | 1857  | Left Front Midrange Speaker Output (+)  | ||||
A3  | DK GRN  | 1953  | Right Front Midrange Speaker Output (-)  | ||||
A4  | ORN  | 1853  | Right Front Midrange Speaker Output (+)  | ||||
A5  | RED  | 1955  | Right Rear Midrange Speaker Output (-)  | ||||
A6  | TAN  | 1855  | Right Rear Midrange Speaker Output (+)  | ||||
A7  | WHT  | 1959  | Left Rear Midrange Speaker Output (-)  | ||||
A8  | TAN  | 1859  | Left Rear Midrange Speaker Output (+)  | ||||
B1  | DK BLU  | 658  | Cellular Telephone Voice Signal  | ||||
B2  | LT BLU/BLK  | 659  | Cellular Telephone Voice Low Reference  | ||||
B3 - B8  | --  | --  | Not Used  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | BLK/WHT  | 651  | Ground  | ||||
B  | RED  | 1242  | Battery Positive Voltage  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A1  | --  | --  | Not Used  | ||||
A2  | TAN  | 1859  | Left Rear Midrange Speaker Output (+)  | ||||
A3  | WHT  | 1959  | Left Rear Midrange Speaker Output (-)  | ||||
A4  | BLK  | 1856  | Left Front Tweeter Speaker Output (+)  | ||||
A5  | YEL  | 1956  | Left Front Tweeter Speaker Output (-)  | ||||
A6  | LT BLU  | 1960  | Front Center Speaker Output (-)  | ||||
A7  | YEL  | 1860  | Front Center Speaker Output (+)  | ||||
A8  | PPL  | 1952  | Right Front Tweeter Speaker Output (-)  | ||||
A9  | LT GRN  | 1852  | Right Front Tweeter Speaker Output (+)  | ||||
A10  | RED  | 1955  | Right Rear Midrange Speaker Output (-)  | ||||
A11  | TAN  | 1855  | Right Rear Midrange Speaker Output (+)  | ||||
A12  | PPL/WHT  | 652  | Chime Module Bit2 Signal  | ||||
B1-B4  | --  | --  | Not Used  | ||||
B5  | BRN/WHT  | 367  | Remote Radio Left Audio Signal  | ||||
B6  | DK GRN/WHT  | 368  | Remote Radio Right Audio Signal  | ||||
B7  | BLK/WHT  | 372  | Remote Radio Audio Output (-)  | ||||
B8  | LT GRN  | 1948  | Right Front Low Level Audio Signal (-)  | ||||
B9  | DK GRN  | 1947  | Left Front Low Level Audio Signal (-)  | ||||
B10  | TAN  | 511  | Left Front Low Level Audio Signal (+)  | ||||
B11  | LT GRN/BLK  | 512  | Right Front Low Level Audio Signal (+)  | ||||
B12  | DK BLU/WHT  | 653  | Chime Module Bit1 Signal  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | BLK  | 651  | Ground  | ||||
B  | DK BLU  | 346  | Rear Subwoofer Speaker Output (+)  | ||||
C  | BLK/WHT  | 1975  | Right Front Speaker Output (-)  | ||||
D  | LT BLU  | 1874  | Left Front Speaker Output (+)  | ||||
E  | BLK  | 1974  | Left Front Speaker Output (-)  | ||||
F  | BLK  | 1875  | Right Front Speaker Output (+)  | ||||
G  | LT GRN/BLK  | 1794  | Rear Subwoofer Speaker Output (-)  | ||||
H  | RED  | 1242  | Battery Positive Voltage  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
5 - 6  | PPL  | 1807  | Class 2 Serial Data  | ||||
7  | Bare  | 1489  | Drain Wire  | ||||
8  | DK GRN  | 1488  | Noise Reduction Microphone Supply Voltage  | ||||
9  | LT BLU/BLK  | 659  | Cellular Telephone Voice Low Reference  | ||||
10  | DK BLU  | 658  | Cellular Telephone Voice Signal  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | TAN  | 2057  | Auxiliary Video Low Signal  | ||||
B  | WHT  | 2058  | Auxiliary Audio Right Signal  | ||||
C  | PPL  | 2056  | Auxiliary Video High Signal  | ||||
D  | PNK  | 2060  | Auxiliary Detection Signal  | ||||
E  | YEL  | 2059  | Auxiliary Audio Left Signal  | ||||
F  | BARE  | 814  | Drain Wire  | ||||
G -- H  | --  | --  | Not Used  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | BARE  | 1489  | Drain Wire  | ||||
B  | WHT  | 1488  | Noise Reduction Microphone Supply Voltage  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
E1  | DK GRN  | 835  | Entertainment and Comfort Serial Data  | ||||
E2 - E3  | --  | --  | Not Used  | ||||
E4  | RED  | 1486  | FM Composite Signal  | ||||
E5  | YEL  | 1491  | Backlight Lamps Control  | ||||
E6  | PPL  | 1807  | Class 2 Serial Data  | ||||
E7-E11  | --  | --  | Not Used  | ||||
E12  | TAN  | 511  | Left Front Low Level Audio Signal (+)  | ||||
E13  | DK GRN  | 1947  | Left Front Low Level Audio Signal (-)  | ||||
E14  | BARE  | 2011  | Drain Wire  | ||||
E15  | BARE  | 2012  | Drain Wire  | ||||
E16  | BLK/WHT  | 651  | Ground  | ||||
F1  | ORN  | 2240  | Battery Positive Voltage  | ||||
F2  | --  | --  | Not Used  | ||||
F3  | WHT  | 1487  | Antenna Enable Signal  | ||||
F4  | --  | --  | Not Used  | ||||
F5  | BLK  | 450  | Ground  | ||||
F6  | PPL  | 1807  | Class 2 Serial Data  | ||||
F7-F10  | --  | --  | Not Used  | ||||
F11  | BARE  | 1792  | Drain Wire  | ||||
F12  | PPL/WHT  | 652  | Chime Module Bit2 Signal  | ||||
F13  | DK BLU/WHT  | 653  | Chime Module Bit1 Signal  | ||||
F14  | LT GRN  | 1948  | Right Front Low Level Audio Signal (-)  | ||||
F15  | LT GRN/BLK  | 512  | Right Front Low Level Audio Signal (+)  | ||||
F16  | --  | --  | Not Used  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
1  | --  | --  | Not Used  | ||||
2  | WHT  | 1487  | Antenna Enable Signal  | ||||
3  | RED  | 1486  | FM Composite Signal  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
E1  | DK GRN  | 835  | Entertainment and Comfort Serial Data  | ||||
E2 - E3  | --  | --  | Not Used  | ||||
E4  | RED  | 1486  | FM Composite Signal  | ||||
E5  | YEL  | 1491  | Backlight Lamps Control  | ||||
E6  | PPL  | 1807  | Class 2 Serial Data  | ||||
E7 - E11  | --  | --  | Not Used  | ||||
E12  | TAN  | 511  | Left Front Low Level Audio Signal (+)  | ||||
E13  | DK GRN  | 1947  | Left Front Low Level Audio Signal (-)  | ||||
E14  | BARE  | 2011  | Drain Wire  | ||||
E15  | BARE  | 2012  | Drain Wire  | ||||
E16  | BLK/WHT  | 651  | Ground  | ||||
F1  | ORN  | 2240  | Battery Positive Voltage  | ||||
F2  | --  | --  | Not Used  | ||||
F3  | WHT  | 1487  | Antenna Enable Signal  | ||||
F4  | --  | --  | Not Used  | ||||
F5  | BLK  | 1051  | Ground  | ||||
F6  | PPL  | 1807  | Class 2 Serial Data  | ||||
F7 - F10  | --  | --  | Not Used  | ||||
F11  | BARE  | 1792  | Drain Wire  | ||||
F12  | PPL/WHT  | 652  | Chime Module Bit2 Signal  | ||||
F13  | DK BLU/WHT  | 653  | Chime Module Bit1 Signal  | ||||
F14  | LT GRN  | 1948  | Right Front Low Level Audio Signal (-)  | ||||
F15  | LT GRN/BLK  | 512  | Right Front Low Level Audio Signal (+)  | ||||
F16  | --  | --  | Not Used  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
7  | PNK/BLK  | 2062  | Navigation Mono Audio Signal (+)  | ||||
8  | ORN/BLK  | 2061  | Navigation Mono Audio Signal (-)  | ||||
9-10  | --  | --  | Not Used  | ||||
11  | BARE  | 814  | Drain Wire  | ||||
12  | BRN/WHT  | 2052  | Navigation Left Stereo Audio Signal (+)  | ||||
13  | GRY/BLK  | 2053  | Navigation Left Stereo Audio Signal (-)  | ||||
14  | DK GRN/WHT  | 2054  | Navigation Right Stereo Audio Signal (+)  | ||||
15  | PPL/WHT  | 2055  | Navigation Right Stereo Audio Signal (-)  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
1  | BRN/WHT  | 367  | Remote Radio Left Audio Signal  | ||||
2  | DK GRN/WHT  | 368  | Remote Radio Right Audio Signal  | ||||
3  | BLK/WHT  | 372  | Remote Radio Audio Output (-)  | ||||
4  | BARE  | 1782  | Drain Wire  | ||||
5  | ORN  | 2240  | Battery Positive Voltage  | ||||
6  | --  | --  | Not Used  | ||||
7  | BLK/WHT  | 651  | Ground  | ||||
8 - 9  | --  | --  | Not Used  | ||||
10  | DK GRN  | 835  | Entertainment and Comfort Serial Data  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|

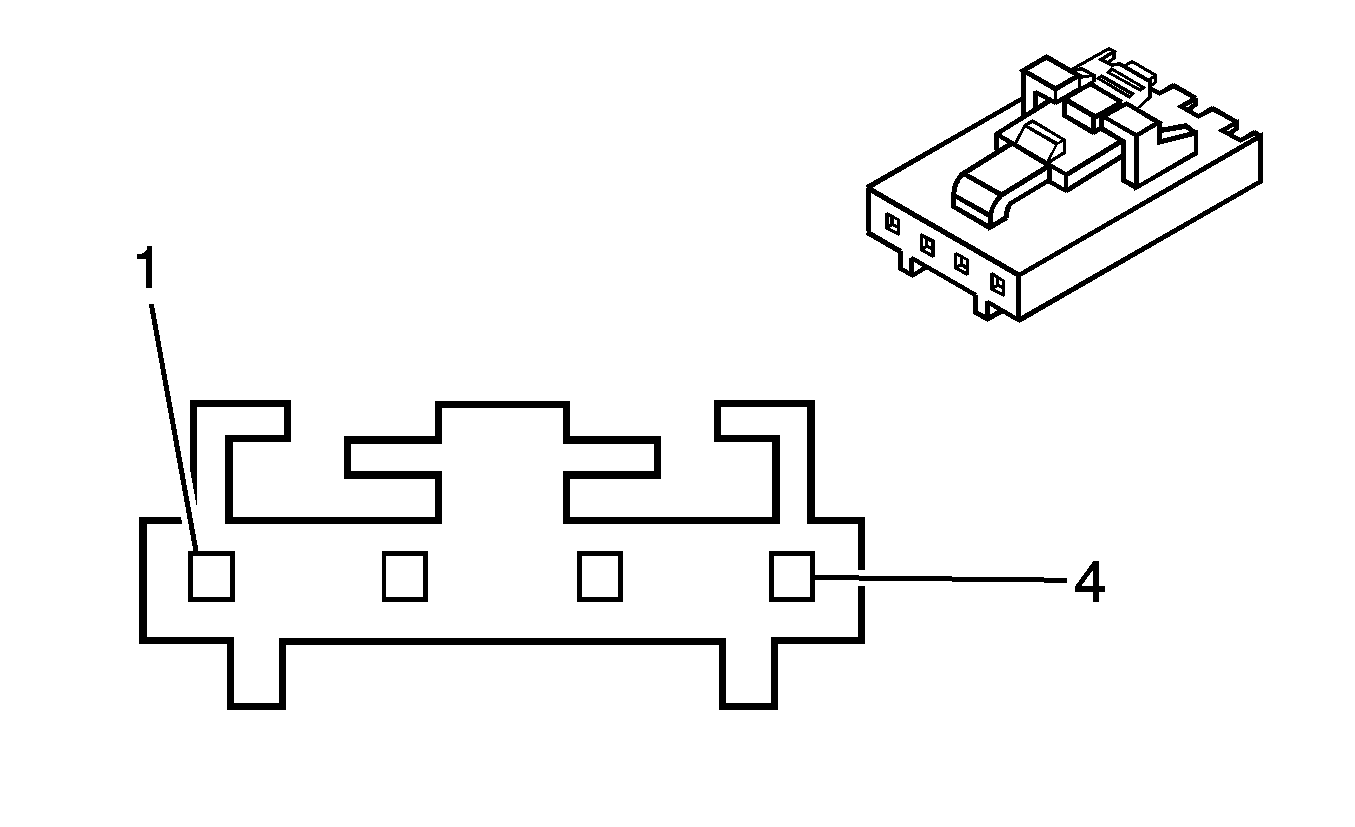

Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
1  | BLK  | 1051  | Ground  | ||||
2-3  | --  | --  | Not Used  | ||||
4  | GRY  | 344  | Cellular Telephone RF Boost Control Signal  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | LT BLU  | 1960  | Front Center Speaker Output (-)  | ||||
B  | YEL  | 1860  | Front Center Speaker Output (+)  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | LT BLU  | 1957  | Left Front Midrange Speaker Output (-)  | ||||
B  | DK BLU  | 1857  | Left Front Midrange Speaker Output (+)  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | BLK  | 1974  | Left Front Speaker Output (-)  | ||||
B  | LT BLU  | 1874  | Left Front Speaker Output (+)  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | YEL  | 1956  | Left Front Tweeter Speaker Output (-)  | ||||
B  | BLK  | 1856  | Left Front Tweeter Speaker Output (+)  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | YEL  | 1956  | Left Front Tweeter Speaker Output (-)  | ||||
B  | BLK  | 1856  | Left Front Tweeter Speaker Output (+)  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | WHT  | 1959  | Left Rear Midrange Speaker Output (-)  | ||||
B  | TAN  | 1859  | Left Rear Midrange Speaker Output (+)  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | LT GRN/BLK  | 1794  | Left Subwoofer Speaker Output (-)  | ||||
B  | DK BLU/WHT  | 346  | Left Subwoofer Speaker Output (+)  | ||||
C  | LT BLU/BLK  | 315  | Right Subwoofer Speaker Output (-)  | ||||
D  | DK GRN  | 1795  | Right Subwoofer Speaker Output (+)  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | DK BLU  | 346  | Rear Subwoofer Speaker Output (+)  | ||||
B  | LT GRN/BLK  | 1794  | Rear Subwoofer Speaker Output (-)  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | DK GRN  | 1953  | Right Front Midrange Speaker Output (-)  | ||||
B  | ORN  | 1853  | Right Front Midrange Speaker Output (+)  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | BLK/WHT  | 1975  | Right Front Speaker Output (-)  | ||||
B  | BLK  | 1875  | Right Front Speaker Output (+)  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | PPL  | 1952  | Right Front Tweeter Speaker Output (-)  | ||||
B  | LT GRN  | 1852  | Right Front Tweeter Speaker Output (+)  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | PPL  | 1952  | Right Front Tweeter Speaker Output (-)  | ||||
B  | LT GRN  | 1852  | Right Front Tweeter Speaker Output (+)  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
A  | RED  | 1955  | Right Rear Midrange Speaker Output (-)  | ||||
B  | TAN  | 1855  | Right Rear Midrange Speaker Output (+)  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|

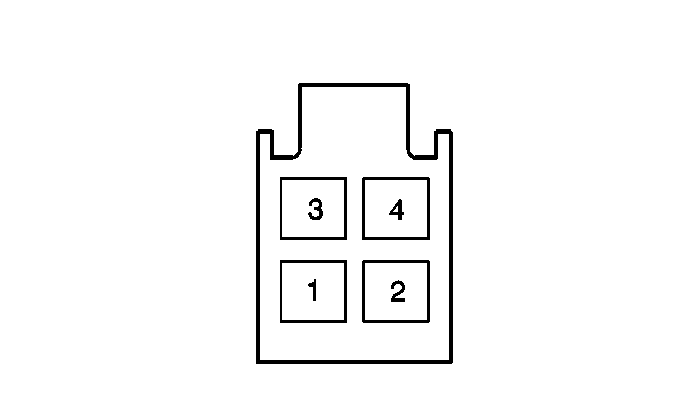

Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
1  | PNK  | 1039  | Ignition 1 Voltage  | ||||
2  | GRY  | 397  | Cruise Control On Switch Signal  | ||||
3  | BLK  | 350  | Ground  | ||||
4  | YEL  | 1491  | Backlight Lamps Control  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
1  | DK BLU  | 1796  | Steering Wheel Controls Signal  | ||||
2  | YEL  | 1491  | Backlight Lamps Control  | ||||
3  | BLK  | 350  | Ground  | ||||
4  | --  | --  | Not Used  | ||||
5  | DK BLU  | 1796  | Steering Wheel Controls Signal  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
1  | PPL  | 1375  | Remote Radio Control Supply Voltage  | ||||
2  | DK BLU  | 1796  | Steering Wheel Controls Signal  | ||||
3  | YEL  | 1491  | Backlight Lamps Control  | ||||
4  | --  | --  | Not Used  | ||||
5  | BLK  | 350  | Ground  | ||||
6  | DK BLU  | 1796  | Steering Wheel Controls Signal  | ||||

 | |||||||
|---|---|---|---|---|---|---|---|
Connector Part Information  |

  | ||||||
Pin  | Wire Color  | Circuit No.  | Function  | ||||
1  | GRY  | 397  | Cruise Control On Switch Signal  | ||||
2  | BLK  | 350  | Ground  | ||||
3  | YEL  | 1491  | Backlight Lamps Control  | ||||
4  | GRY/BLK  | 87  | Cruise Control Resume/Accel Switch Signal  | ||||
5  | DK BLU  | 84  | Cruise Control Set/Coast Switch Signal  | ||||
