Removal Procedure

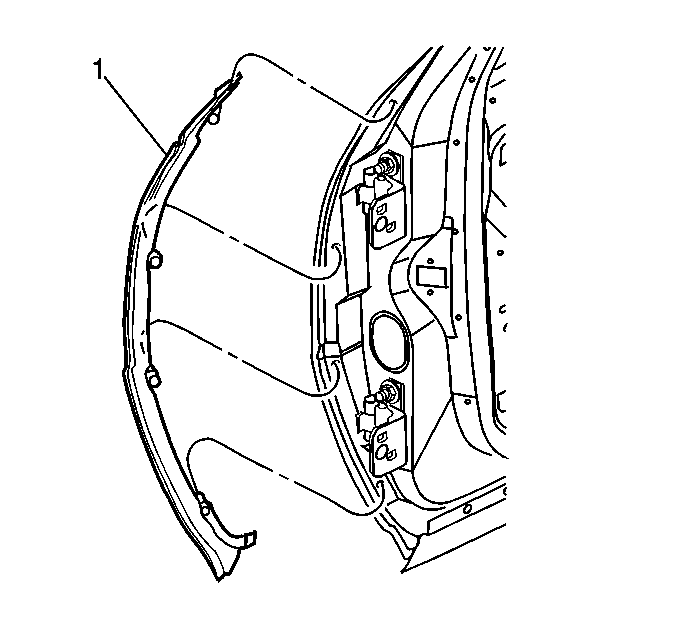

    Object Number: 105398 Size: SH
  1. With the door open, remove the front auxiliary sealing strip retainers.
  2. Remove the sealing strip (1).

Installation Procedure

    Object Number: 105398 Size: SH
  1. Install the front auxiliary sealing strip (1) on to the inside front door edge.
  2. Starting from the top and working downward.
  3. Secure the sealing strip by inserting the retainers into the holes of the inside front door edge.
