Front Seat Cushion Lumbar Bladder Replacement AC9

1. Remove the seat cushion cover and pad. Refer to Front Seat Cushion Cover Replacement .

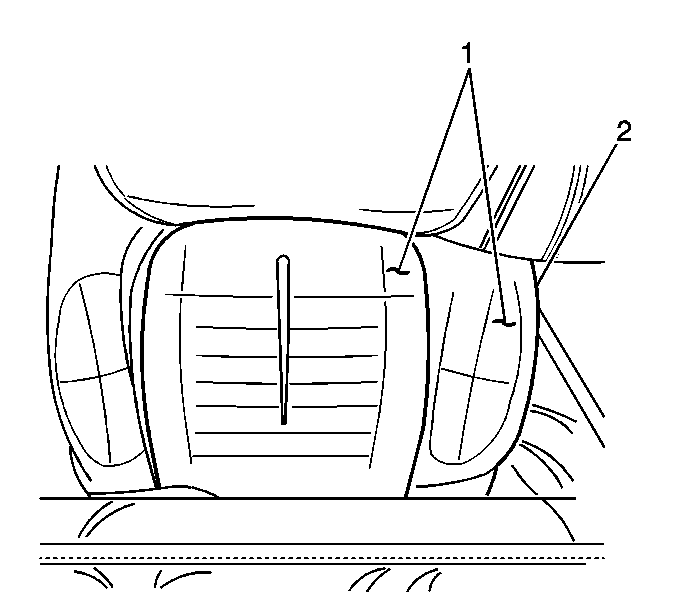

2. Carefully peel the air bladder (1) from the seat cushion pad (2).



3. Pull the air line connection through the hole in the seat bottom pad, and remove the air bladder from the seat bottom pad.

1. Position the seat cushion bladder over the seat pad, and feed the air line connection through the seat bottom pad.



2. Install the air bladder (1) to the seat bottom pad (2).
3. Install the seat cushion cover and pad to the seat pan. Refer to Front Seat Cushion Cover Replacement .
