Removal Procedure
  1. Open the rear compartment lid.
  2. Remove the rear compartment trim panel. Refer to Rear Compartment Trim Panel Replacement .

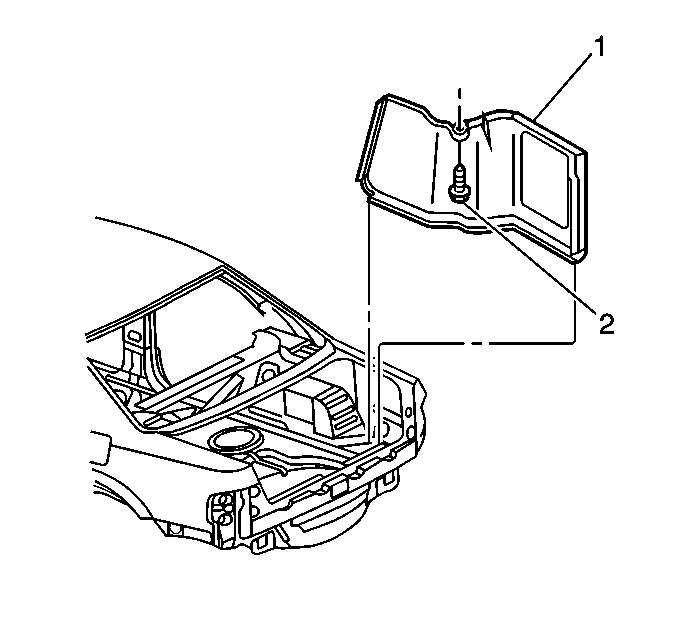

    3. Object Number: 105314 Size: SH
  3. Remove the push in retainer (2) retaining the RH side rear compartment trim panel (1) to the vehicle.
  4. Remove the RH side rear compartment trim panel (1) from the vehicle.

Installation Procedure

    Object Number: 105314 Size: SH
  1. Install the RH side rear compartment trim panel (1) to the vehicle.
  2. Install the push in retainer (2) to retain the RH side rear compartment trim panel (1) to the vehicle.
  3. Install the rear compartment trim panel. Refer to Rear Compartment Trim Panel Replacement .
  4. Close the rear compartment lid.
