Makes 🢒 Cadillac 🢒 2004 🢒 XLR 🢒 Engine 🢒 Engine Mechanical - 4.6L (LH2) 🢒 Oil Filter Adapter Installation
  1. Install a NEW gasket to the oil filter adapter.

    2. Object Number: 928140 Size: SH
  2. Position the oil filter adapter on the crankcase.

    3. Notice: Refer to Fastener Notice in the Preface section.


    Object Number: 1787222 Size: SH
  3. Install the oil filter adapter bolts.

    4. Tighten
    Tighten the oil filter adapter bolts to 25 N·m (18 lb ft).

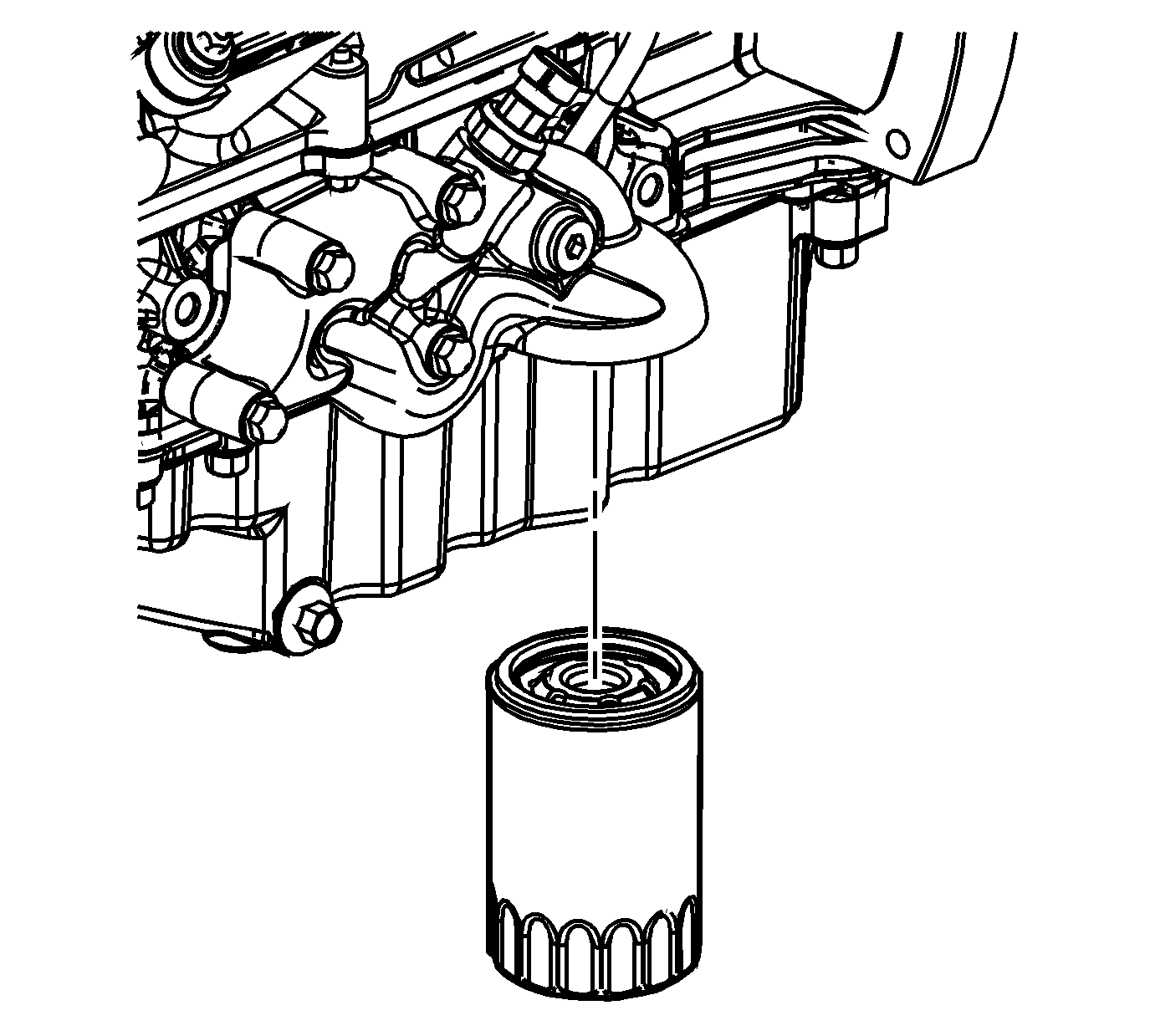

    Object Number: 928137 Size: SH
  4. Fill the oil filter with oil.
  5. Install the oil filter.

    6. Tighten
    Tighten the oil filter to 32 N·m (24 lb ft).
