Power Distribution Schematics. Chevrolet Alero Export 1999

GM Service Manual Online

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 1999 🢒 Alero Export 🢒 Body and Accessories 🢒 Wiring Systems 🢒 Power Distribution Schematics

Figure 1:	Cell 10: IGN SW -- BATT 1 and IGN SW -- BATT 2 Fuses Power and Grounding Components Cell 10: AIR BAG, TURN LPS, RDO ACC, WIPER, PCM ACC and IPC/BFC ACC FusEs Handling ESD Sensitive Parts Notice Cell 10: AIR BAG, TURN LPS, RDO ACC, WIPER, PCM ACC and IPC/BFC ACC FusEs Cell 10: AIR BAG, TURN LPS, RDO ACC, WIPER, PCM ACC and IPC/BFC ACC FusEs
Figure 2:	Cell 10: AIR BAG, TURN LPS, RDO ACC, WIPER, PCM ACC and IPC/BFC ACC Fuses Power and Grounding Components Cell 10: IGN MOD, BU LMP/BTSI, PCM IGN, F/P INJR, A/C BFC, AUTO TRANS, ABS IGN Fuses Cell 10: IGN SW - BATT 1 and IGN SW - BATT 2Fuses SIR Handling Caution SIR Handling Caution Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Cell 10: IGN SW - BATT 1 and IGN SW - BATT 2Fuses Cell 10: IGN SW - BATT 1 and IGN SW - BATT 2Fuses Cell 10: IGN MOD, BU LMP/BTSI, PCM IGN, F/P INJR, A/C BFC, AUTO TRANS, ABS IGN Fuses Cell 10: PWR WNDWS, CRUISE SW, CRUISE, SUNROOF, HVAC BLOWER Cell 10: HTR A/C IGN, ERLS Fuses Starting and Charging Schematics
Figure 3:	Cell 10: IGN MOD, BU LMP/BTSI, PCM IGN, F/P INJR, A/C BFC, AUTO TRANS, ABS IGN Fuses Power and Grounding Components Cell 10: HTR A/C IGN, ERLS Fuses Cell 10: AIR BAG, TURN LPS, RDO ACC, WIPER, PCM ACC and IPC/BFC ACC FusEs Cell 10: AIR BAG, TURN LPS, RDO ACC, WIPER, PCM ACC and IPC/BFC ACC FusEs Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

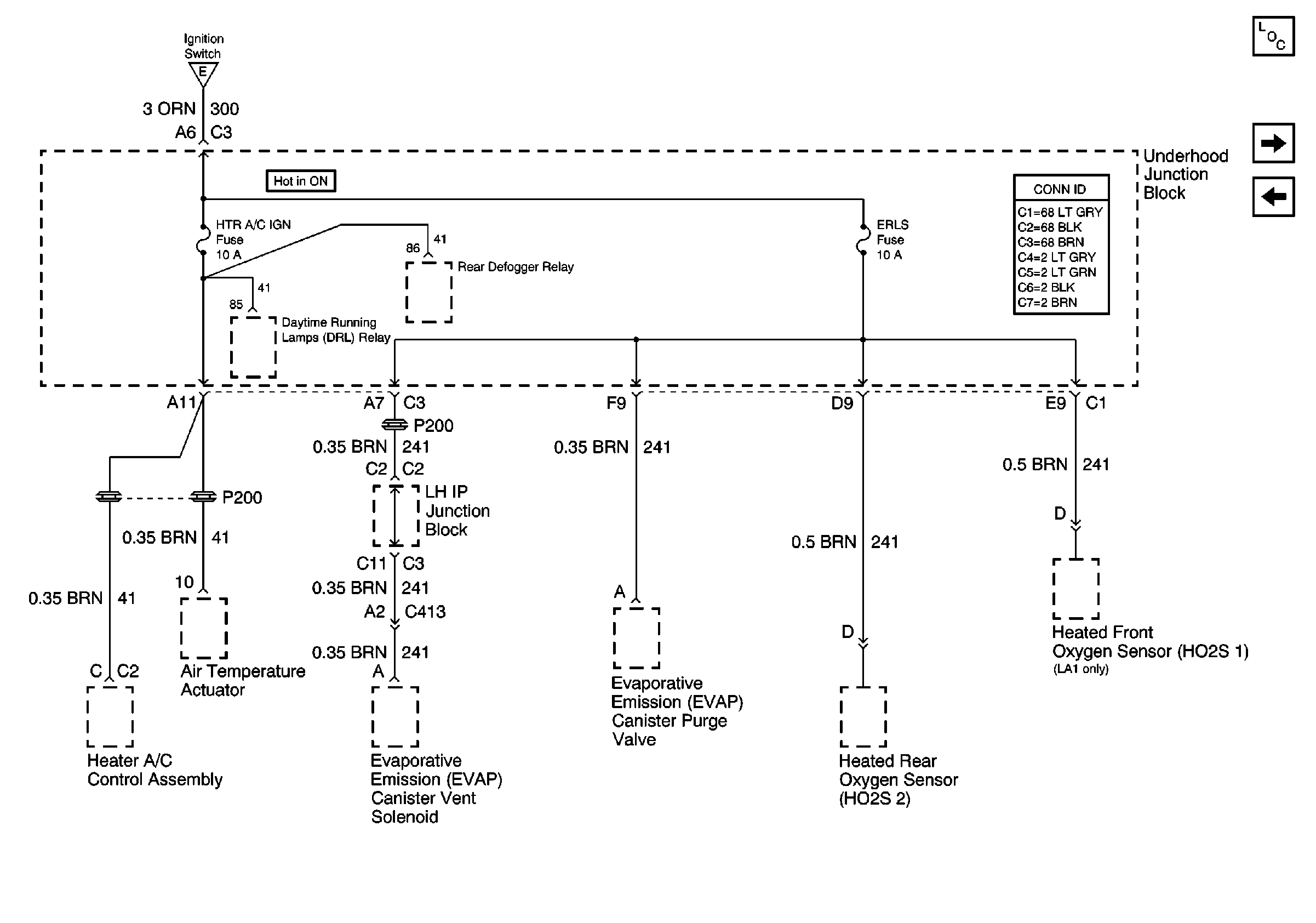

Figure 4:	Cell 10: HTR A/C IGN, ERLS Fuses Power and Grounding Components Cell 10: LH BEC BATT 1, AUX PWR/CIGAR, PARK LPS, PCM BATT, PWRSEAT, PWR MIRROR, DR LOCK and TRUNK REL/RFA Fuses Cell 10: IGN MOD, BU LMP/BTSI, PCM IGN, F/P INJR, A/C BFC, AUTO TRANS, ABS IGN Fuses Cell 10: AIR BAG, TURN LPS, RDO ACC, WIPER, PCM ACC and IPC/BFC ACC FusEs
Figure 5:	Cell 10: LH BEC BATT 1, AUX PWR/CIGAR, PARK LPS, PCM BATT, PWR SEAT, PWR MIRROR, DR LOCK and TRUNK REL/RFA Fuses Power and Grounding Components Cell 10: RH HDLP, LH HDLP, GEN BATT, LH BEC BATT 2, ABS BATT,STOP LPS, HAZARD LPS, IPC/HVAC BATT and BFC BATT Fuses Cell 10: HTR A/C IGN, ERLS Fuses Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

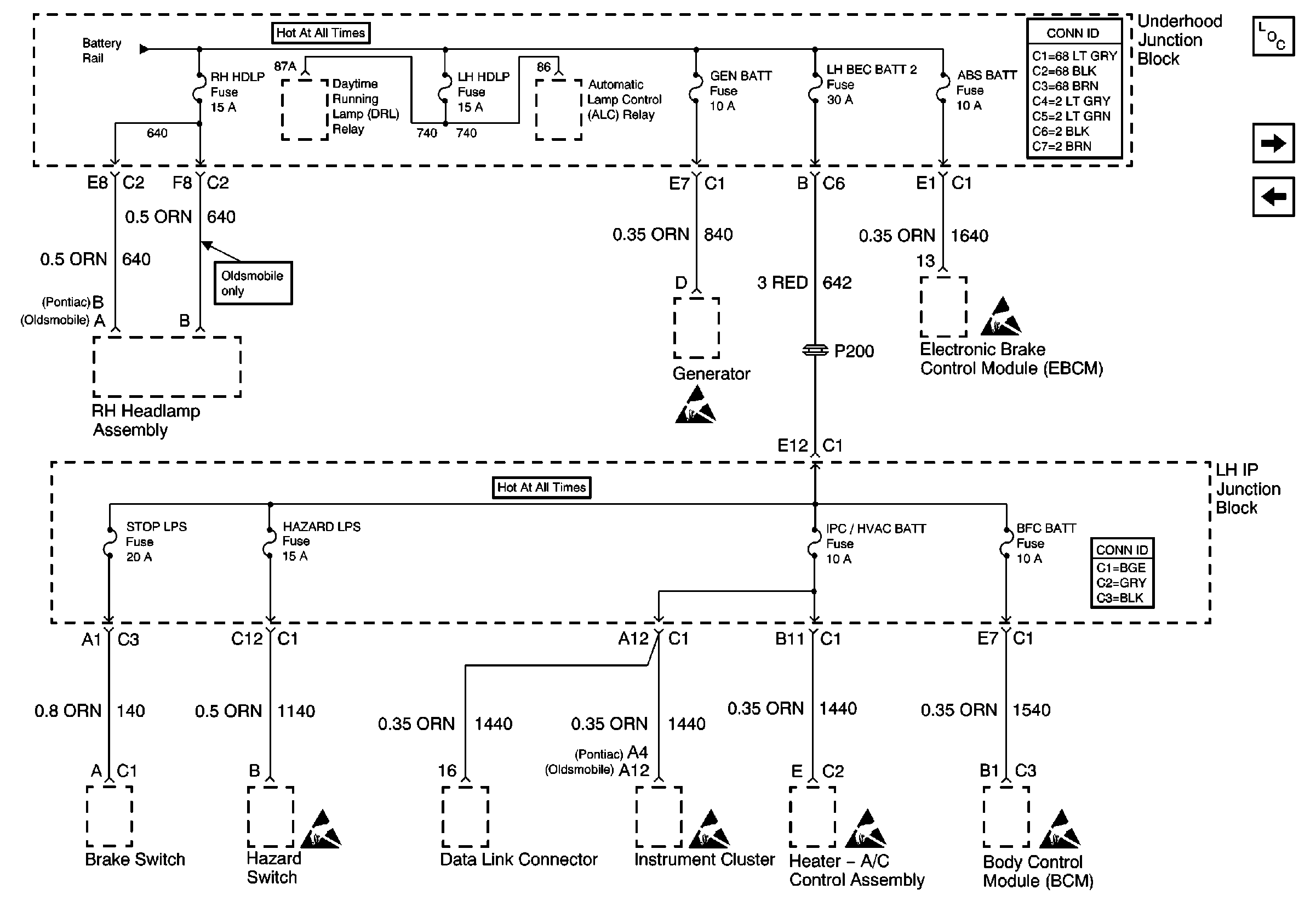

Figure 6:	Cell 10: RH HDLP, LH HDLP, GEN BATT, LH BEC BATT 2, ABS BATT, STOP LPS, HAZARD LPS, IPC/HVAC BATT and BFC BATT Fuses Power and Grounding Components Cell 10: RR DEFOG, HORN, HI BLO MOT, RH BEC BATT, ABS Cell 10: LH BEC BATT 1, AUX PWR/CIGAR, PARK LPS, PCM BATT, PWRSEAT, PWR MIRROR, DR LOCK and TRUNK REL/RFA Fuses Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 7:	Cell 10: RR DEFOG, HORN, HI BLO MOT, RH BEC BATT, ABS Power and Grounding Components Cell 10: PWR WNDWS, CRUISE SW, CRUISE, SUNROOF, HVAC BLOWER Cell 10: RH HDLP, LH HDLP, GEN BATT, LH BEC BATT 2, ABS BATT,STOP LPS, HAZARD LPS, IPC/HVAC BATT and BFC BATT Fuses Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 8:	Cell 10: PWR WNDWS, CRUISE SW, CRUISE, SUNROOF, HVAC BLOWER Power and Grounding Components Cell 10: RR DEFOG, HORN, HI BLO MOT, RH BEC BATT, ABS Cell 10: AIR BAG, TURN LPS, RDO ACC, WIPER, PCM ACC and IPC/BFC ACC FusEs Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
