Starting and Charging Schematics for Chevrolet Aveo 2005

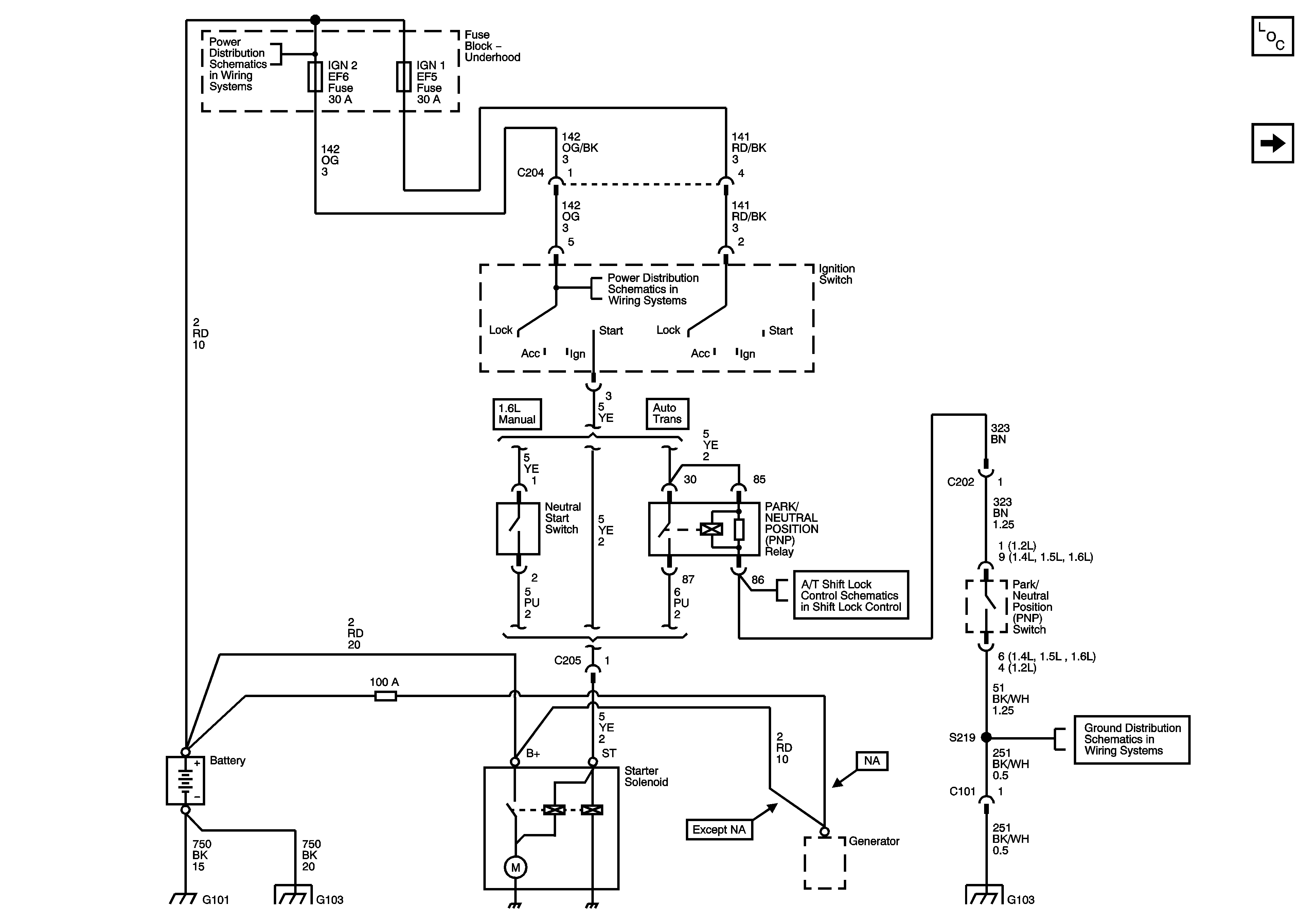

Figure
1:
Starting Systems
Master Electrical Component List
Charging Systems
Underhood Fuse Block - IGN 1 Fuse, Ignition Switch, I/P Fuse Block - CIGAR JACK, AUDIO CLOCK, METER CLOCK, TSIG, BACKUP LAMP, and AIR BAG Fuses
Shift Lock Control - Except North America
Shift Lock Control - North America
G103 - Sirius D4
G101, G102 and G105
G103 - Sirius D4
G103 - Sirius D4
Figure
2:
Charging Systems
Master Electrical Component List
Starting Systems
Underhood Fuse Block - IGN 1 Fuse, Ignition Switch, I/P Fuse Block - CIGAR JACK, AUDIO CLOCK, METER CLOCK, TSIG, BACKUP LAMP, and AIR BAG Fuses
Underhood Fuse Block - IGN 1 Fuse, Ignition Switch, I/P Fuse Block - CIGAR JACK, AUDIO CLOCK, METER CLOCK, TSIG, BACKUP LAMP, and AIR BAG Fuses
Instrument Panel Fuse Block - DIS INJECTOR Fuse
G101, G102 and G105
G103 - Sirius D4
