Audible Warnings Schematics for Chevrolet Blazer - 4WD - RHD 1999

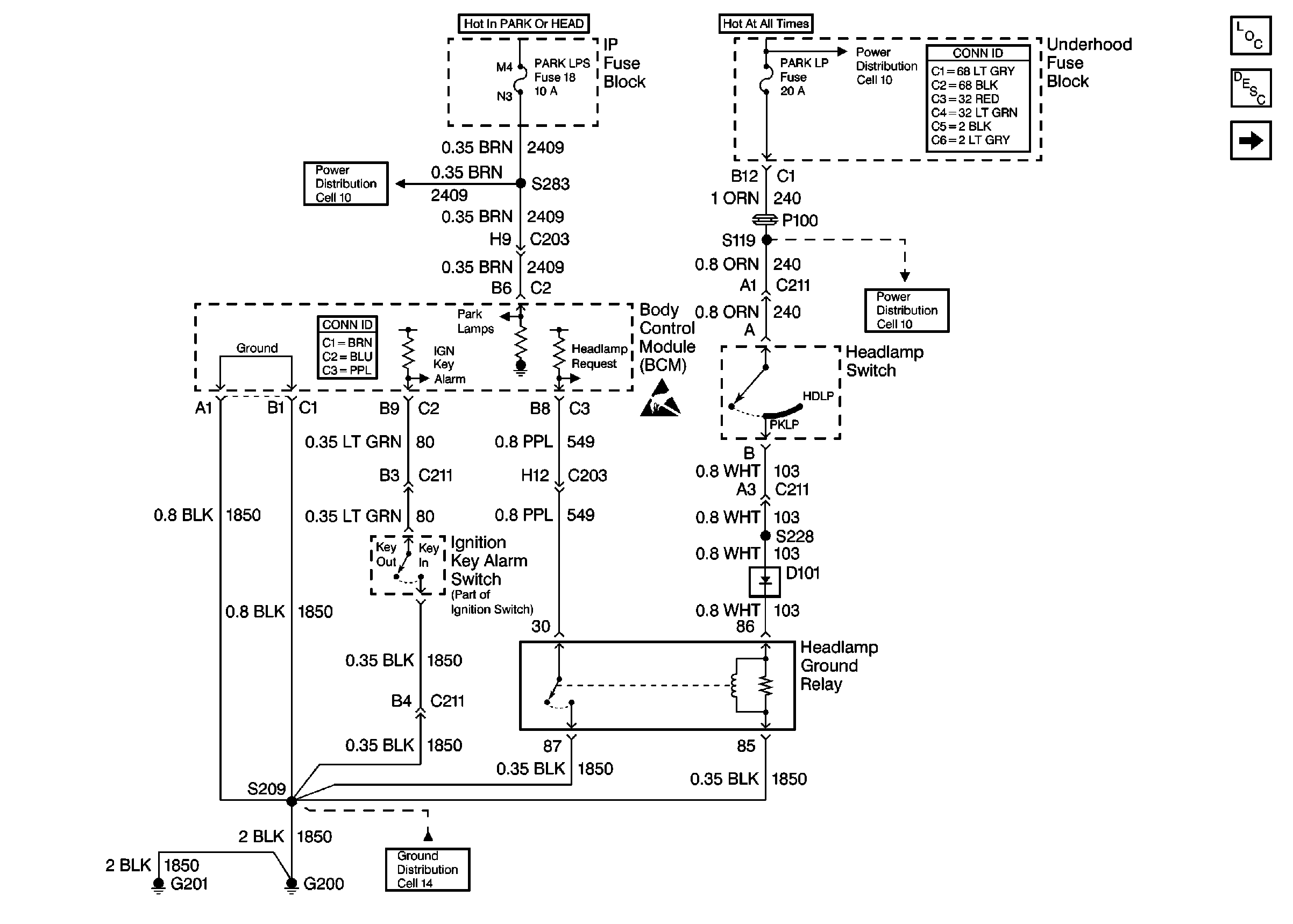

Figure
1:
Cell 76: CRUISE, GAUGES, and TBC Fuses

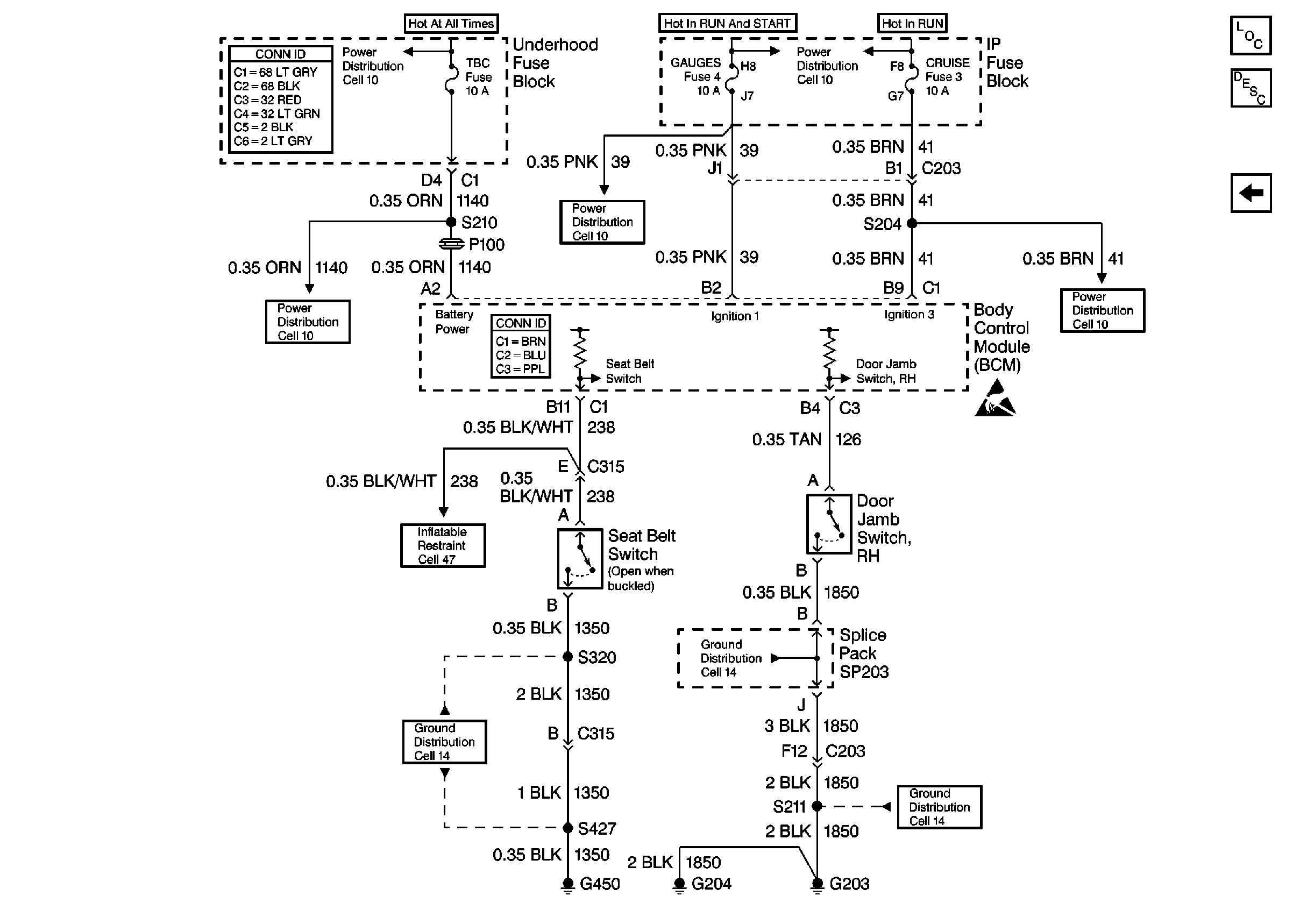

Figure
2:
Cell 76: Power, Ground and BCM
