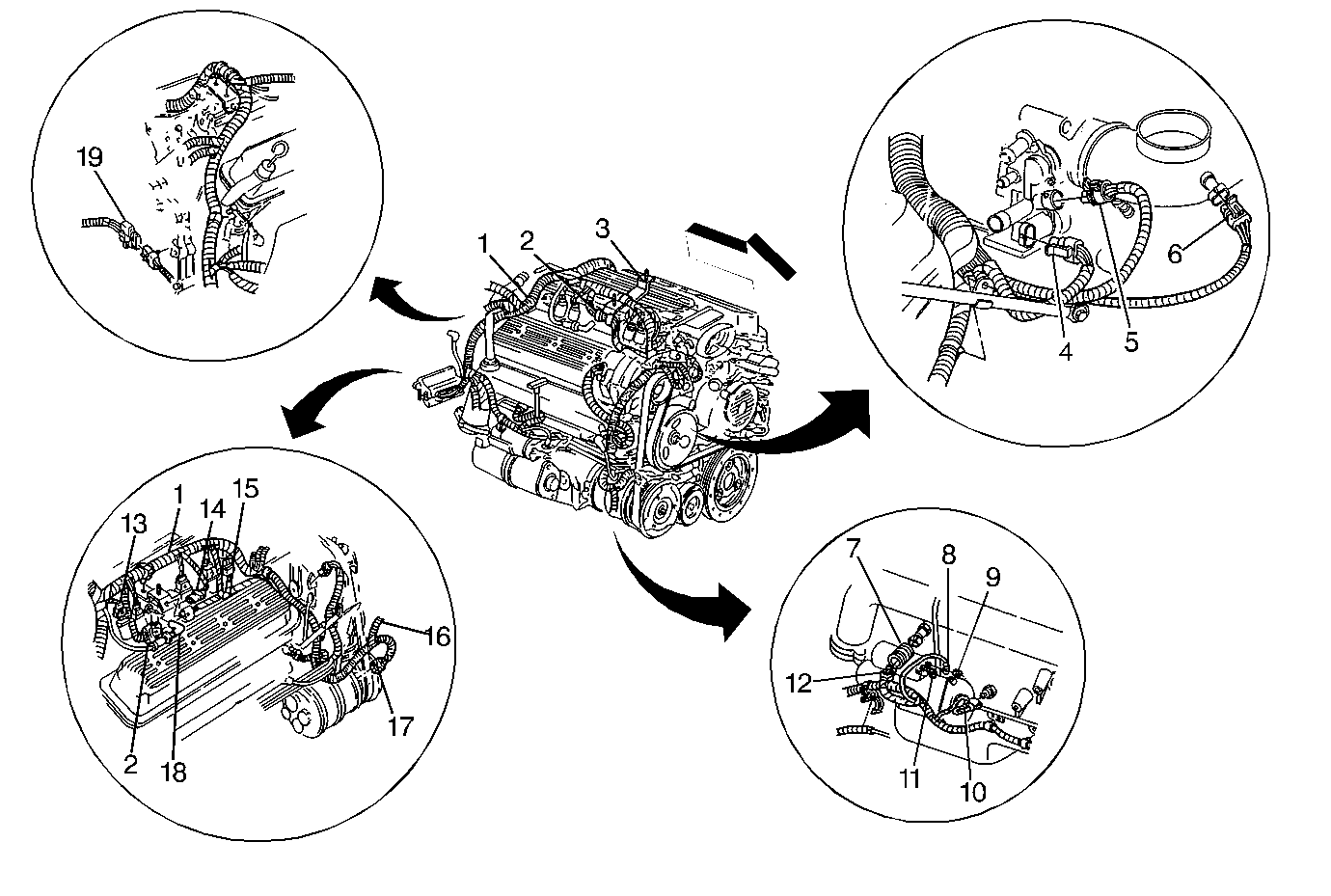

| (1) | Engine Wiring Harness |
| (2) | Ignition Distributor Electrical Connector |
| (3) | Engine Wiring Harness Clamp |
| (4) | Idle Air Control
Valve Motor Electrical Connector |
| (5) | Throttle Position Sensor Electrical Connector |
| (6) | Intake Air Temperature
Sensor Connector |
| (7) | Thermal Sleeve |
| (8) | Engine Wiring Harness Starter Lead |
| (9) | Engine Wiring Harness
Starter Lead Nut |
| (10) | Knock Sensor Electrical Connector |
| (11) | Engine Wiring Harness Starter Lead
Washer |
| (12) | Engine Coolant Temperature Gauge Connector |
| (13) | Fuel Injector Electrical Connector |
| (14) | Canister Purger
Solenoid Valve Connector |
| (15) | Manifold Absolute Pressure Sensor Electrical Connector |
| (16) | Air
Conditioner Refrigerant Pressure Sensor Harness |
| (17) | Air Conditioning Compressor Clutch
Electrical Connector |
| (18) | Vacuum Tube |
| (19) | Oxygen Sensor Electrical Connector |
