Mass Airflow Sensor with Intake Air Temperature Sensor Replacement. Chevrolet Captiva Sport 2009

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2009 🢒 Captiva Sport 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

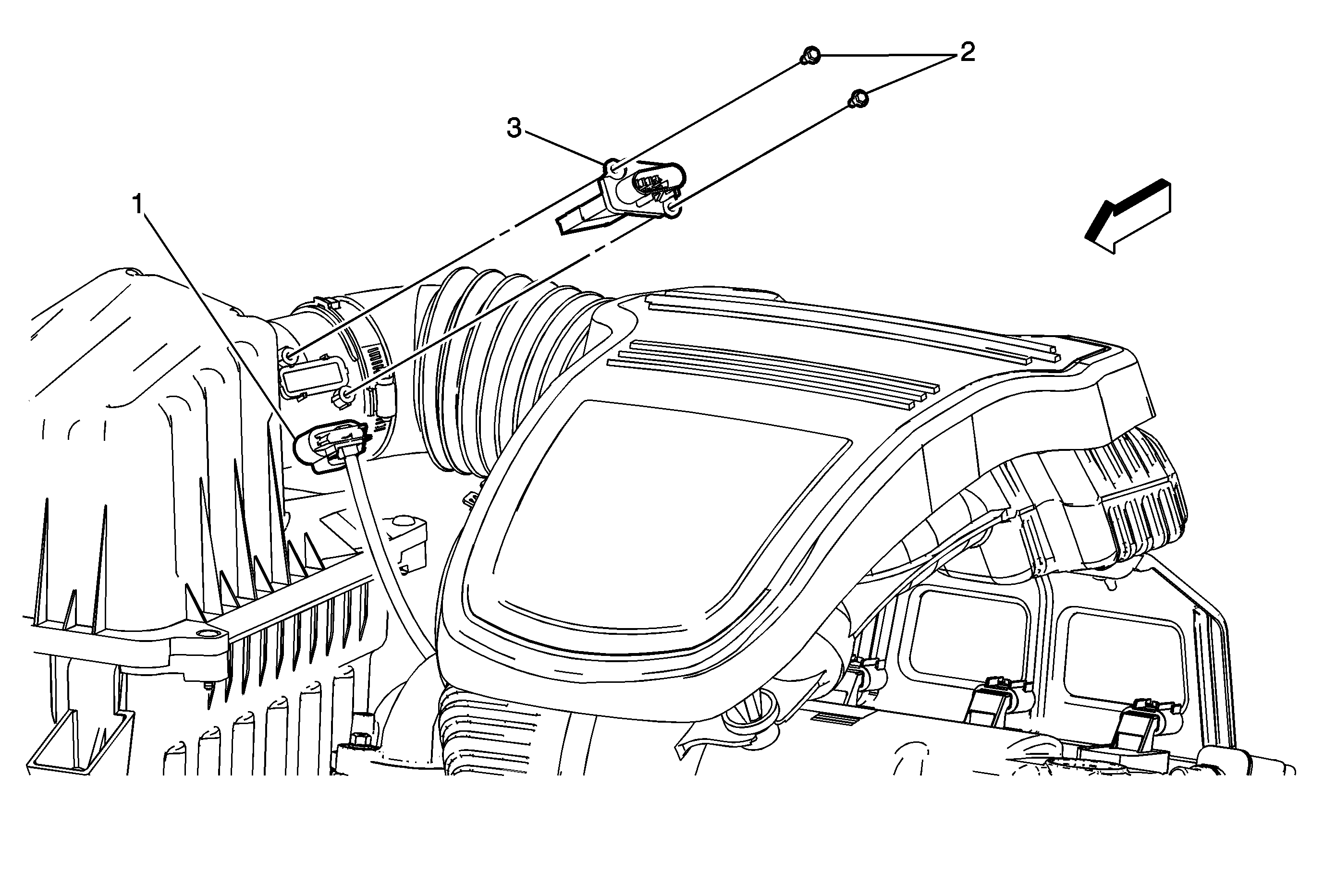

Callout	Component Name
1	Mass Airflow Sensor/ Intake Air Temperature Sensor Electrical Connector
2	Mass Airflow Sensor/ Intake Air Temperature Sensor Bolt (Qty: 2) Notice: Refer to Fastener Notice in the Preface section. Tighten 4 N·m (34 lb in)
3	Mass Airflow Sensor/ Intake Air Temperature Sensor

Callout

Component Name

Mass Airflow Sensor/ Intake Air Temperature Sensor Electrical Connector

Mass Airflow Sensor/ Intake Air Temperature Sensor Bolt (Qty: 2)

Notice: Refer to Fastener Notice in the Preface section.

Tighten
4 N·m (34 lb in)

Mass Airflow Sensor/ Intake Air Temperature Sensor

Callout	Component Name
1	Mass Airflow Sensor/Intake Air Temperature Sensor Electrical Connector
2	Mass Airflow Sensor/Intake Air Temperature Sensor Bolt (Qty: 2) Caution: Refer to Fastener Caution in the Preface section. Tighten 4 N·m (34 lb in)
3	Mass Airflow Sensor/Intake Air Temperature Sensor

Callout

Component Name

Mass Airflow Sensor/Intake Air Temperature Sensor Electrical Connector

Mass Airflow Sensor/Intake Air Temperature Sensor Bolt (Qty: 2)

Caution: Refer to Fastener Caution in the Preface section.

Tighten
4 N·m (34 lb in)

Mass Airflow Sensor/Intake Air Temperature Sensor
