HVAC Schematics. Chevrolet Captiva Sport 2009

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2009 🢒 Captiva Sport 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 HVAC Schematics

Figure 1:	Module Power, Grounds and Data Communications Master Electrical Component List Air Delivery Description and Operation Control Module References Mode Controls
Figure 2:	Mode Controls Master Electrical Component List Air Delivery Description and Operation Control Module References Data Sensors Module Power , Grounds and Data Communications
Figure 3:	Data Sensors Master Electrical Component List Air Temperature Description and Operation Control Module References Compressor Controls Mode Controls
Figure 4:	Compressor Controls Master Electrical Component List Air Temperature Description and Operation Control Module References Data Sensors

Figure 1:	Module Power, Ground and Data Communications
Figure 2:	Mode Controls

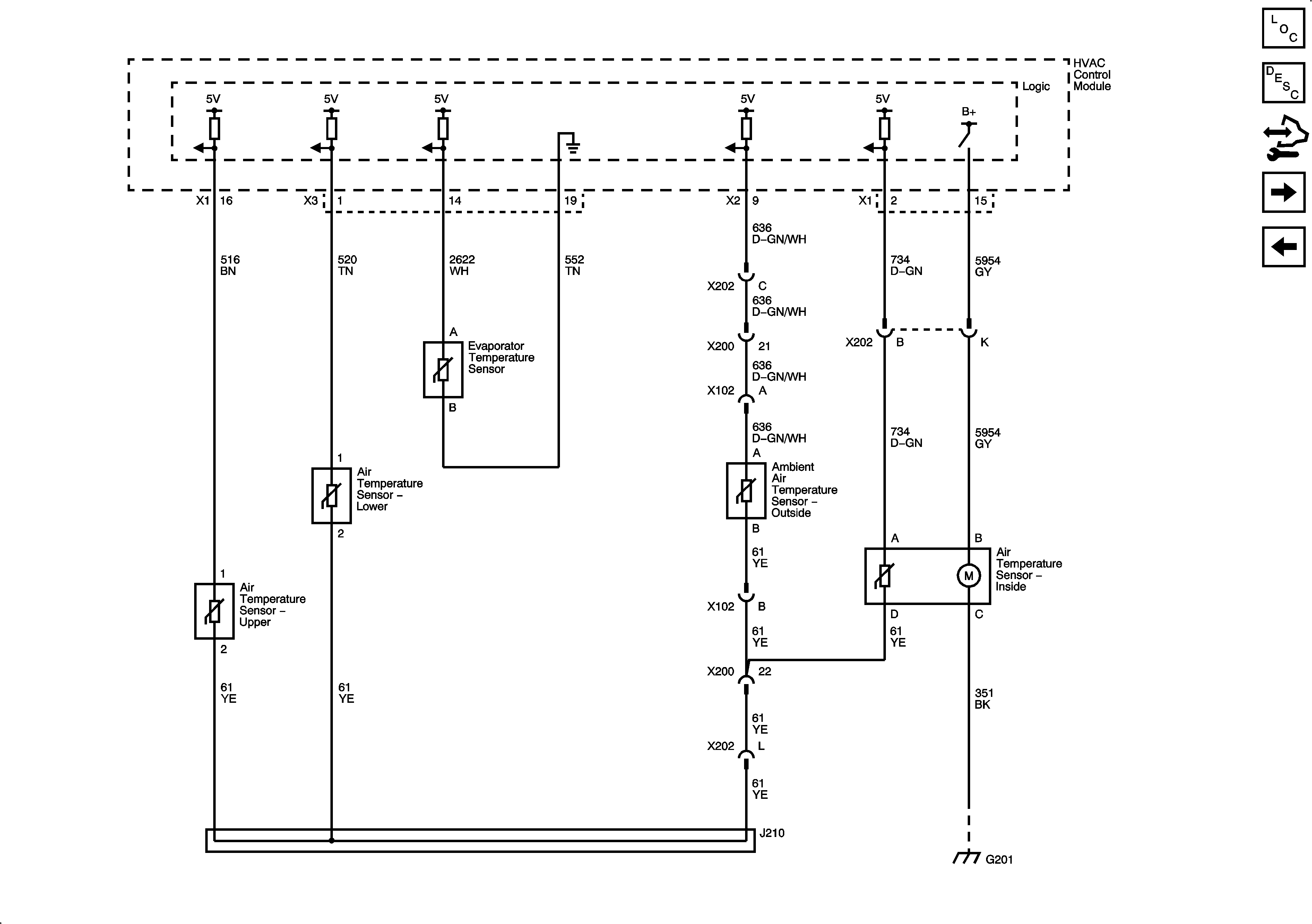

Figure 3:	Data Sensors
Figure 4:	Heater Pump Controls (HP5)
Figure 5:	Heater Pump Controls (HP7)

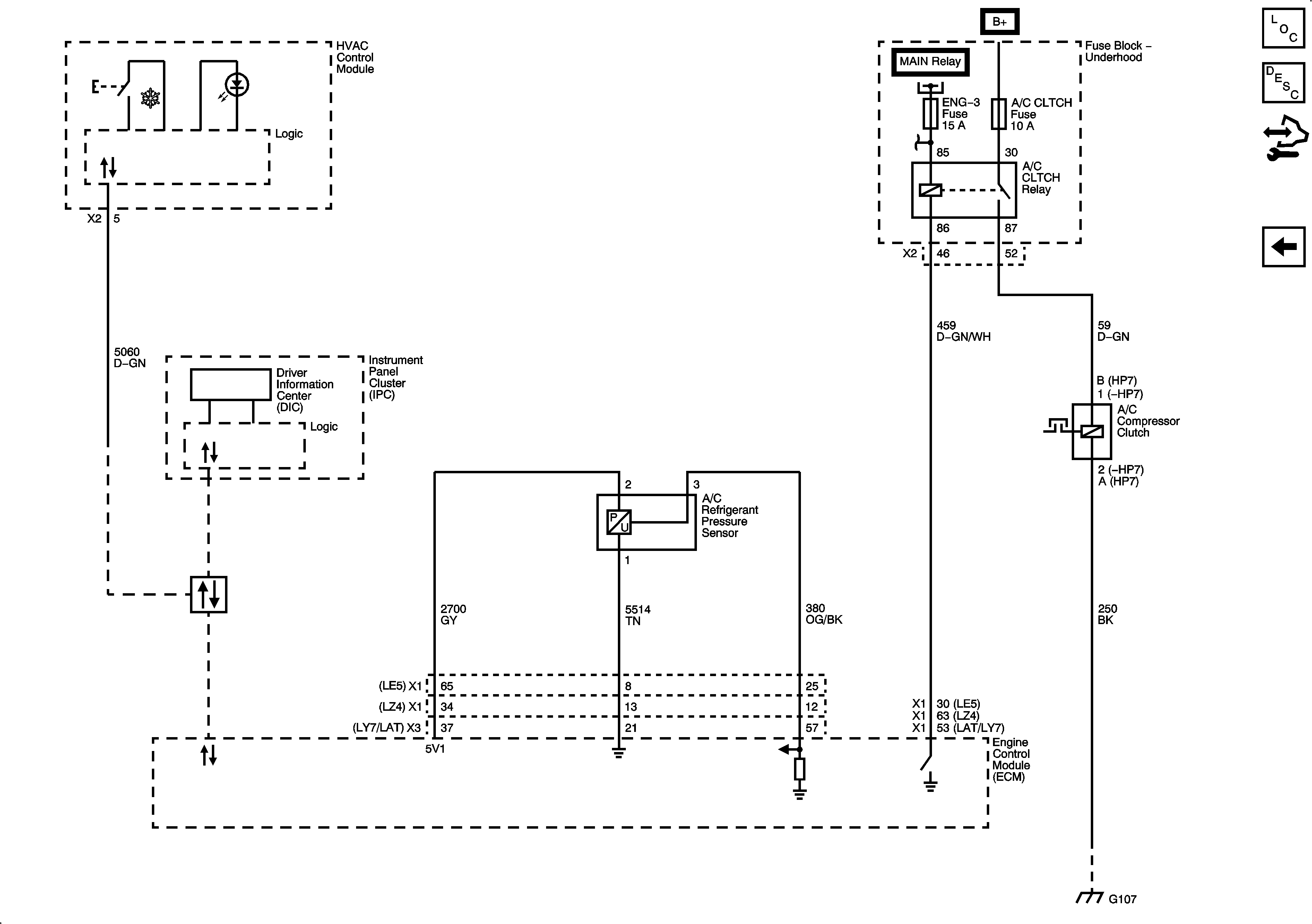

Figure 6:	Compressor Controls
