Instrument Cluster Schematics. Chevrolet Captiva Sport 2009

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2009 🢒 Captiva Sport 🢒 Diagnostic Navigation 🢒 Vehicle Diagnostic Information 🢒 Instrument Cluster Schematics

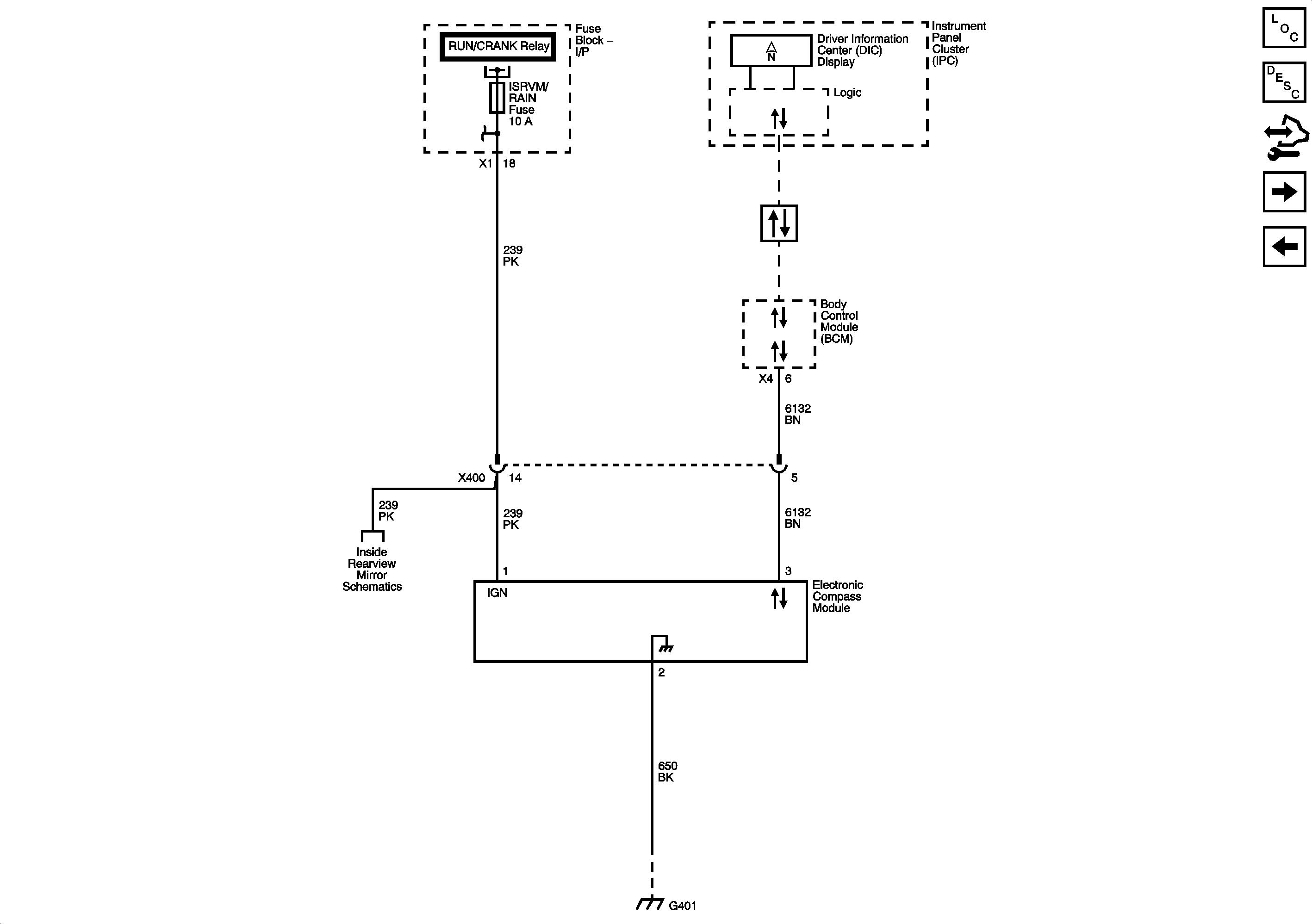

Figure 1:	Instrument Cluster Schematics Master Electrical Component List Instrument Cluster Description and Operation Control Module References 08-GMT319 - VUE Instrument Cluster Schematics - Gages

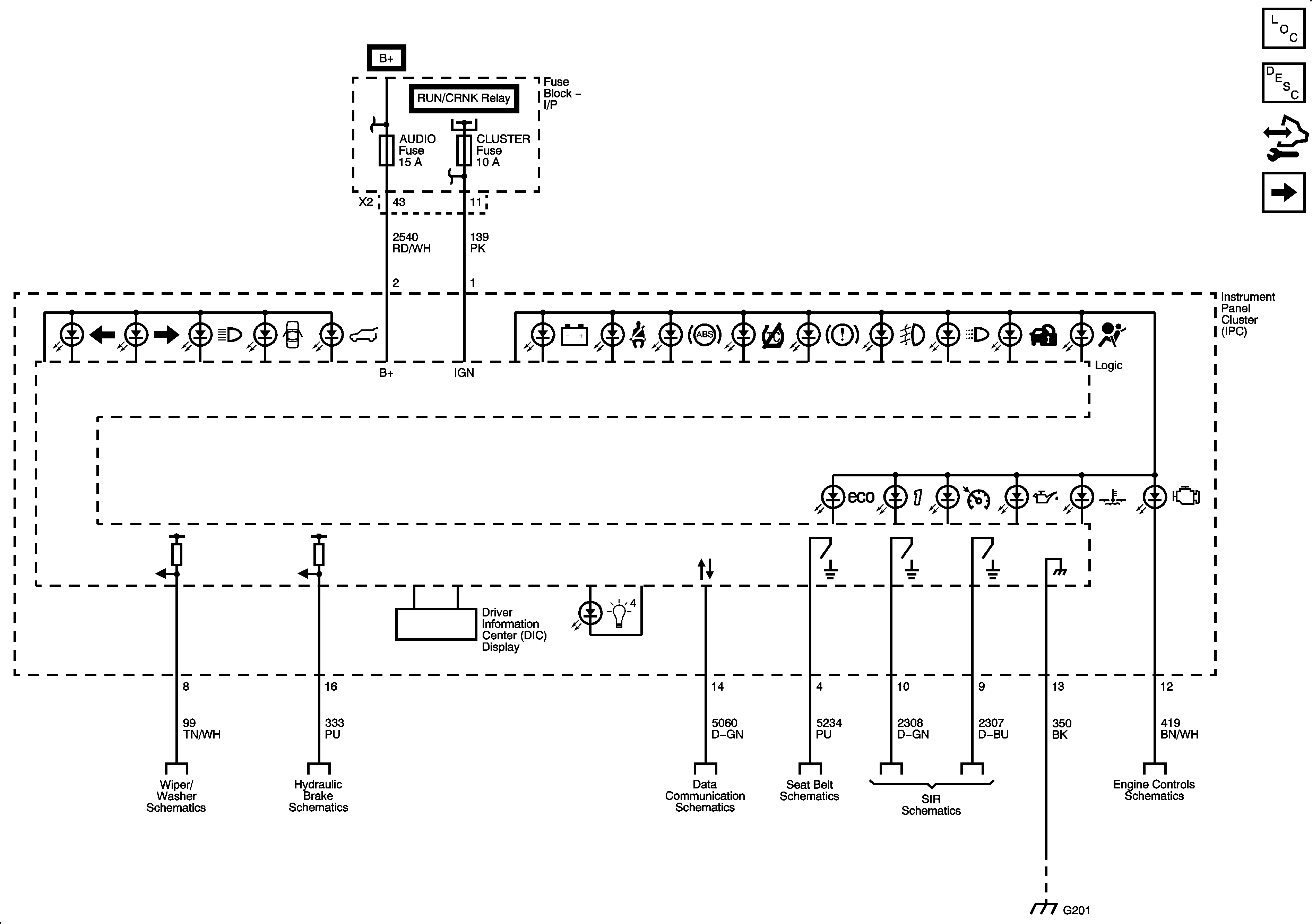

Figure 2:	Instrument Panel Cluster - Gages Master Electrical Component List Instrument Cluster Description and Operation Control Module References Compass Schematics Instrument Cluster Schematics
Figure 3:	Master Electrical Component List Instrument Cluster Description and Operation Control Module References Driver Information Center Schematics 08-GMT319 - VUE Instrument Cluster Schematics - Gages
Figure 4:	Driver Information Center (DIC) Switch Master Electrical Component List Instrument Cluster Description and Operation Control Module References Compass Schematics

Figure 1:	Instrument Cluster Schematics
Figure 2:	Instrument Panel Cluster - Gages Master Electrical Component List Instrument Cluster Description and Operation Control Module References Instrument Cluster Schematics
Figure 3:
Figure 4:	Driver Information Center (DIC) Switch
Figure 5:
