Oil Filler Tube Removal for Chevrolet Chevrolet C-Series Medium Duty Truck B7 1998

Oil Filler Tube Removal L65-CMT


    Object Number: 239276 Size: SH
  1. Remove the oil fill tube plug.

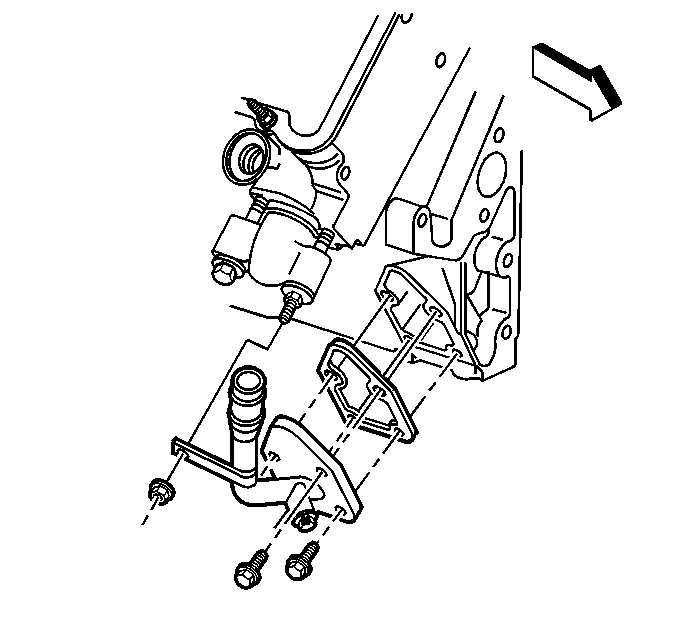

    2. Object Number: 239281 Size: SH
  2. Remove the oil fill tube retaining nut.
  3. Remove the oil fill tube upper retaining bolts.
  4. Remove the oil fill tube lower retaining bolts.
  5. Remove the oil fill tube.
  6. Remove the gasket.
