Water Pump Removal for Chevrolet Chevrolet C-Series Medium Duty Truck B7 1998

  1. Loosen the bypass hose clamps (3).

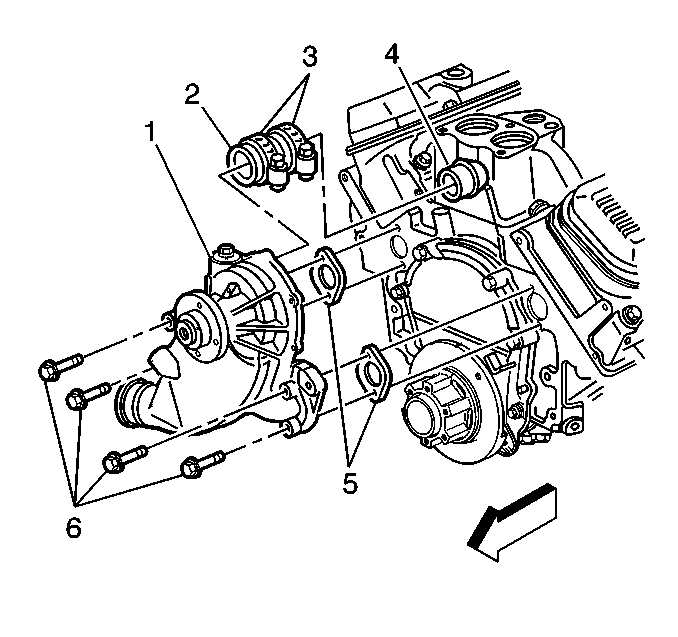

    2. Object Number: 340389 Size: SH
  2. Remove the water pump bolts (6).
  3. Remove the water pump (1).
  4. Remove the water pump gaskets (5).
  5. Remove the bypass hose clamps (3).
  6. Remove the bypass hose (2).
