Engine Oil Pressure Sensor and/or Switch Replacement for Chevrolet Chevrolet C-Series Medium Duty Truck B7 1998

1. Remove the air cleaner assembly if necessary.
2. Remove the harness connector from the Oil Pressure Switch by releasing the locking tab and pulling straight up.

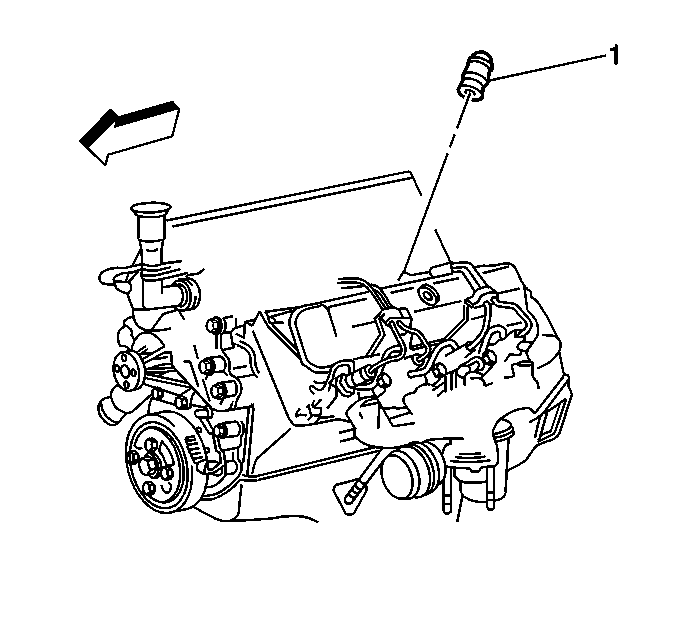

3. Remove the switch (1).

1. Install the switch (1).
2. Install the harness connector.
3. Install air cleaner assembly if necessary.
