Air Brake Park Brake Schematic for Chevrolet Chevrolet C-Series Medium Duty Truck B7 1998

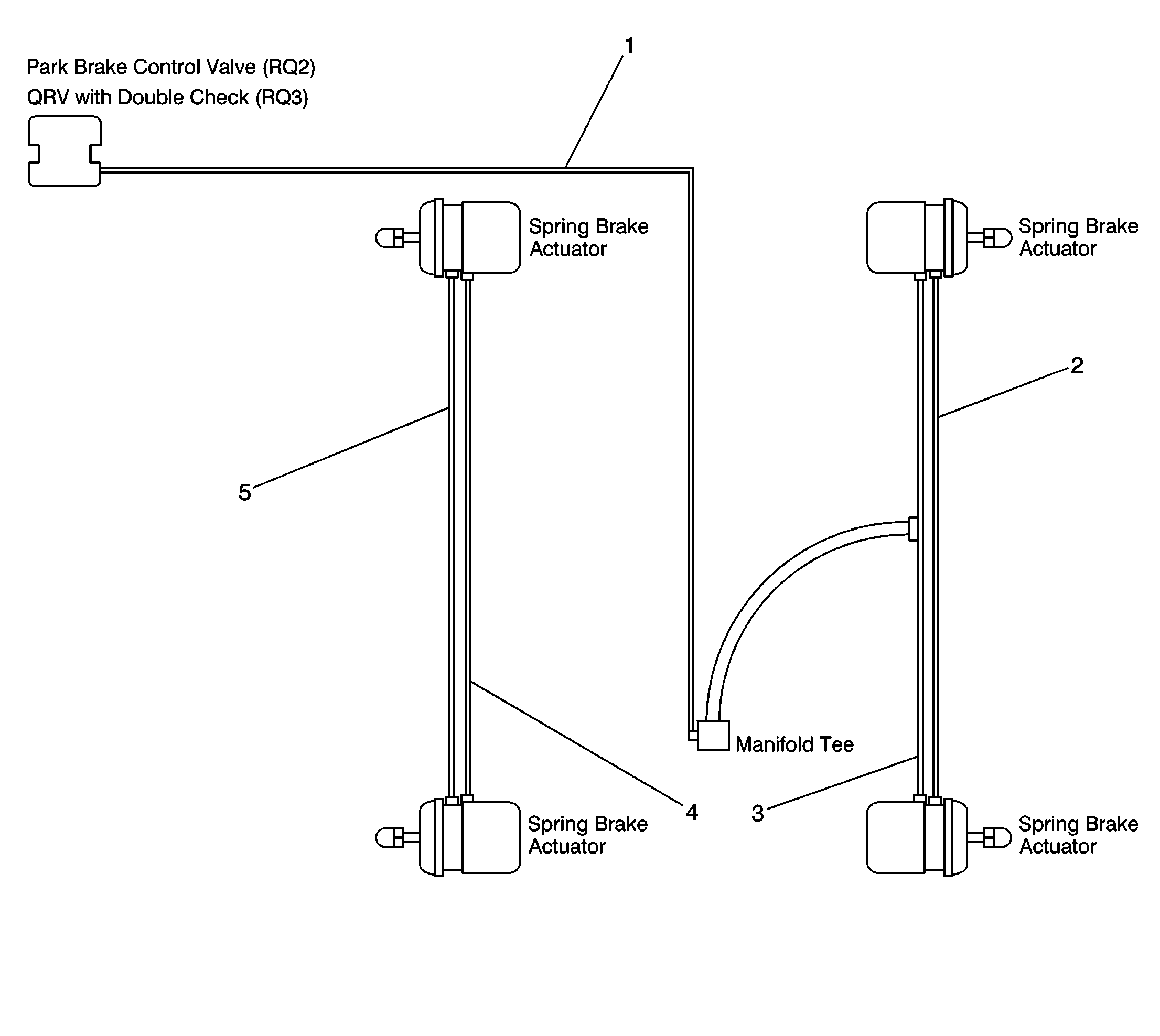

Parking Brake
Object Number: 209552 Size: LF
(1)(Air Line) Double Check Valve to Manifold Tee
(2)(Air Line) Service Brake Chamber
(3)(Air Line) Park Brake Chamber to Manifold Tee
(4)(Air Line) Park Brake Chamber
(5)(Air Line) Service Brake Chamber
