Air Brake Warning System Schematics for Chevrolet Chevrolet C-Series Medium Duty Truck B7 1999

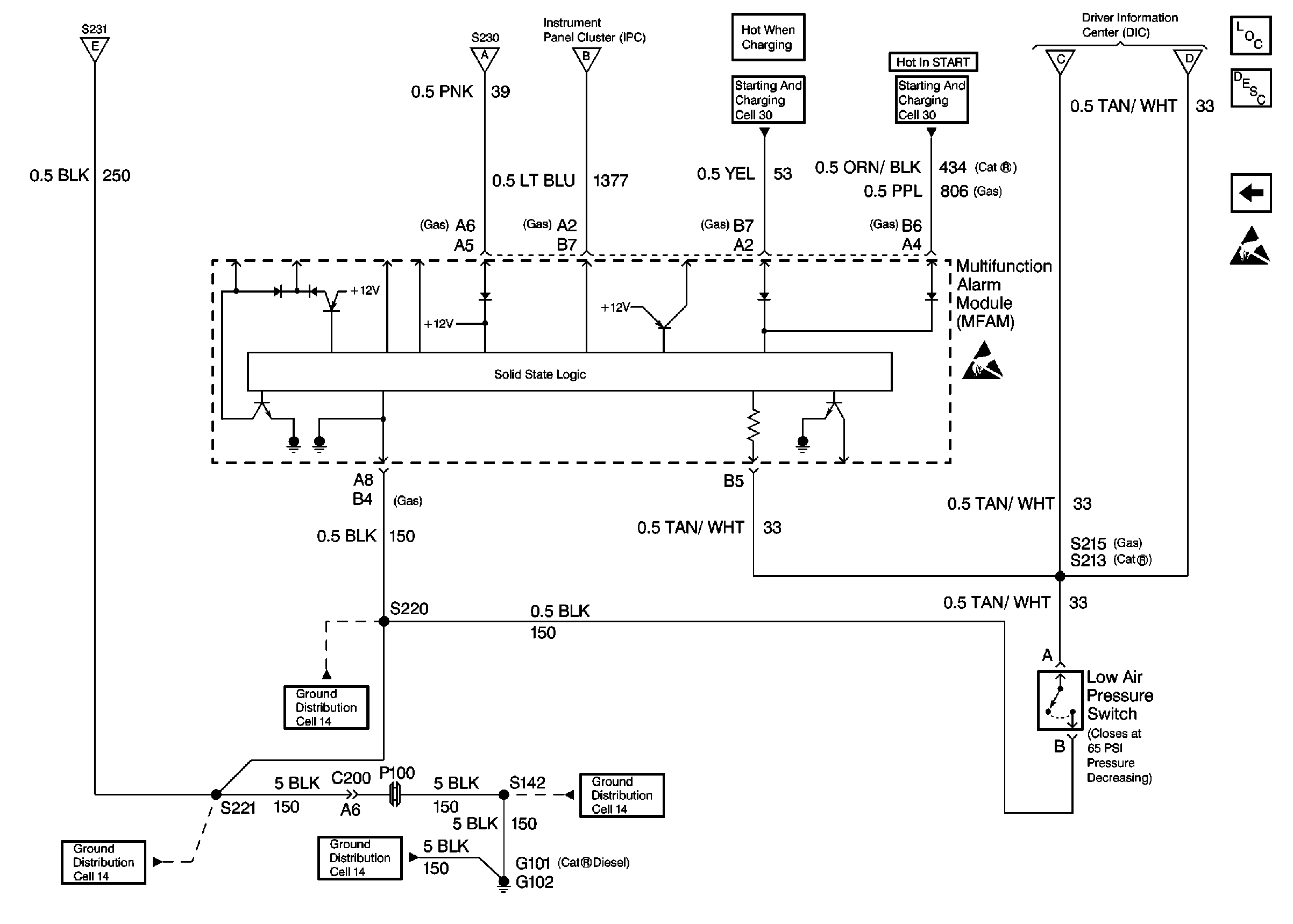

| Figure 1: |
Cell 41 (1 of 2)
|

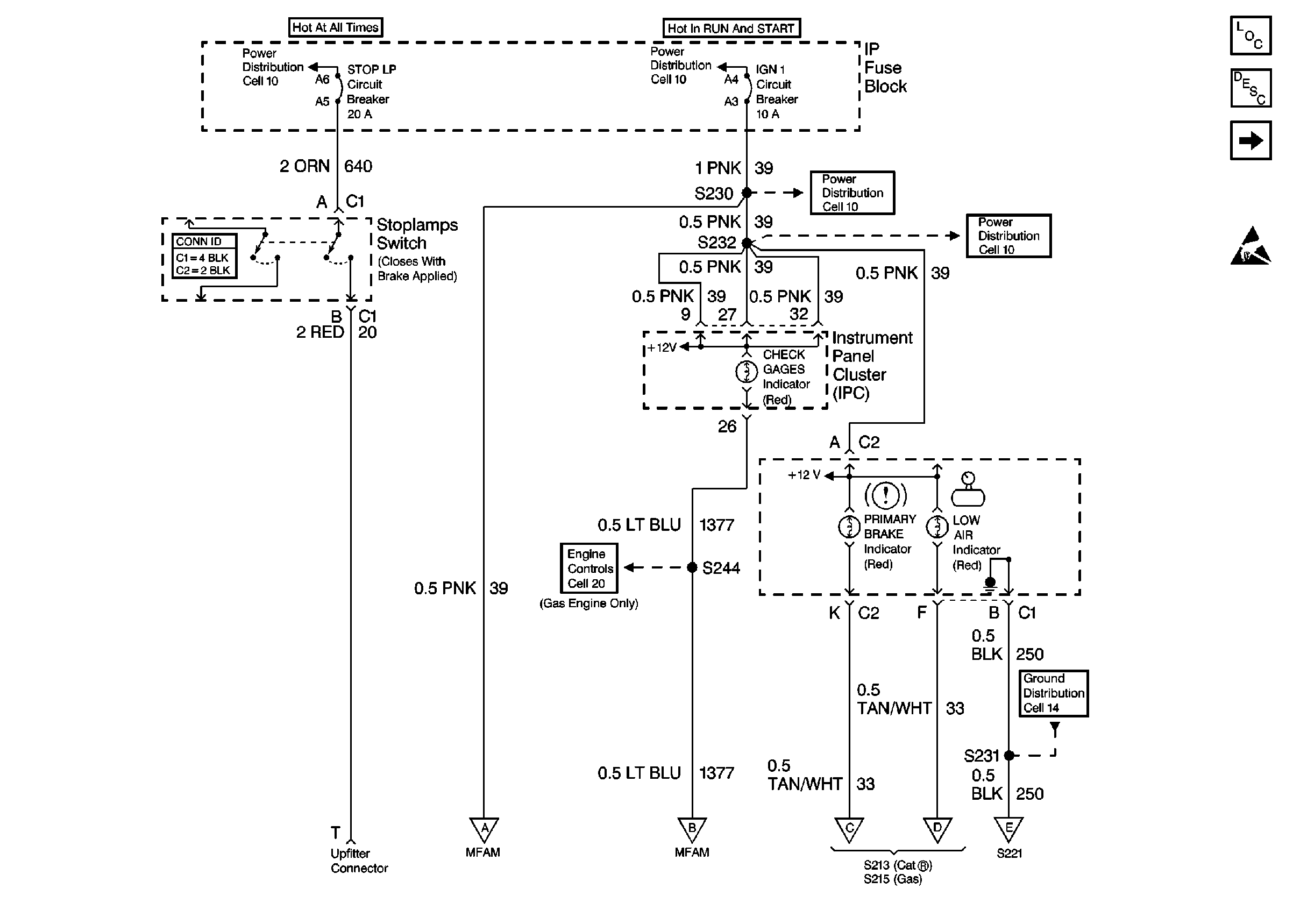

| Figure 2: |
Cell 41 (2 of 2)
|
| Figure 1: |
Cell 41 (1 of 2)
|
| Figure 2: |
Cell 41 (2 of 2)
|
