Power Distribution Schematics. Chevrolet Chevy C Silverado

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2000 🢒 Chevy C Silverado - 2WD 🢒 Body and Accessories 🢒 Wiring Systems 🢒 Power Distribution Schematics

Figure 1:	Engine Wiring Harness Junction Block Power and Grounding Components Ignition Switch, VCM/PCM, Turn/Hazard

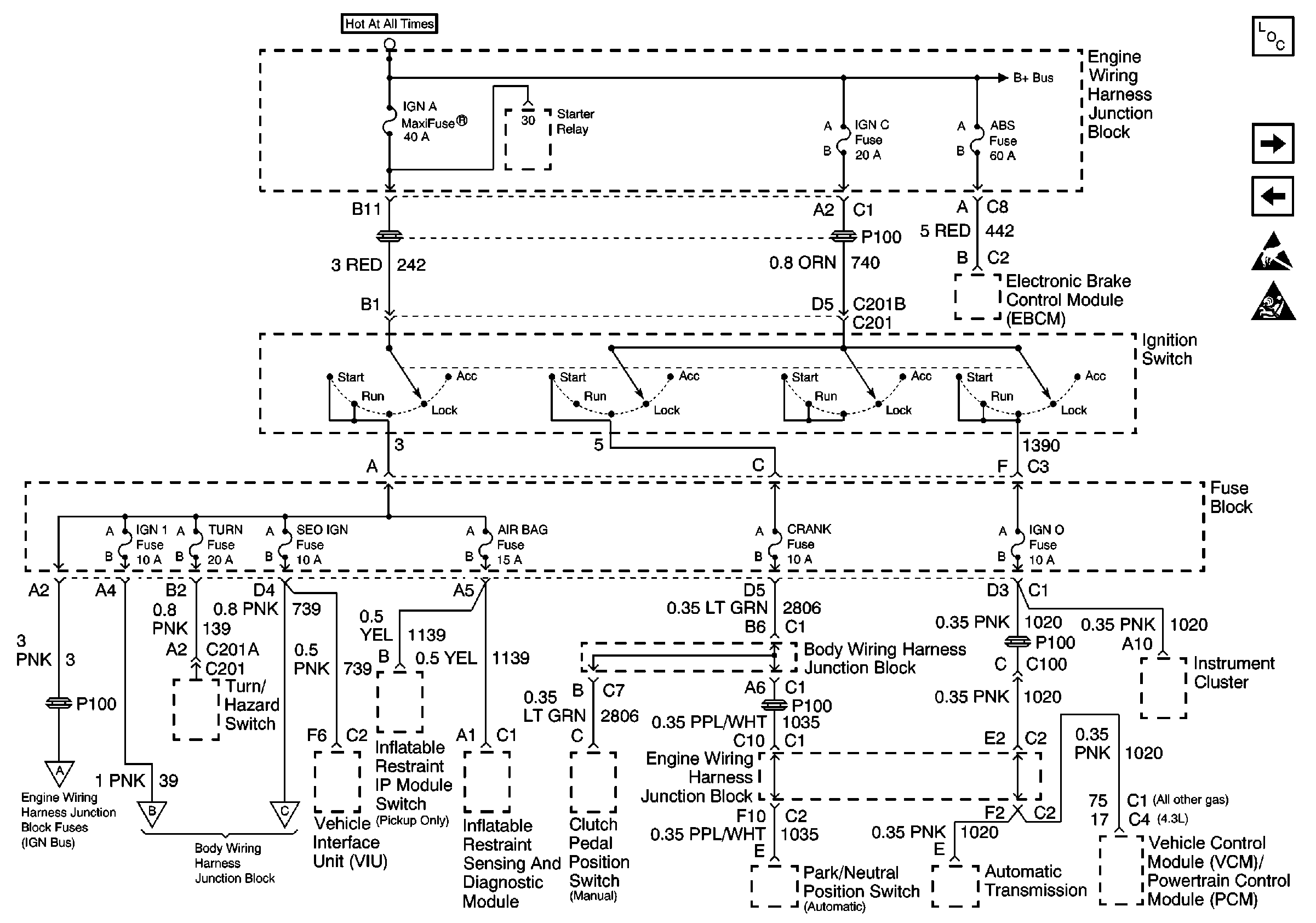

Figure 2:	Ignition Switch, VCM/PCM, Turn/Hazard Power and Grounding Components Ignition Switch, BCM, Cruise Control Engine Wiring Harness Junction Block Handling ESD Sensitive Parts Notice SIR Handling Caution MAF, AIR Pump Relay, HO2S, CMP Auxiliary Power Outlet, BCM, ATC Rear Window Wiper, ATC, Rear HVAC Blower
Figure 3:	MAF, AIR Pump Relay, HO2S, CMP Ignition Switch, VCM/PCM, Turn/Hazard Power and Grounding Components Ignition Switch, VCM/PCM, Turn/Hazard Auxiliary Power Outlet, BCM, ATC
Figure 4:	Auxiliary Power Outlet, BCM, ATC Power and Grounding Components Ignition Switch, BCM, Cruise Control MAF, AIR Pump Relay, HO2S, CMP Handling ESD Sensitive Parts Notice Ignition Switch, VCM/PCM, Turn/Hazard Ignition Switch, VCM/PCM, Turn/Hazard
Figure 5:	Ignition Switch, BCM, Cruise Control ABS, Suspension Control Module, HVAC Power and Grounding Components ABS, Suspension Control Module, HVAC Auxiliary Power Outlet, BCM, ATC Handling ESD Sensitive Parts Notice

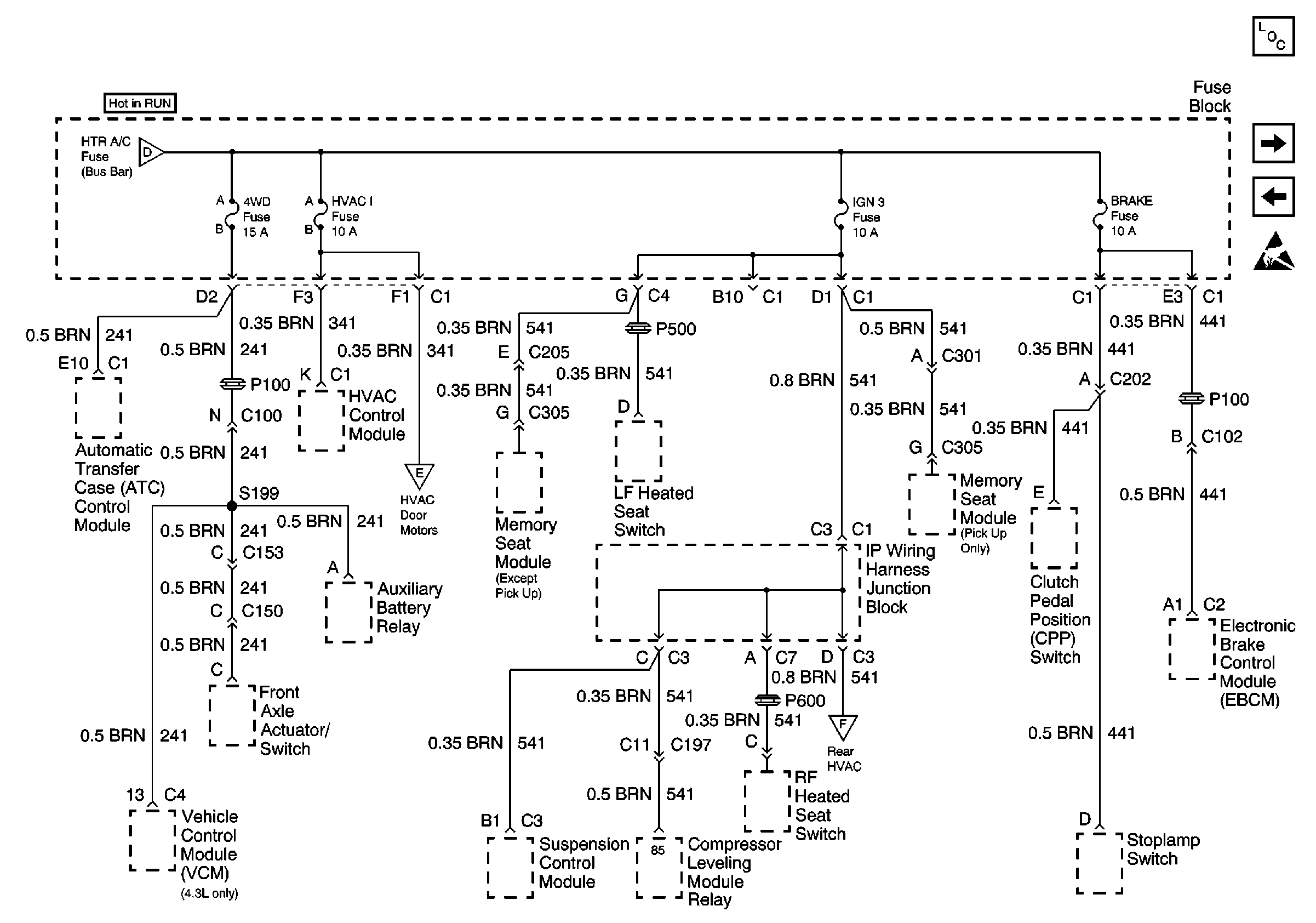

Figure 6:	ABS, Suspension Control Module, HVAC Ignition Switch, BCM, Cruise Control Front HVAC Mode Door Motors Rear HVAC Mode Door Motors Power and Grounding Components Front HVAC Mode Door Motors Ignition Switch, BCM, Cruise Control Handling ESD Sensitive Parts Notice
Figure 7:	Front HVAC Mode Door Motors Power and Grounding Components Rear HVAC Mode Door Motors ABS, Suspension Control Module, HVAC ABS, Suspension Control Module, HVAC
Figure 8:	Rear HVAC Mode Door Motors ABS, Suspension Control Module, HVAC Power and Grounding Components Rear Window Wiper, ATC, Rear HVAC Blower Front HVAC Mode Door Motors Handling ESD Sensitive Parts Notice
Figure 9:	Rear Window Wiper, ATC, Rear HVAC Blower Power and Grounding Components HVAC Control Module, VCM/PCM Rear HVAC Mode Door Motors Handling ESD Sensitive Parts Notice
Figure 10:	HVAC Control Module, VCM/PCM Power and Grounding Components BCM, AIR Pump Relay, Power Door Lock Rear Window Wiper, ATC, Rear HVAC Blower Handling ESD Sensitive Parts Notice
Figure 11:	BCM, AIR Pump Relay, Power Door Lock Power Seat Switch, Memory Seat Switch Power and Grounding Components Power Seat Switch, Memory Seat Switch HVAC Control Module, VCM/PCM Handling ESD Sensitive Parts Notice
Figure 12:	Power Seat Switch, Memory Seat Switch Power and Grounding Components IGN1 Relay, VCM/PCM, Throttle Actuator Control (TAC) Module BCM, AIR Pump Relay, Power Door Lock BCM, AIR Pump Relay, Power Door Lock

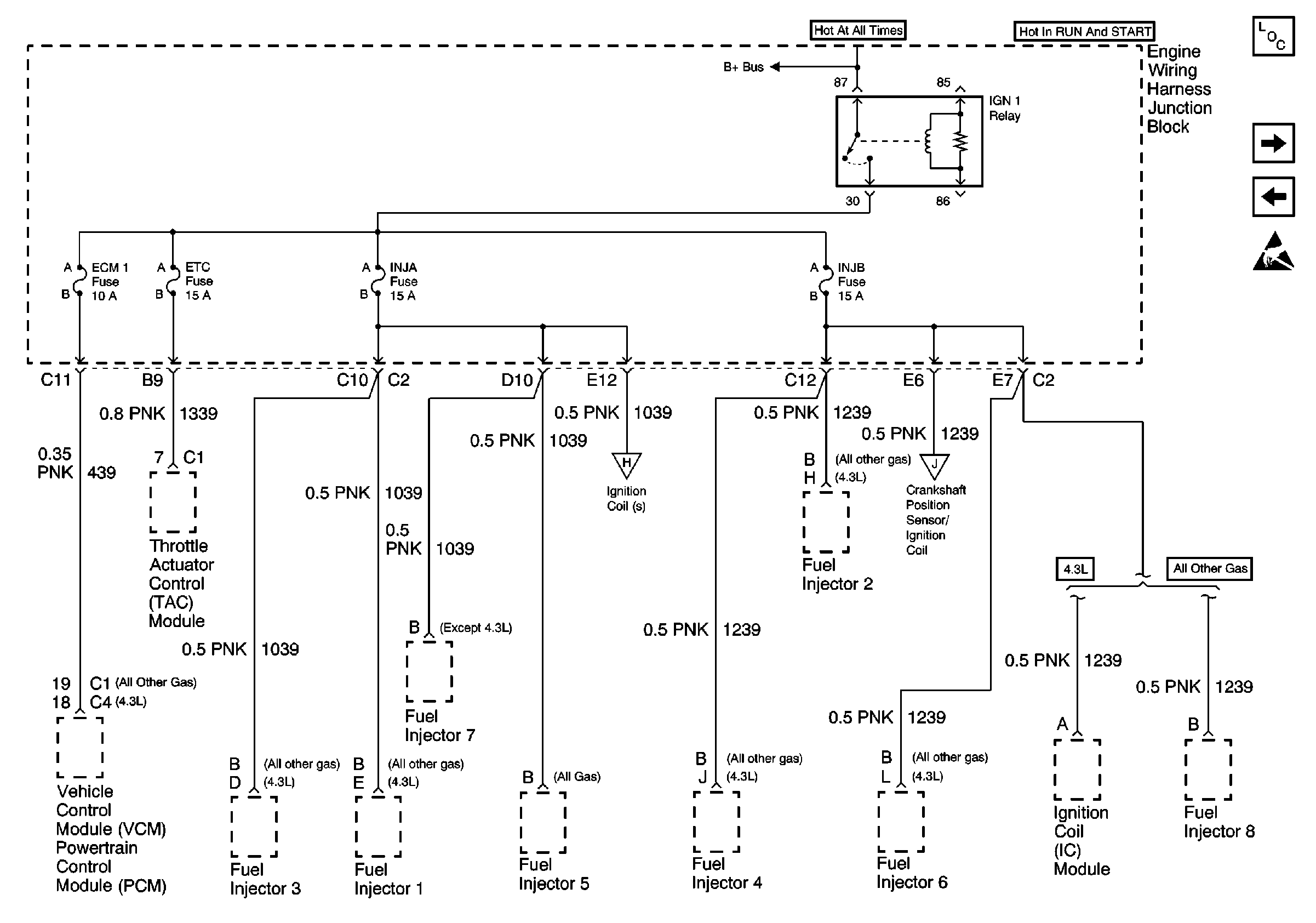

Figure 13:	IGN1 Relay, VCM/PCM, Throttle Actuator Control (TAC) Module CKP, Ignition Coils, Fuel Injector CKP, Ignition Coils, Fuel Injector Power and Grounding Components CKP, Ignition Coils, Fuel Injector Power Seat Switch, Memory Seat Switch Handling ESD Sensitive Parts Notice
Figure 14:	CKP, Ignition Coils, Fuel Injector IGN1 Relay, VCM/PCM, Throttle Actuator Control (TAC) Module IGN1 Relay, VCM/PCM, Throttle Actuator Control (TAC) Module Power and Grounding Components IGN1 Relay, VCM/PCM, Throttle Actuator Control (TAC) Module Handling ESD Sensitive Parts Notice
