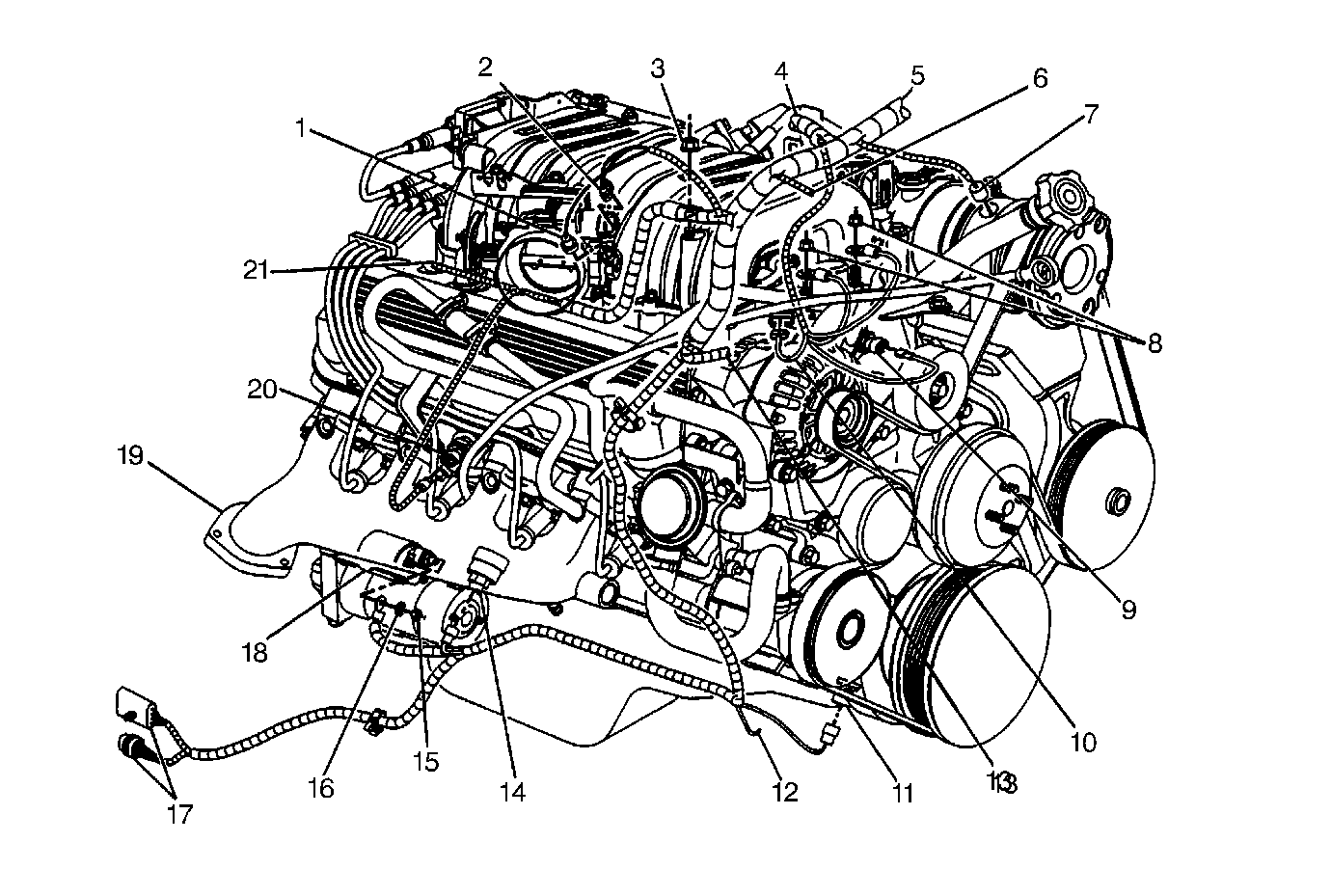

| (1) | Throttle Position Connector |
| (2) | Idle Air
Control Connector |
| (3) | Engine Wiring Harness Retainer Nut |
| (4) | Engine Wiring to LH Engine Harness |
| (5) | Engine Wiring
to I/P Harness |
| (6) | Engine Wiring to MAF and IAT Sensor Harness |
| (7) | Air Compressor Switch |
| (8) | Engine Ground
Wiring Nut |
| (9) | Coolant Temperature Switch |
| (10) | MAP Connector |
| (11) | MAP Sensor |
| (12) | Engine Wiring to AIR Pump Harness |
| (13) | Engine
Wiring to MAF and IAT Sensor |
| (14) | Knock Sensor |
| (15) | Solenoid Wiring Retaining Nut |
| (16) | Solenoid Wiring Washer |
| (17) | Engine Wiring
To Oxygen Sensor Harness |
| (18) | Starter Motor |
| (19) | Engine |
| (20) | Auxiliary Coolant Fan Switch |
| (21) | Engine Wiring to Rear Engine Harness |
