Engine Controls Schematics. Chevrolet Chevy K Pickup

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 1996 🢒 Chevy K Pickup - 4WD 🢒 Engine 🢒 Engine Controls - 4.3L (VIN W) 🢒 Engine Controls Schematics

Figure 1:	Instrument Cluster, Instrument Panel, and the DLC - 4.3L Engine Controls Components Vehicle Control Module Overview CMP, CKP, ICM, and the Ignition Coil - 4.3L A/C System - 4.3L OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 2:	CMP, CKP, ICM, and the Ignition Coil - 4.3L Engine Controls Components Enhanced Ignition System Description/Operation Fuel Pump - 4.3L Instrument Cluster, Instrument Panel, and the DLC -4.3L OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

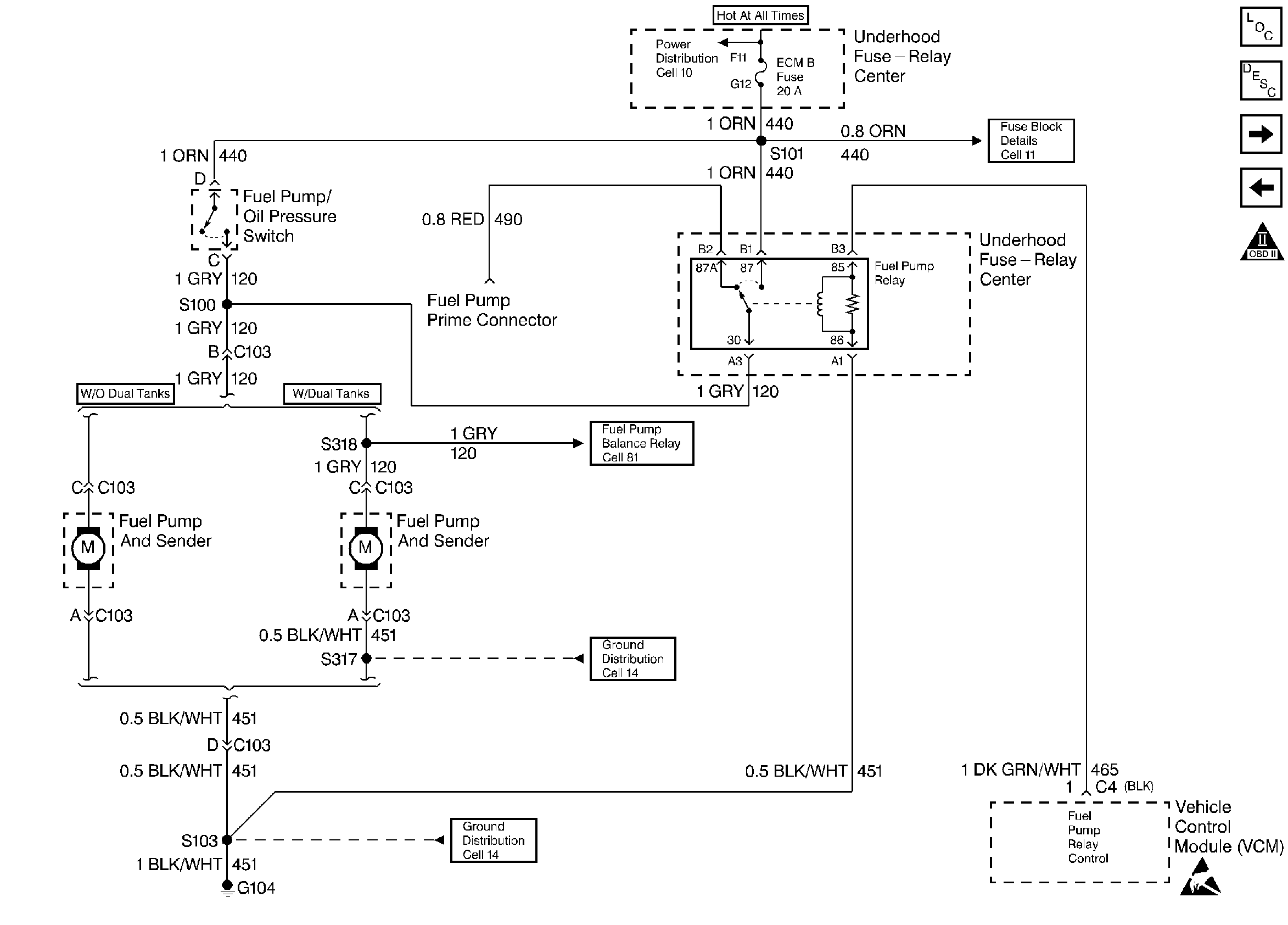

Figure 3:	Fuel Pump - 4.3L Engine Controls Components Fuel System Central SFI Fuel Injectors - 4.3L CMP, CKP, ICM, and the Ignition Coil - 4.3L OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
Figure 4:	Fuel Injectors - 4.3L Engine Controls Components Fuel System Central SFI MAP, IAT, TP, and ECT Sensors - 4.3L Fuel Pump - 4.3L OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
Figure 5:	MAP, IAT, TP, and ECT Sensors - 4.3L Engine Controls Components Information Sensors 4.3L, 5.0L MAF, EVAP, and EGR Systems - 4.3L Fuel Injectors - 4.3L OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice

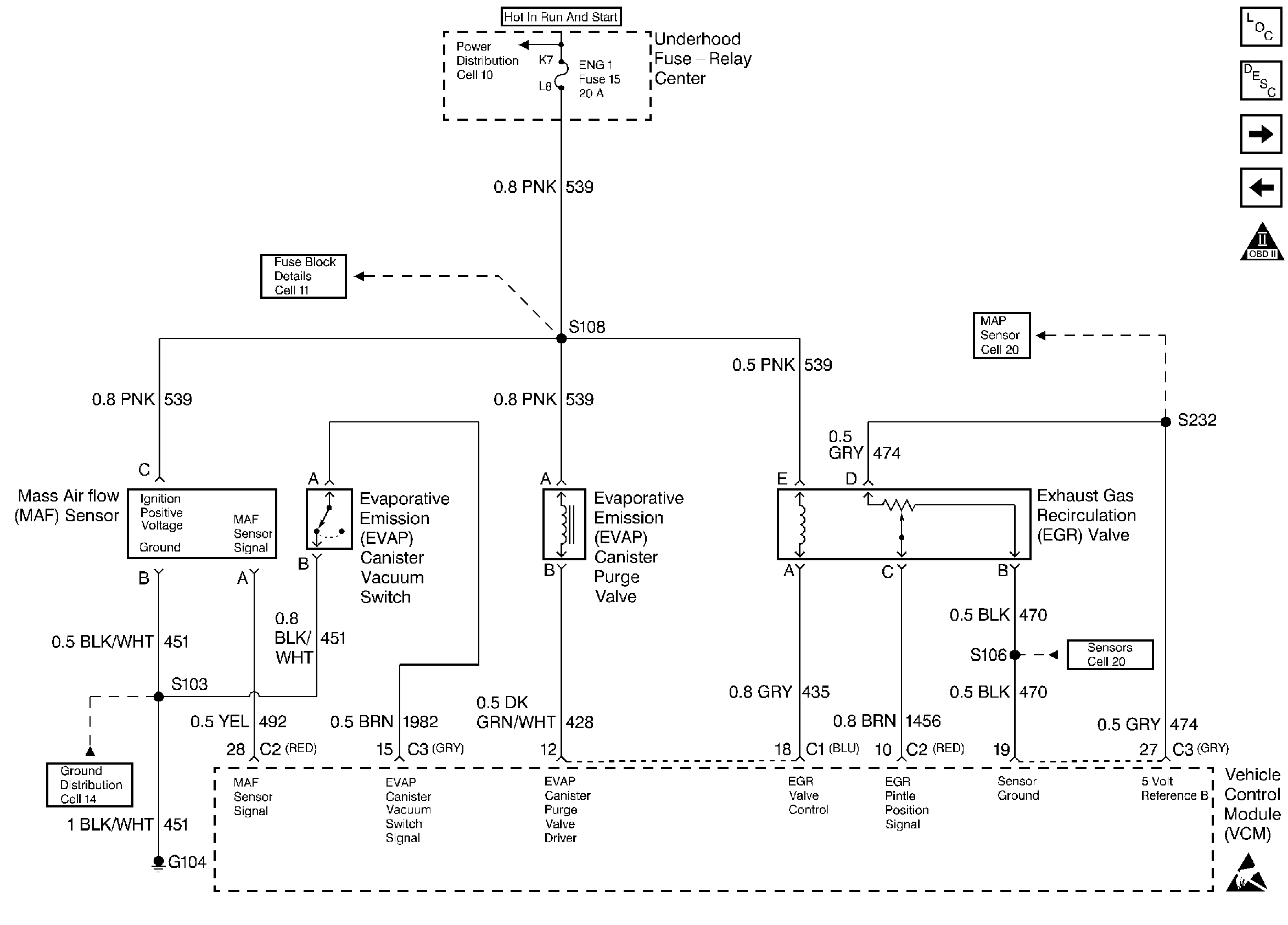

Figure 6:	MAF, EVAP, and EGR Systems - 4.3L Engine Controls Components Information Sensors 4.3L, 5.0L Heated Oxygen Sensors - 4.3L MAP, IAT, TP, and ECT Sensors - 4.3L OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
Figure 7:	Heated Oxygen Sensors - 4.3L Engine Controls Components Information Sensors 4.3L, 5.0L Idle Air Control - 4.3L MAF, EVAP, and EGR Systems - 4.3L OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice

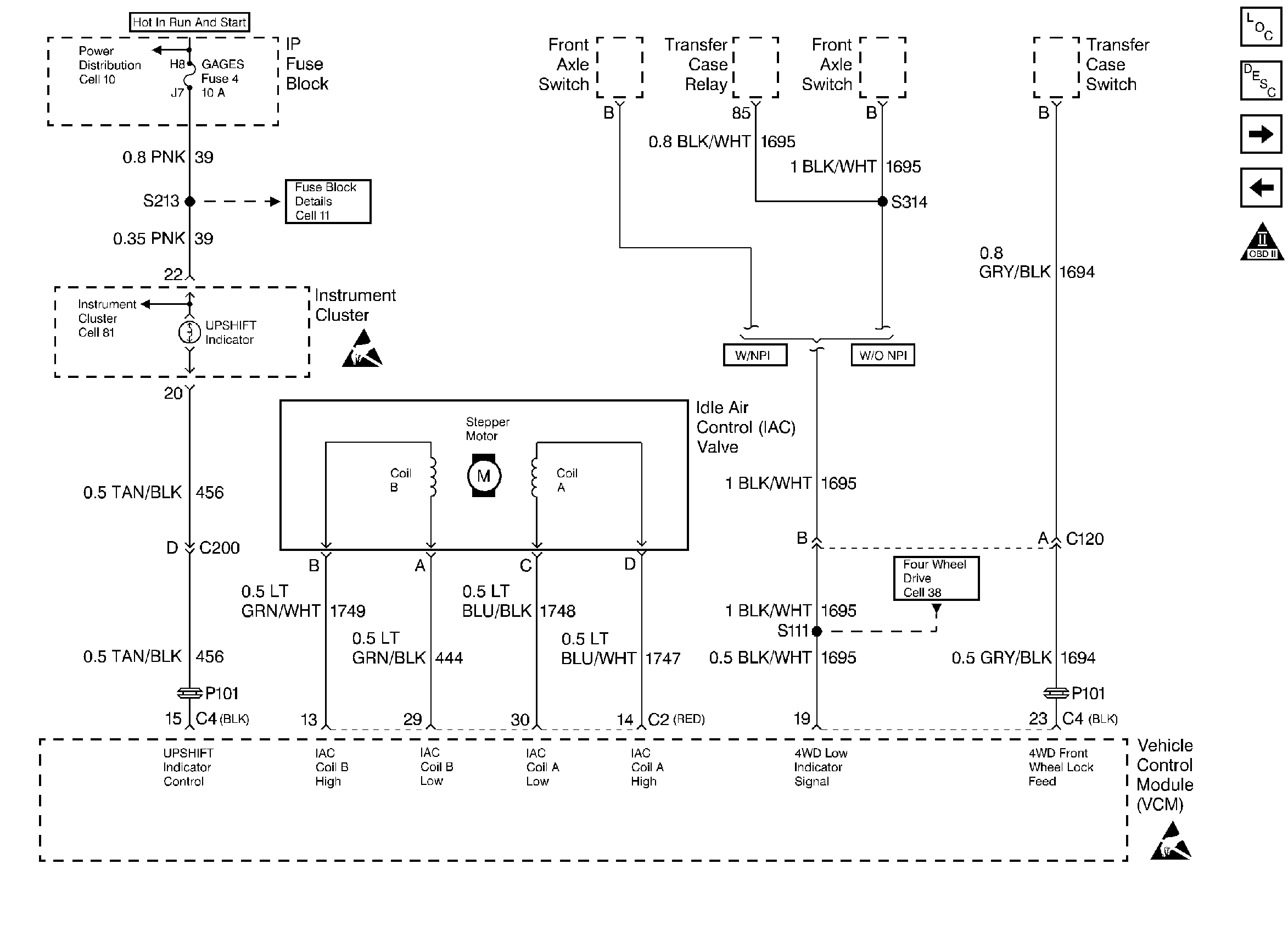

Figure 8:	Idle Air Control - 4.3L Engine Controls Components Fuel System Diagnosis Fuel Control Vehicle Speed Sensor - 4.3L Heated Oxygen Sensors - 4.3L OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 9:	Vehicle Speed Sensor - 4.3L Engine Controls Components Fuel System Diagnosis Fuel Control Transmission and the TCC - 4.3L Idle Air Control - 4.3L OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 10:	Transmission and the TCC - 4.3L Engine Controls Components Information Sensors 4.3L, 5.0L PC Solenoid and the TFP Sensor - 4.3L Vehicle Speed Sensor - 4.3L OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice

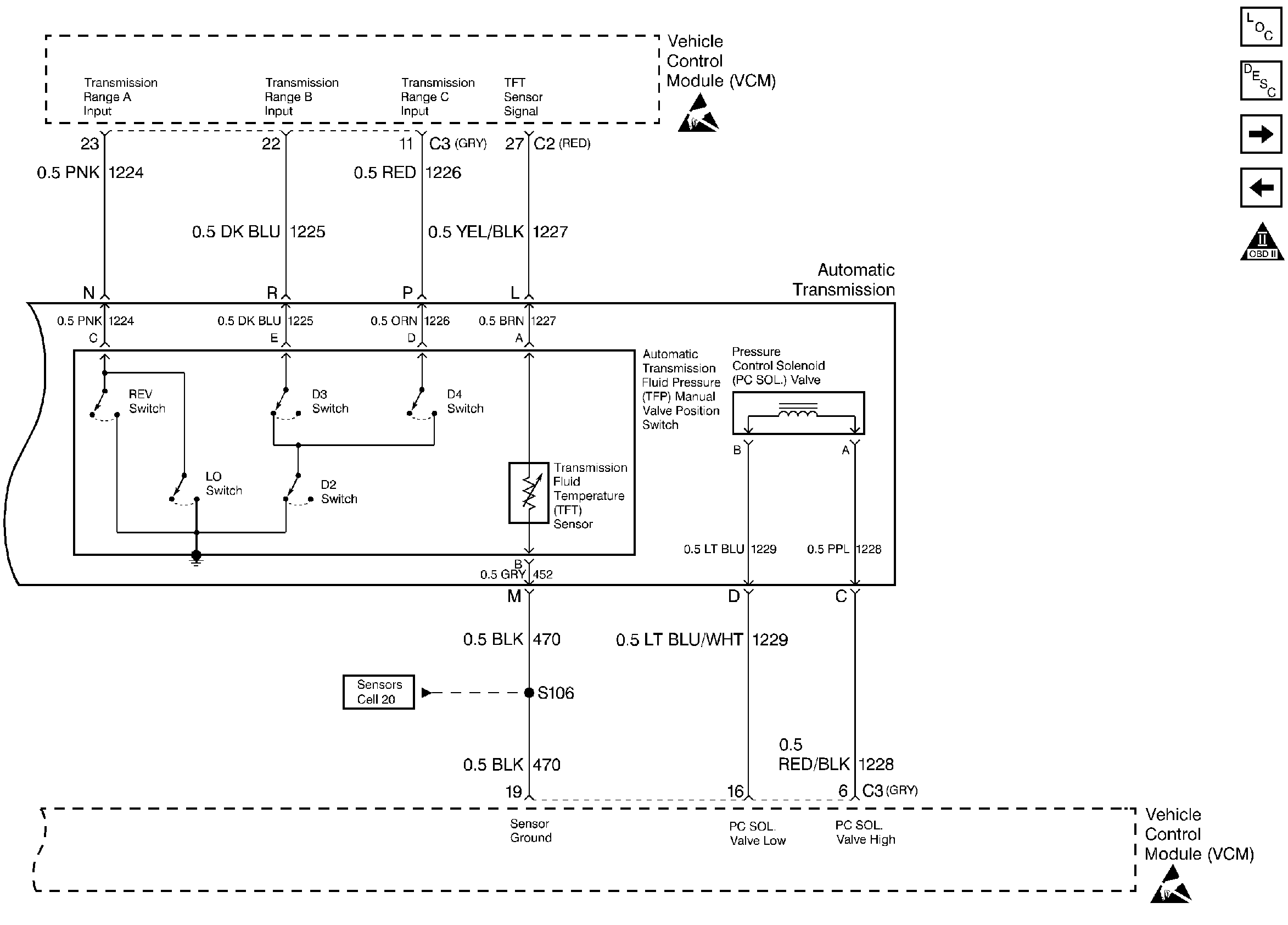

Figure 11:	PC Solenoid and the TFP Sensor - 4.3L Engine Controls Components A/C System - 4.3L Transmission and the TCC - 4.3L OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice Handling ESD Sensitive Parts Notice
Figure 12:	A/C System - 4.3L Engine Controls Components Instrument Cluster, Instrument Panel, and the DLC -4.3L PC Solenoid and the TFP Sensor - 4.3L OBD II Symbol Description Notice Handling ESD Sensitive Parts Notice
