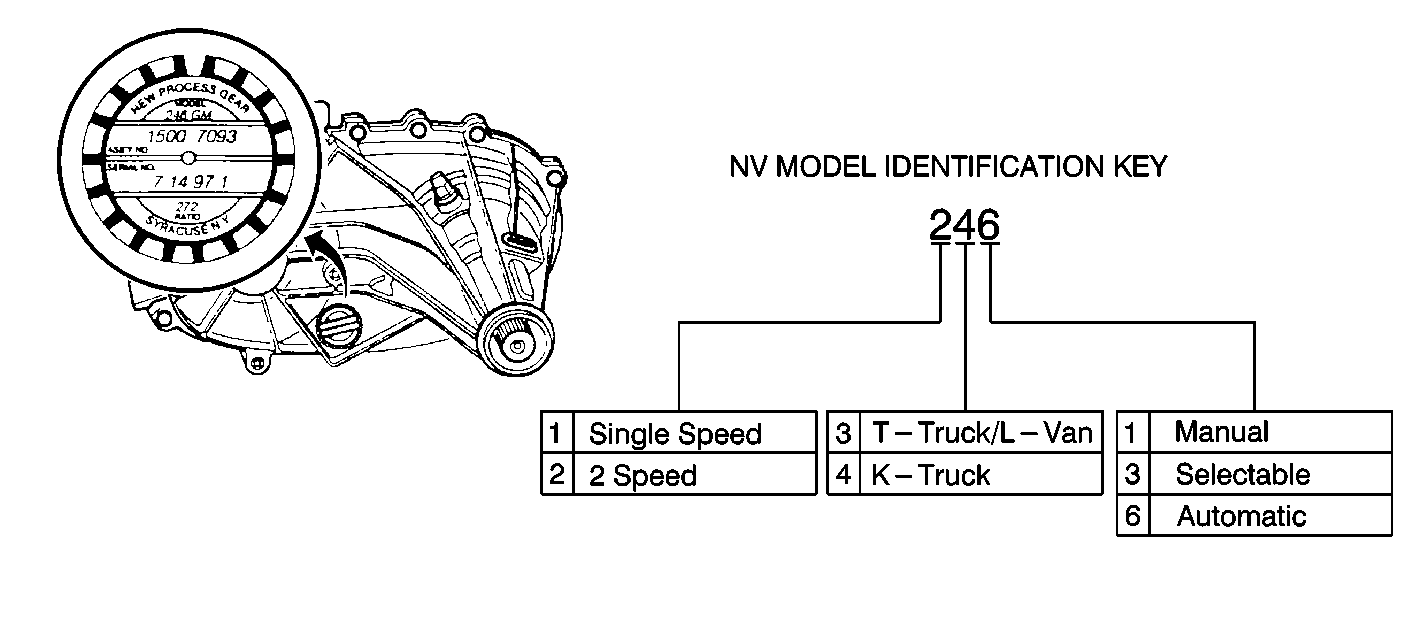

New Venture Transfer Case Identification

Borg-Warner Transfer Case Identification

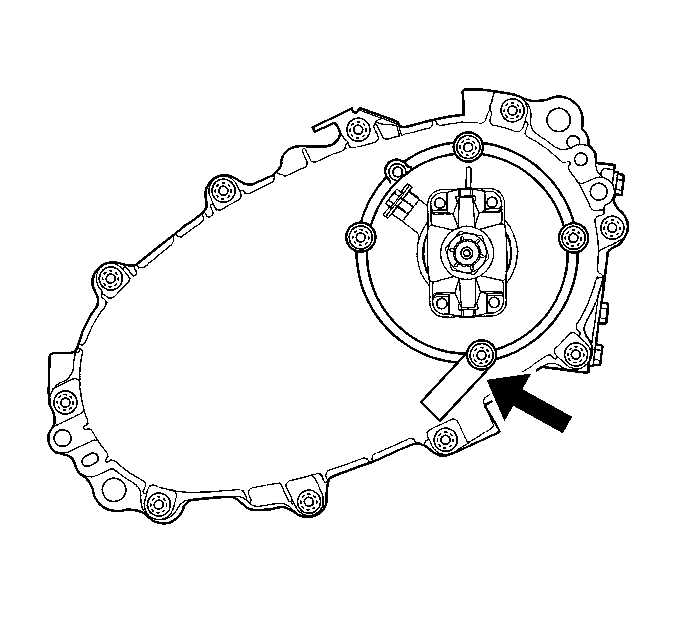

An identification tag is attached to the rear half of the transfer case. The tag provides the following information:

•	The transfer case model number

•	The low range reduction ratio

•	An assembly number

The information on this tag is necessary for servicing the transfer case. If the tag is removed or becomes dislodged during service operations, keep the identification tag with the unit.
