Removal Procedure

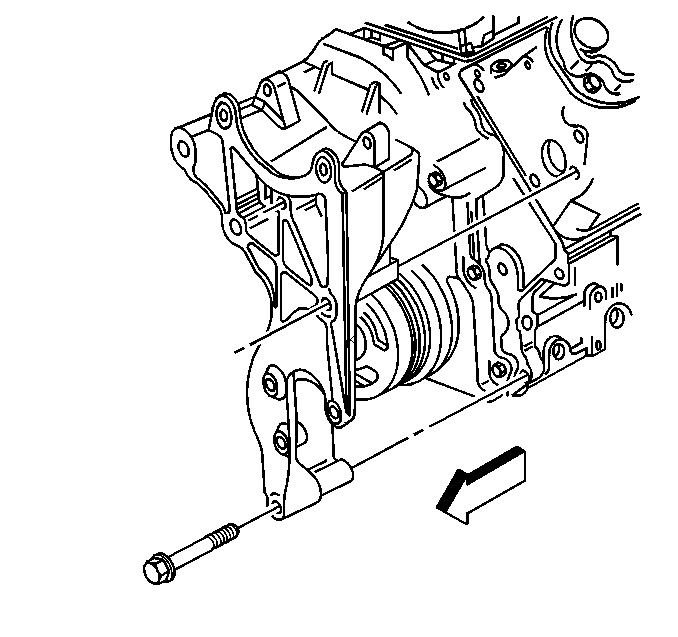

    Object Number: 310813 Size: SH
  1. Remove the generator. Refer to Generator Replacement in Engine Electrical.
  2. Remove the power steering pump. Refer to Power Steering Pump Replacement in Power Steering Systems.
  3. Remove the accessory mounting bracket from the engine using the following steps:
    4. • Remove the bolts holding the accessory mounting bracket to the cylinder head and block.
    • Remove the bolt behind the power steering pump to engine block.
    • Remove the accessory mounting bracket.

Installation Procedure

    Object Number: 310813 Size: SH

    Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

  1. Install the generator mounting bracket to the cylinder head using the nuts and the bolts.

    2. Tighten
    Tighten the bolts to 50 N·m (37 lb ft).

  2. Install the power steering pump. Refer to Power Steering Pump Replacement in Power Steering Systems.
  3. Install the generator. Refer to Generator Replacement in Engine Electrical.
