Engine Controls Schematics. Chevrolet Colorado Pickup

For 1990-2009 cars only

Makes 🢒 Chevrolet 🢒 2005 🢒 Colorado Pickup - 2WD 🢒 Body 🢒 Wiring Systems 🢒 Engine Controls Schematics

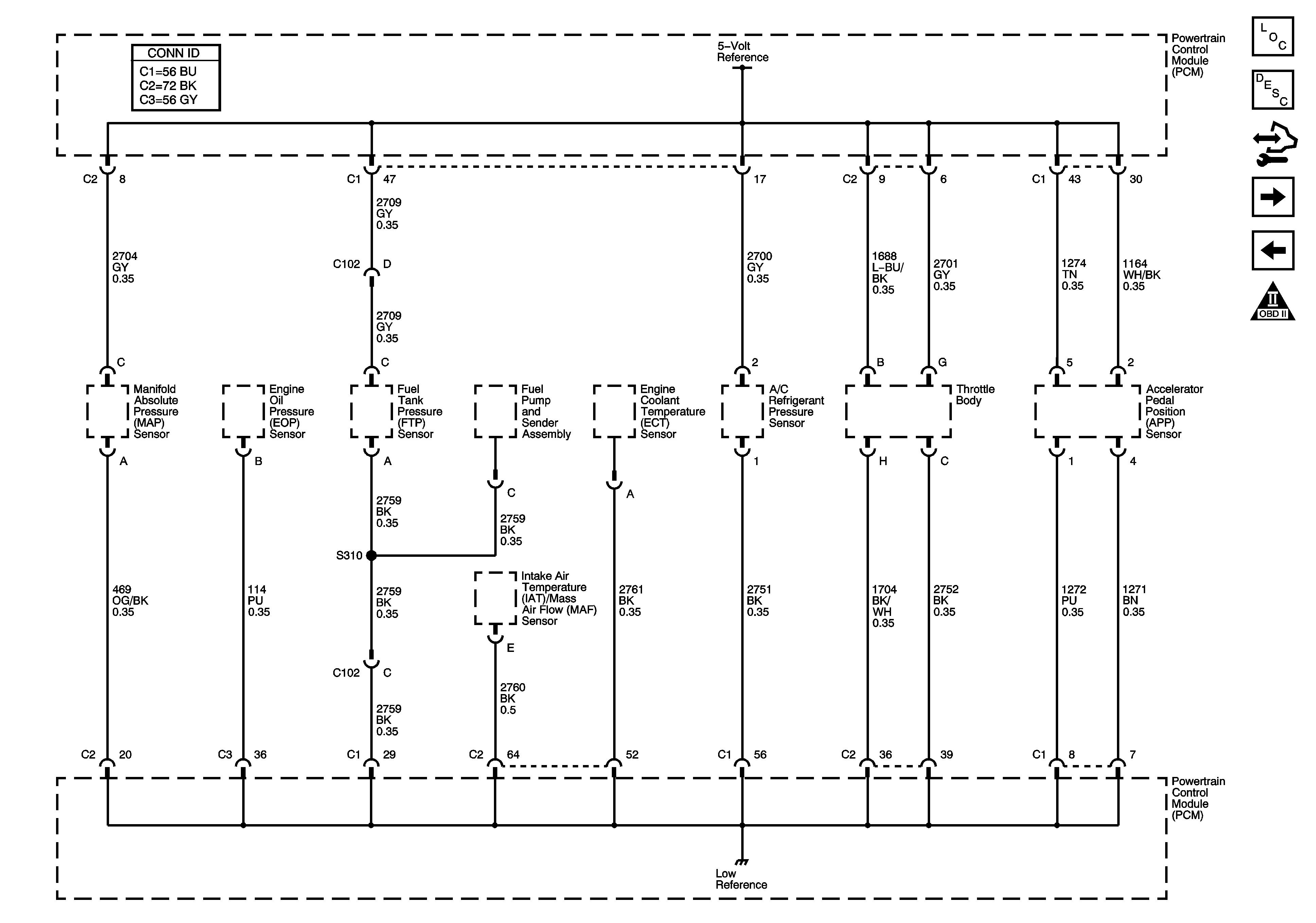

Figure 1:	Module Power, Ground, Serial Data, and MIL Master Electrical Component List Knock Sensor (KS) System Description Body Control Module (BCM) Programming/RPO Configuration Engine Data Sensors - 5-Volt and Low Reference Engine Controls Schematic Icons B+ Bus - Underhood Fuse Block B+ Bus - Underhood Fuse Block B+ Bus - Underhood Fuse Block B+ Bus - Underhood Fuse Block Data Link Connector (DLC) Schematics Splice Pack SP105 and G105 - 1 of 2 Ignition Switch and IGN TRANS D Fuse G100, G104, G102, G103, and G101 G100, G104, G102, G103, and G101

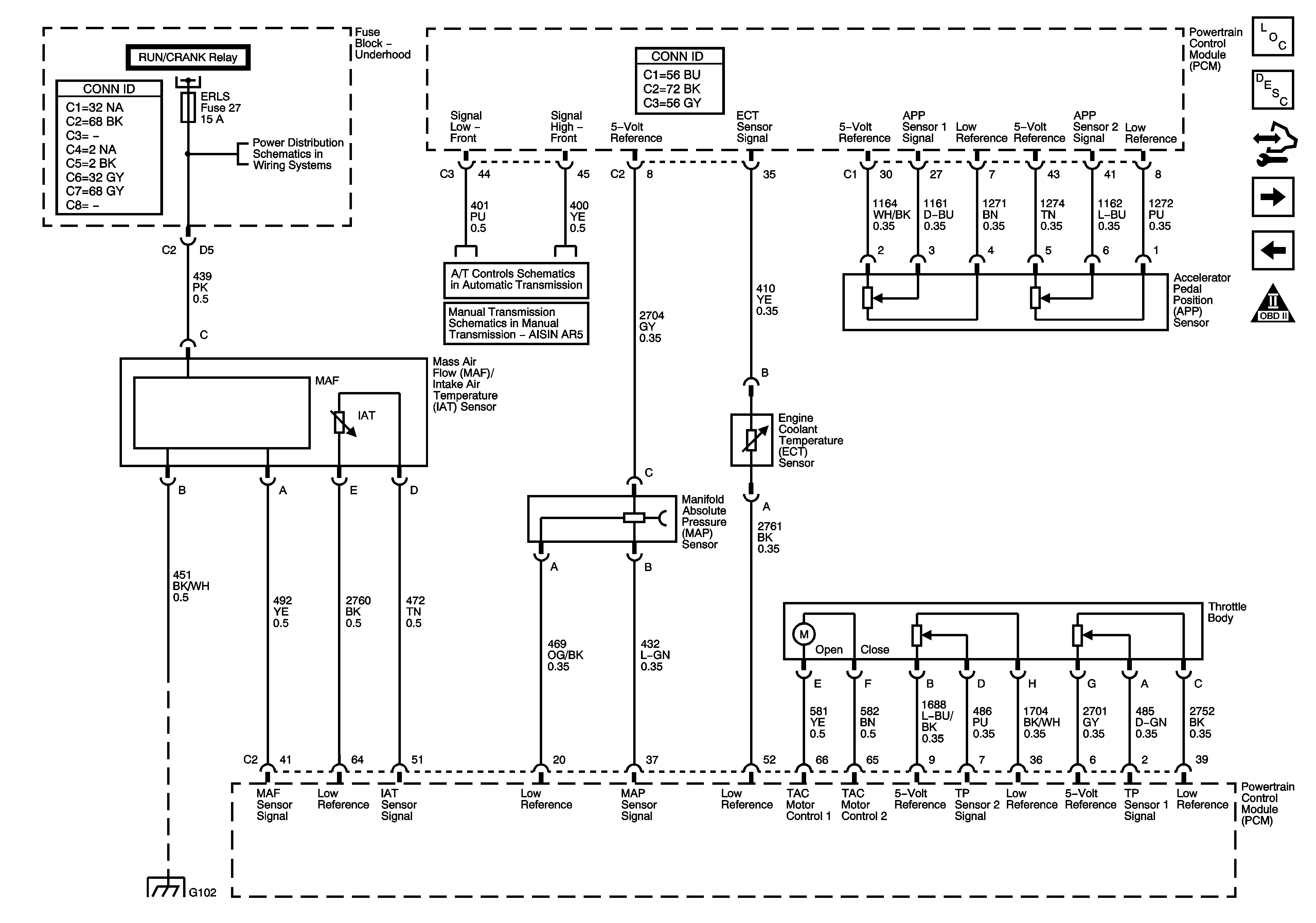

Figure 2:	Engine Data Sensors - 5-Volt and Low Reference Master Electrical Component List Fuel System Description Body Control Module (BCM) Programming/RPO Configuration Engine Data Sensors - Electronic Throttle Controls, MAF, Pressure, and Temperature Module Power, Ground, Serial Data, and MIL Engine Controls Schematic Icons
Figure 3:	Engine Data Sensors - Electronic Throttle Controls, MAF, Pressure, and Temperature Master Electrical Component List Throttle Actuator Control (TAC) System Description Body Control Module (BCM) Programming/RPO Configuration Engine Data Sensors - Oxygen Sensors Engine Data Sensors - 5-Volt and Low Reference Engine Controls Schematic Icons RUN/CRANK Relay Bus - 3 of 3, ERLS, FRT AX, INJECTOR, and PCM I Fuses TCC Brake/Cruise Release Switch and Vehicle Speed Sensor Manual Transmission Schematics G100, G104, G102, G103, and G101

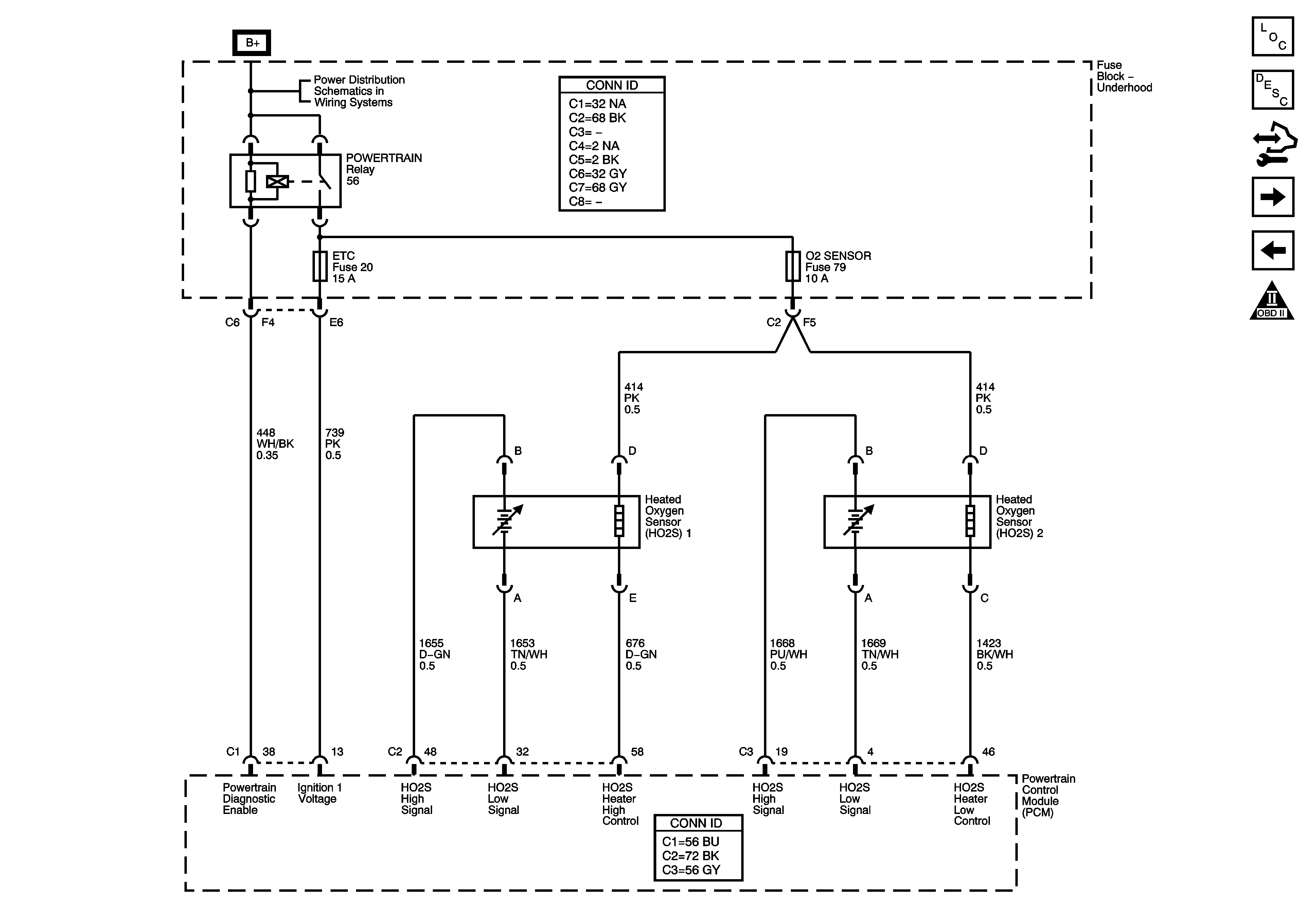

Figure 4:	Engine Data Sensors - Oxygen Sensors Master Electrical Component List Evaporative Emission Control System Description Body Control Module (BCM) Programming/RPO Configuration Ignition Controls - Ignition System Engine Data Sensors - Electronic Throttle Controls, MAF, Pressure, and Temperature Engine Controls Schematic Icons B+ Bus - Underhood Fuse Block

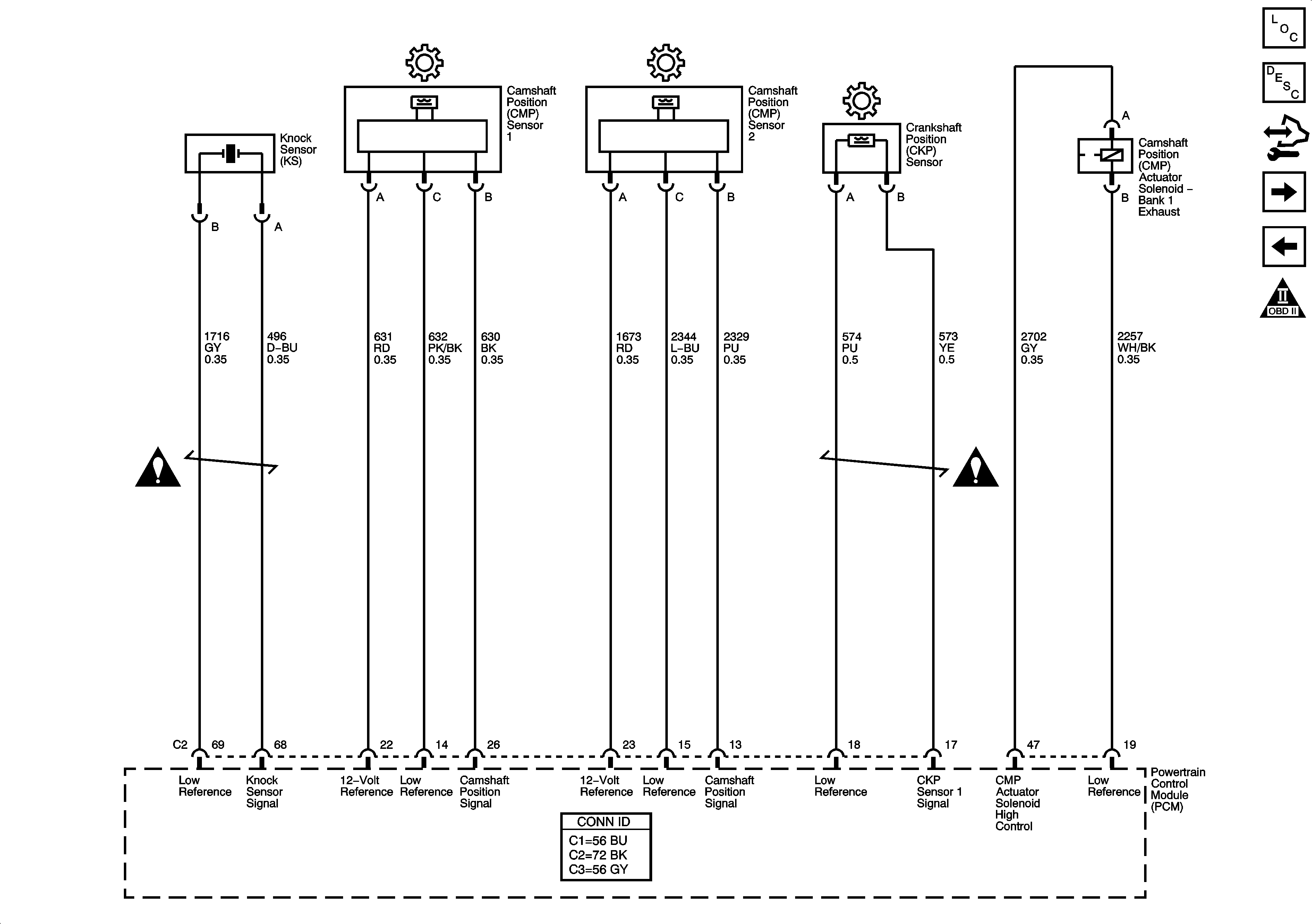

Figure 5:	Ignition Controls - Sensors Master Electrical Component List Camshaft Actuator System Description Body Control Module (BCM) Programming/RPO Configuration Ignition Controls - Ignition System Engine Data Sensors - Oxygen Sensors Engine Controls Schematic Icons Engine Controls Schematic Icons Engine Controls Schematic Icons

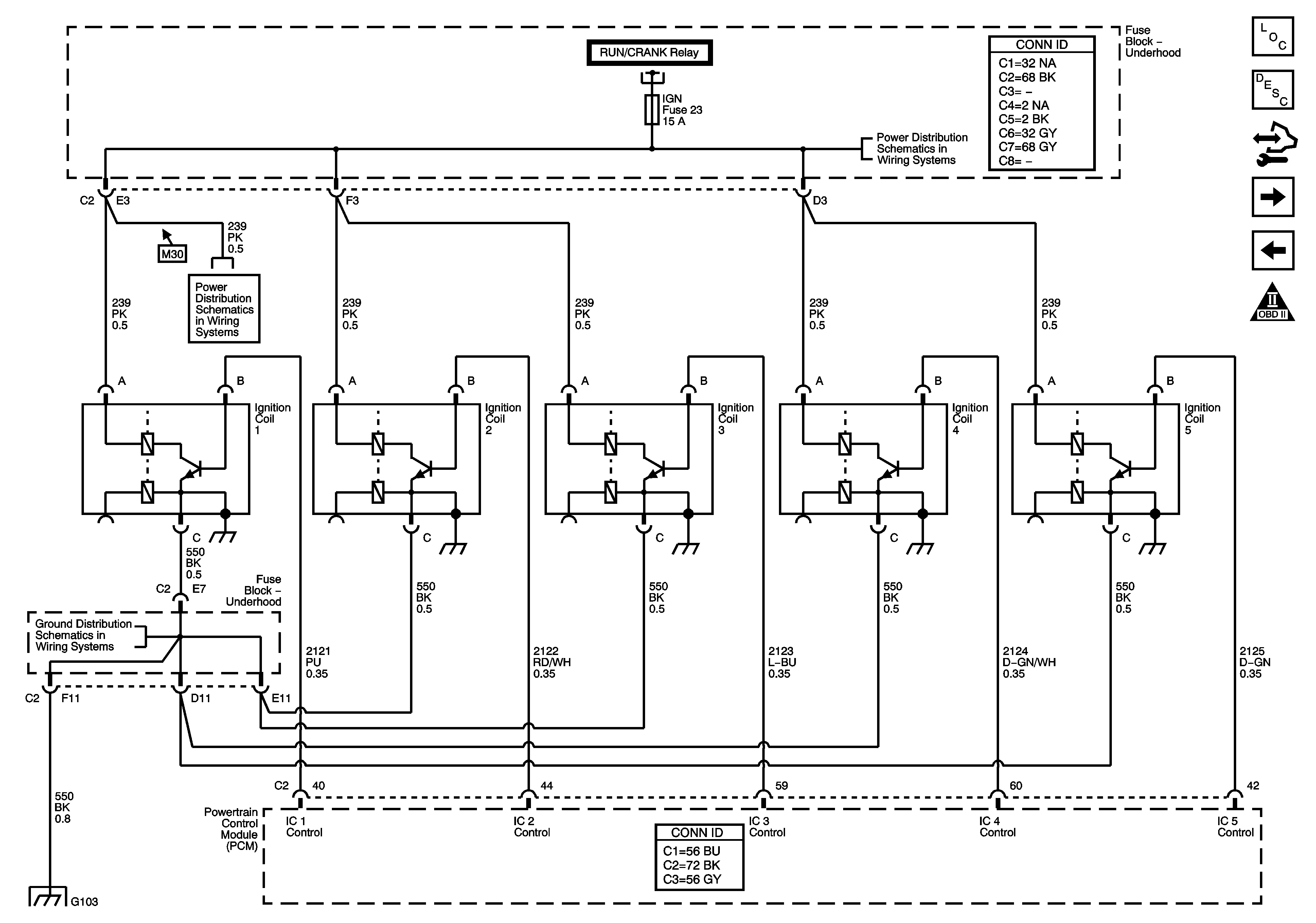

Figure 6:	Ignition Controls - Ignition System Master Electrical Component List Camshaft Actuator System Description Body Control Module (BCM) Programming/RPO Configuration Fuel Controls - Fuel Pump Controls Ignition Controls - Sensors Engine Controls Schematic Icons Module Power, Ground, Serial Data, and MIL RUN/CRANK Relay Bus - 2 of 3, ABS, BACKUP, and IGN Fuses G100, G104, G102, G103, and G101 G100, G104, G102, G103, and G101
Figure 7:	Fuel Controls - Fuel Pump Controls Master Electrical Component List Fuel System Description Body Control Module (BCM) Programming/RPO Configuration Fuel Controls - Fuel Injectors Ignition Controls - Ignition System Engine Controls Schematic Icons B+ Bus - Underhood Fuse Block Splice Pack SP105 and G105 - 1 of 2 Splice Pack SP105 and G105 - 1 of 2 Gages Splice Pack SP105 and G105 - 1 of 2 Splice Pack SP105 and G105 - 1 of 2

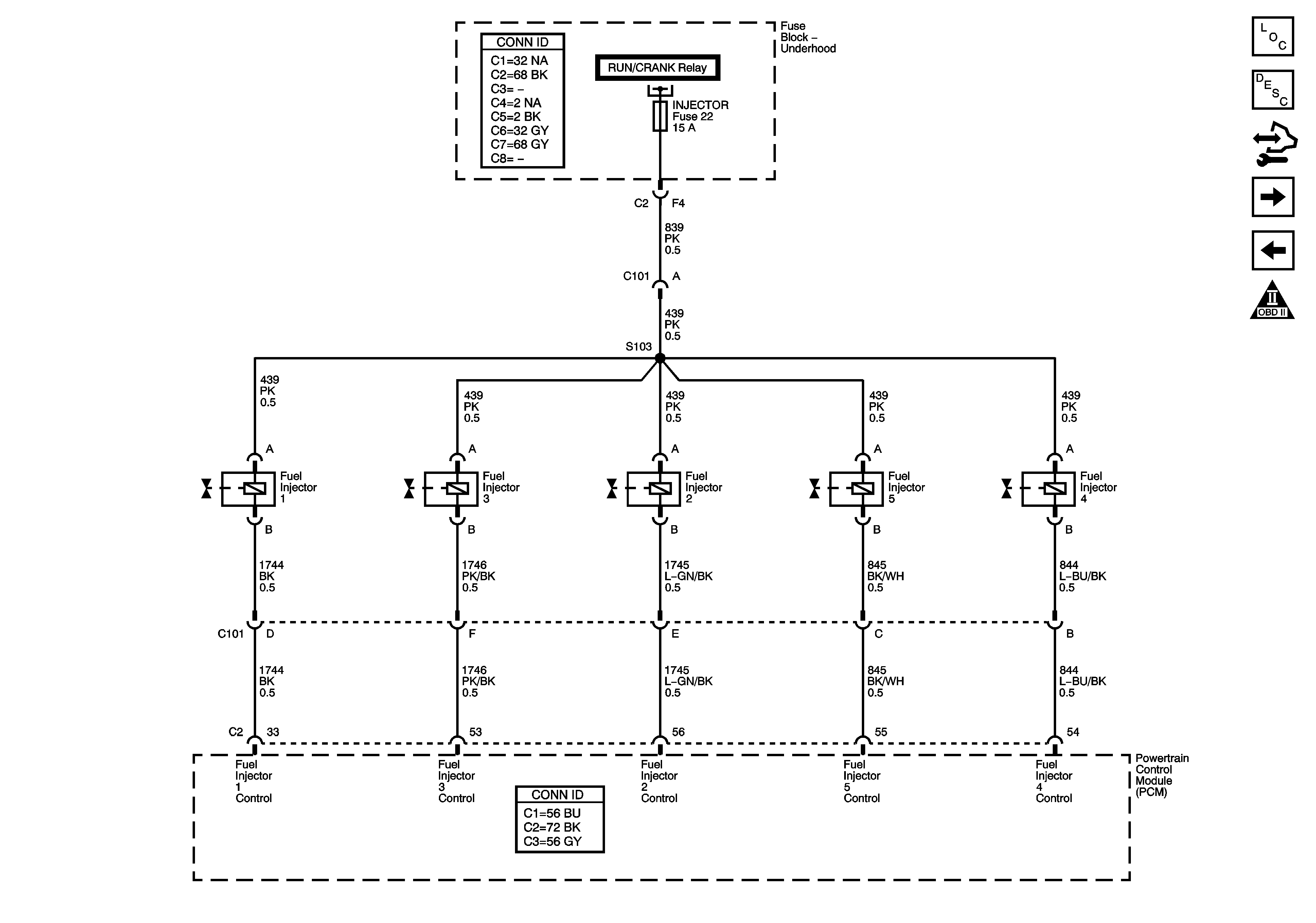

Figure 8:	Fuel Controls - Fuel Injectors Master Electrical Component List Fuel System Description Body Control Module (BCM) Programming/RPO Configuration Fuel Controls - EVAP Controls Fuel Controls - Fuel Pump Controls Engine Controls Schematic Icons B+ Bus - Underhood Fuse Block

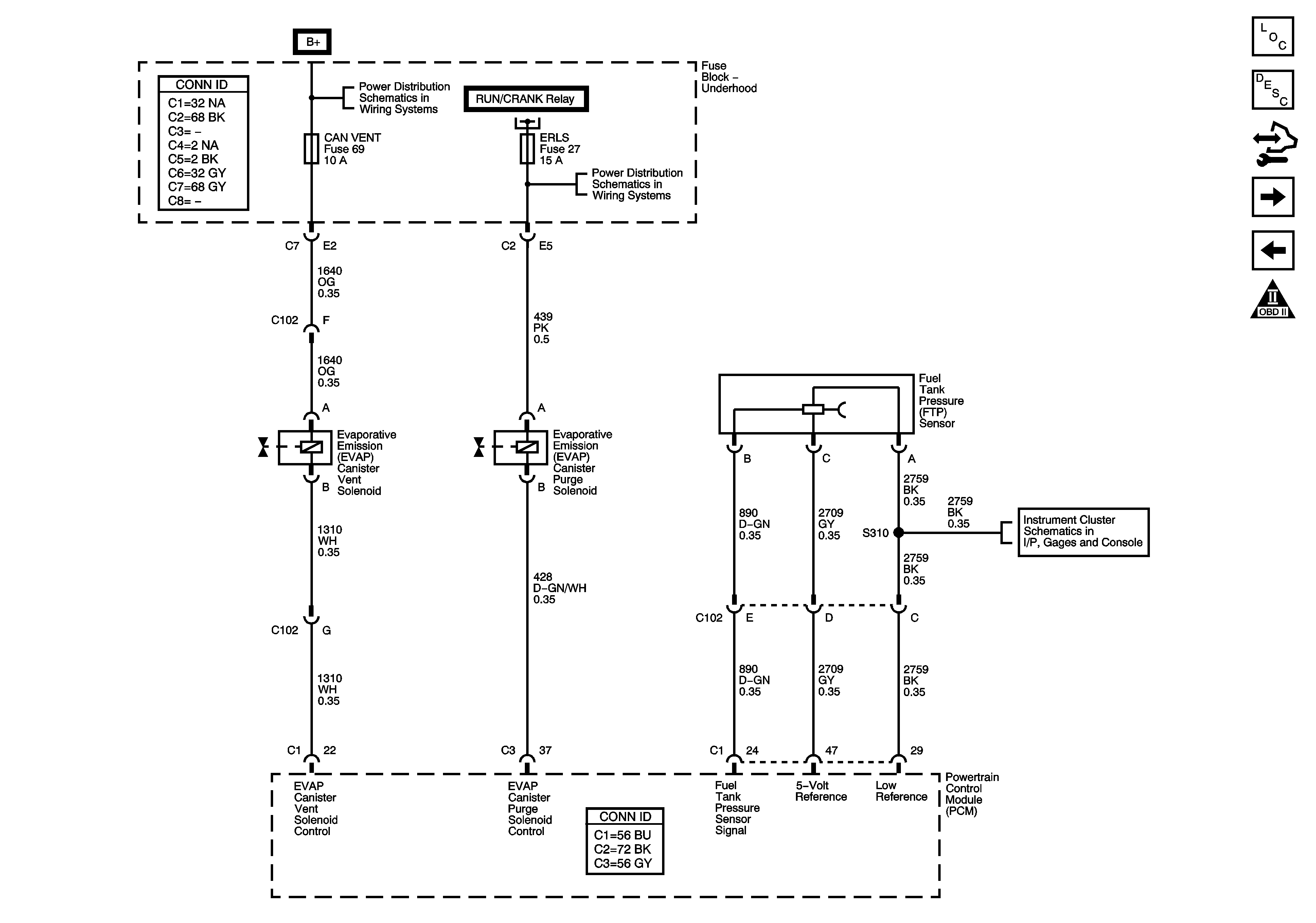

Figure 9:	Fuel Controls - EVAP Controls Master Electrical Component List Evaporative Emission Control System Description Body Control Module (BCM) Programming/RPO Configuration Controlled/Monitored Subsystem and Transmission Reference Fuel Controls - Fuel Injectors Engine Controls Schematic Icons B+ Bus - Underhood Fuse Block B+ Bus - Underhood Fuse Block Gages
Figure 10:	Controlled/Monitored Subsystem and Transmission References Master Electrical Component List Air Intake System Description Body Control Module (BCM) Programming/RPO Configuration Fuel Controls - EVAP Controls Engine Controls Schematic Icons Control Module Starting and Charging - MA5 Starting System - M30 Charging System Compressor Controls - C60 Cruise Control Schematics Indicators Stop Lamps and License Lamps Transfer Case Encoder Motor Switches and VSS Transmission Controls
