Removal Procedure

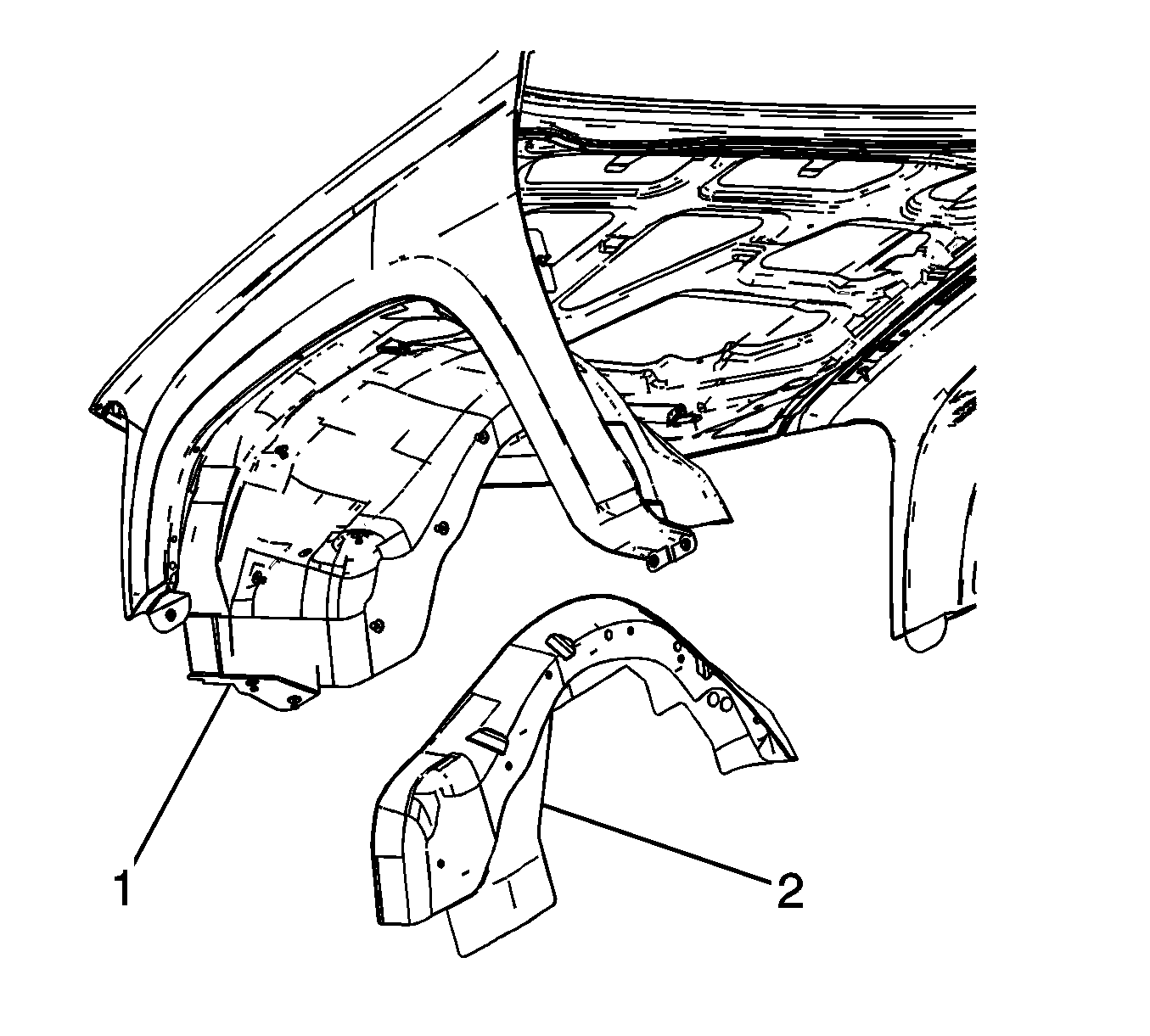

    Object Number: 1386412 Size: SH
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  3. Remove the push-pins from the inner wheelhouse liner.
  4. Remove the inner wheelhouse liner from the vehicle.
  5. Remove the push-pins from the outer wheelhouse liner.
  6. Remove the outer wheelhouse liner (2).

Installation Procedure

    Object Number: 1386412 Size: SH
  1. Install the outer wheelhouse liner (2) to the vehicle.
  2. Install the rearward push-pin into the outer wheelhouse liner.
  3. Install the remaining push-pins into the outer wheelhouse liner.
  4. Install the inner wheelhouse liner to the vehicle.
  5. Install the push-pins into the inner wheelhouse liner.
  6. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  7. Lower the vehicle.
