Computer/Integrating Systems Component Views for Chevrolet Equinox 2005

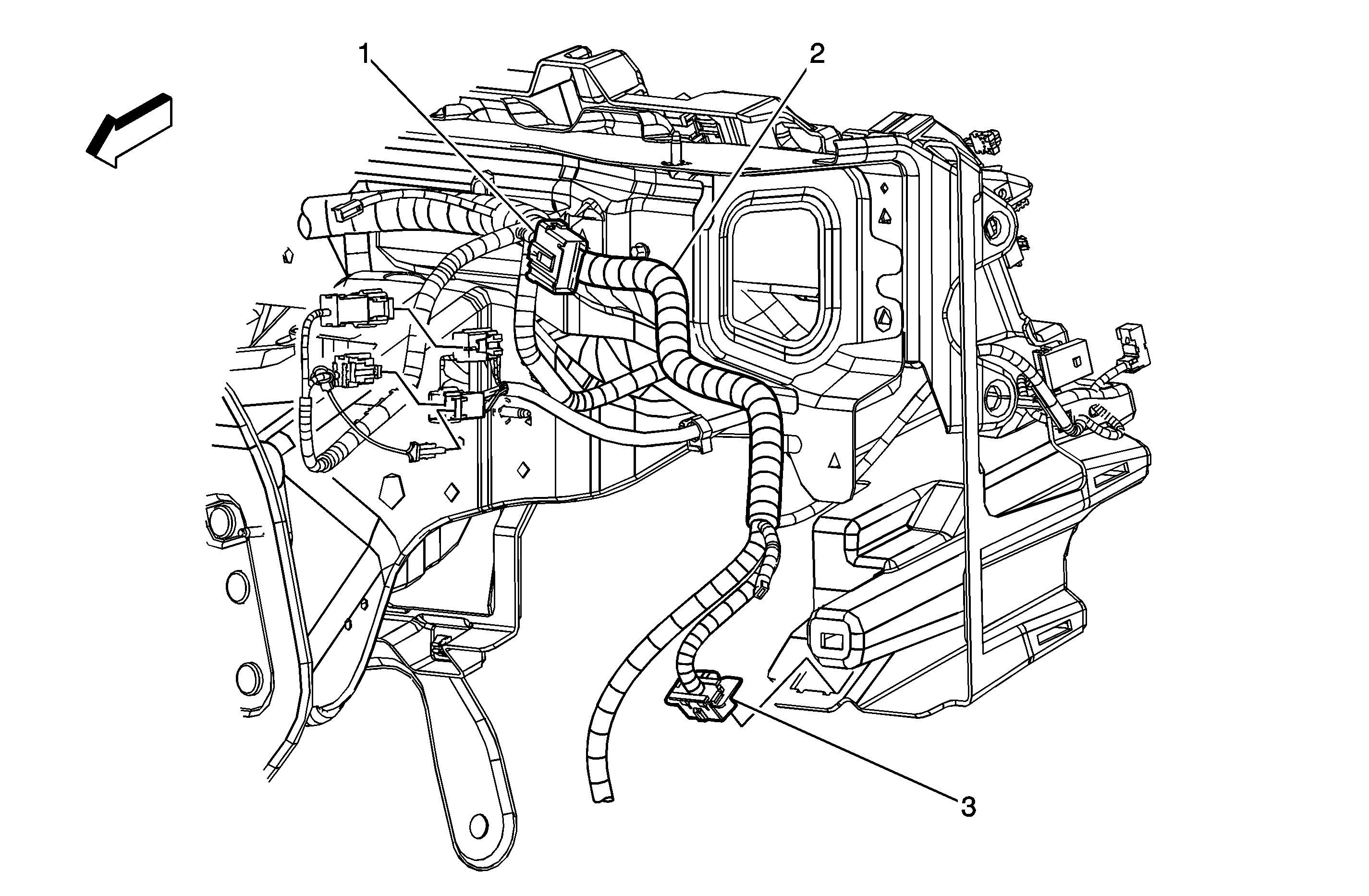

Figure
1:
Left Side of the I/P
(1)
Splice Pack SP200
(2)
I/P Harness
(3)
Data Link Connector (DLC)
Figure
2:
Center of the I/P
(1)
Body Control Module (BCM)
(2)
I/P Harness
(3)
Center I/P Support
