Remote Control Door Lock Receiver Replacement for Chevrolet Monte Carlo 2006
Callout
Component Name
Preliminary Procedure
Remove the instrument panel (I/P) upper trim panel. Refer to
Instrument Panel Upper Trim Panel Replacement
.
Program the remote control door lock receiver after replacement. Refer to
Control Module References
.

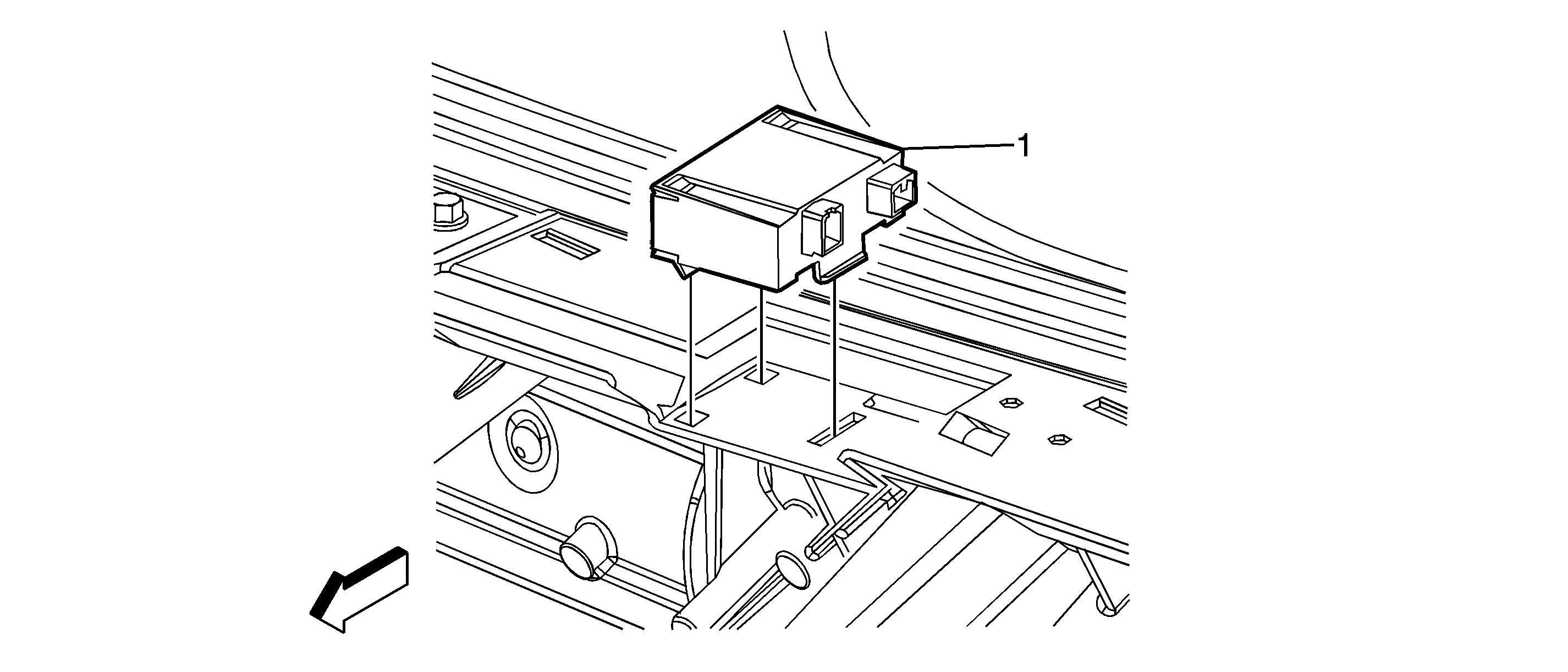

1
Transmitter Assembly, Remote Control Door Lock
Tip
•
Disconnect the electrical connector.
•
Push the 2 tabs towards the module assembly in order to release the module.
